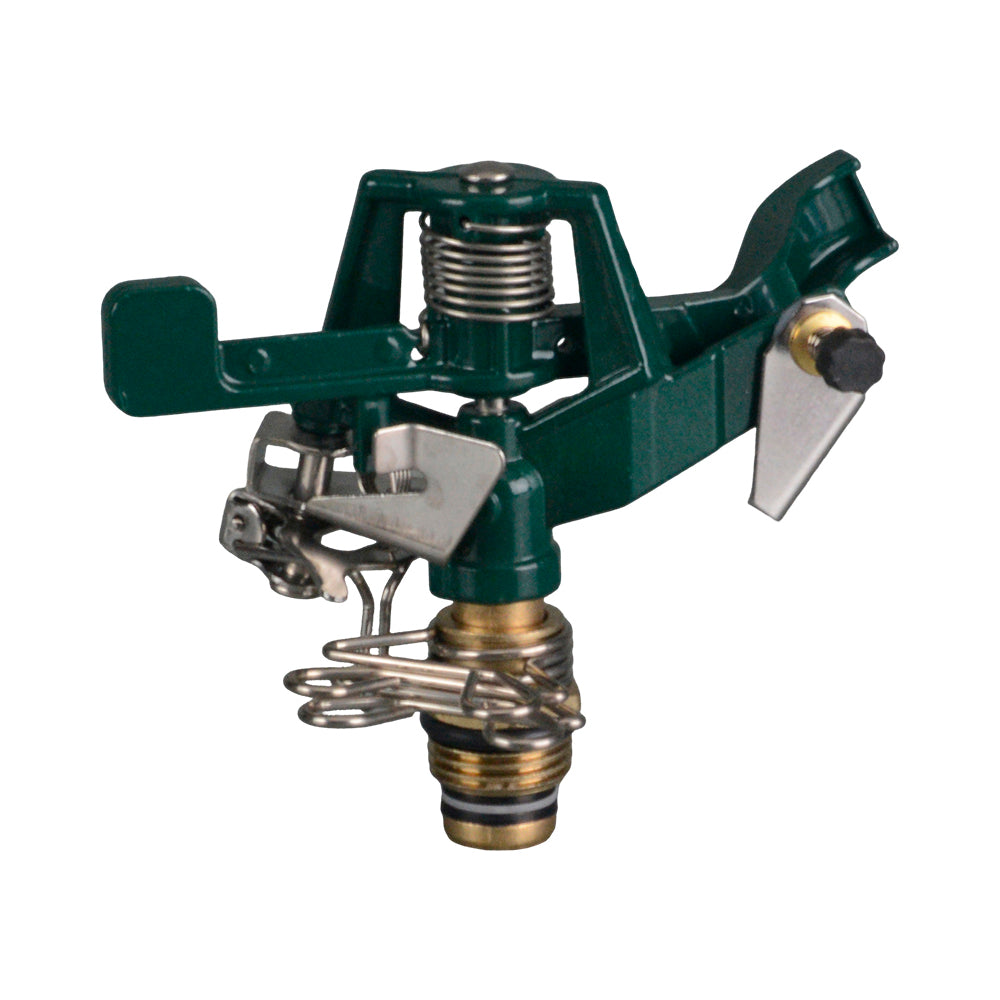

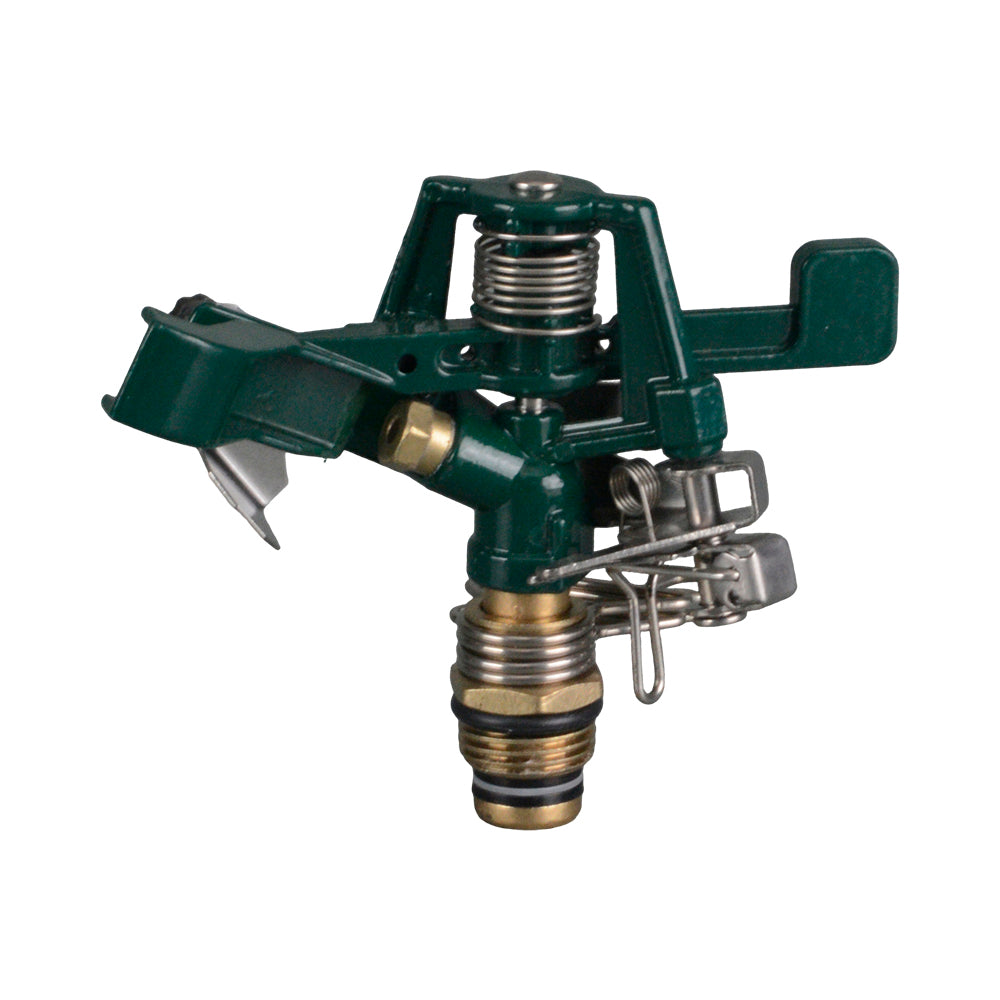

Orbit 55015 zinc impact sprinkler for lawn and garden watering. The adjustable part-circle and full-circle settings suit borders or open areas.
The anti-backsplash arm helps maintain a consistent spray pattern. A flow-through design helps reduce blockages.
Watering radius: 6.1–12.8m. Radius is the distance from the sprinkler to the outer edge of the watered area.
The spray arc is how far around the sprinkler the water sprays. For part-circle watering, lower the trip pin so it engages the two metal stop collars at the base. Move the collars to set the two points where the sprinkler reverses. Check the sweep while watering and reposition the collars as needed. Raise the trip pin clear of the collars for full-circle watering.
Use the deflector shield and diffuser screw to shorten the watering distance. Connection: 15mm (1/2") male threaded inlet.
Narrowing the arc concentrates the same flow over a smaller area, increasing the watering rate. Match nozzle flow, arc and spacing when combining sprinklers on one zone to avoid uneven watering. Changing nozzle size can also change the watering distance.
Supplied with a nozzle. Model: 55015.
Use a 15mm impact sprinkler coupling to leave room for the moving parts that extend below the sprinkler’s threaded inlet. Sold separately.
