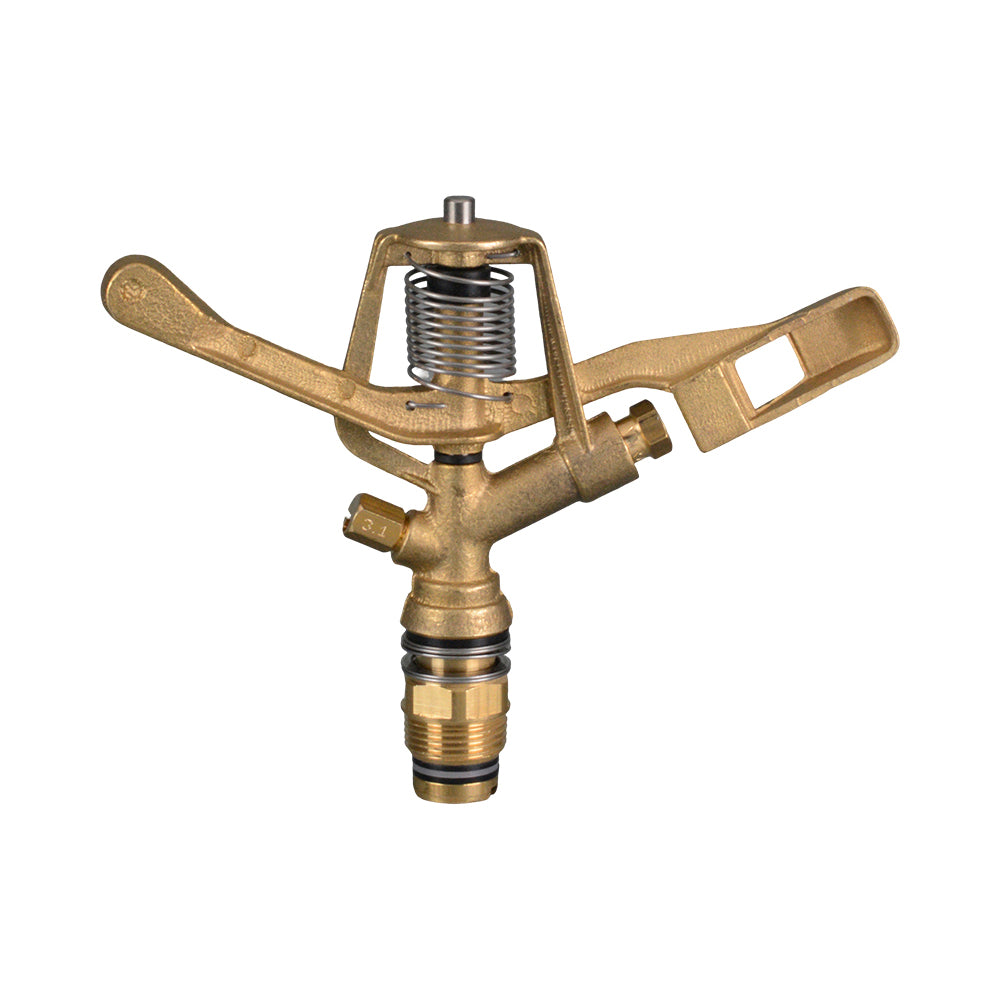

Brass VYR-70 impact sprinkler with male threaded inlet
Brass VYR-70 impact sprinkler with male threaded inlet

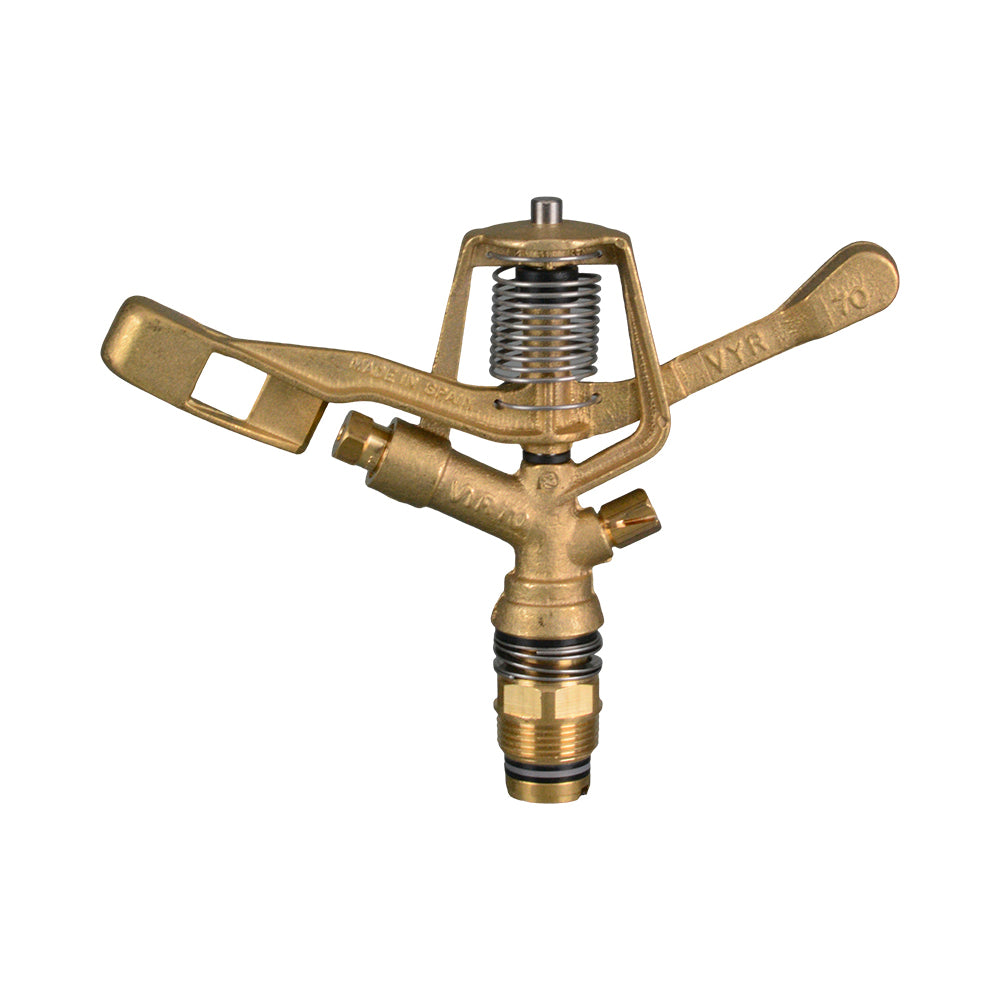

Brass VYR-70 impact sprinkler, opposite side
Brass VYR-70 impact sprinkler, opposite side
Brass VYR-70 impact sprinkler with male threaded inlet
Brass VYR-70 impact sprinkler, opposite side

IMPACT BRASS

VYR-70 brass impact sprinkler for full-circle watering of open agricultural areas. Two nozzles spray at different angles to distribute water across the watering area.

✓ Inlet: 20mm (3/4") male BSP
✓ Coverage: 16.3m radius at 420 kPa
✓ Spray Pattern: Full circle, 360°
✓ Flow: 43.8 L/min at 420 kPa
✓ Supplied Nozzles: 4.8mm + 3.2mm

Use a 20mm impact sprinkler coupling to leave room for the moving parts that extend below the sprinkler’s threaded inlet. Sold separately.

15mm Full Circle VYR-25 Specifications
15mm Part Circle VYR-80 Specifications
15mm Part Circle Orbit 55015 Specifications
20mm Full Circle VYR-70 Specifications
20mm Part Circle VYR-60 Specifications
25mm Full Circle VYR-70V Specifications
25mm Part Circle VYR-65 Specifications
32mm Full Circle VYR-155 Specifications
32mm Part Circle VYR-150 Specifications

More Information
Product Specifications
Brass VYR-70 impact sprinkler with male threaded inlet
IMPACT BRASS
Brass VYR-25 impact sprinkler with spring-loaded arm
Sprinkler Brass Impact VYR-25 (1/2" Male) Full Circle (Radius 8.2m - 8.9m) SPBI12FC
$34.74 /each
Brass VYR-80 impact sprinkler showing arc adjustment mechanism
Sprinkler Brass Impact VYR-80 (1/2" Male) Part Circle (Radius 12m - 13m) SPBI12PC
$47.95 /each
Green metal Orbit impact sprinkler with brass threaded inlet
Sprinkler Metal Impact Orbit (1/2" Male) Full/Part Circle (Radius 6.1m – 12.1m) SPAFC112
$15.79 /each
Brass VYR-70 impact sprinkler with male threaded inlet
Sprinkler Brass Impact VYR-70 (3/4" Male) Full Circle (Radius 16.3m - 16.6m) SPBI34FC
$59.36 /each
Brass VYR-60 impact sprinkler showing arc adjustment mechanism
Sprinkler Brass Impact VYR-60 (3/4" Male) Part Circle (Radius 15.6m - 16m) SPBI34PC
$81.82 /each
Brass VYR-70V impact sprinkler with female threaded inlet
Sprinkler Brass Impact VYR-70V (1" Female) Full Circle (Radius 21.1m - 23m) SPBI1FCF
$174.19 /each
Brass VYR-65 impact sprinkler showing spring and arm
Sprinkler Brass Impact VYR-65 (1" Male) Part Circle (Radius 17.7m - 19.8m) SPBI1PC
$209.71 /each
Brass VYR-155 impact sprinkler with extended silver barrel
Sprinkler Brass Impact VYR-155 (1-1/4" Male) Full Circle (Radius 29.5m - 33m) SPBI114FCBO
$243.03 /each
Brass VYR-150 impact sprinkler with spring-loaded arm
Sprinkler Brass Impact VYR-150 (1-1/4" Male) Part Circle (Radius 34m - 36m) SPBI114PC
$394.76 /each

VYR-70 brass impact sprinkler for full-circle watering of open agricultural areas.

Two nozzles spray at different angles to distribute water across the watering area.

With the supplied 4.8mm + 3.2mm nozzles, the sprinkler waters a 16.3m radius at 420 kPa. Radius is the distance from the sprinkler to the outer edge of the watered area.
Flow is 43.8 L/min at this pressure. Connection: 20mm (3/4") male BSP inlet.

Coverage and flow vary with nozzle size, pressure and adjustment. Use the performance chart when selecting sprinkler spacing.

Use a 20mm impact sprinkler coupling to leave room for the moving parts that extend below the sprinkler’s threaded inlet. Sold separately.

Supplier code: VYR-704832.

15mm Full Circle VYR-25 Specifications
15mm Part Circle VYR-80 Specifications
15mm Part Circle Orbit 55015 Specifications
20mm Full Circle VYR-70 Specifications
20mm Part Circle VYR-60 Specifications
25mm Full Circle VYR-70V Specifications
25mm Part Circle VYR-65 Specifications
32mm Full Circle VYR-155 Specifications
32mm Part Circle VYR-150 Specifications

✓ Product Type and Application
VYR-70 brass impact sprinkler for full-circle watering of open agricultural areas.
An impact sprinkler uses the water stream to drive a spring-loaded arm, turning the sprinkler in steps as it waters.

✓ Watering Performance and Benefits
Two nozzles spray at different angles to distribute water across the watering area.

✓ Coverage and Spray Pattern
Radius: 16.3–16.6m at 420–490 kPa with the supplied nozzles.
Radius is the distance from the sprinkler to the outer edge of the watered area.
Spray pattern: Full circle, 360°.

✓ Supplied Nozzles
4.8mm + 3.2mm.

✓ Pressure & Flow
At 420 kPa: 16.3m radius; 43.8 L/min.
Coverage and flow vary with nozzle size, pressure and adjustment. Use the performance chart when selecting sprinkler spacing.

✓ Construction
Brass body.

✓ Connection
20mm (3/4") male BSP inlet.

✓ Identification
Supplier code: VYR-704832.
