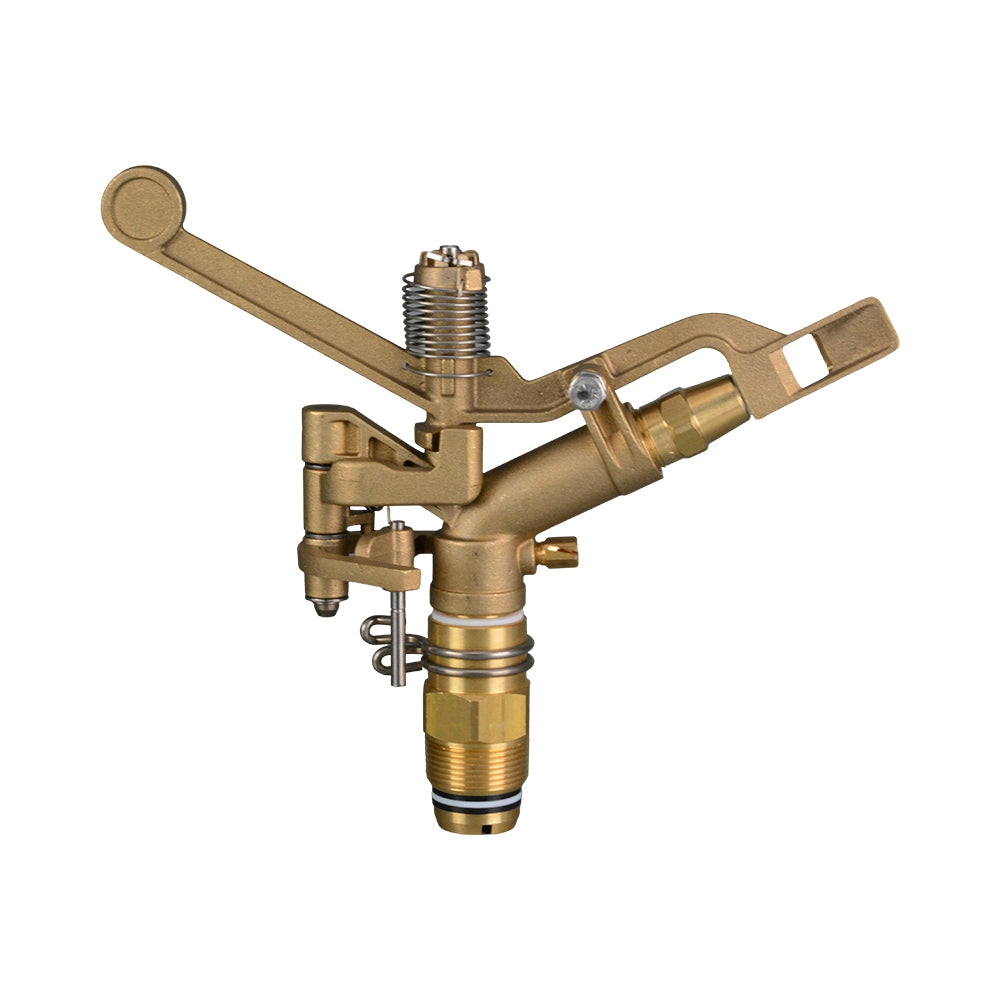

Brass VYR-150 impact sprinkler with spring-loaded arm
Brass VYR-150 impact sprinkler with spring-loaded arm

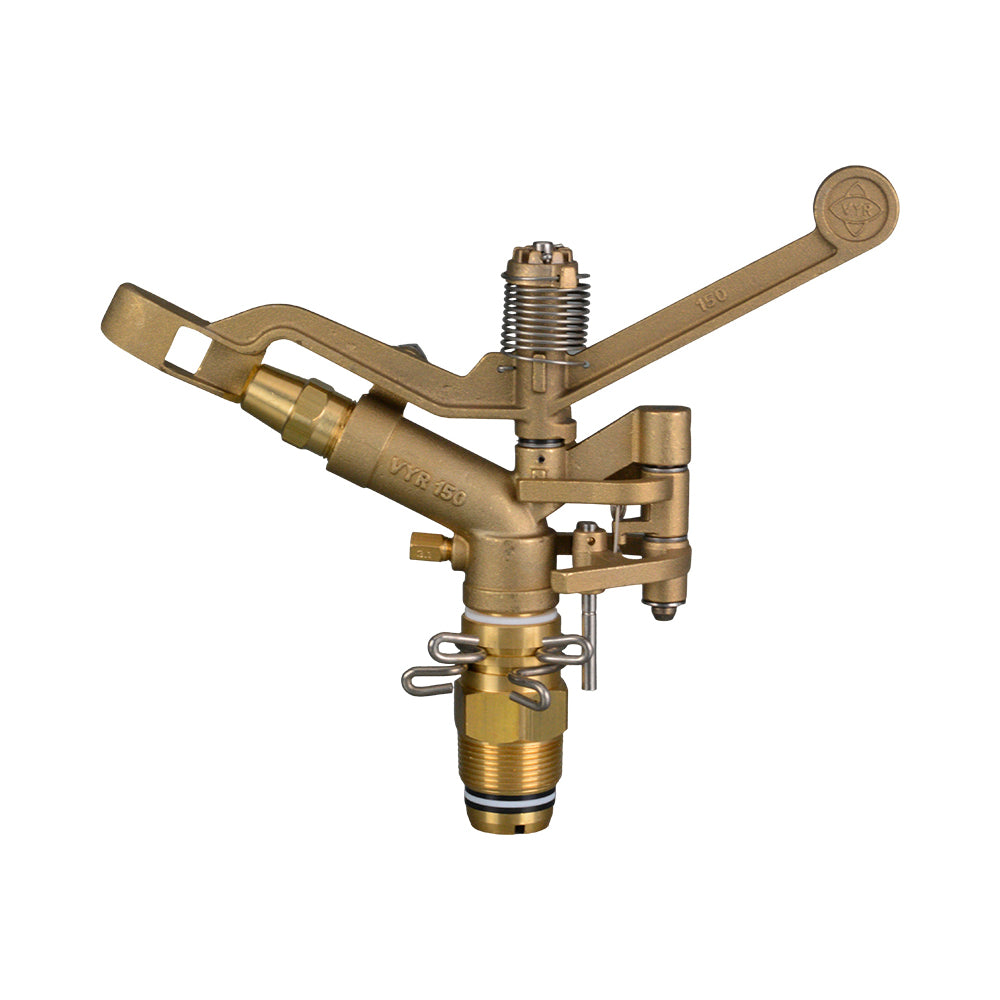

Brass VYR-150 impact sprinkler, opposite side
Brass VYR-150 impact sprinkler, opposite side
Brass VYR-150 impact sprinkler with spring-loaded arm
Brass VYR-150 impact sprinkler, opposite side

IMPACT BRASS

VYR-150 brass impact sprinkler for large-area agricultural irrigation and watering along field edges. Two nozzles provide long-range and closer-in watering. Sector clips let you limit watering to a chosen part of the surrounding area.

✓ Inlet: 32mm (1-1/4") male BSP
✓ Coverage: 34m radius at 600 kPa
✓ Spray Pattern: Adjustable part circle
✓ Flow: 303.3 L/min at 600 kPa
✓ Supplied Nozzles: 13mm + 6.3mm

15mm Full Circle VYR-25 Specifications
15mm Part Circle VYR-80 Specifications
15mm Part Circle Orbit 55015 Specifications
20mm Full Circle VYR-70 Specifications
20mm Part Circle VYR-60 Specifications
25mm Full Circle VYR-70V Specifications
25mm Part Circle VYR-65 Specifications
32mm Full Circle VYR-155 Specifications
32mm Part Circle VYR-150 Specifications

More Information
Product Specifications
Brass VYR-150 impact sprinkler with spring-loaded arm
IMPACT BRASS
Brass VYR-25 impact sprinkler with spring-loaded arm
Sprinkler Brass Impact VYR-25 (1/2" Male) Full Circle (Radius 8.2m - 8.9m) SPBI12FC
$34.74 /each
Brass VYR-80 impact sprinkler showing arc adjustment mechanism
Sprinkler Brass Impact VYR-80 (1/2" Male) Part Circle (Radius 12m - 13m) SPBI12PC
$47.95 /each
Green metal Orbit impact sprinkler with brass threaded inlet
Sprinkler Metal Impact Orbit (1/2" Male) Full/Part Circle (Radius 6.1m – 12.1m) SPAFC112
$15.79 /each
Brass VYR-70 impact sprinkler with male threaded inlet
Sprinkler Brass Impact VYR-70 (3/4" Male) Full Circle (Radius 16.3m - 16.6m) SPBI34FC
$59.36 /each
Brass VYR-60 impact sprinkler showing arc adjustment mechanism
Sprinkler Brass Impact VYR-60 (3/4" Male) Part Circle (Radius 15.6m - 16m) SPBI34PC
$81.82 /each
Brass VYR-70V impact sprinkler with female threaded inlet
Sprinkler Brass Impact VYR-70V (1" Female) Full Circle (Radius 21.1m - 23m) SPBI1FCF
$174.19 /each
Brass VYR-65 impact sprinkler showing spring and arm
Sprinkler Brass Impact VYR-65 (1" Male) Part Circle (Radius 17.7m - 19.8m) SPBI1PC
$209.71 /each
Brass VYR-155 impact sprinkler with extended silver barrel
Sprinkler Brass Impact VYR-155 (1-1/4" Male) Full Circle (Radius 29.5m - 33m) SPBI114FCBO
$243.03 /each
Brass VYR-150 impact sprinkler with spring-loaded arm
Sprinkler Brass Impact VYR-150 (1-1/4" Male) Part Circle (Radius 34m - 36m) SPBI114PC
$394.76 /each

VYR-150 brass impact sprinkler for large-area agricultural irrigation and watering along field edges.

Two nozzles provide long-range and closer-in watering.

With the supplied 13mm + 6.3mm nozzles, the sprinkler waters a 34m radius at 600 kPa. Radius is the distance from the sprinkler to the outer edge of the watered area.
Flow is 303.3 L/min at this pressure.

The spray arc is how far around the sprinkler the water sprays. Move the two stop clips around the base, setting one at each end of the area to be watered. The reversing lever meets each clip and changes the sprinkler’s direction. Check both turning points while watering and reposition the clips as needed.

Connection: 32mm (1-1/4") male BSP inlet.

Coverage and flow vary with nozzle size, pressure and adjustment. Use the performance chart when selecting sprinkler spacing.

Narrowing the arc concentrates the same flow over a smaller area, increasing the watering rate. Match nozzle flow, arc and spacing when combining sprinklers on one zone to avoid uneven watering. Changing nozzle size can also change the watering distance.

Supplier code: VYR-150.

15mm Full Circle VYR-25 Specifications
15mm Part Circle VYR-80 Specifications
15mm Part Circle Orbit 55015 Specifications
20mm Full Circle VYR-70 Specifications
20mm Part Circle VYR-60 Specifications
25mm Full Circle VYR-70V Specifications
25mm Part Circle VYR-65 Specifications
32mm Full Circle VYR-155 Specifications
32mm Part Circle VYR-150 Specifications

✓ Product Type and Application
VYR-150 brass impact sprinkler for large-area agricultural irrigation and watering along field edges.
An impact sprinkler uses the water stream to drive a spring-loaded arm, turning the sprinkler in steps as it waters.

✓ Watering Performance and Benefits
Two nozzles provide long-range and closer-in watering.

✓ Coverage and Spray Pattern
Radius: 34–36m at 600–700 kPa with the supplied nozzles.
Radius is the distance from the sprinkler to the outer edge of the watered area.
Spray pattern: Adjustable part circle.

✓ Supplied Nozzles
13mm + 6.3mm.

✓ Pressure & Flow
At 600 kPa: 34m radius; 303.3 L/min.
Coverage and flow vary with nozzle size, pressure and adjustment. Use the performance chart when selecting sprinkler spacing.

✓ Arc Adjustment
The spray arc is how far around the sprinkler the water sprays. Move the two stop clips around the base, setting one at each end of the area to be watered. The reversing lever meets each clip and changes the sprinkler’s direction. Check both turning points while watering and reposition the clips as needed.

✓ Precipitation Rate
Precipitation rate is how quickly water is applied, measured in mm/h. With the same nozzle and pressure, narrowing the arc leaves flow unchanged, concentrating water over a smaller area. A half circle receives roughly twice the average watering rate of a full circle with the same radius. Allow for arc, nozzle flow and spacing when combining sprinklers on one zone. A smaller nozzle can reduce flow but may also shorten the throw. Use separate zones if watering rates cannot be matched.

✓ Construction
Brass body.

✓ Connection
32mm (1-1/4") male BSP inlet.

✓ Identification
Supplier code: VYR-150.
