Brass and zinc impact sprinklers for gardens, crops and agricultural irrigation. Full-circle models water all the way around the sprinkler; adjustable models let you limit watering to a selected part of the surrounding area.
An impact sprinkler uses the water stream to drive a spring-loaded arm, turning the sprinkler in steps as it waters.
Approximately 6.1–36m radius across the listed configurations. Coverage and flow vary with nozzle size, pressure and adjustment. Use the performance chart when selecting sprinkler spacing.
VYR models are supplied with the nozzle combinations shown in the specifications.
The spray arc is how far around the sprinkler the water sprays. On the VYR part-circle models, move the two stop clips around the base to set the turning points. On the Orbit 55015, lower the trip pin to engage the stop collars for part-circle watering, or raise it for full-circle watering. Fixed full-circle models have no arc adjustment.
Narrowing the arc concentrates the same flow over a smaller area, increasing the watering rate. Match nozzle flow, arc and spacing when combining sprinklers on one zone to avoid uneven watering. Changing nozzle size can also change the watering distance.
For models with a 15mm or 20mm male inlet, use an impact sprinkler coupling to leave room for the moving parts that extend below the sprinkler’s threaded inlet. Sold separately.

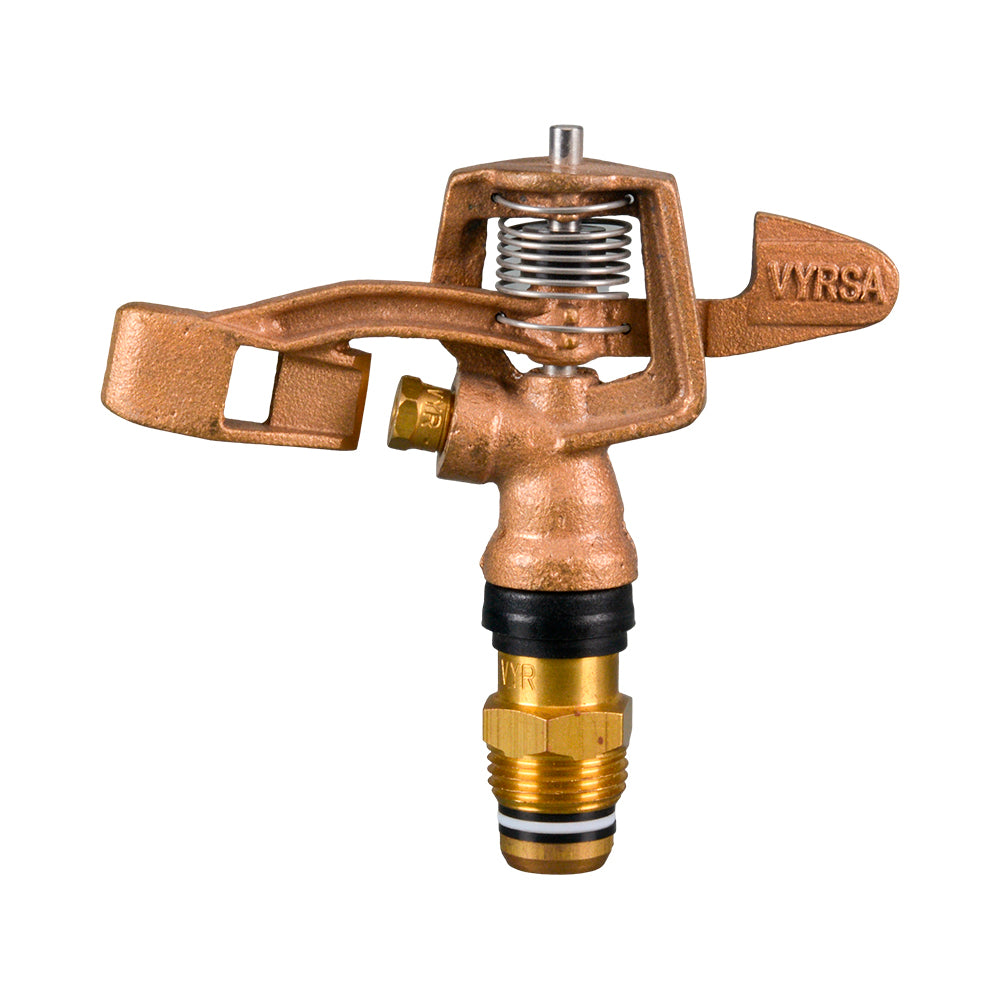

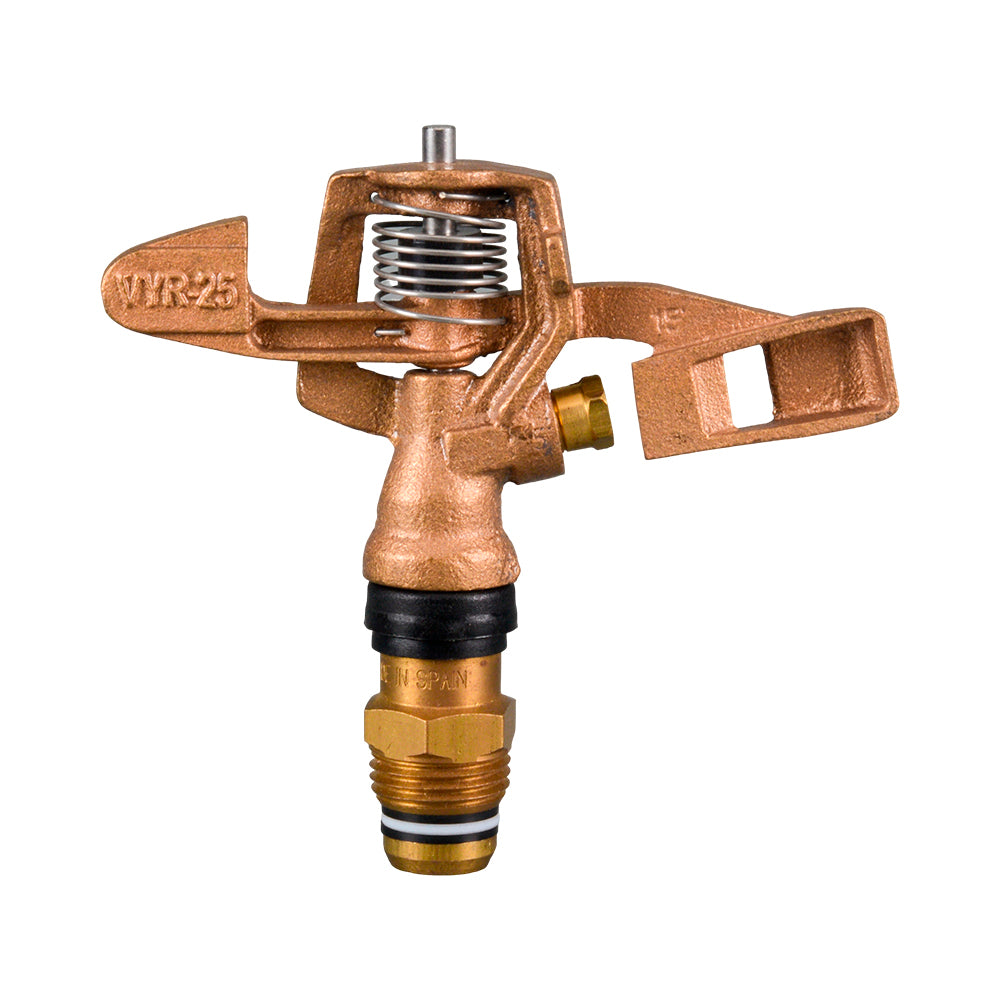

15mm Full Circle VYR-25 Specifications
15mm Part Circle VYR-80 Specifications
15mm Part Circle Orbit 55015 Specifications
20mm Full Circle VYR-70 Specifications
20mm Part Circle VYR-60 Specifications
25mm Full Circle VYR-70V Specifications
25mm Part Circle VYR-65 Specifications
32mm Full Circle VYR-155 Specifications
32mm Part Circle VYR-150 Specifications
