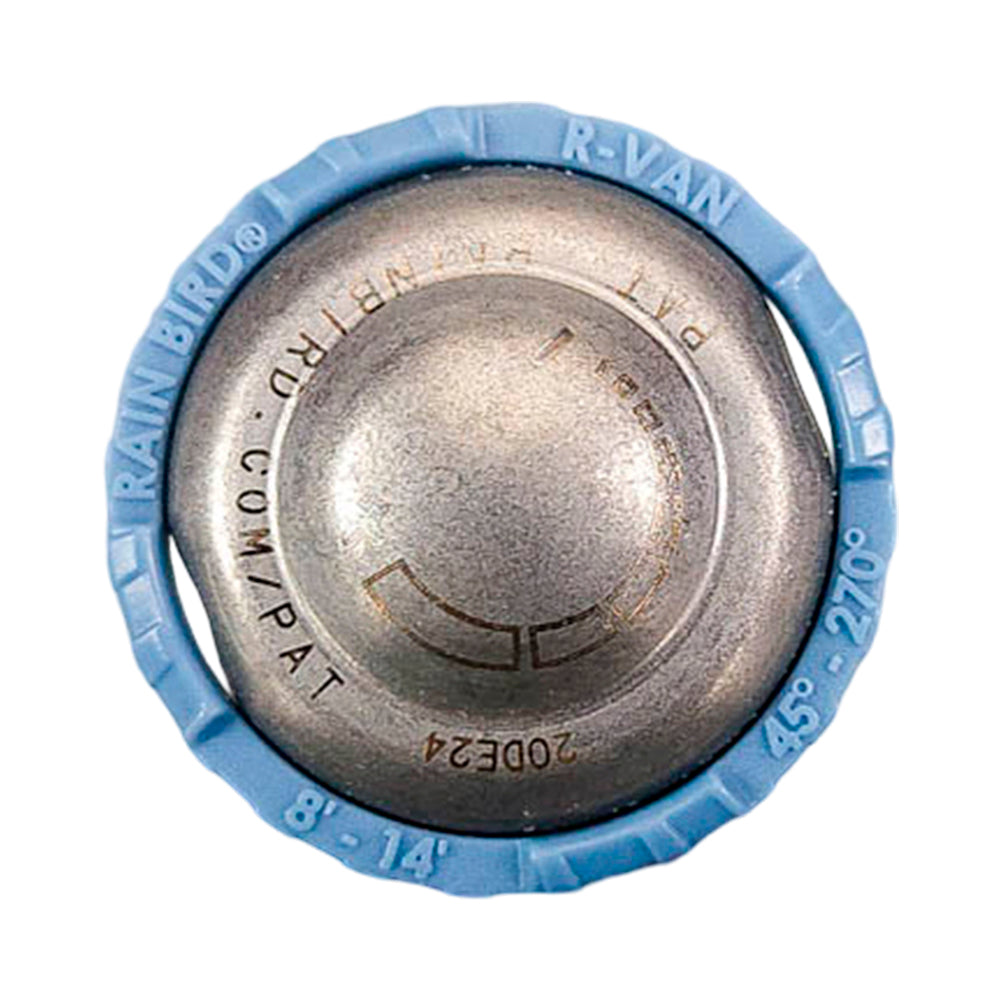

Top view of blue Rain Bird R-VAN adjustable rotary nozzle
Top view of blue Rain Bird R-VAN adjustable rotary nozzle
Rain Bird R-VAN adjustable rotary nozzle with blue ring and green filter
Top view of blue Rain Bird R-VAN adjustable rotary nozzle

RAIN BIRD R-VAN14 BLUE 45°–270° ROTARY NOZZLE

Rain Bird R-VAN14 adjustable rotary nozzle for lawn and garden irrigation, with a spray arc from 45° to 270°. Rotating streams deliver even coverage, with large droplets that help resist wind drift. Water is applied more slowly than with traditional spray nozzles, giving the soil more time to absorb it. The pull-up flushing feature helps clear debris. Sprinkler body sold separately.

✓ Coverage: 4.3 metre radius at 310 kPa pressure
✓ Spray Pattern: Adjustable 45°–270°
✓ Flow: 0.61–3.56 L/min at 310 kPa pressure, depending on spray arc
✓ Recommended Pressure: 310 kPa
✓ Compatibility: Female nozzle thread suits Rain Bird 1800 sprinkler bodies

Rain Bird R-VAN Rotary Nozzle Brochure
Rain Bird R-VAN Rotary Nozzle Performance Charts

More Information
Product Specifications
Product Videos
Rain Bird R-VAN adjustable rotary nozzle with blue ring and green filter
RAIN BIRD R-VAN14 BLUE 45°–270° ROTARY NOZZLE
Rain Bird R-VAN adjustable rotary nozzle with blue ring and green filter
Rain Bird Sprinkler Nozzle RVAN 14 Blue (8ft-14ft) 2.4m - 4.3m 45-270° SPRNRVAN14
$11.35 /each
Rain Bird R-VAN rotary nozzle with blue housing and clear filter
Rain Bird Sprinkler Nozzle RVAN 14 Blue (8ft-14ft) 2.4m - 4.3m 360° Fixed Arc SPRNRFA0814F
$11.35 /each
Rain Bird R-VAN adjustable rotary nozzle with yellow ring and green filter
Rain Bird Sprinkler Nozzle RVAN 18 Beige (13ft-18ft) 4.0m - 5.5m 45-270° SPRNRVAN18
$11.35 /each
Rain Bird R-VAN rotary nozzle with yellow housing and clear filter
Rain Bird Sprinkler Nozzle RVAN 18 Beige (13ft-18ft) 4.0m - 5.5m 360° Fixed Arc SPRNRFA1318F
$11.35 /each
Rain Bird R-VAN adjustable rotary nozzle with red ring
Rain Bird Sprinkler Nozzle RVAN 24 Maroon (17ft-24ft) 5.2m - 7.3m 45-270° SPRNRVAN1724
$11.35 /each
Rain Bird R-VAN rotary nozzle with red housing and clear filter
Rain Bird Sprinkler Nozzle RVAN 24 Maroon (17ft-24ft) 5.2m - 7.3m 360° Fixed Arc SPRNRFA1724F
$11.35 /each
Rain Bird R-VAN left-strip rotary nozzle with white ring and green filter
Rain Bird Sprinkler Nozzle RVAN Left Corner Strip (1.5m x 4.6m) Light Grey SPRNRVANLCS
$11.35 /each
Rain Bird R-VAN right-strip rotary nozzle with grey ring and green filter
Rain Bird Sprinkler Nozzle RVAN Right Corner Strip (1.5m x 4.6m) Dark Grey SPRNRVANRCS
$11.35 /each
Rain Bird R-VAN side-strip rotary nozzle with black ring and green filter
Rain Bird Sprinkler Nozzle RVAN Side Strip (1.5m x 9.1m) Black SPRNRVANSS
$11.35 /each

Rain Bird R-VAN14 adjustable rotary nozzle for lawn and garden irrigation, with a spray arc from 45° to 270°.

Rotating streams deliver even coverage, with large droplets that help resist wind drift. Water is applied more slowly than with traditional spray nozzles, giving the soil more time to absorb it. UV-resistant construction and a stainless steel protective cap provide durability.

The spray arc and watering distance can be adjusted by hand while the sprinkler is running. At the recommended 310 kPa pressure, the nozzle waters a 4.3 metre radius. Radius is the distance from the sprinkler to the outer edge of the spray. Flow ranges from 0.61 to 3.56 L/min as the arc changes from 45° to 270°.

The pull-up flushing feature helps clear debris, and the removable mesh filter allows cleaning.

Female nozzle thread suits Rain Bird 1800 sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.

Warranty: Three-year trade warranty.

Rain Bird R-VAN Rotary Nozzle Brochure
Rain Bird R-VAN Rotary Nozzle Performance Charts

✓ Product Type and Application
Rain Bird R-VAN14 rotary nozzle for lawn and garden irrigation with adjustable part-circle coverage.
A rotary nozzle fits onto a compatible sprinkler body and sends out streams of water that rotate across the watering area.

✓ Watering Performance and Benefits
Rotating streams provide even coverage, with large droplets that help resist wind drift. Slower water application than traditional spray nozzles gives soil more time to absorb water. UV-resistant construction and a stainless steel protective cap provide durability.

✓ Coverage and Spray Pattern
Radius: 4.3 metres at 310 kPa pressure, before radius reduction.
Radius is the distance from the sprinkler to the outer edge of the spray.
Radius range: 2.4–4.6 metres.
Spray arc: Adjustable 45°–270°.

✓ Pressure & Flow
Recommended operating pressure: 310 kPa.
Operating pressure range: 210–380 kPa.
Flow at different arc settings at 310 kPa:
45°: 0.61 L/min.
90°: 1.21 L/min.
180°: 2.38 L/min.
270°: 3.56 L/min.
Radius at these settings: 4.3 metres.

✓ Arc Adjustment
The spray arc is how far around the sprinkler the water sprays.
Adjust the spray arc by hand from 45° to 270° while the sprinkler is running. No adjustment tool is required.

✓ Radius Reduction
Adjust watering distance by hand while the sprinkler is running. Do not reduce the R-VAN14 radius below 2.4 metres.

✓ Precipitation Rate
Precipitation rate describes how quickly water is applied across the area, measured in millimetres per hour.
R-VAN family rate: Approximately 16mm/hour with square spacing. Use matching precipitation rates on a shared irrigation zone.

✓ Flushing and Filtration
Pull up on the nozzle top to flush debris while water is running. Flush immediately after installation. The mesh filter can be removed for cleaning.

✓ Connection and Compatibility
Female nozzle thread suits Rain Bird 1800 sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.

✓ Identification
Model: R-VAN14.
Colour: Blue.

✓ Warranty
Three-year trade warranty.
