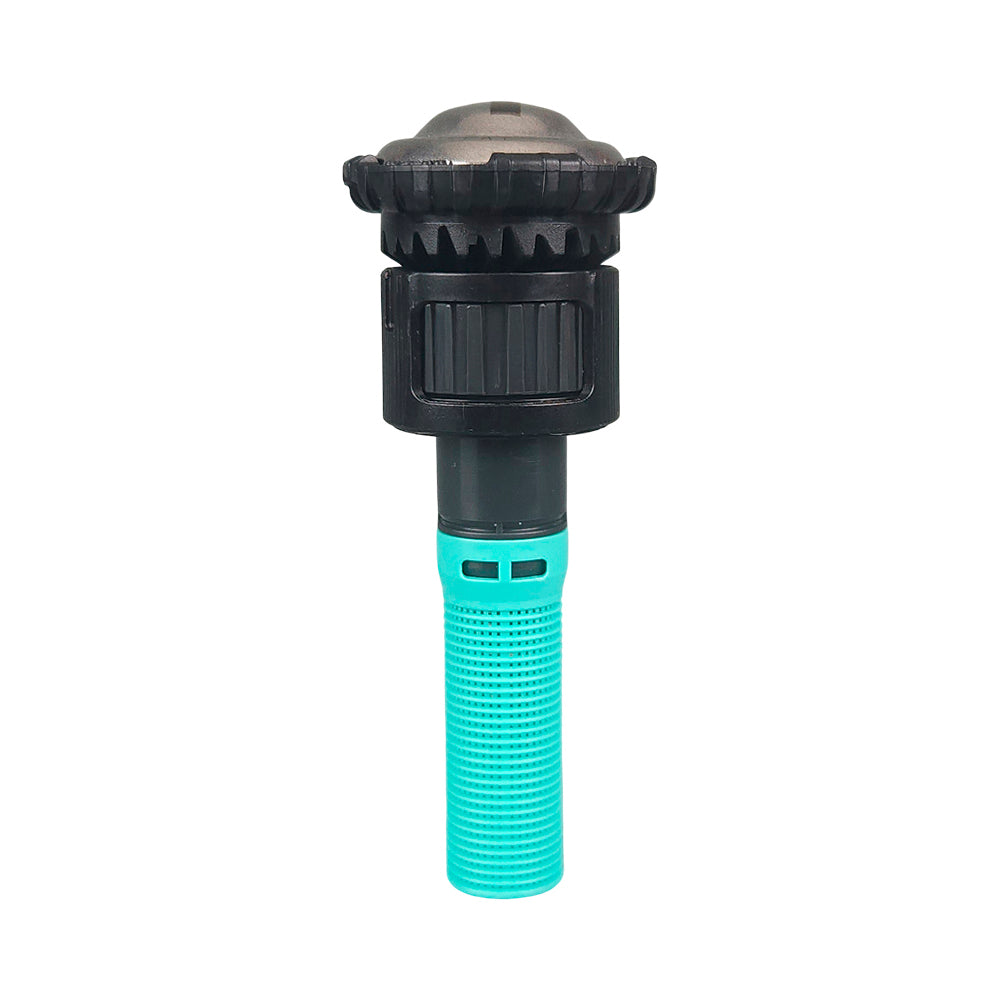

Rain Bird R-VAN side-strip rotary nozzle with black ring and green filter
Rain Bird R-VAN side-strip rotary nozzle with black ring and green filter
Top view of Rain Bird R-VAN side-strip rotary nozzle
Top view of Rain Bird R-VAN side-strip rotary nozzle
Rain Bird R-VAN side-strip rotary nozzle with black ring and green filter
Top view of Rain Bird R-VAN side-strip rotary nozzle

RAIN BIRD R-VAN-SST SIDE STRIP NOZZLE

Rain Bird R-VAN-SST rotary Side Strip nozzle for long, narrow areas, watering from the centre of a long side. Rotating streams deliver even coverage, with large droplets that help resist wind drift. Water is applied more slowly than with traditional spray nozzles, giving the soil more time to absorb it. The pull-up flushing feature helps clear debris. Sprinkler body sold separately.

✓ Coverage: 1.5 metres wide × 9.1 metres long at 310 kPa pressure
✓ Spray Pattern: Fixed rectangular side strip
✓ Flow: 1.82 L/min at 310 kPa pressure
✓ Recommended Pressure: 310 kPa
✓ Compatibility: Female nozzle thread suits Rain Bird 1800 sprinkler bodies

Rain Bird R-VAN Rotary Nozzle Brochure
Rain Bird R-VAN Rotary Nozzle Performance Charts

More Information
Product Specifications
Product Videos
Rain Bird R-VAN side-strip rotary nozzle with black ring and green filter
RAIN BIRD R-VAN-SST SIDE STRIP NOZZLE
Rain Bird R-VAN adjustable rotary nozzle with blue ring and green filter
Rain Bird Sprinkler Nozzle RVAN 14 Blue (8ft-14ft) 2.4m - 4.3m 45-270° SPRNRVAN14
$11.35 /each
Rain Bird R-VAN rotary nozzle with blue housing and clear filter
Rain Bird Sprinkler Nozzle RVAN 14 Blue (8ft-14ft) 2.4m - 4.3m 360° Fixed Arc SPRNRFA0814F
$11.35 /each
Rain Bird R-VAN adjustable rotary nozzle with yellow ring and green filter
Rain Bird Sprinkler Nozzle RVAN 18 Beige (13ft-18ft) 4.0m - 5.5m 45-270° SPRNRVAN18
$11.35 /each
Rain Bird R-VAN rotary nozzle with yellow housing and clear filter
Rain Bird Sprinkler Nozzle RVAN 18 Beige (13ft-18ft) 4.0m - 5.5m 360° Fixed Arc SPRNRFA1318F
$11.35 /each
Rain Bird R-VAN adjustable rotary nozzle with red ring
Rain Bird Sprinkler Nozzle RVAN 24 Maroon (17ft-24ft) 5.2m - 7.3m 45-270° SPRNRVAN1724
$11.35 /each
Rain Bird R-VAN rotary nozzle with red housing and clear filter
Rain Bird Sprinkler Nozzle RVAN 24 Maroon (17ft-24ft) 5.2m - 7.3m 360° Fixed Arc SPRNRFA1724F
$11.35 /each
Rain Bird R-VAN left-strip rotary nozzle with white ring and green filter
Rain Bird Sprinkler Nozzle RVAN Left Corner Strip (1.5m x 4.6m) Light Grey SPRNRVANLCS
$11.35 /each
Rain Bird R-VAN right-strip rotary nozzle with grey ring and green filter
Rain Bird Sprinkler Nozzle RVAN Right Corner Strip (1.5m x 4.6m) Dark Grey SPRNRVANRCS
$11.35 /each
Rain Bird R-VAN side-strip rotary nozzle with black ring and green filter
Rain Bird Sprinkler Nozzle RVAN Side Strip (1.5m x 9.1m) Black SPRNRVANSS
$11.35 /each

Rain Bird R-VAN-SST rotary Side Strip nozzle for long, narrow areas, watering from the centre of a long side.

Rotating streams deliver even coverage, with large droplets that help resist wind drift. Water is applied more slowly than with traditional spray nozzles, giving the soil more time to absorb it. UV-resistant construction and a stainless steel protective cap provide durability.

Coverage is 1.5 metres wide × 9.1 metres long at 310 kPa pressure. These dimensions show the total width and length of the watered rectangle.

Adjustments can be made by hand while the sprinkler is running, and the pull-up flushing feature helps clear debris. The sprinkler sits at the centre of a long side, with the pattern extending along the strip in both directions.

Female nozzle thread suits Rain Bird 1800 sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.

Warranty: Three-year trade warranty.

Rain Bird R-VAN Rotary Nozzle Brochure
Rain Bird R-VAN Rotary Nozzle Performance Charts

✓ Product Type and Application
Rain Bird R-VAN-SST Side Strip nozzle for irrigation of narrow lawn and planted strips.
A rotary nozzle fits onto a compatible sprinkler body and sends out streams of water that rotate across the watering area.

✓ Watering Performance and Benefits
Rotating streams provide even coverage, with large droplets that help resist wind drift. Slower water application than traditional spray nozzles gives soil more time to absorb water. UV-resistant construction and a stainless steel protective cap provide durability.

✓ Coverage and Spray Pattern
Coverage: 1.5 metres wide × 9.1 metres long at 310 kPa pressure, before distance reduction.
Dimensions show total width × length, not radius.
Sprinkler position: Centre of one long side of the rectangle.
Water reaches left and right along the strip, and out in front of the sprinkler across the strip’s width.
Spray pattern: Fixed rectangular rotary side strip.

✓ Pressure & Flow
Recommended operating pressure: 310 kPa.
Operating pressure range: 210–380 kPa.
Coverage and flow at different pressures, before distance reduction:
210 kPa: 1.2 × 8.5 metres; 1.36 L/min.
240 kPa: 1.5 × 9.1 metres; 1.67 L/min.
280 kPa: 1.5 × 9.1 metres; 1.74 L/min.
310 kPa: 1.5 × 9.1 metres; 1.82 L/min.
340 kPa: 1.5 × 9.1 metres; 1.89 L/min.
380 kPa: 1.8 × 9.8 metres; 2.12 L/min.

✓ Distance Reduction
Adjust coverage size by hand while the sprinkler is running. The rectangular pattern stays fixed.

✓ Precipitation Rate
Precipitation rate describes how quickly water is applied across the area, measured in millimetres per hour.
At 310 kPa pressure: 16mm/hour with straight-line or triangular strip spacing.
Strip spacing is based on 50% overlap of throw.

✓ Flushing and Filtration
Pull up on the nozzle top to flush debris while water is running. Flush immediately after installation. The mesh filter can be removed for cleaning.

✓ Connection and Compatibility
Female nozzle thread suits Rain Bird 1800 sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.

✓ Identification
Model: R-VAN-SST.
SST identifies side-strip coverage.
Colour: Black.

✓ Warranty
Three-year trade warranty.
