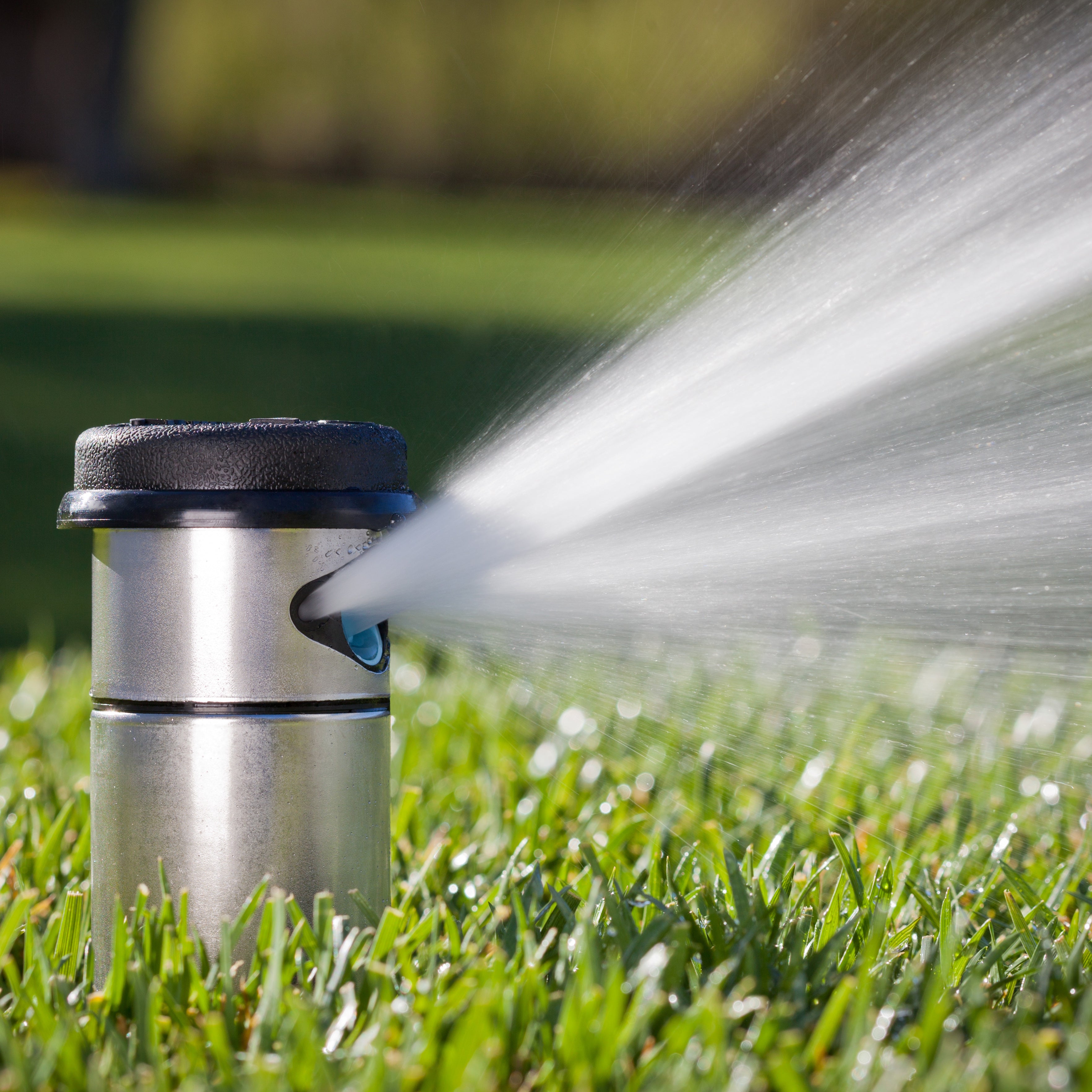

Hunter I-40 Stainless Steel 100mm Pop-Up Rotor for parks, sports fields and larger turf areas.
Its rugged body and stainless steel riser help withstand wear over time. Automatic arc return restores the chosen pattern if the turret is moved out of position, and the non-strippable drive helps protect the mechanism.
The I-40 provides a 13.1–21.3 metre radius across its nozzle configurations. Radius is the distance from the sprinkler to the outer edge of the watering pattern. Recommended operating pressure is 250–700 kPa.
The spray arc adjusts from 50° to 360°. The top adjustment screw lets you shorten the watering distance. Choose the nozzle for both watering distance and arc so sprinklers on the same zone apply water at similar rates.
The Hunter gear drive adjustment tool is required for arc adjustment and is also used for nozzle installation and radius adjustment.
The check valve holds back up to 4.5 metres of elevation to reduce low-head drainage.

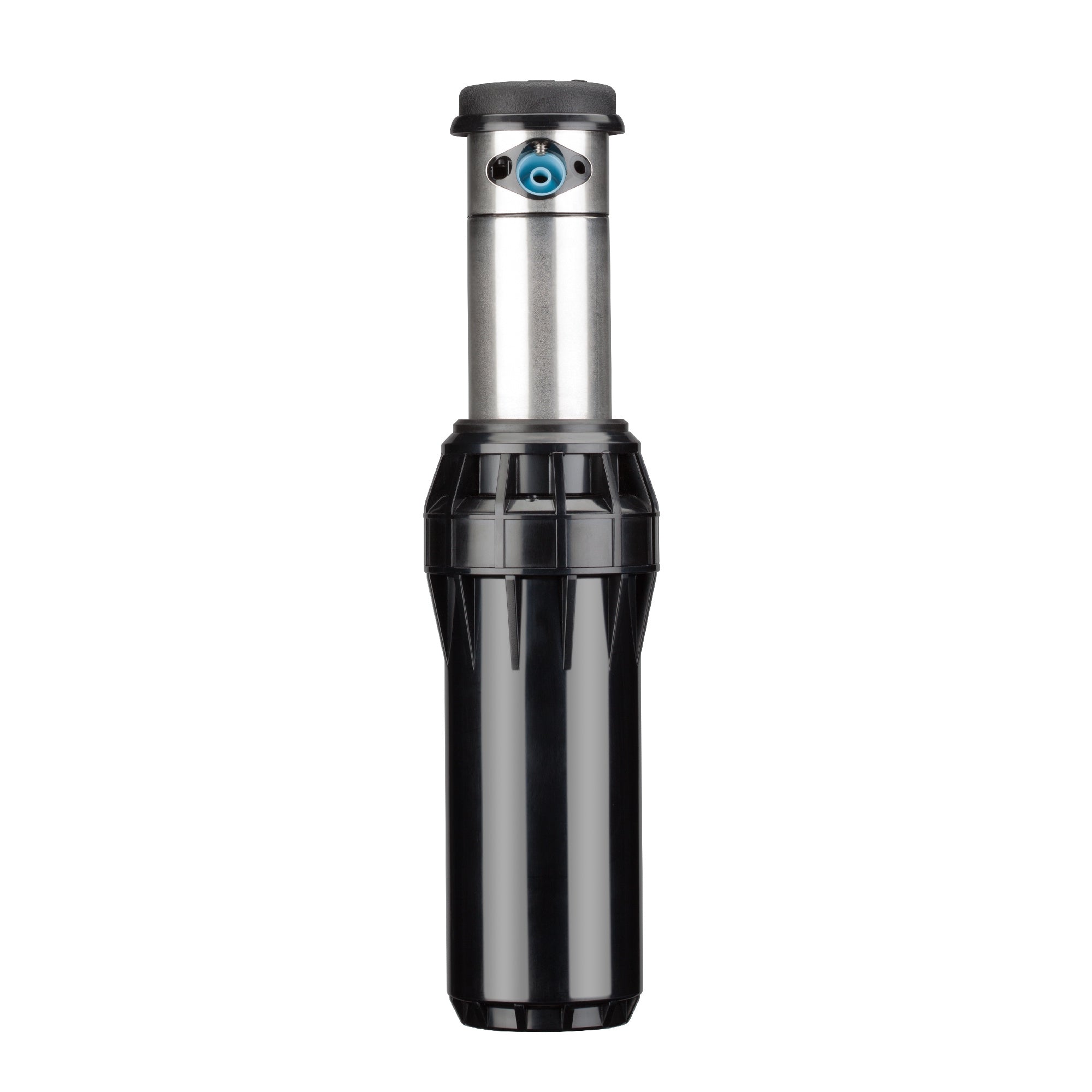

The 100mm stainless steel riser extends during watering and retracts afterwards. The inlet is 25mm (1") BSP female. The overall body height when retracted is 200mm.

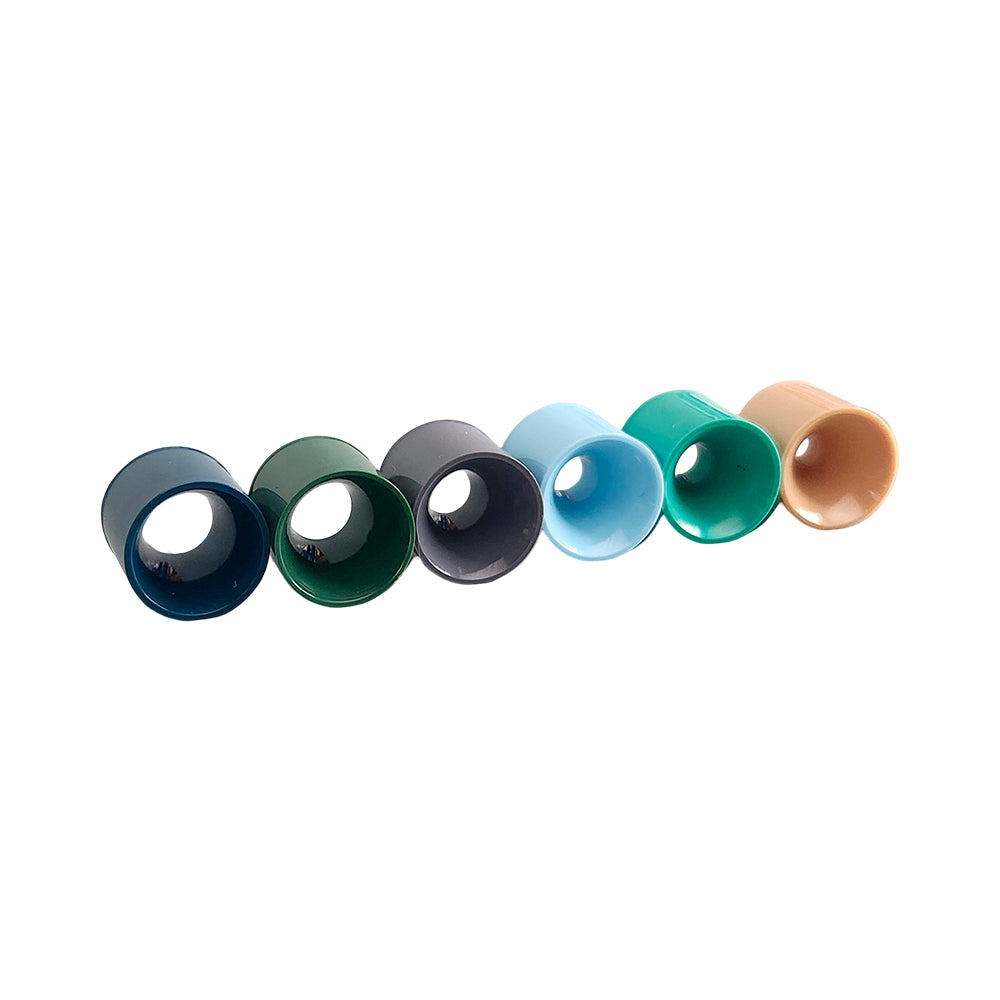

Six nozzle choices are supplied per sprinkler, with a 25° trajectory. Supplied as a box of 12 sprinklers.
Warranty: Five years.
Hunter I-40 Gear Drive Sprinkler Specifications
Hunter I-40 Nozzle Performance Guide
