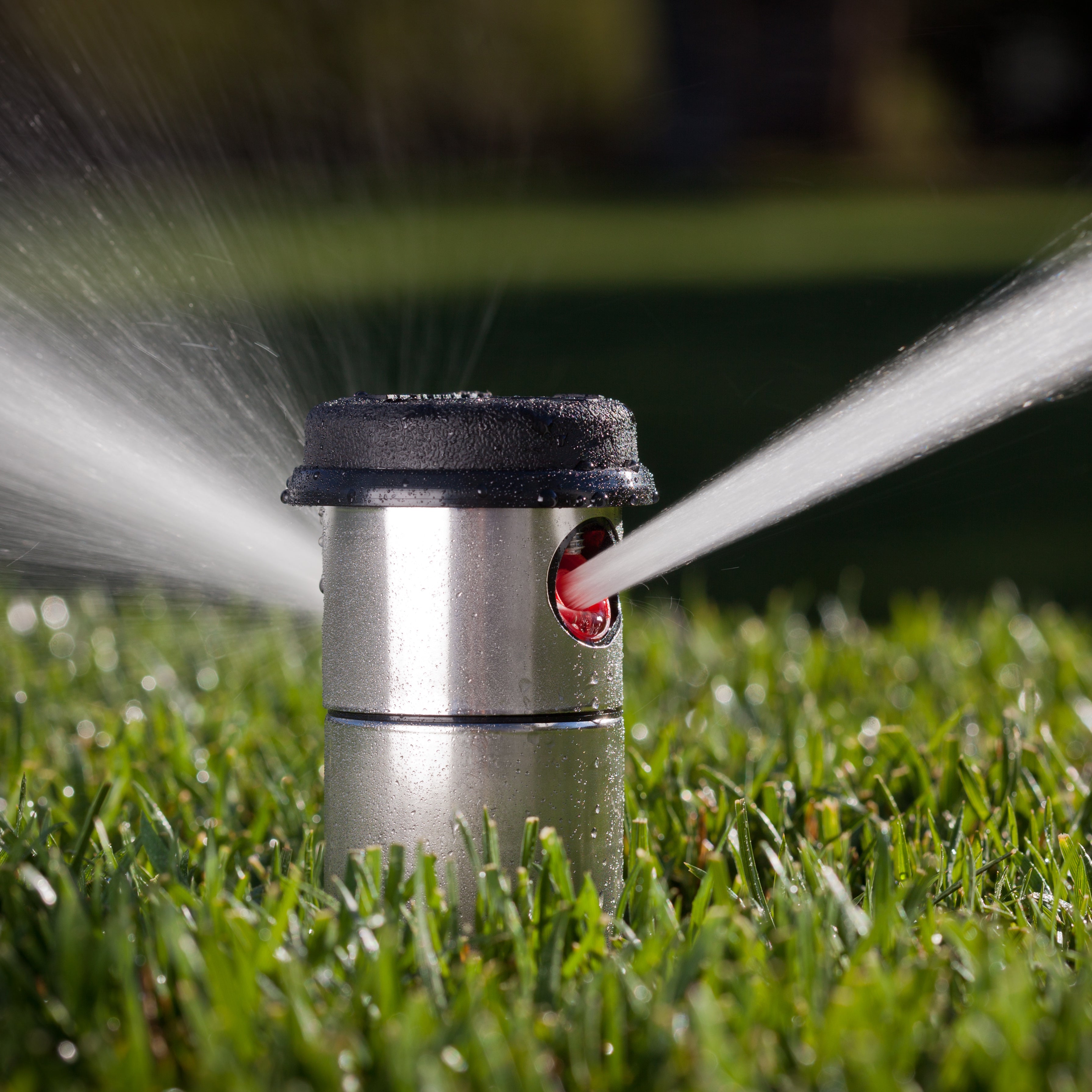

Hunter I-40 sprinkler spraying water from opposing nozzles
Hunter I-40 sprinkler spraying water from opposing nozzles
Selection of coloured Hunter I-40 sprinkler nozzle inserts
Selection of coloured Hunter I-40 sprinkler nozzle inserts
Hunter I-40 sprinkler with stainless steel riser and blue nozzle
Hunter I-40 sprinkler spraying water from opposing nozzles
Selection of coloured Hunter I-40 sprinkler nozzle inserts

HUNTER I-40 STAINLESS STEEL 100MM POP-UP ROTOR - OPPOSING NOZZLES

Hunter I-40 Stainless Steel 100mm Pop-Up Rotor - Opposing Nozzles for parks, sports fields and larger turf areas. Its rugged body and stainless steel riser help withstand wear over time. Opposing nozzles distribute water through a full circle, covering the short- and mid-range areas as well as the main throw.

Use the Hunter gear drive adjustment tool for nozzle installation and radius adjustment.

✓ Inlet: 25mm (1") BSP female
✓ Coverage: 15.2–23.2 metre radius across nozzle options
✓ Spray Pattern: Fixed 360° full circle
✓ Recommended Pressure: 250–700 kPa
✓ Flow: 45.8–129.4 L/min across nozzle and pressure options
✓ Pop-Up Height: 100mm

Hunter I-40 Gear Drive Sprinkler Specifications
Hunter I-40 Nozzle Performance Guide

More Information
Product Specifications
Hunter I-40 sprinkler with stainless steel riser and blue nozzle
HUNTER I-40 STAINLESS STEEL 100MM POP-UP ROTOR - OPPOSING NOZZLES
Hunter I-40 sprinkler with stainless steel riser and blue nozzle
Hunter I40 Gear Drive Pop-Up 4" Stainless Steel (Radius 13.1m - 21.3m) SPHI40SS
$166.93 /each
Hunter I-40 sprinkler with stainless steel riser and blue nozzle
Hunter I40 Gear Drive Pop-Up 4" Stainless Steel (Radius 13.1m - 21.3m) - BOX OF 12 SPHI40SSBQ
$1,842.85 /each
Hunter I-40 sprinkler with stainless steel riser and blue nozzle
Hunter I40 Gear Drive Pop-Up 4" Full Circle Stainless Steel with Opposing Nozzles (Radius 15.2m - 23.2m) SPHI40SSOPP
$206.64 /each

Hunter I-40 Stainless Steel 100mm Pop-Up Rotor - Opposing Nozzles for parks, sports fields and larger turf areas.

Use the Hunter gear drive adjustment tool for nozzle installation and radius adjustment.

Its rugged body and stainless steel riser help withstand wear over time. Opposing nozzles distribute water through a full circle, covering the short- and mid-range areas as well as the main throw.

The I-40 provides a 15.2–23.2 metre radius across its nozzle configurations. Radius is the distance from the sprinkler to the outer edge of the watering pattern. Recommended operating pressure is 250–700 kPa.

The opposing-nozzle model waters a fixed 360° full circle. Use the correct nozzle configuration and pressure for the required watering distance.

The check valve holds back up to 4.5 metres of elevation to reduce low-head drainage.

The 100mm stainless steel riser extends during watering and retracts afterwards. The inlet is 25mm (1") BSP female. The overall body height when retracted is 200mm.

Six nozzle choices are supplied per sprinkler, with a 25° trajectory.

Warranty: Five years.

Hunter I-40 Gear Drive Sprinkler Specifications
Hunter I-40 Nozzle Performance Guide

✓ Product Type and Application
Hunter I-40 Stainless Steel 100mm Pop-Up Rotor - Opposing Nozzles.

✓ Dimensions and Connection
Inlet: 25mm (1") BSP female.
Pop-up height: 100mm.
Overall body height when retracted: 200mm.
Riser: stainless steel.

✓ Coverage and Spray Pattern
Radius: 15.2–23.2 metres across nozzle and pressure options. Radius is the distance from the sprinkler to the outer edge of the watering pattern.
Spray arc: Fixed 360° full circle.

✓ Pressure & Flow
Recommended pressure: 250–700 kPa.
Operating pressure: 250–700 kPa.
Flow: 45.8–129.4 L/min across the nozzle range.
See ‘Precipitation Rate’ below for how flow and sprinkler spacing affect the amount of water applied across the area.

✓ Nozzles and Performance
Supplied with 6 nozzle choices. The radius and flow ranges above include nozzle sizes that are not supplied with the sprinkler. The example below shows the supplied nozzle choices.
Trajectory: 25°.

Fixed full-circle opposing-nozzle model; flow is the total for the nozzle configuration.
Example comparison at 450 kPa, before radius reduction:
15 Grey nozzle: 16.8 metre radius; 53.3 L/min.
18 Red nozzle: 18 metre radius; 60.1 L/min.
20 Dark Brown nozzle: 19.2 metre radius; 75.6 L/min.
23 Dark Green nozzle: 19.8 metre radius; 80.8 L/min.
25 Dark Blue nozzle: 20.4 metre radius; 87.2 L/min.
28 Black nozzle: 21 metre radius; 106.4 L/min.

✓ Radius Adjustment
The top adjustment screw lets you shorten the watering distance. Choose the nozzle for the required watering distance, then use the screw to shorten the radius as needed.

✓ Sprinkler Spacing
Spacing is the distance between neighbouring sprinklers.
For head-to-head coverage, each sprinkler throws water far enough to reach the next sprinkler. This overlap helps water the area between them evenly.
Use the actual watering distance after adjustment when planning the spacing.
A square layout places sprinklers on a square grid. A triangular layout uses staggered rows.

✓ Precipitation Rate
Precipitation rate describes how quickly water is applied across the area, measured in millimetres per hour.
For example, with the 15 Grey nozzle at 450 kPa, a 360° full-circle arc and sprinklers spaced 16.8 metres apart:
Square layout: 11 mm/hour.
Triangular layout: 13 mm/hour.
This model waters a fixed full circle. Its nozzle configuration and sprinkler spacing determine the watering rate. Match these to the other sprinklers sharing the zone.

✓ Operation and Servicing
Fixed full-circle model with opposing nozzles for short- and mid-range distribution. The check valve holds back up to 4.5 metres of elevation to reduce low-head drainage.

✓ Warranty
Five years.
