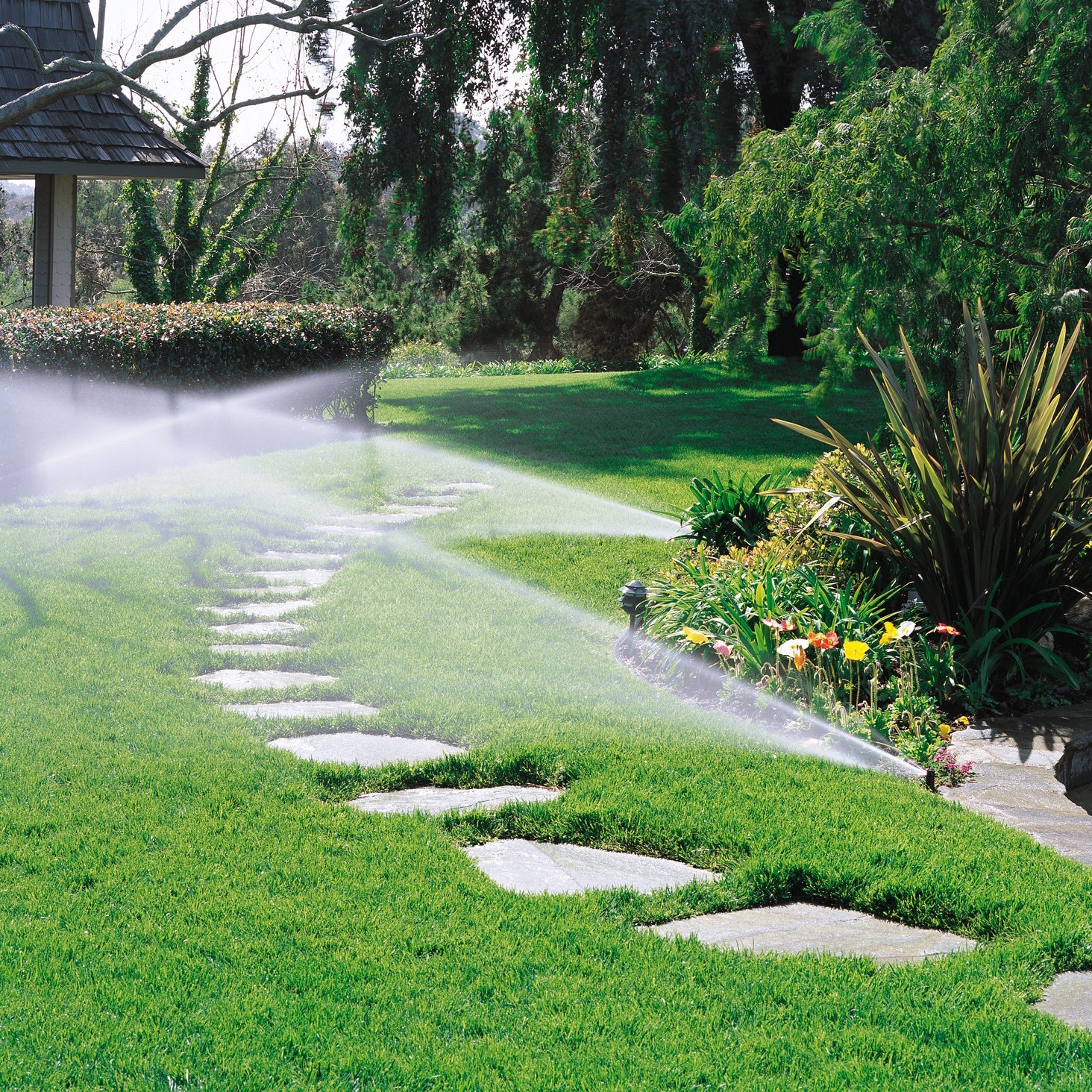

Hunter SRM Gear Drive Sprinklers for lawn reticulation.
This compact, economical gear drive waters smaller turf areas with a rotating stream. Interchangeable nozzles suit different watering distances.
The supplied nozzle options cover a 4.3–10.7 metre radius across the recommended operating pressure range of 170–380 kPa. Radius is the distance from the sprinkler to the outer edge of the watering pattern.

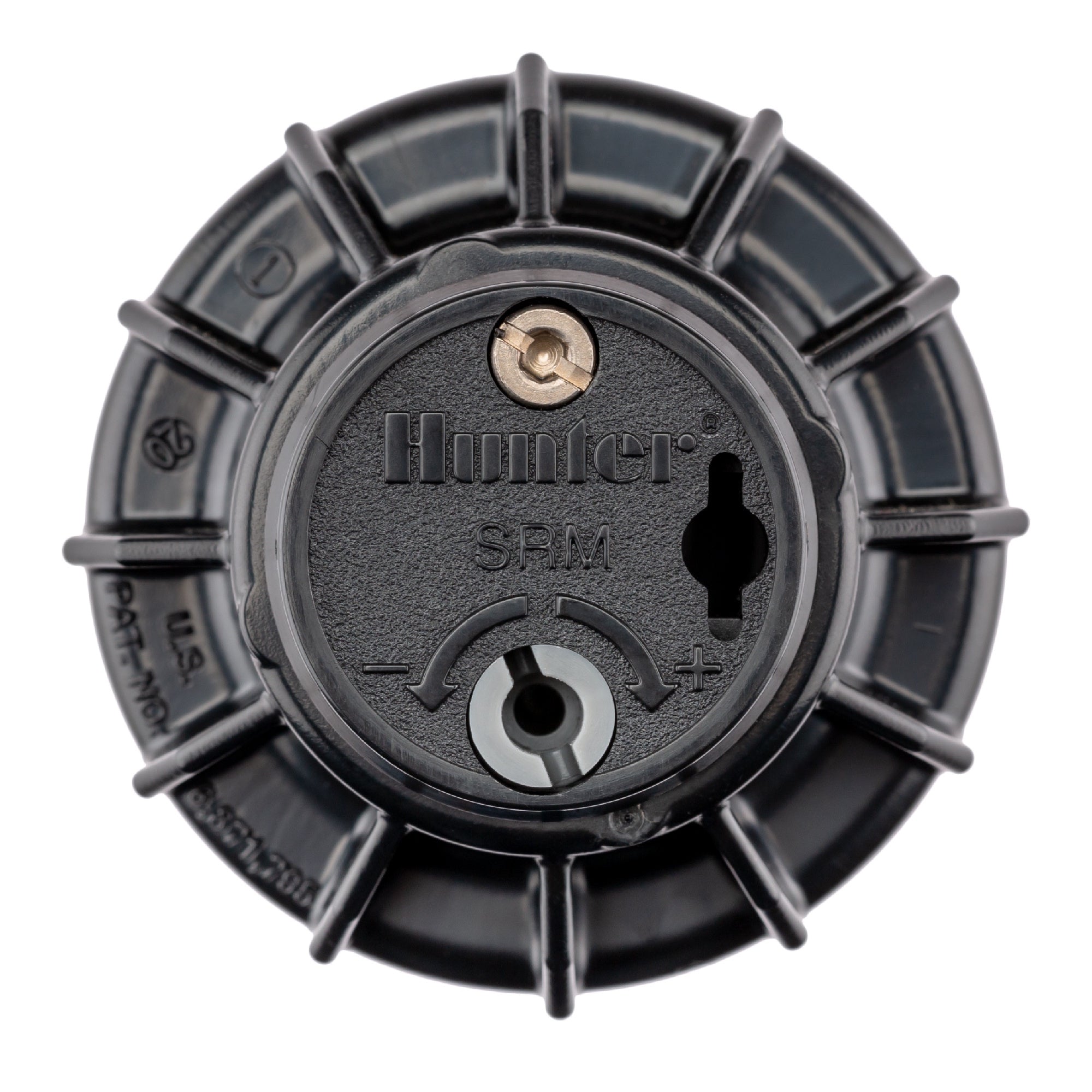

The arc adjusts from 40° to 360° for part-circle or full-circle watering. The top adjustment screw lets you shorten the watering distance. Choose the nozzle for both watering distance and arc so sprinklers on the same zone apply water at similar rates.
The Hunter gear drive adjustment tool is required for arc adjustment and is also used for nozzle installation and radius adjustment.

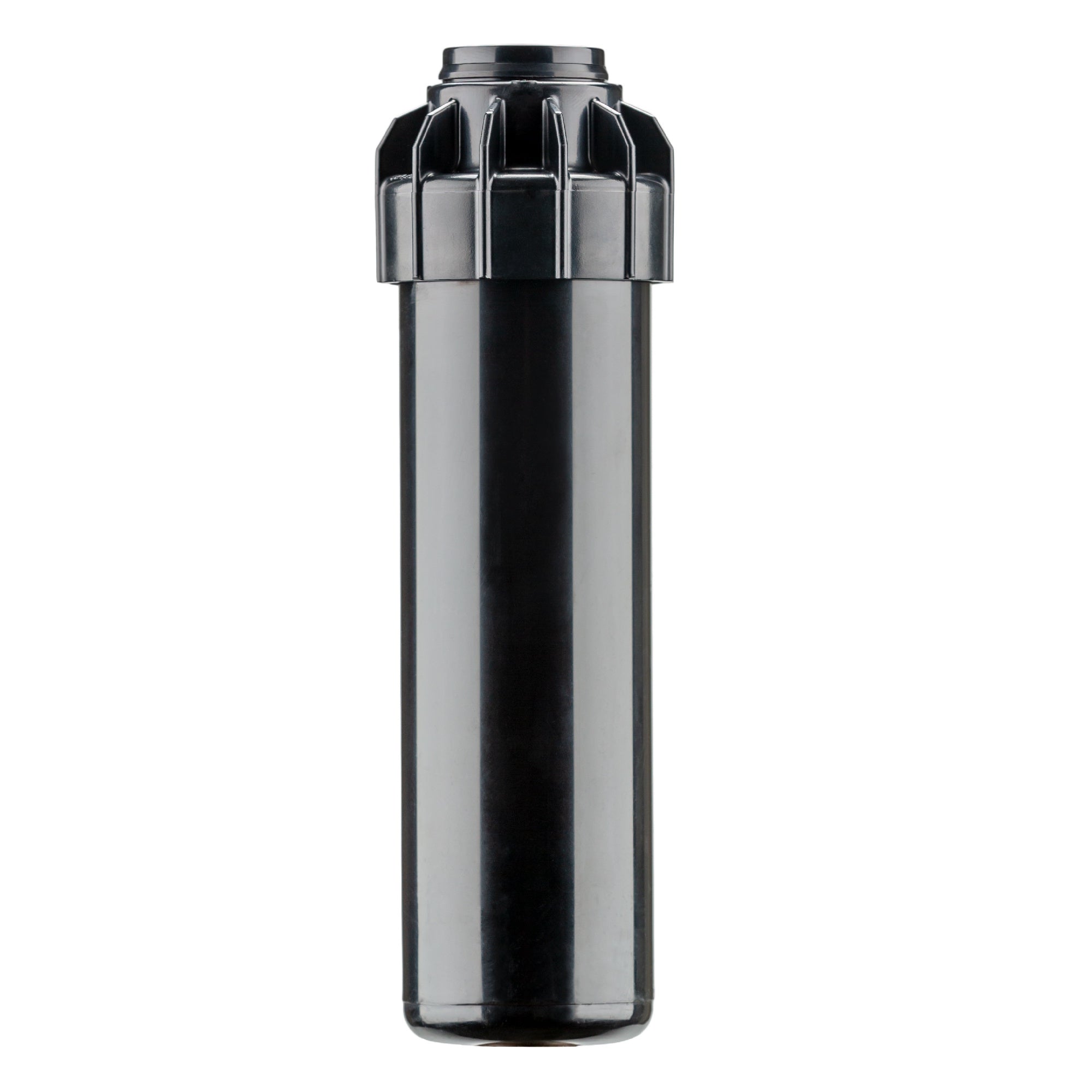

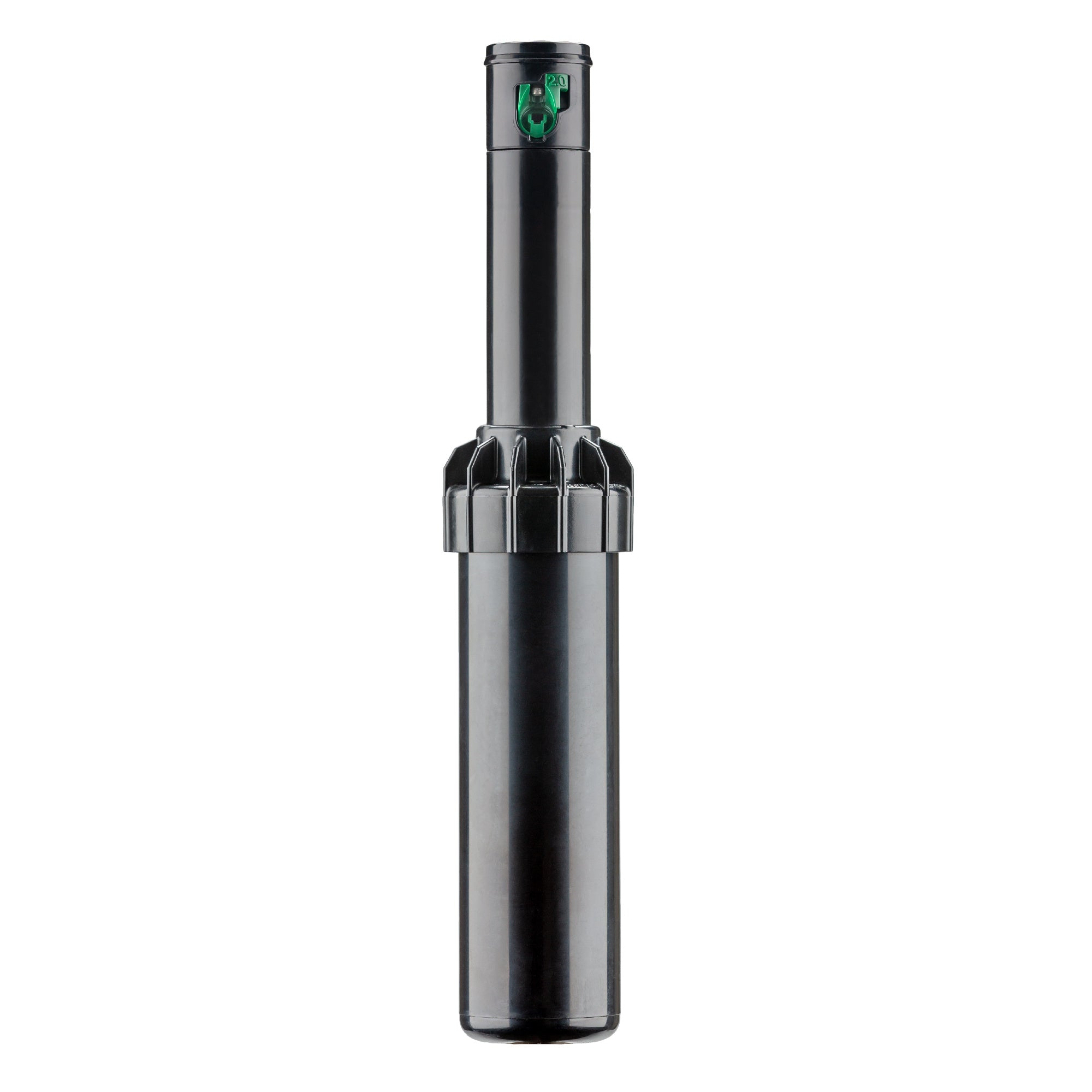

The plastic body has a 100mm pop-up height and a 15mm (1/2") BSP female inlet. Its overall height when retracted is 180mm. The removable filter screen can be cleaned if debris builds up.

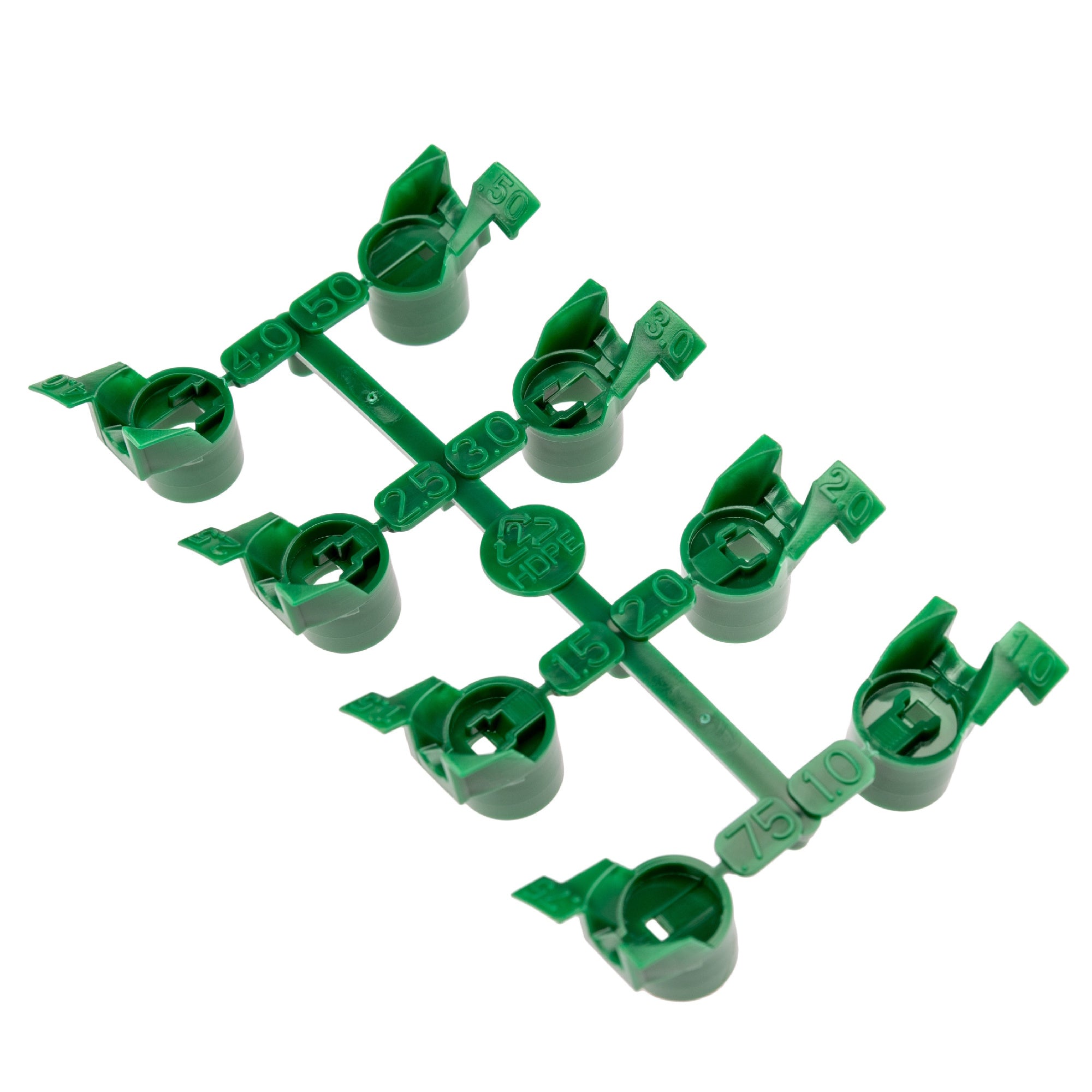

Eight standard nozzle choices are supplied, with the 2.0 nozzle factory fitted. The nozzle trajectory is approximately 14°.
Warranty: One year.
Service parts include the replacement riser seal and spring seat. Check the seal’s model-identification information before ordering.
