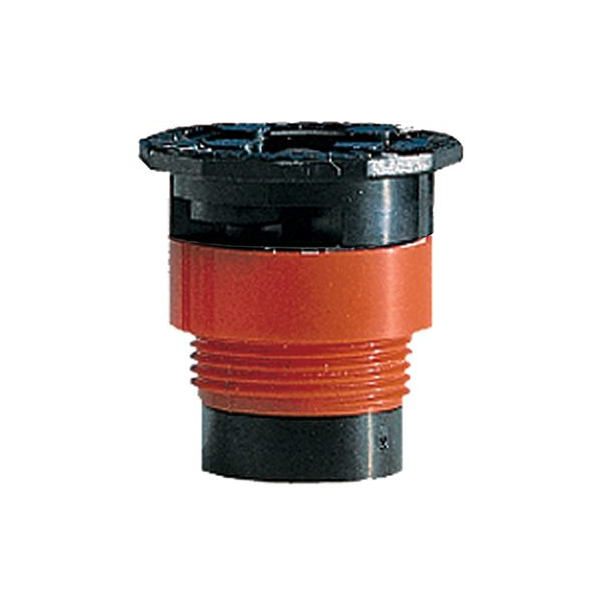

Toro MPR Plus orange strip-pattern sprinkler nozzle
Toro MPR Plus orange strip-pattern sprinkler nozzle
Toro MPR Plus orange strip-pattern sprinkler nozzle

TORO 4SST ORANGE PC SIDE STRIP NOZZLE

Toro 4SST Orange Side Strip spray nozzle for long, narrow areas, watering from the centre of a long side. The rectangular pattern suits lawn strips beside paths and garden borders. The removable pressure compensator at the base of the nozzle helps control flow and reduce misting caused by excess pressure. The top adjustment screw lets you reduce the size of the watered area. Sprinkler body sold separately.

✓ Coverage: 1.2 metres wide × 9.1 metres long at 207–276 kPa pressure
✓ Spray Pattern: Fixed rectangular side strip
✓ Flow: 3.33 L/min at 207–276 kPa pressure with the pressure compensator fitted
✓ Recommended Pressure: 210 kPa
✓ Compatibility: Male nozzle thread suits Toro 570Z sprinkler bodies

Toro 570 Fixed Spray Nozzles Specifications & Performance Charts
Toro 570 Adjustable Spray Nozzles Specifications & Performance Charts

More Information
Product Specifications
Toro MPR Plus orange strip-pattern sprinkler nozzle
TORO 4SST ORANGE PC SIDE STRIP NOZZLE
Toro MPR Plus red 5-series sprinkler nozzle
Toro Sprinkler Nozzle 5Q Red (1.6m Radius 90°) PC SPTN57005Q
$4.09 /each
Toro MPR Plus red 5-series sprinkler nozzle
Toro Sprinkler Nozzle 5H Red (1.6m Radius 180°) PC SPTN57005H
$4.09 /each
Toro MPR Plus red 5-series sprinkler nozzle
Toro Sprinkler Nozzle 5F Red (1.6m Radius 360°) PC SPTN57005F
$4.09 /each
Toro fixed full-circle spray nozzle with green threaded body
Toro Sprinkler Nozzle 8Q Green(2.4m Radius 90°) PC SPTN57008Q
$3.98 /each
Toro fixed full-circle spray nozzle with green threaded body
Toro Sprinkler Nozzle 8H Green(2.4m Radius 180°) PC SPTN57008H
$3.98 /each
Toro fixed full-circle spray nozzle with green threaded body
Toro Sprinkler Nozzle 8F Green (2.4m Radius 360°) PC SPTN57008F
$3.98 /each
Toro adjustable spray nozzle with green top ring
Toro Sprinkler Nozzle 8 ADJ Green (2.4m Radius 1-360°) PC SPTN57008A
$4.09 /each
Toro fixed full-circle spray nozzle with blue threaded body
Toro Sprinkler Nozzle 10Q Blue (3m Radius 90°) PC SPTN57010Q
$3.98 /each
Toro fixed full-circle spray nozzle with blue threaded body
Toro Sprinkler Nozzle 10T Blue (3m Radius 120°) PC SPTN57010T
$3.98 /each
Toro fixed full-circle spray nozzle with blue threaded body
Toro Sprinkler Nozzle 10H Blue (3m Radius 180°) PC SPTN57010H
$3.98 /each
Toro fixed full-circle spray nozzle with blue threaded body
Toro Sprinkler Nozzle 10TT Blue (3m Radius 240°) PC SPTN57010TT
$3.98 /each
Toro fixed full-circle spray nozzle with blue threaded body
Toro Sprinkler Nozzle 10TQ Blue (3m Radius 270°) PC SPTN57010TQ
$3.98 /each
Toro fixed full-circle spray nozzle with blue threaded body
Toro Sprinkler Nozzle 10F Blue (3m Radius 360°) PC SPTN57010F
$3.98 /each
Toro adjustable spray nozzle with blue top ring
Toro Sprinkler Nozzle 10 ADJ Blue (3m Radius 1-360°) PC SPTN57010A
$4.09 /each
Toro fixed full-circle spray nozzle with brown threaded body
Toro Sprinkler Nozzle 12Q Brown (3.7m Radius 90°) PC SPTN57012Q
$3.98 /each
Toro fixed full-circle spray nozzle with brown threaded body
Toro Sprinkler Nozzle 12T Brown (3.7m Radius 120°) PC SPTN57012T
$3.98 /each
Toro fixed full-circle spray nozzle with brown threaded body
Toro Sprinkler Nozzle 12H Brown (3.7m Radius 180°) PC SPTN57012H
$3.98 /each
Toro fixed full-circle spray nozzle with brown threaded body
Toro Sprinkler Nozzle 12TT Brown (3.7m Radius 240°) PC SPTN57012TT
$3.98 /each
Toro fixed full-circle spray nozzle with brown threaded body
Toro Sprinkler Nozzle 12TQ Brown (3.7m Radius 270°) PC SPTN57012TQ
$3.98 /each
Toro fixed full-circle spray nozzle with brown threaded body
Toro Sprinkler Nozzle 12F Brown (3.7m Radius 360°) PC SPTN57012F
$3.98 /each
Toro adjustable spray nozzle with brown top ring
Toro Sprinkler Nozzle 12 ADJ Brown (3.7m Radius 1-360°) PC SPTN57012A
$4.09 /each
Black Toro fixed full-circle spray nozzle
Toro Sprinkler Nozzle 15Q Black (4.6m Radius 90°) PC SPTN57015Q
$3.98 /each
Black Toro fixed full-circle spray nozzle
Toro Sprinkler Nozzle 15T Black (4.6m Radius 120°) PC SPTN57015T
$3.98 /each
Black Toro fixed full-circle spray nozzle
Toro Sprinkler Nozzle 15H Black (4.6m Radius 180°) PC SPTN57015H
$3.98 /each
Black Toro fixed full-circle spray nozzle
Toro Sprinkler Nozzle 15TT Black (4.6m Radius 240°) PC SPTN57015TT
$3.98 /each
Black Toro fixed full-circle spray nozzle
Toro Sprinkler Nozzle 15TQ Black (4.6m Radius 270°) PC SPTN57015TQ
$3.98 /each
Black Toro fixed full-circle spray nozzle
Toro Sprinkler Nozzle 15F Black (4.6m Radius 360°) PC SPTN57015F
$3.98 /each
Toro adjustable spray nozzle with black top ring
Toro Sprinkler Nozzle 15 ADJ Black (4.6m Radius 1-360°) PC SPTN57015A
$4.09 /each
Toro adjustable spray nozzle with grey top ring
Toro Sprinkler Nozzle 17 ADJ Grey (5.2m Radius 1-360°) PC SPTN57017A
$4.09 /each
Toro side-strip spray nozzle with black top and red threaded body
Toro Sprinkler Nozzle 4-CST Centre Strip 4 x 30 (1.2m x 9.1m) PC SPTN5702-4CST
$4.09 /each
Toro side-strip spray nozzle with black top and red threaded body
Toro Sprinkler Nozzle 4-EST End Strip 4 x 15 (1.2m x 4.6m) PC SPTN5702-4EST
$4.09 /each
Toro side-strip spray nozzle with black top and red threaded body
Toro Sprinkler Nozzle 2-SST Side Strip 2 x 6 (0.6m x 1.8m) PC SPTN5702-SST
$4.09 /each
Toro side-strip spray nozzle with black top and red threaded body
Toro Sprinkler Nozzle 9-SST Side Strip 9 x 18 (2.7m x 5.5m) PC SPTN5702-9SST
$4.09 /each
Toro side-strip spray nozzle with black top and red threaded body
Toro Sprinkler Nozzle 4-S-SST Side Strip 4 x 18 (1.2m x 5.5m) PC SPTN5702-4SSST
$4.09 /each
Toro MPR Plus orange strip-pattern sprinkler nozzle
Toro Sprinkler Nozzle 4-SST Side Strip 4 x 30 (1.2m x 9.1m) PC SPTN5702-4SST
$4.09 /each

Toro 4SST Orange Side Strip spray nozzle for long, narrow areas, watering from the centre of a long side.

Coverage is 1.2 metres wide × 9.1 metres long at 207–276 kPa pressure. These dimensions show the total width and length of the watered rectangle.

The rectangular pattern suits lawn strips beside paths and garden borders. The removable pressure compensator at the base of the nozzle helps control flow and reduce misting caused by excess pressure. The top adjustment screw lets you reduce the size of the watered area. The sprinkler sits at the centre of a long side, with the pattern extending along the strip in both directions.

Male nozzle thread suits Toro 570Z sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.

Warranty: Two years.

Toro 570 Fixed Spray Nozzles Specifications & Performance Charts
Toro 570 Adjustable Spray Nozzles Specifications & Performance Charts

✓ Product Type and Application
Toro 4SST Orange PC Side Strip nozzle for irrigation of narrow lawn and planted strips.

✓ Watering Performance and Benefits
Pressure compensation helps control flow and reduce misting caused by excess pressure.

✓ Coverage and Spray Pattern
Coverage: 1.2 metres wide × 9.1 metres long at 207–276 kPa pressure, before distance reduction.
Dimensions show total width × length, not radius.
Sprinkler position: Centre of one long side of the rectangle.
Water reaches left and right along the strip, and out in front of the sprinkler across the strip’s width.
Spray pattern: Fixed rectangular side strip.

✓ Pressure & Flow
Recommended operating pressure: 210 kPa.
Operating pressure range: 140–520 kPa.
Coverage and flow at different pressures, before distance reduction:
207–276 kPa: 1.2 × 9.1 metres; 3.33 L/min.
276–518 kPa: 1.2 × 9.1 metres; 3.79 L/min.

✓ Distance Reduction
The top adjustment screw reduces the size of the watered area while the rectangular pattern stays fixed.

✓ Pressure Compensator
Supplied with a removable pressure compensator at the base of the nozzle. Removing it changes performance.

✓ Filtration
Fine-mesh, snap-in filter screens help prevent clogging.

✓ Connection and Compatibility
Male nozzle thread suits Toro 570Z sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.

✓ Identification
Model: 4-SST-PC.
4 identifies the 4-foot width, approximately 1.2 metres. SST identifies side-strip coverage and PC identifies pressure compensation.
Colour: Orange.

✓ Warranty
Two years.
