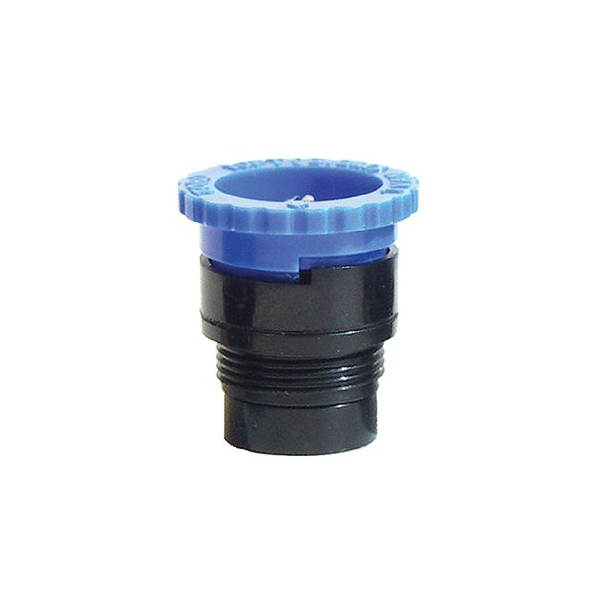

Toro TVAN10 Blue Adjustable Spray Nozzle for lawn and garden irrigation.
At 200 kPa pressure, the nozzle waters a 2.7 metre radius with a 360° arc setting. Radius is the distance from the sprinkler to the outer edge of the spray. Flow is 6.90 L/min at 200 kPa with a 360° arc setting.
Model: TVAN10. 10 identifies the 10-foot radius class. TVAN identifies the variable-arc nozzle family. Colour: Blue. Connection: Male nozzle thread.
Nozzle pressure compensators must not be used with Toro 570Z PR or PRX pressure-regulated bodies.
The easy-grip top lets you adjust the spray arc by hand, with the sprinkler running or switched off. The removable pressure compensator at the base of the nozzle helps control flow and reduce misting caused by excess pressure. The top adjustment screw lets you shorten the watering distance.
Male nozzle thread suits Toro 570Z sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.
Warranty: Two years.
