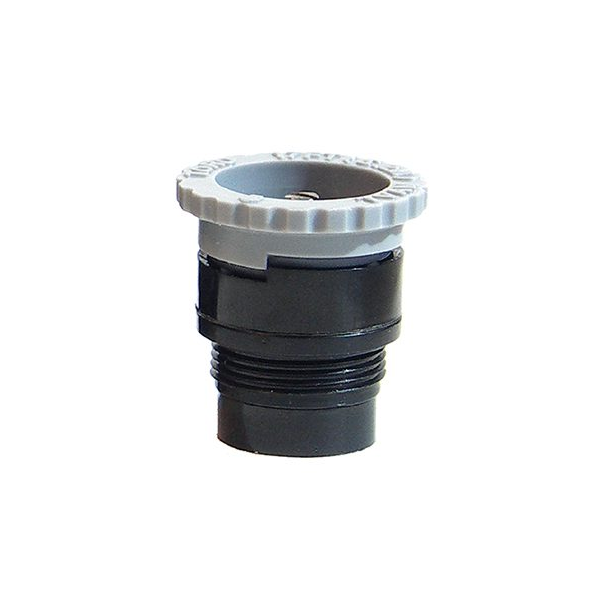

TORO TVAN17 GREY ADJUSTABLE SPRAY NOZZLE

Toro TVAN17 Grey Adjustable Spray Nozzle for lawn and garden irrigation. The easy-grip top lets you adjust the spray arc by hand, with the sprinkler running or switched off. The removable pressure compensator at the base of the nozzle helps control flow and reduce misting caused by excess pressure. The top adjustment screw lets you shorten the watering distance. Sprinkler body sold separately.

✓ Coverage: 5.5 metre radius at 200 kPa pressure
✓ Spray Pattern: Adjustable 0°–360°
✓ Flow: 12.80 L/min at 200 kPa with a 360° arc setting
✓ Recommended Pressure: 210 kPa
✓ Compatibility: Male nozzle thread suits Toro 570Z sprinkler bodies

Toro 570 Fixed Spray Nozzles Specifications & Performance Charts
Toro 570 Adjustable Spray Nozzles Specifications & Performance Charts

More Information
Product Specifications
Toro adjustable spray nozzle with grey top ring
TORO TVAN17 GREY ADJUSTABLE SPRAY NOZZLE
Toro fixed full-circle spray nozzle with green threaded body
Toro Sprinkler Nozzle 8Q Green(2.4m Radius 90°) PC SPTN57008Q
$3.98 /each
Toro fixed full-circle spray nozzle with green threaded body
Toro Sprinkler Nozzle 8H Green(2.4m Radius 180°) PC SPTN57008H
$3.98 /each
Toro fixed full-circle spray nozzle with green threaded body
Toro Sprinkler Nozzle 8F Green (2.4m Radius 360°) PC SPTN57008F
$3.98 /each
Toro adjustable spray nozzle with green top ring
Toro Sprinkler Nozzle 8 ADJ Green (2.4m Radius 1-360°) PC SPTN57008A
$4.09 /each
Toro fixed full-circle spray nozzle with blue threaded body
Toro Sprinkler Nozzle 10Q Blue (3m Radius 90°) PC SPTN57010Q
$3.98 /each
Toro fixed full-circle spray nozzle with blue threaded body
Toro Sprinkler Nozzle 10T Blue (3m Radius 120°) PC SPTN57010T
$3.98 /each
Toro fixed full-circle spray nozzle with blue threaded body
Toro Sprinkler Nozzle 10H Blue (3m Radius 180°) PC SPTN57010H
$3.98 /each
Toro fixed full-circle spray nozzle with blue threaded body
Toro Sprinkler Nozzle 10TT Blue (3m Radius 240°) PC SPTN57010TT
$3.98 /each
Toro fixed full-circle spray nozzle with blue threaded body
Toro Sprinkler Nozzle 10TQ Blue (3m Radius 270°) PC SPTN57010TQ
$3.98 /each
Toro fixed full-circle spray nozzle with blue threaded body
Toro Sprinkler Nozzle 10F Blue (3m Radius 360°) PC SPTN57010F
$3.98 /each
Toro adjustable spray nozzle with blue top ring
Toro Sprinkler Nozzle 10 ADJ Blue (3m Radius 1-360°) PC SPTN57010A
$4.09 /each
Toro fixed full-circle spray nozzle with brown threaded body
Toro Sprinkler Nozzle 12Q Brown (3.7m Radius 90°) PC SPTN57012Q
$3.98 /each
Toro fixed full-circle spray nozzle with brown threaded body
Toro Sprinkler Nozzle 12T Brown (3.7m Radius 120°) PC SPTN57012T
$3.98 /each
Toro fixed full-circle spray nozzle with brown threaded body
Toro Sprinkler Nozzle 12H Brown (3.7m Radius 180°) PC SPTN57012H
$3.98 /each
Toro fixed full-circle spray nozzle with brown threaded body
Toro Sprinkler Nozzle 12TT Brown (3.7m Radius 240°) PC SPTN57012TT
$3.98 /each
Toro fixed full-circle spray nozzle with brown threaded body
Toro Sprinkler Nozzle 12TQ Brown (3.7m Radius 270°) PC SPTN57012TQ
$3.98 /each
Toro fixed full-circle spray nozzle with brown threaded body
Toro Sprinkler Nozzle 12F Brown (3.7m Radius 360°) PC SPTN57012F
$3.98 /each
Toro adjustable spray nozzle with brown top ring
Toro Sprinkler Nozzle 12 ADJ Brown (3.7m Radius 1-360°) PC SPTN57012A
$4.09 /each
Black Toro fixed full-circle spray nozzle
Toro Sprinkler Nozzle 15Q Black (4.6m Radius 90°) PC SPTN57015Q
$3.98 /each
Black Toro fixed full-circle spray nozzle
Toro Sprinkler Nozzle 15T Black (4.6m Radius 120°) PC SPTN57015T
$3.98 /each
Black Toro fixed full-circle spray nozzle
Toro Sprinkler Nozzle 15H Black (4.6m Radius 180°) PC SPTN57015H
$3.98 /each
Black Toro fixed full-circle spray nozzle
Toro Sprinkler Nozzle 15TT Black (4.6m Radius 240°) PC SPTN57015TT
$3.98 /each
Black Toro fixed full-circle spray nozzle
Toro Sprinkler Nozzle 15TQ Black (4.6m Radius 270°) PC SPTN57015TQ
$3.98 /each
Black Toro fixed full-circle spray nozzle
Toro Sprinkler Nozzle 15F Black (4.6m Radius 360°) PC SPTN57015F
$3.98 /each
Toro adjustable spray nozzle with black top ring
Toro Sprinkler Nozzle 15 ADJ Black (4.6m Radius 1-360°) PC SPTN57015A
$4.09 /each
Toro adjustable spray nozzle with grey top ring
Toro Sprinkler Nozzle 17 ADJ Grey (5.2m Radius 1-360°) PC SPTN57017A
$4.09 /each
Toro side-strip spray nozzle with black top and red threaded body
Toro Sprinkler Nozzle 4-CST Centre Strip 4 x 30 (1.2m x 9.1m) PC SPTN5702-4CST
$4.09 /each
Toro side-strip spray nozzle with black top and red threaded body
Toro Sprinkler Nozzle 4-EST End Strip 4 x 15 (1.2m x 4.6m) PC SPTN5702-4EST
$4.09 /each
Toro side-strip spray nozzle with black top and red threaded body
Toro Sprinkler Nozzle 2-SST Side Strip 2 x 6 (0.6m x 1.8m) PC SPTN5702-SST
$4.09 /each
Toro side-strip spray nozzle with black top and red threaded body
Toro Sprinkler Nozzle 9-SST Side Strip 9 x 18 (2.7m x 5.5m) PC SPTN5702-9SST
$4.09 /each
Toro side-strip spray nozzle with black top and red threaded body
Toro Sprinkler Nozzle 4-S-SST Side Strip 4 x 18 (1.2m x 5.5m) PC SPTN5702-4SSST
$4.09 /each
Toro MPR Plus orange strip-pattern sprinkler nozzle
Toro Sprinkler Nozzle 4-SST Side Strip 4 x 30 (1.2m x 9.1m) PC SPTN5702-4SST
$4.09 /each
TORO Precision / MPR Nozzle Lifter Tool SPTNP570TOOL
$7.42 /each

Toro TVAN17 Grey Adjustable Spray Nozzle for lawn and garden irrigation.

At 200 kPa pressure, the nozzle waters a 5.5 metre radius with a 360° arc setting. Radius is the distance from the sprinkler to the outer edge of the spray. Flow is 12.80 L/min at 200 kPa with a 360° arc setting.

The easy-grip top lets you adjust the spray arc by hand, with the sprinkler running or switched off. The removable pressure compensator at the base of the nozzle helps control flow and reduce misting caused by excess pressure. The top adjustment screw lets you shorten the watering distance.

Male nozzle thread suits Toro 570Z sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.

Model: TVAN17. 17 identifies the 17-foot watering radius. TVAN identifies the variable-arc nozzle family. Colour: Grey.

Warranty: Two years.

Toro 570 Fixed Spray Nozzles Specifications & Performance Charts
Toro 570 Adjustable Spray Nozzles Specifications & Performance Charts

✓ Product Type and Application
Toro TVAN17 Grey Adjustable Spray Nozzle for lawn and garden irrigation.

✓ Watering Performance and Benefits
Pressure compensation helps control flow and reduce misting caused by excess pressure.

✓ Coverage and Spray Pattern
Radius: 5.5 metres at 200 kPa pressure, before radius reduction.
Radius is the distance from the sprinkler to the outer edge of the spray.
Spray arc: Adjustable 0°–360°.

✓ Pressure & Flow
Recommended operating pressure: 210 kPa.
Operating pressure range: 150–350 kPa.
Radius and flow at different arc settings at 200 kPa:
90°: 5.2 metre radius; 5.10 L/min.
180°: 5.1 metre radius; 8.00 L/min.
270°: 5.1 metre radius; 10.80 L/min.
360°: 5.5 metre radius; 12.80 L/min.
Flow increases with a wider arc and changes with pressure and radius adjustment.

✓ Arc Adjustment
The spray arc is how far around the sprinkler the water sprays.
Turn the easy-grip top to set the spray arc.

✓ Radius Reduction
Turn the top adjustment screw clockwise with a small flathead screwdriver to reduce the radius by up to 25%. Choose a smaller-radius nozzle if further reduction is needed.

✓ Pressure Compensator
Supplied with a removable pressure compensator at the base of the nozzle.

✓ Precipitation Rate
Precipitation rate describes how quickly water is applied across the area, measured in millimetres per hour.
Use the nozzle performance values and spacing when planning a shared irrigation zone.

✓ Filtration
A fine-mesh, snap-in green filter screen helps prevent debris from clogging the nozzle.

✓ Connection and Compatibility
Male nozzle thread suits Toro 570Z sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.

✓ Identification
Model: TVAN17.
17 identifies the 17-foot watering radius. TVAN identifies the variable-arc nozzle family.
Colour: Grey.

✓ Warranty
Two years.
