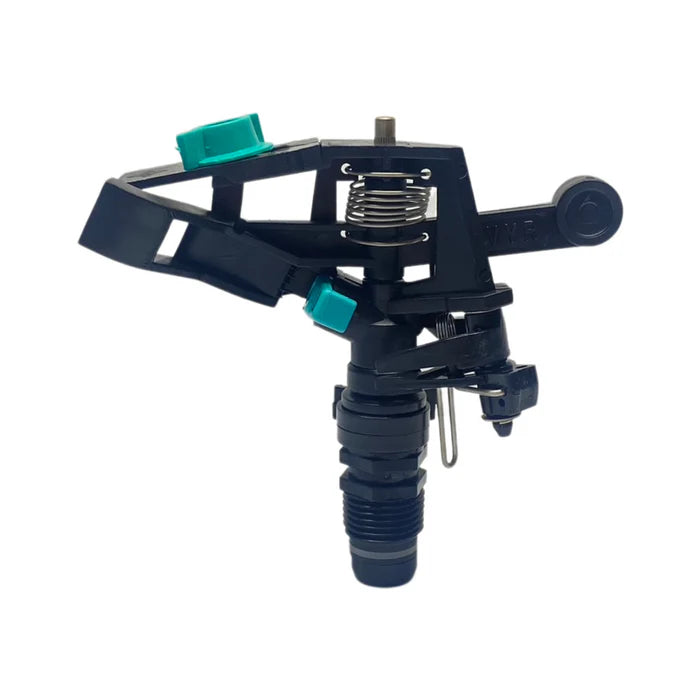

VYR-802 plastic impact sprinkler for gardens, nurseries and small crop irrigation.
The anti-splashback arm helps reduce water spraying back towards the sprinkler.
With the supplied 4.0mm nozzle, the sprinkler waters a 12.5m radius at 350 kPa. Radius is the distance from the sprinkler to the outer edge of the watered area.
Flow is 18.5 L/min at this pressure.
The spray arc is how far around the sprinkler the water sprays. Move the two stop clips around the base, setting one at each end of the area to be watered. The reversing lever meets each clip and changes the sprinkler’s direction. Check both turning points while watering and reposition the clips as needed. Full-circle operation is also available.
The deflector plate and diffuser pin let you change watering distance and stream breakup. Connection: 15mm (1/2") male threaded inlet.
Narrowing the arc concentrates the same flow over a smaller area, increasing the watering rate. Match nozzle flow, arc and spacing when combining sprinklers on one zone to avoid uneven watering. Changing nozzle size can also change the watering distance.
Use a 15mm impact sprinkler coupling to leave room for the moving parts that extend below the sprinkler’s threaded inlet. Sold separately.
Supplier code: VYR-80240.
