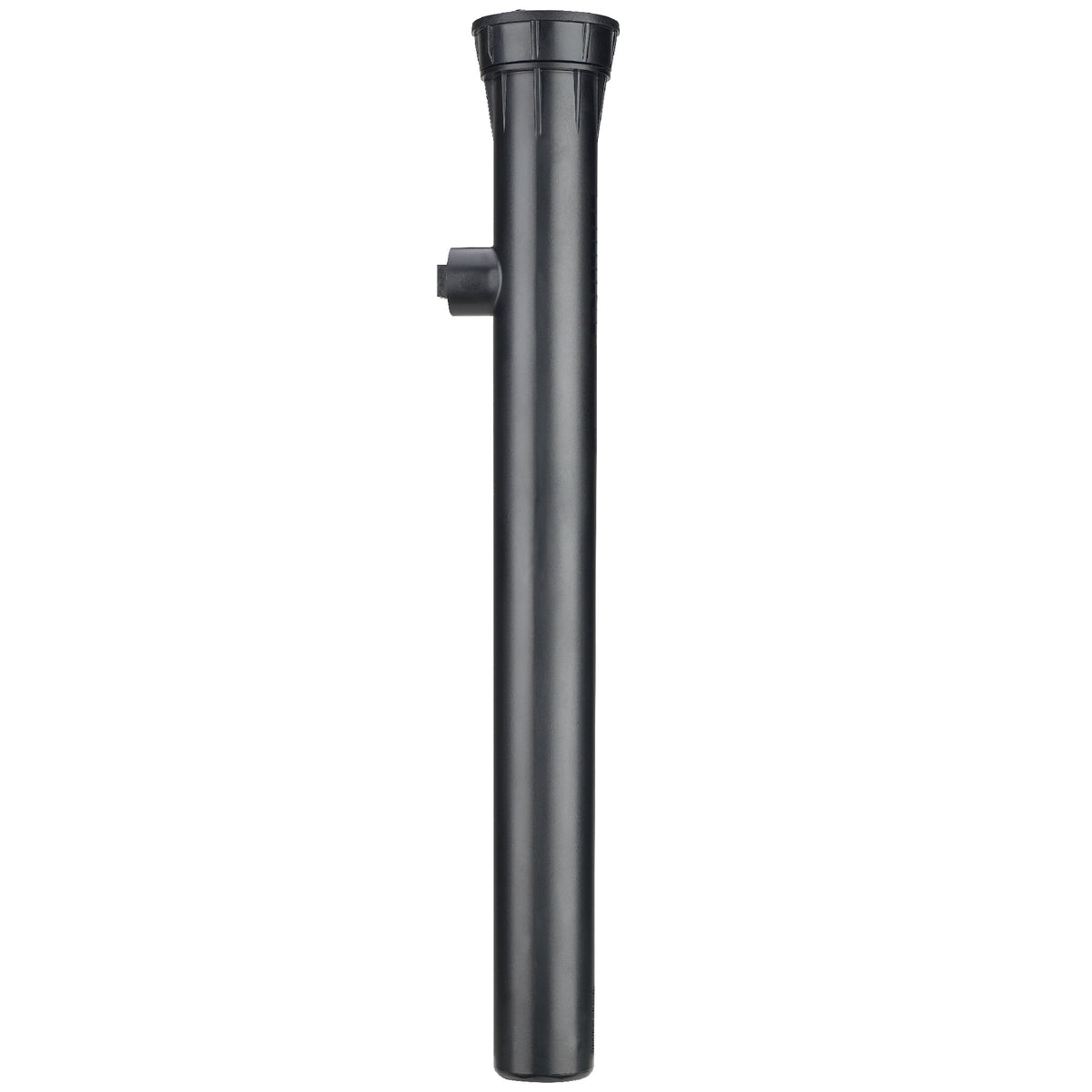

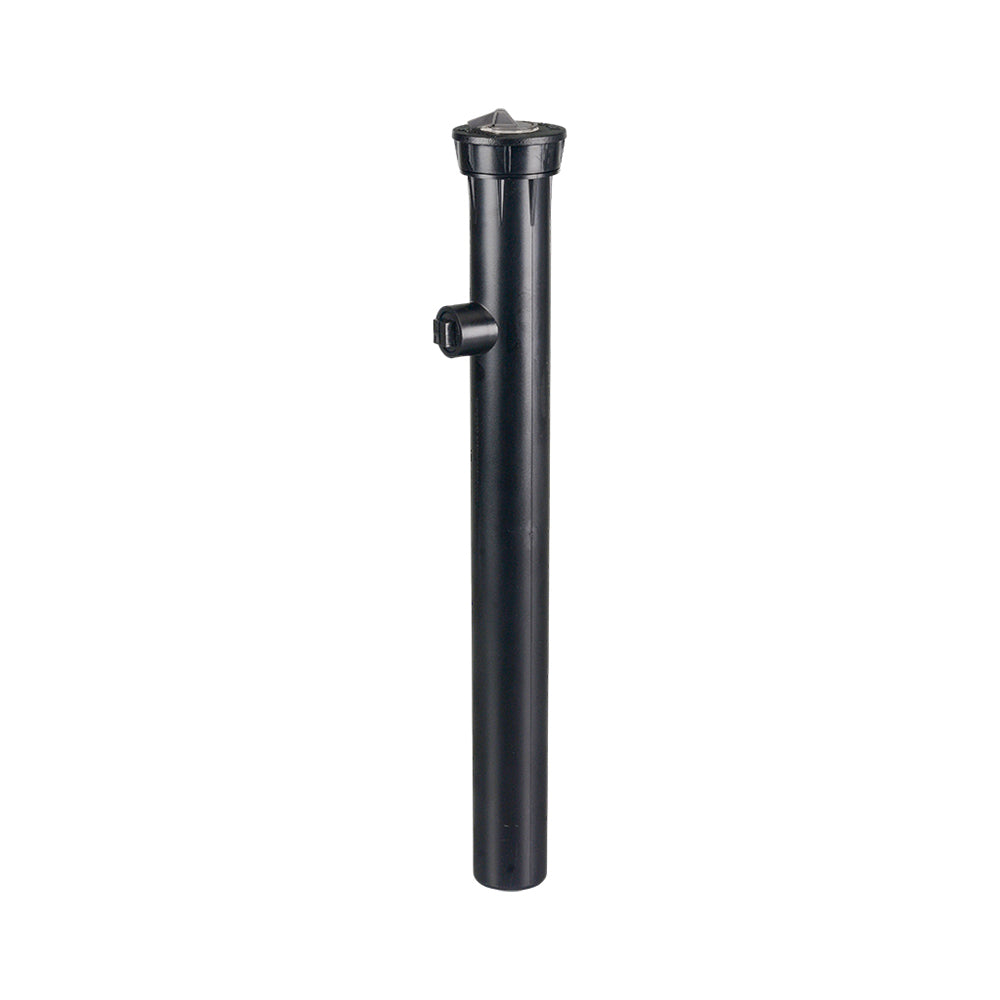

The Hunter Pro-Spray is a pop-up sprinkler body for lawn and landscape irrigation, with a riser that extends 12 inches (300mm) above the body during watering. When the system switches off, the riser retracts into the body. The sprinkler is 410mm tall with the riser retracted.

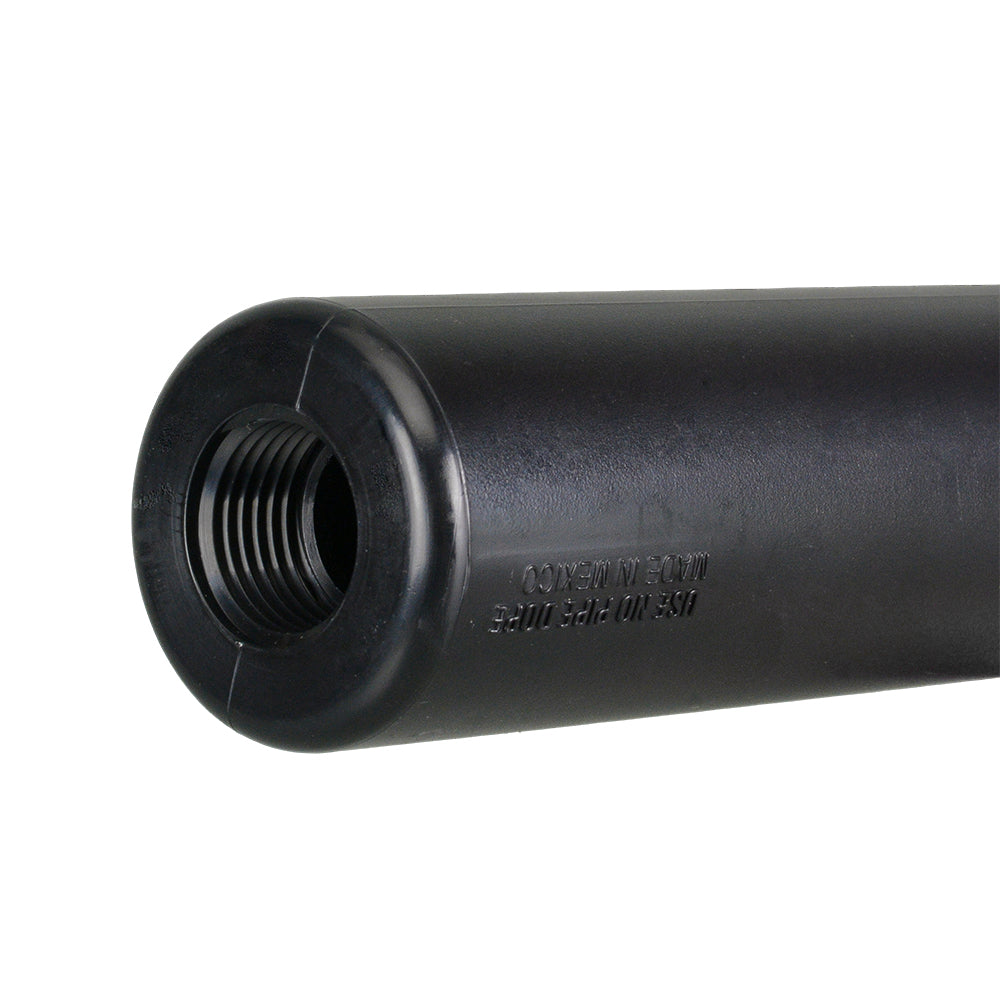

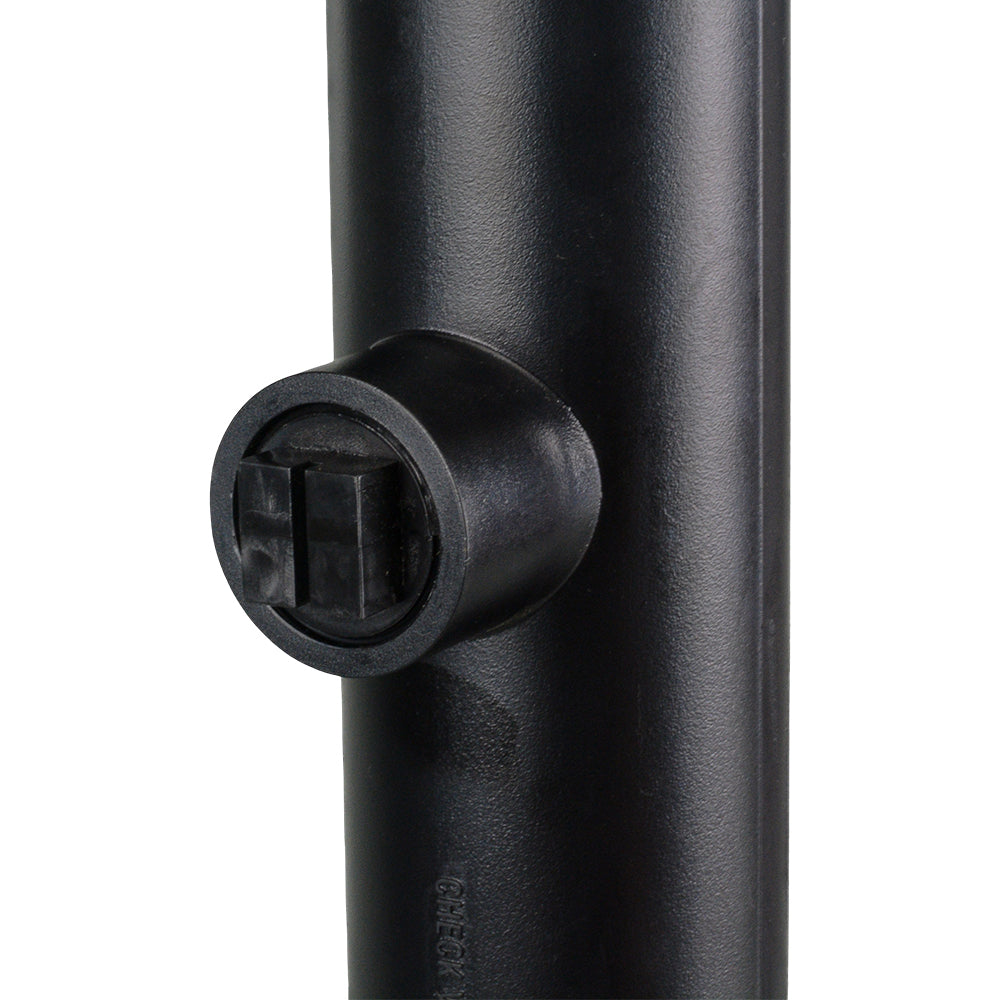

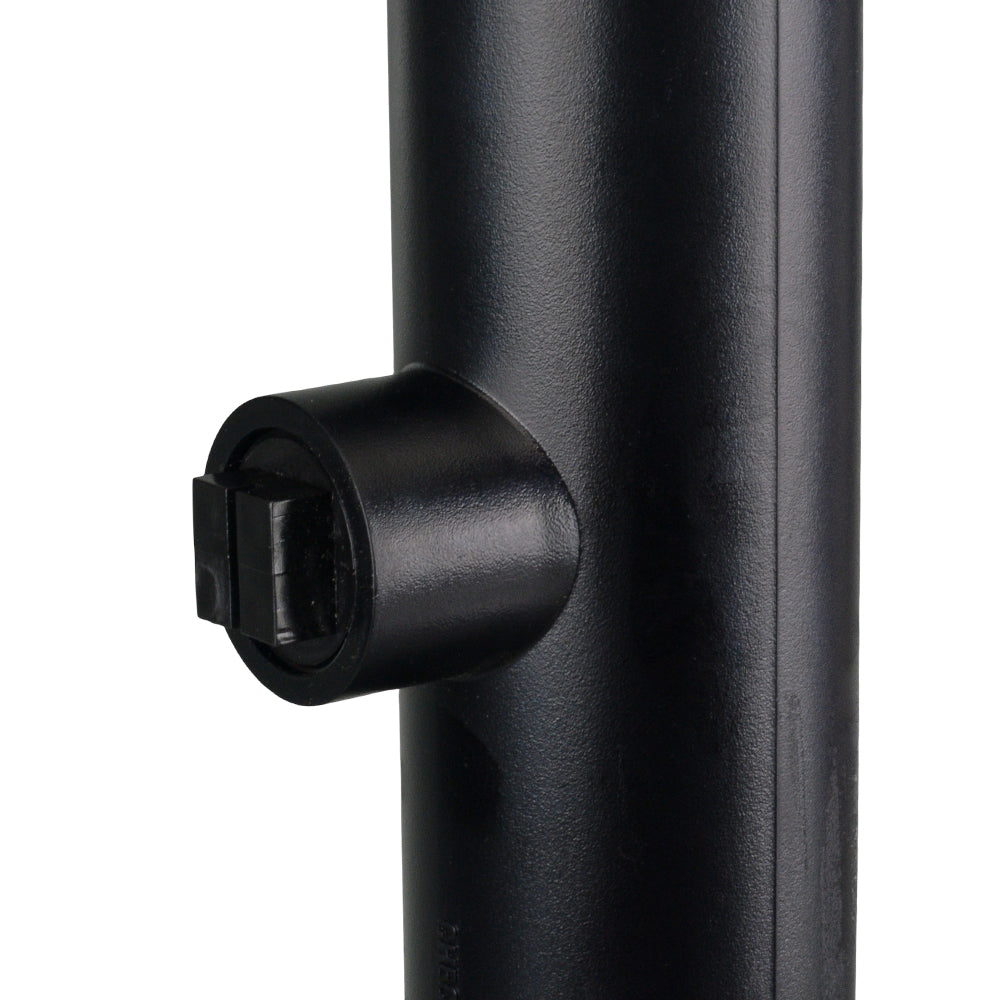

The body has 15mm (1/2") Female BSP inlets at the bottom and side for easy installation. It accepts industry-standard female-threaded sprinkler nozzles, including Hunter Pro Fixed, Pro Adjustable, Pro High-Efficiency and female-threaded MP Rotator nozzles. Coverage, spray pattern and flow depend on the nozzle fitted. Nozzle sold separately.
A heavy-duty retraction spring returns the riser after watering, while the wiper seal helps keep debris out and reduce leakage around the riser. The body operates within a pressure range of 100–700 kPa, with the required watering pressure determined by the selected nozzle.
The pop-up body is supplied with a grey flush cap. After installing the sprinkler body and before fitting a nozzle, run water through the system to flush dirt and debris that may have fallen into the pipe line during installation.
5 Year Hunter Warranty
