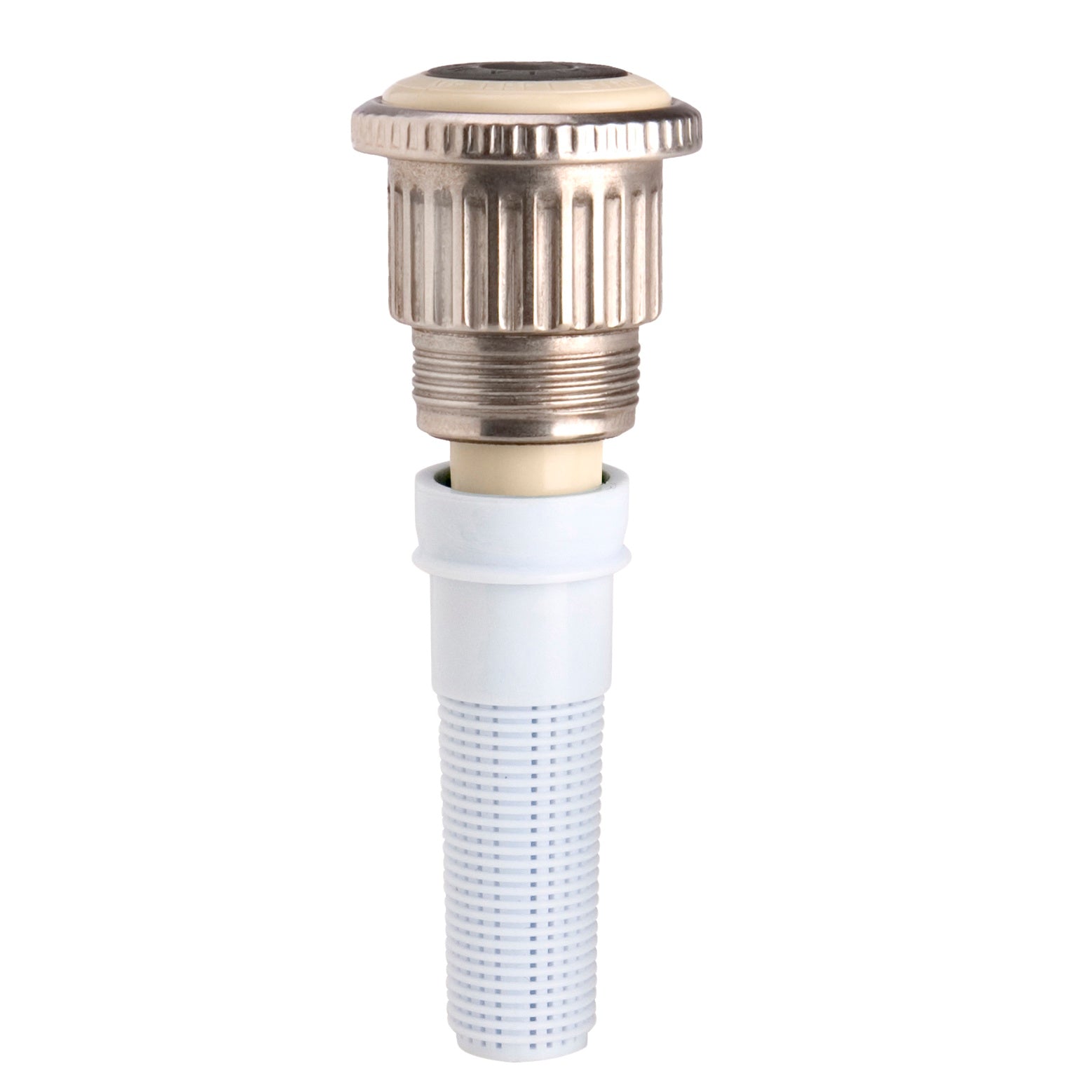

HUNTER MP-LCS-515-HT LEFT CORNER STRIP NOZZLE

Hunter MP-LCS-515-HT Left Corner Strip Nozzle for narrow lawn and planted areas. Rotating streams distribute water evenly across a rectangular pattern and help maintain coverage in wind. The top adjustment screw lets you reduce the size of the watered area. Sprinkler body sold separately.

✓ Coverage: 1.5 metres wide × 4.5 metres long at 280 kPa pressure
✓ Spray Pattern: Fixed rectangular left corner strip
✓ Flow: 0.72 L/min at 280 kPa pressure
✓ Recommended Pressure: 280 kPa
✓ Compatibility: Male nozzle thread suits Toro 570Z sprinkler bodies

The Hunter MP Rotator adjustment tool helps turn the radius adjustment screw to shorten the watering distance.

Hunter MP Rotator Nozzle Specifications & Performance Charts
Hunter MP Rotator Nozzle Brochure
Hunter MP Rotator Nozzle System Design Guide
Hunter MP Rotator Nozzle Reference Card

More Information
Product Specifications
Product Videos
Hunter MP left-strip male-threaded nozzle with cream collar and white filter
HUNTER MP-LCS-515-HT LEFT CORNER STRIP NOZZLE
Hunter MP Rotator male-threaded nozzle with maroon collar and white filter
Hunter MP Rotator 1000 Male 90°-210° Adjustable (Radius 2.5m - 4.5m) SPMPMA1090210
$15.45 /each
Hunter MP Rotator male-threaded nozzle with olive green collar and white filter
Hunter MP Rotator 1000 Male 360° Full Circle (Radius 2.5m - 4.5m) SPMPMA10360
$15.45 /each
Hunter MP Rotator male-threaded nozzle with black collar and white filter
Hunter MP Rotator 2000 Male 90°-210° Adjustable (Radius 4.0m - 6.4m) SPMPMA2090210
$15.45 /each
Hunter MP Rotator male-threaded nozzle with green collar and white filter
Hunter MP Rotator 2000 Male 210°-270° Adjustable (Radius 4.0m - 6.4m) SPMPMA20210270
$15.45 /each
Hunter MP Rotator male-threaded nozzle with red collar and white filter
Hunter MP Rotator 2000 Male 360° Full Circle (Radius 4.0m - 6.4m) SPMPMA20360
$15.45 /each
Hunter MP Rotator male-threaded nozzle with blue collar and tan filter
Hunter MP Rotator 3000 Male 90°-210° Adjustable (Radius 6.7m - 9.1m) SPMPMA3090210
$15.45 /each
Hunter MP Rotator male-threaded nozzle with yellow collar and tan filter
Hunter MP Rotator 3000 Male 210°-270° Adjustable (Radius 6.7m - 9.1m) SPMPMA30210270
$15.45 /each
Hunter MP Rotator male-threaded nozzle with grey top and tan filter
Hunter MP Rotator 3000 Male 360° Full Circle (Radius 6.7m - 9.1m) SPMPMA30360
$15.45 /each
Hunter MP Corner male-threaded nozzle with blue collar and white filter
Hunter MP Rotator Corner Male 45°-105° Adjustable (Radius 2.5m - 4.5m) SPMPMAC
$15.45 /each
Hunter MP left-strip male-threaded nozzle with cream collar and white filter
Hunter MP Rotator Left Corner Strip Male (Rectangle 1.5m x 4.5m) SPMPMALS
$15.45 /each
Hunter MP right-strip male-threaded nozzle with orange collar and white filter
Hunter MP Rotator Right Corner Strip Male (Rectangle 1.5m x 4.5m) SPMPMARS
$15.45 /each
Hunter MP side-strip male-threaded nozzle with brown collar and white filter
Hunter MP Rotator Side Strip Male (Rectangle 1.5m x 9.0m) SPMPMAS
$15.45 /each

Hunter MP-LCS-515-HT Left Corner Strip Nozzle for narrow lawn and planted areas.

Rotating streams distribute water evenly across a rectangular pattern and help maintain coverage in wind.

The watered rectangle is 1.5 metres wide × 4.5 metres long at 280 kPa pressure. Dimensions show the total width and length.

Position the sprinkler at the left corner of the strip. The pattern extends along the strip to the right of the sprinkler and across its width. The double-pop design helps protect the nozzle from dirt and debris during startup. The top adjustment screw lets you reduce the size of the watered area.

The Hunter MP Rotator adjustment tool helps turn the radius adjustment screw to shorten the watering distance. Male nozzle thread suits Toro 570Z sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.

Warranty: Three years.

Hunter MP Rotator Nozzle Specifications & Performance Charts
Hunter MP Rotator Nozzle Brochure
Hunter MP Rotator Nozzle System Design Guide
Hunter MP Rotator Nozzle Reference Card

✓ Product Type and Application
Hunter MP-LCS-515-HT Left Corner Strip Nozzle for narrow lawn and planted areas.
A rotary nozzle fits onto a compatible sprinkler body and sends out streams of water that rotate across the watering area.

✓ Watering Performance and Benefits
Wind resistance: Multiple rotating streams resist wind drift and reduce misting, helping maintain even coverage in exposed areas.
Even watering: Streams at different trajectories distribute water across the watering area.

✓ Coverage and Spray Pattern
Coverage: 1.5 metres wide × 4.5 metres long at 280 kPa pressure, before distance reduction.
Dimensions show total width × length, not radius.
Spray pattern: Fixed rectangular left corner strip.
Sprinkler position: Left corner of the strip. The pattern extends along the strip to the right of the sprinkler and across its width.

✓ Pressure & Flow
Recommended operating pressure: 280 kPa.
210 kPa: 1.2 × 4.2 metres; 0.64 L/min.
250 kPa: 1.4 × 4.4 metres; 0.68 L/min.
280 kPa: 1.5 × 4.5 metres; 0.72 L/min.
300 kPa: 1.6 × 4.6 metres; 0.79 L/min.
350 kPa: 1.7 × 4.7 metres; 0.87 L/min.
380 kPa: 1.8 × 4.8 metres; 0.91 L/min.

✓ Distance Reduction
Use MPTOOL or a small flathead screwdriver on the top adjustment screw. Turn clockwise to reduce watering distance and counterclockwise to increase it. The rectangular pattern stays fixed.

✓ Precipitation Rate
Precipitation rate describes how quickly water is applied across the area, measured in millimetres per hour.
MP strip nozzles can match Standard MP or MP800 with the appropriate layout. Use rectangular spacing to match the MP800 family; use the Standard MP strip layout for Standard MP zones.

✓ Debris Protection and Filtration
Double-pop design keeps the nozzle protected until the sprinkler riser has fully extended. A removable filter screen helps prevent clogging and allows cleaning.

✓ Connection and Compatibility
Male nozzle thread suits Toro 570Z sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.

✓ Identification
Model: MP-LCS-515-HT.
Left Corner strip pattern.

✓ Warranty
Three years.
