RAIN BIRD HE-VAN ADJUSTABLE SPRAY NOZZLES

Rain Bird HE-VAN Adjustable Spray Nozzles for lawn and garden irrigation. The centre collar adjusts the spray arc, with ExactEdge helping hold the chosen setting. Large droplets help resist wind drift. Close-in watering helps cover the ground near the sprinkler and reduce dry spots, supporting more efficient coverage. The top adjustment screw lets you shorten the watering distance. Sprinkler body sold separately.

✓ Coverage: Radius classes from 2.4 to 4.6 metres
✓ Spray Pattern: Adjustable 0°–360°
✓ Flow: Varies by nozzle model, pressure and arc setting
✓ Recommended Pressure: 210 kPa
✓ Compatibility: Female nozzle thread suits Rain Bird 1800 sprinkler bodies

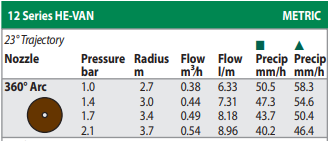

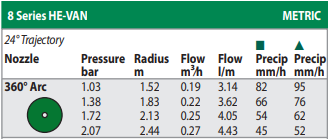

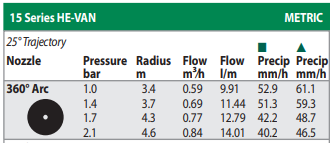

Rain Bird HE-VAN High Efficiency Adjustable Nozzle Specifications & Performance Charts
Rain Bird HE-VAN High Efficiency Adjustable Nozzle Brochure
Rain Bird HE-VAN High Efficiency Adjustable Nozzle Troubleshooting Guide

More Information
Product Specifications
Rain Bird Sprinkler Nozzle 15 ADJ Black (4.6m Radius 1-360°)
RAIN BIRD HE-VAN ADJUSTABLE SPRAY NOZZLES
Rain Bird Sprinkler Nozzle 8 ADJ Green (2.4m Radius 1-360°)
Rain Bird Sprinkler Nozzle 8 ADJ Green (2.4m Radius 1-360°) SPRNHEVAN08
$4.04 /each
Rain Bird Sprinkler Nozzle 10 ADJ Blue (3m Radius 1-360°)
Rain Bird Sprinkler Nozzle 10 ADJ Blue (3m Radius 1-360°) SPRNHEVAN10
$4.04 /each
Rain Bird Sprinkler Nozzle 12 ADJ Brown (3.7m Radius 1-360°)
Rain Bird Sprinkler Nozzle 12 ADJ Brown (3.7m Radius 1-360°) SPRNHEVAN12
$4.04 /each
Rain Bird Sprinkler Nozzle 15 ADJ Black (4.6m Radius 1-360°)
Rain Bird Sprinkler Nozzle 15 ADJ Black (4.6m Radius 1-360°) SPRNHEVAN15
$4.04 /each

Rain Bird HE-VAN Adjustable Spray Nozzles for lawn and garden irrigation.

Radius classes from 2.4 to 4.6 metres. Adjustable 0°–360°.

Precipitation rate describes how quickly water is applied across the area, measured in millimetres per hour.
Rain Bird MPR and HE-VAN nozzles have compatible matched precipitation rates when installed with appropriate spacing.

Flow Control Technology provides close-in watering and even coverage. Large droplets help resist wind drift. Turn the centre collar to adjust the arc; ExactEdge helps hold the chosen setting.

The centre collar adjusts the spray arc, with ExactEdge helping hold the chosen setting. Large droplets help resist wind drift. Close-in watering helps cover the ground near the sprinkler and reduce dry spots, supporting more efficient coverage. The top adjustment screw lets you shorten the watering distance.

Female nozzle thread suits Rain Bird 1800 sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.

Warranty: Three years.

Rain Bird HE-VAN High Efficiency Adjustable Nozzle Specifications & Performance Charts
Rain Bird HE-VAN High Efficiency Adjustable Nozzle Brochure
Rain Bird HE-VAN High Efficiency Adjustable Nozzle Troubleshooting Guide

✓ Product Type and Application
Rain Bird HE-VAN Adjustable Spray Nozzles for lawn and garden irrigation.

✓ Coverage and Spray Pattern
Radius classes from 2.4 to 4.6 metres.
Adjustable 0°–360°.
Radius is the distance from the sprinkler to the outer edge of a circular watering pattern. Strip dimensions show total width × length. Coverage values are before radius or distance reduction.

✓ Radius Reduction
Turn the top adjustment screw clockwise with a small flathead screwdriver to reduce the radius by up to 25%. Choose a smaller-radius nozzle if further reduction is needed.
Fixed circular patterns retain their spray arc. Strip nozzles retain their rectangular pattern.

✓ Pressure & Flow
Recommended operating pressure: 210 kPa.
Flow varies with nozzle model, pressure and adjustment. Adjustable-nozzle flow also varies with the arc setting. Individual product pages provide model-specific coverage and flow.

✓ Precipitation Rate
Precipitation rate describes how quickly water is applied across the area, measured in millimetres per hour.
Rain Bird MPR and HE-VAN nozzles have compatible matched precipitation rates when installed with appropriate spacing.

✓ Filtration
Keep the supplied Rain Bird filter screen fitted to help prevent clogging and allow distance adjustment to work correctly.

✓ Spray Performance
Flow Control Technology provides close-in watering and even coverage. Large droplets help resist wind drift. Turn the centre collar to adjust the arc; ExactEdge helps hold the chosen setting.

✓ Connection and Compatibility
Female nozzle thread suits Rain Bird 1800 sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.

✓ Identification
Model numbers identify radius classes or product families. Pattern letters identify the fixed arc or strip shape. Use the individual model specifications for exact coverage.

✓ Warranty
Three years.
