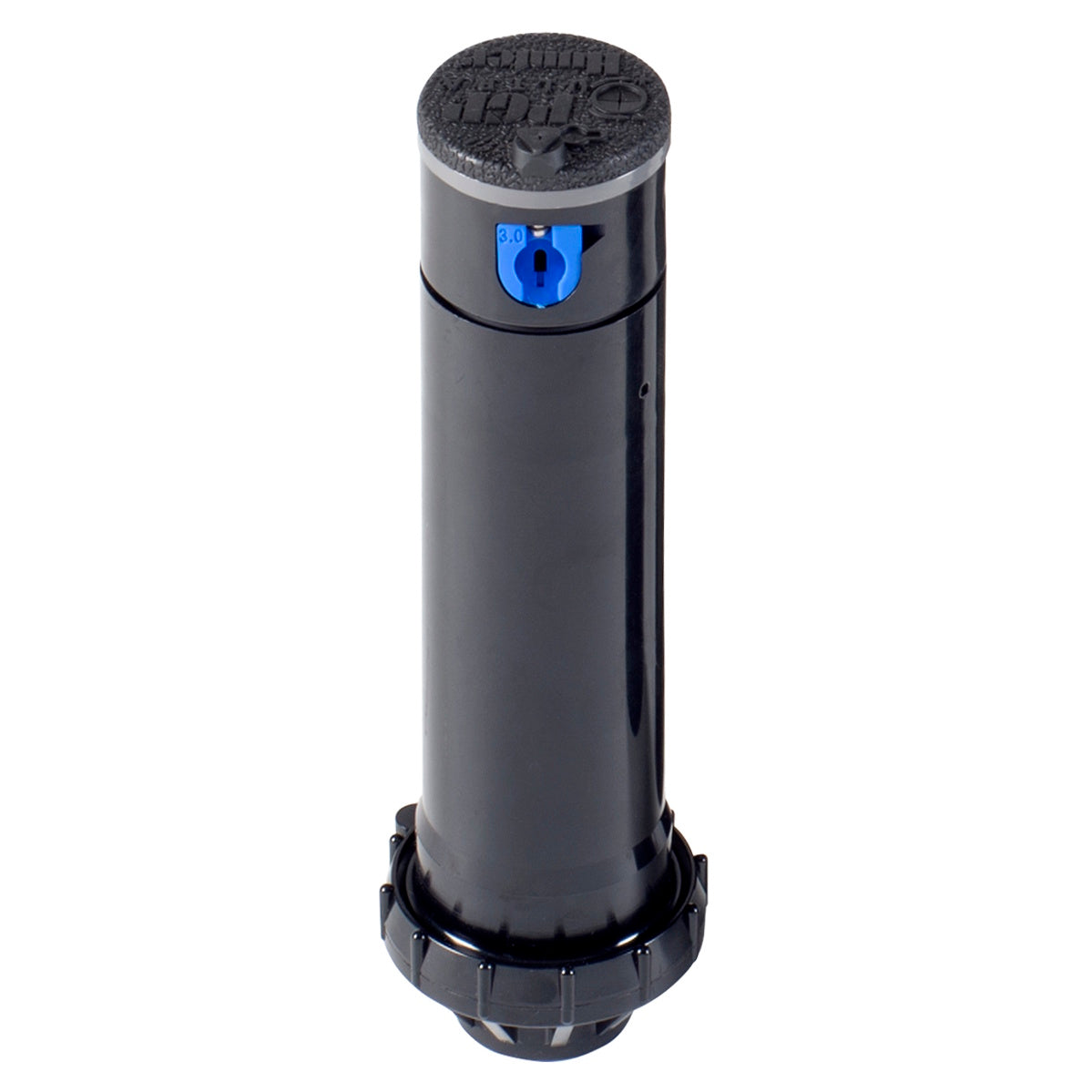

Hunter PGP Ultra shrub rotor with a fixed above-ground body for mounting on a riser in lawn and garden reticulation.
Automatic arc return brings the sprinkler back to its chosen pattern if the turret is turned out of position. A non-strippable drive helps protect the mechanism, while standard and low-angle nozzles provide flexibility across open lawn areas.
The PGP Ultra provides a 7.3–14 metre radius across the supplied nozzle options. Radius is the distance from the sprinkler to the outer edge of the watering pattern. Recommended operating pressure is 170–450 kPa.
The spray arc adjusts from 50° to 360°. The top adjustment screw lets you shorten the watering distance. Choose the nozzle for both watering distance and arc so sprinklers on the same zone apply water at similar rates.
The Hunter gear drive adjustment tool is required for arc adjustment and is also used for nozzle installation and radius adjustment.
QuickCheck lets you turn the sprinkler head by hand and feel the stops at either end of the watering arc.
The inlet is 20mm (3/4") BSP female, and the body is 190mm tall.

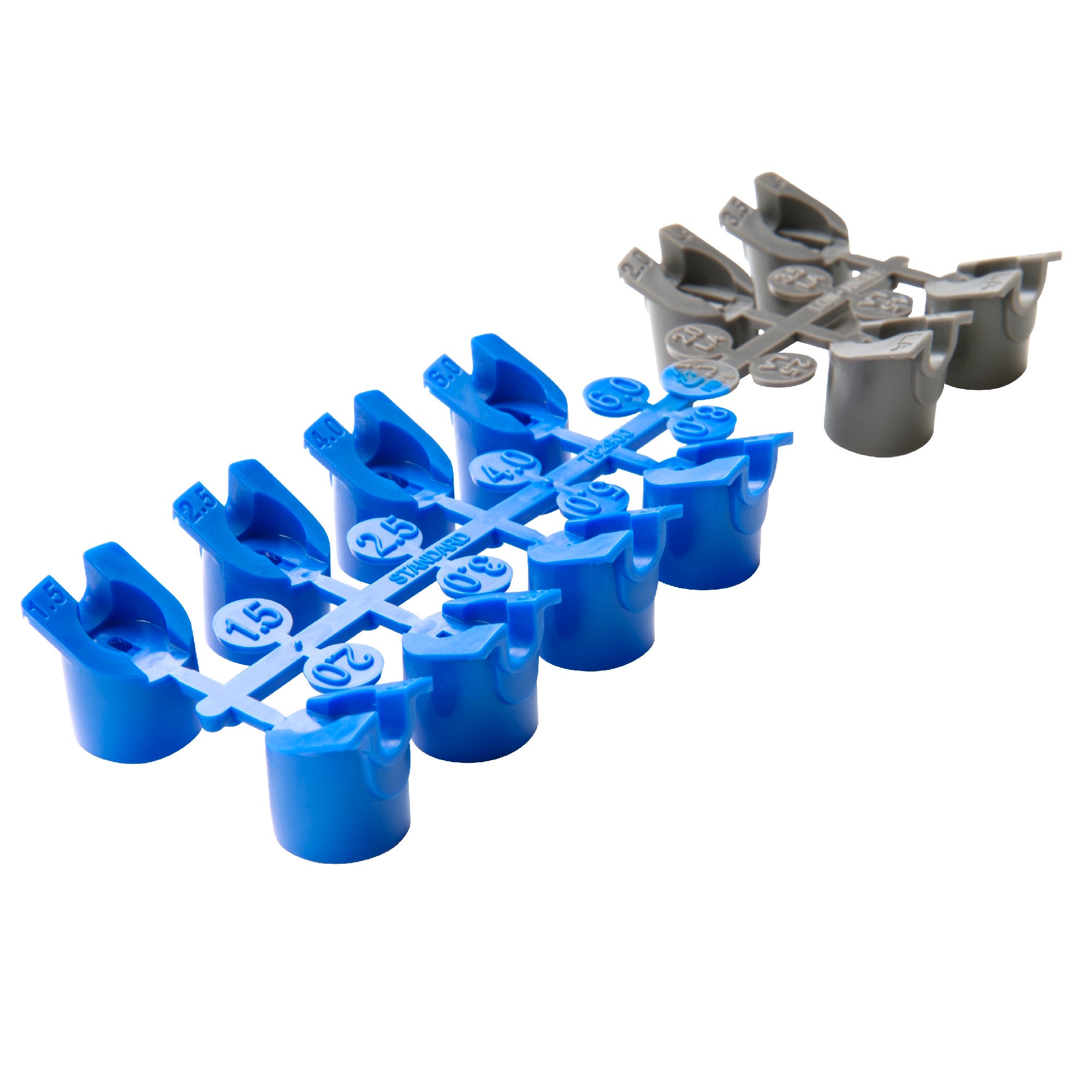

Eight blue standard and four grey low-angle nozzles are supplied. Standard trajectory: 25°. Low-angle trajectory: 13°.
Warranty: Five years.
For shorter watering distances, the black short-radius nozzle rack provides a 4.9–7.6 metre radius across nozzle and pressure options.
A replacement riser seal is available for servicing PGP Ultra and I-20 sprinklers.
