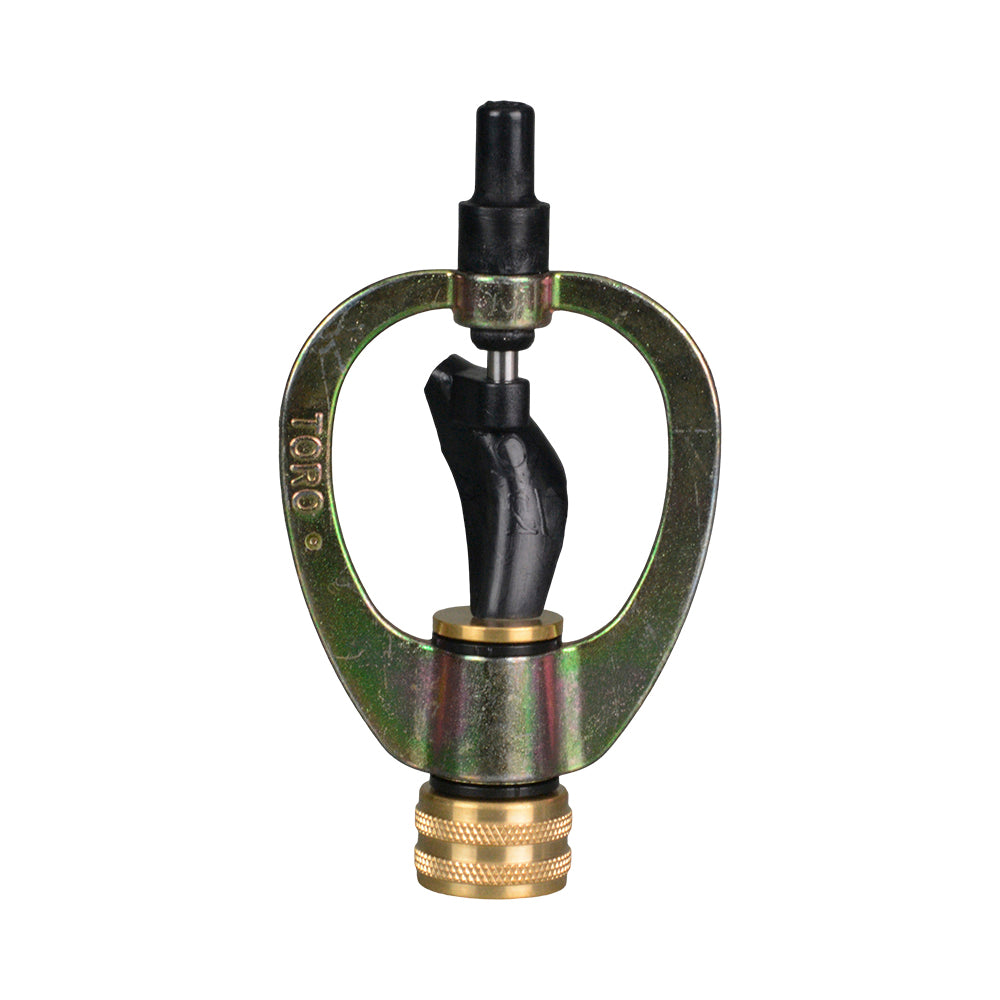

Metal-frame butterfly sprinkler with black spinner and brass male-threaded inlet
Metal-frame butterfly sprinkler with black spinner and brass male-threaded inlet

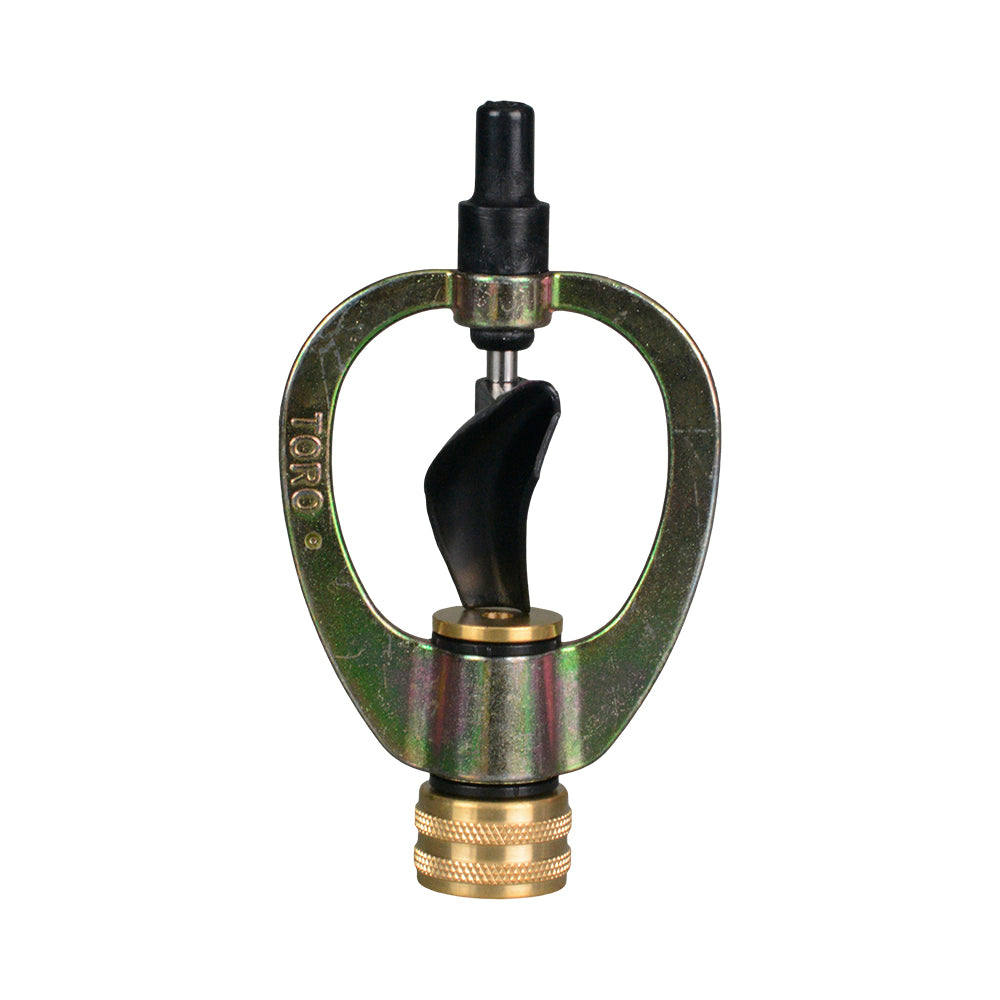

Metal-frame butterfly sprinkler showing opposite side of black spinner
Metal-frame butterfly sprinkler showing opposite side of black spinner
Metal-frame butterfly sprinkler with black spinner and brass male-threaded inlet
Metal-frame butterfly sprinkler showing opposite side of black spinner

BUTTERFLY SPRINKLERS

Rotoframe rotating sprinkler for nursery and market garden watering. Both the spinner and frame rotate to distribute water around the head in a full circle.

✓ Inlet: 20mm (3/4") female BSP thread
✓ Coverage: 12m wetted diameter (6m radius) at 200 kPa
✓ Spray Pattern: Full circle
✓ Pressure: Performance chart covers 100–250 kPa
✓ Flow: 14.7L/min at 200 kPa
✓ Nozzle Size: 5mm

15mm & 20mm Brass Butterfly Sprinkler Specifications
15mm & 20mm Raindrop Butterfly Sprinkler Specifications
15mm & 20mm Rotoframe Butterfly Sprinkler Specifications

More Information
Product Specifications
Metal-frame butterfly sprinkler with black spinner and brass male-threaded inlet
BUTTERFLY SPRINKLERS
Small cast brass butterfly sprinkler with brass spinner
Butterfly Sprinkler Brass 15mm BSPF SPBUBFI15
$14.10 /each
Cast brass butterfly sprinkler with brass spinner
Butterfly Sprinkler Brass 20mm BSPF SPBUBFI20
$14.03 /each
Brass butterfly sprinkler with hexagonal inlet and brass spinner
Butterfly Sprinkler Brass with Single Spinner (Raindrop) 15mm BSPF SPBURSS15F
$36.25 /each
Brass butterfly sprinkler with brass single-vane spinner
Butterfly Sprinkler Brass with Single Spinner (Raindrop) 20mm BSPF SPBURSS20F
$38.11 /each
Brass butterfly sprinkler with black single-vane spinner
Butterfly Sprinkler Brass with Single Plastic Spinner (Raindrop) 15mm BSPF SPBURPS15F
$31.72 /each
Brass butterfly sprinkler with black dual-vane spinner
Butterfly Sprinkler Brass with Dual Plastic Spinner (Raindrop) 15mm BSPF SPBURPD15F
$34.45 /each
Metal-frame butterfly sprinkler with black spinner and brass male-threaded inlet
Sprinkler Butterfly Rotoframe Spinner 15mm Female (Radius 10.9m - 11.6m) **LIMITED STOCK** SPBURS015
$26.17 /each
Metal-frame butterfly sprinkler with black spinner and brass male-threaded inlet
Sprinkler Butterfly Rotoframe Spinner 20mm Female (Radius 10.9m - 11.6m) **LIMITED STOCK** SPBURS020
$26.17 /each
Grey plastic butterfly sprinkler with black single spinner
Butterfly Plastic Single Spinner 15mm Female (Radius 6m) SPBUPFI15
$6.46 /each
Chrome-finish butterfly sprinkler with single spinner and male threaded inlet
Sprinkler Butterfly Zinc/Chrome Single Spinner 15mm Male (Radius 6m) SPBUZMA15
$6.86 /each

Rotoframe rotating sprinkler for nursery and market garden watering. Both the spinner and frame rotate to distribute water around the head in a full circle.

The 20mm (3/4") female BSP inlet connects to a matching male threaded riser or fitting. Position the head so the spray clears nearby plants.

The 5mm nozzle delivers 14.7L/min at 200 kPa. At that pressure, the published performance table gives a 12m wetted diameter, equivalent to a 6m radius.

The performance chart covers 100–250 kPa, with flow increasing from 11.8L/min to 16.2L/min. Use the pressure-specific table when planning the water supply and sprinkler layout.

Construction combines a die-cast zinc body, stainless steel spindle, plastic spinner and brass nut.

15mm & 20mm Brass Butterfly Sprinkler Specifications
15mm & 20mm Raindrop Butterfly Sprinkler Specifications
15mm & 20mm Rotoframe Butterfly Sprinkler Specifications

✓ Application
Nurseries and market gardens.

✓ Inlet Connection
20mm (3/4") female BSP thread.

✓ Spray Pattern
Full-circle coverage from a rotating spinner and frame.

✓ Nozzle Size
5mm water outlet opening.

✓ Pressure and Flow
Manufacturer performance table:
100 kPa: 11.8L/min.
150 kPa: 13.2L/min.
200 kPa: 14.7L/min.
250 kPa: 16.2L/min.

✓ Coverage
Wetted diameter from the manufacturer performance table:
100 kPa: 10.9m.
150 kPa: 11.8m.
200 kPa: 12.0m.
250 kPa: 11.6m.
Diameter is the distance across the full watered circle. Radius is half the diameter.

✓ Construction
Die-cast zinc body. Stainless steel spindle. Plastic spinner. Brass nut.

✓ Installation
Connect the female inlet to a matching male BSP riser or fitting.
Position the head so the spray clears nearby plants.
