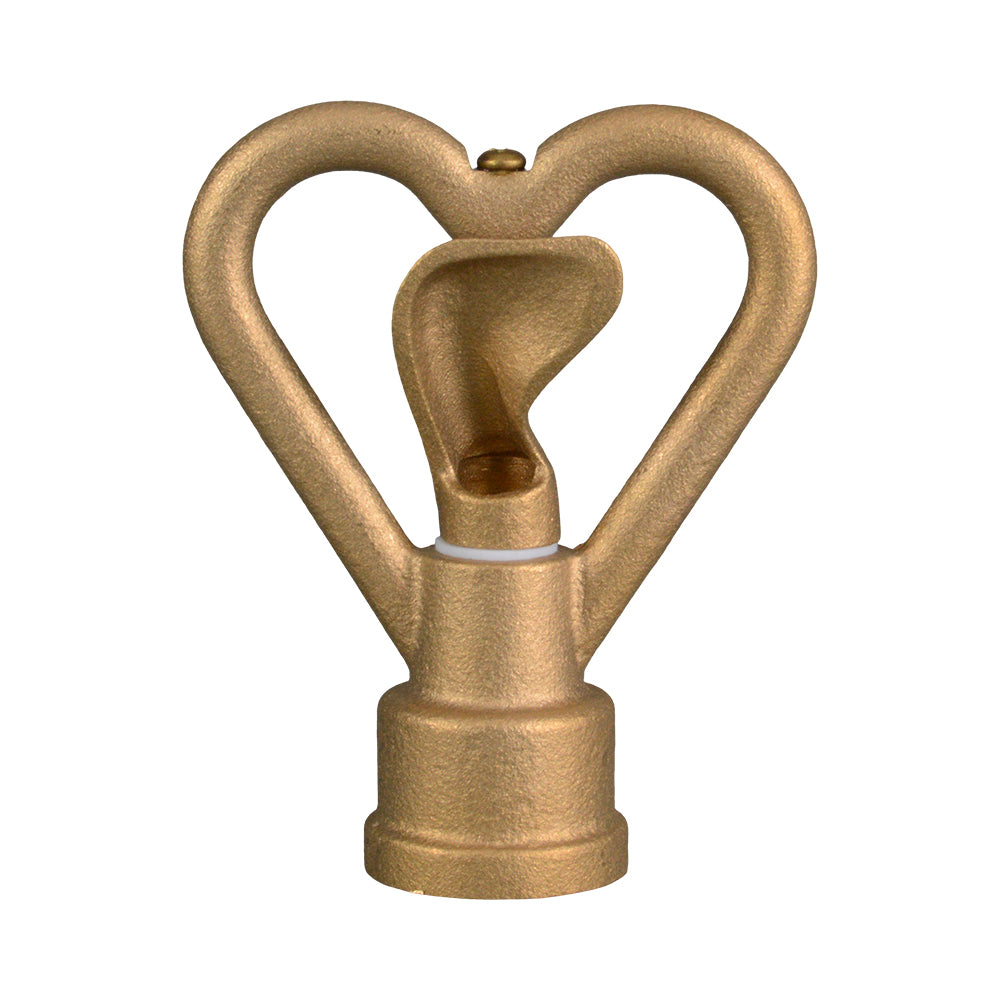

Cast brass butterfly sprinkler with brass spinner
Cast brass butterfly sprinkler with brass spinner

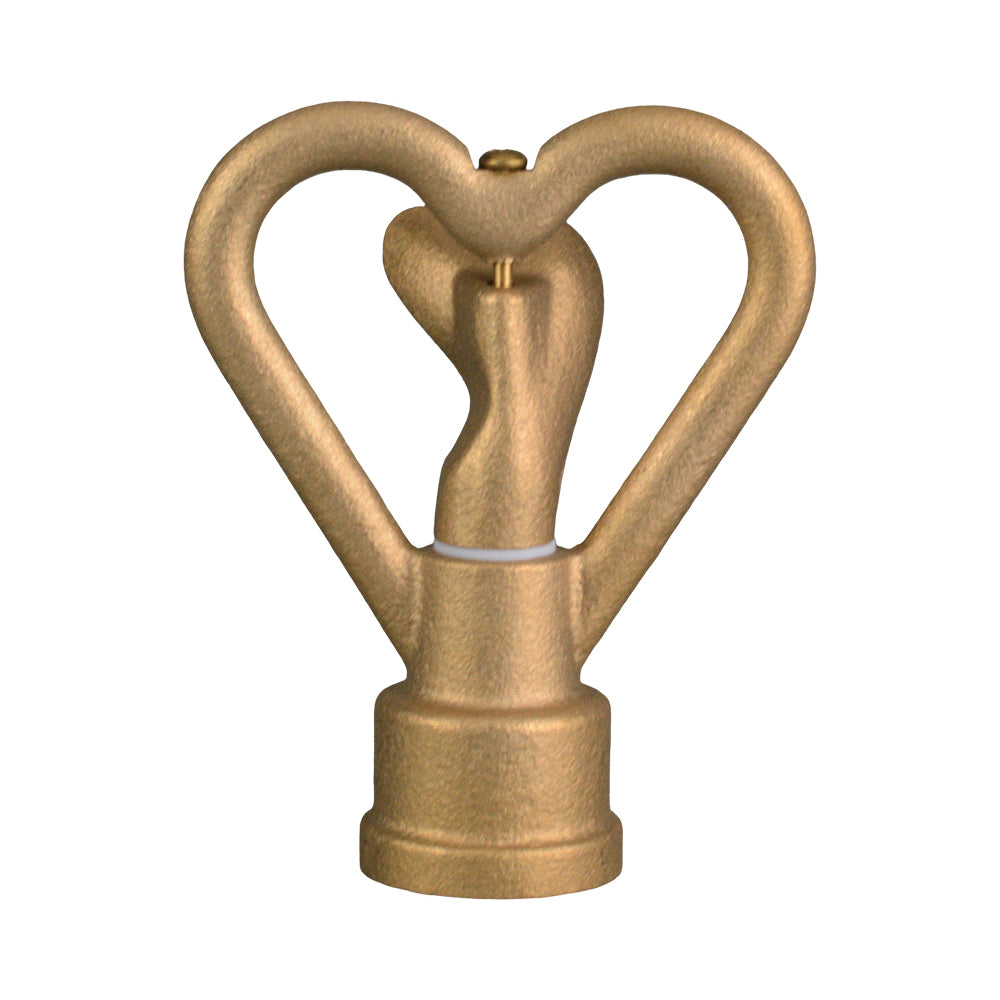

Cast brass butterfly sprinkler showing opposite side of spinner
Cast brass butterfly sprinkler showing opposite side of spinner

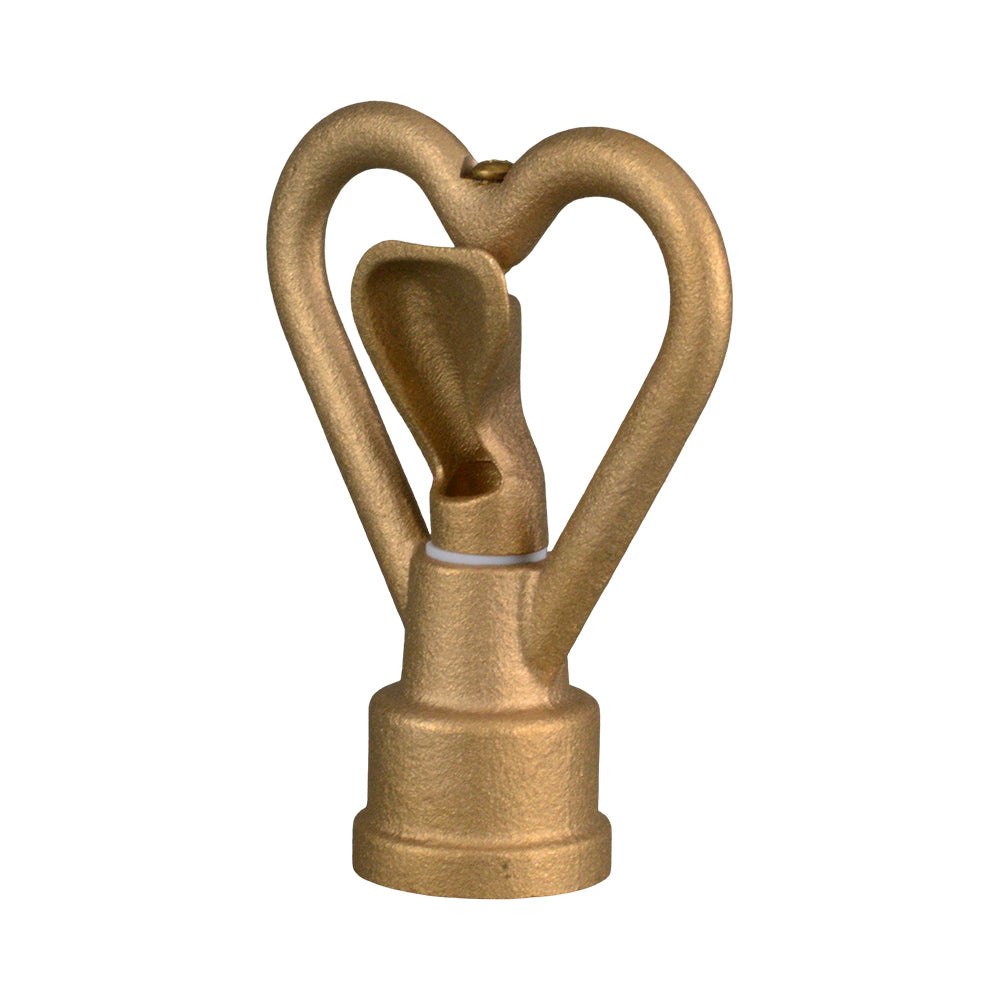

Cast brass butterfly sprinkler, angled view
Cast brass butterfly sprinkler, angled view
Cast brass butterfly sprinkler with brass spinner
Cast brass butterfly sprinkler showing opposite side of spinner
Cast brass butterfly sprinkler, angled view

BUTTERFLY SPRINKLERS

Brass butterfly sprinkler for garden and agricultural watering. Water turns the brass spinner, throwing the spray upwards and around the head. The water then falls onto the plants from above, helping it reach those behind nearer foliage.

✓ Inlet: 20mm (3/4") female BSP thread
✓ Coverage: 6.1m radius at 200 kPa
✓ Spray Pattern: Full circle
✓ Operating Pressure: 150–250 kPa
✓ Flow: 16L/min at 200 kPa

15mm & 20mm Brass Butterfly Sprinkler Specifications
15mm & 20mm Raindrop Butterfly Sprinkler Specifications
15mm & 20mm Rotoframe Butterfly Sprinkler Specifications

More Information
Product Specifications
Cast brass butterfly sprinkler with brass spinner
BUTTERFLY SPRINKLERS
Small cast brass butterfly sprinkler with brass spinner
Butterfly Sprinkler Brass 15mm BSPF SPBUBFI15
$14.10 /each
Cast brass butterfly sprinkler with brass spinner
Butterfly Sprinkler Brass 20mm BSPF SPBUBFI20
$14.03 /each
Brass butterfly sprinkler with hexagonal inlet and brass spinner
Butterfly Sprinkler Brass with Single Spinner (Raindrop) 15mm BSPF SPBURSS15F
$36.25 /each
Brass butterfly sprinkler with brass single-vane spinner
Butterfly Sprinkler Brass with Single Spinner (Raindrop) 20mm BSPF SPBURSS20F
$38.11 /each
Brass butterfly sprinkler with black single-vane spinner
Butterfly Sprinkler Brass with Single Plastic Spinner (Raindrop) 15mm BSPF SPBURPS15F
$31.72 /each
Brass butterfly sprinkler with black dual-vane spinner
Butterfly Sprinkler Brass with Dual Plastic Spinner (Raindrop) 15mm BSPF SPBURPD15F
$34.45 /each
Metal-frame butterfly sprinkler with black spinner and brass male-threaded inlet
Sprinkler Butterfly Rotoframe Spinner 15mm Female (Radius 10.9m - 11.6m) **LIMITED STOCK** SPBURS015
$26.17 /each
Metal-frame butterfly sprinkler with black spinner and brass male-threaded inlet
Sprinkler Butterfly Rotoframe Spinner 20mm Female (Radius 10.9m - 11.6m) **LIMITED STOCK** SPBURS020
$26.17 /each
Grey plastic butterfly sprinkler with black single spinner
Butterfly Plastic Single Spinner 15mm Female (Radius 6m) SPBUPFI15
$6.46 /each
Chrome-finish butterfly sprinkler with single spinner and male threaded inlet
Sprinkler Butterfly Zinc/Chrome Single Spinner 15mm Male (Radius 6m) SPBUZMA15
$6.86 /each

Brass butterfly sprinkler for garden and agricultural watering. Water turns the brass spinner, throwing the spray upwards and around the head. The water then falls onto the plants from above, helping it reach those behind nearer foliage.

The 20mm (3/4") female BSP thread connects to a matching male threaded riser or fitting. Operating pressure is 150–250 kPa.

At 200 kPa, the sprinkler uses 16L/min and reaches a 6.1m radius, equivalent to a 12.2m wetted diameter. At 150 kPa it uses 14.5L/min with a 6.0m radius. At 250 kPa it uses 18L/min with a 6.2m radius. Use the performance chart when selecting sprinkler spacing.

Position the head so the spray clears nearby foliage. Coverage behind plants depends on the mounting height and the height and density of the foliage.

15mm & 20mm Brass Butterfly Sprinkler Specifications
15mm & 20mm Raindrop Butterfly Sprinkler Specifications
15mm & 20mm Rotoframe Butterfly Sprinkler Specifications

✓ Application
garden and agricultural watering.

✓ Inlet Connection
20mm (3/4") female BSP thread.

✓ Coverage and Spray Pattern
Full-circle rotary spray. Water rises above the head and falls onto the plants from above.
Radius: 6.1m at 200 kPa, equivalent to a 12.2m wetted diameter.

✓ Pressure and Flow
Operating pressure: 150–250 kPa.
150 kPa: 14.5L/min. Radius: 6.0m.
200 kPa: 16L/min. Radius: 6.1m.
250 kPa: 18L/min. Radius: 6.2m.

✓ Construction
Brass cast frame, brass spindle and brass spinner.

✓ Installation
Connect the female inlet to a matching male BSP fitting.
Use the performance chart to match sprinkler spacing to the available pressure.
Position the head so the spray can clear nearby foliage.
