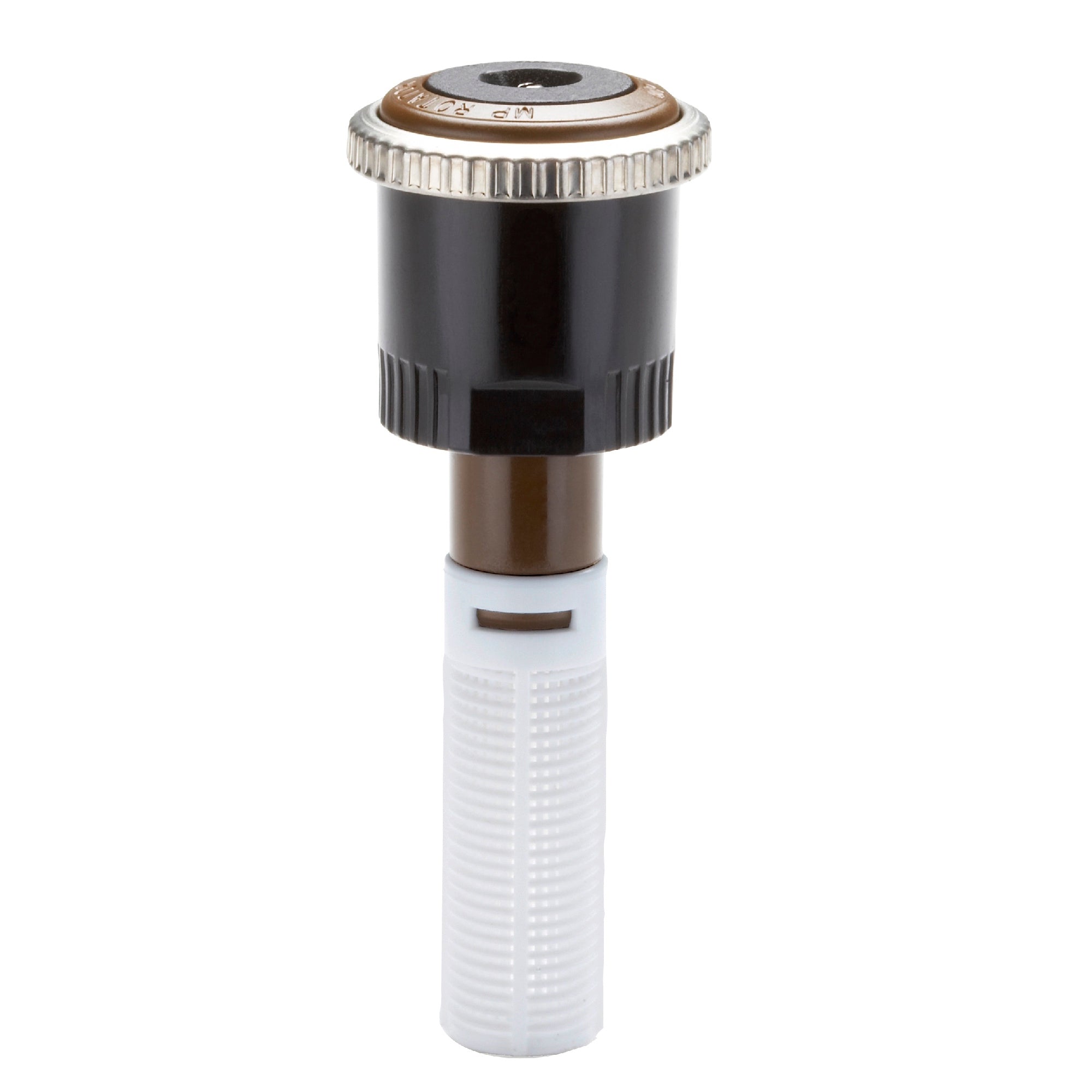

Hunter MP side-strip female-threaded nozzle with brown collar and white filter
Hunter MP side-strip female-threaded nozzle with brown collar and white filter

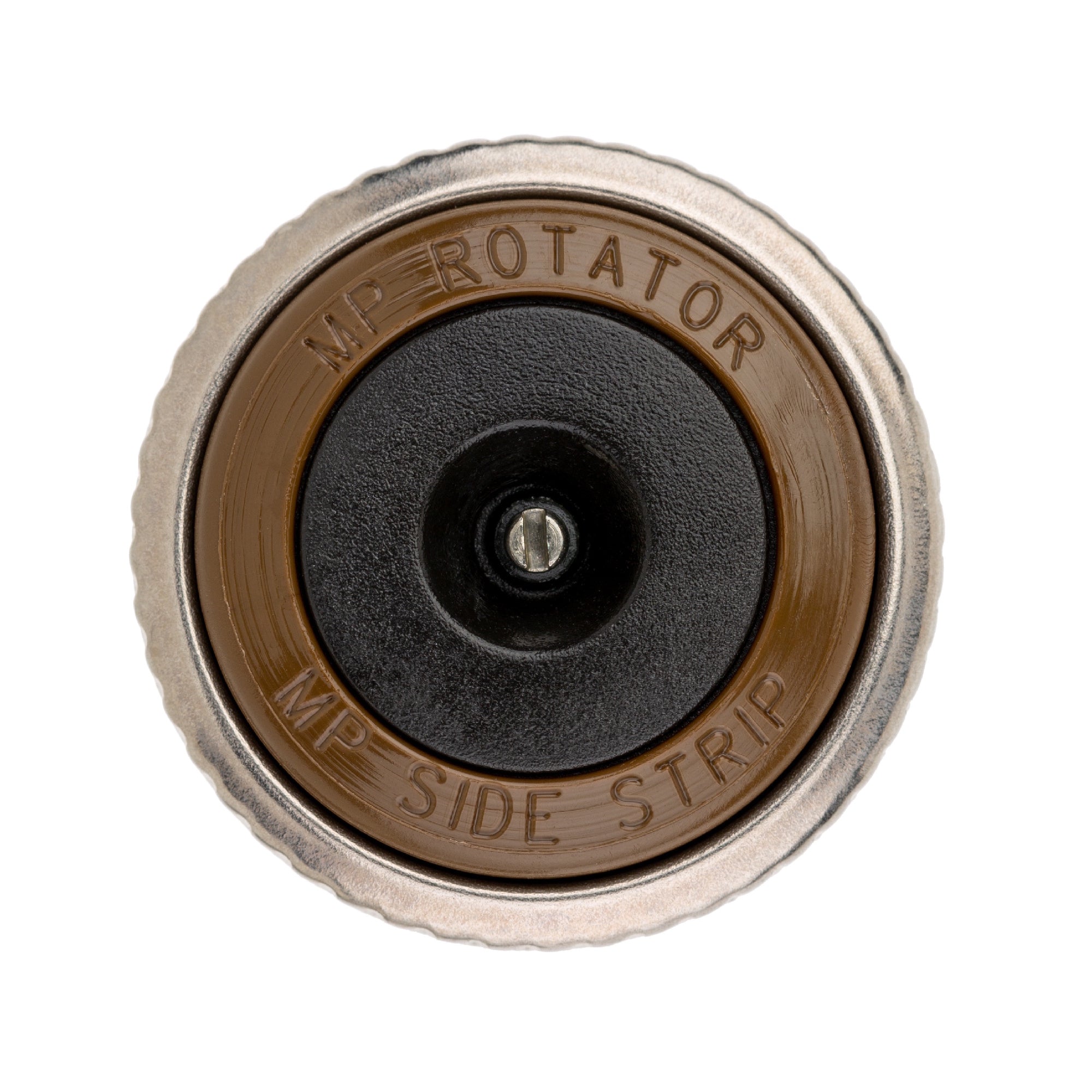

Top view of brown Hunter MP side-strip rotary nozzle
Top view of brown Hunter MP side-strip rotary nozzle
Hunter MP side-strip female-threaded nozzle with brown collar and white filter
Top view of brown Hunter MP side-strip rotary nozzle

MP ROTATOR MP-SS-530 SIDE STRIP NOZZLE

Hunter MP-SS-530 rotary Side Strip nozzle for narrow lawn areas, watering from the centre of a long side. Rotating streams distribute water evenly across a rectangular pattern and help maintain coverage in wind. The top adjustment screw lets you reduce the size of the watered area. Sprinkler body sold separately.

✓ Coverage: 1.5 metres wide × 9.0 metres long at 280 kPa pressure
✓ Spray Pattern: Fixed rectangular side strip
✓ Flow: 1.44 L/min at 280 kPa pressure
✓ Recommended Pressure: 280 kPa
✓ Compatibility: Female nozzle thread suits Hunter Pro-Spray sprinkler bodies

The Hunter MP Rotator adjustment tool helps turn the radius adjustment screw to shorten the watering distance.

Hunter MP Rotator Nozzle Specifications & Performance Charts
Hunter MP Rotator Nozzle Brochure
Hunter MP Rotator Nozzle System Design Guide
Hunter MP Rotator Nozzle Reference Card

More Information
Product Specifications
Product Videos
Hunter MP side-strip female-threaded nozzle with brown collar and white filter
MP ROTATOR MP-SS-530 SIDE STRIP NOZZLE
Hunter MP Rotator female-threaded nozzle with maroon collar and white filter
Hunter MP Rotator 1000 Female 90°-210° Adjustable (Radius 2.5m - 4.5m) SPMPFI1090210
$14.15 /each
Hunter MP Rotator female-threaded nozzle with light blue collar and white filter
Hunter MP Rotator 1000 Female 210°-270° Adjustable (Radius 2.5m - 4.5m) SPMPFI10210270
$14.15 /each
Hunter MP Rotator female-threaded nozzle with olive green collar and white filter
Hunter MP Rotator 1000 Female 360° Full Circle (Radius 2.5m - 4.5m) SPMPFI10360
$14.15 /each
Hunter MP Rotator female-threaded nozzle with black collar and white filter
Hunter MP Rotator 2000 Female 90°-210° Adjustable (Radius 4.0m - 6.4m) SPMPFI2090210
$14.15 /each
Hunter MP Rotator female-threaded nozzle with green collar and white filter
Hunter MP Rotator 2000 Female 210°-270° Adjustable (Radius 4.0m - 6.4m) SPMPFI20210270
$14.15 /each
Hunter MP Rotator female-threaded nozzle with red collar and white filter
Hunter MP Rotator 2000 Female 360° Full Circle (Radius 4.0m - 6.4m) SPMPFI20360
$14.15 /each
Hunter MP Rotator female-threaded nozzle with blue collar and white filter
Hunter MP Rotator 3000 Female 90°-210° Adjustable (Radius 6.7m - 9.1m) SPMPFI3090210
$14.15 /each
Hunter MP Rotator female-threaded nozzle with yellow collar and white filter
Hunter MP Rotator 3000 Female 210°-270° Adjustable (Radius 6.7m - 9.1m) SPMPFI30210270
$14.15 /each
Hunter MP Rotator female-threaded nozzle with grey collar and white filter
Hunter MP Rotator 3000 Female 360° Full Circle (Radius 6.7m - 9.1m) SPMPFI30360
$14.15 /each
Hunter MP Rotator nozzle with tan collar, black housing and mesh filter
Hunter MP Rotator 3500 Female 90°-210° Adjustable (Radius 9.4m - 10.7m) SPMPFI3590210
$14.15 /each
Hunter MP Corner female-threaded nozzle with blue collar and white filter
Hunter MP Rotator Corner Female 45°-105° Adjustable (Radius 2.5m - 4.5m) SPMPFICQ
$14.15 /each
Hunter MP left-strip female-threaded nozzle with cream collar and white filter
Hunter MP Rotator Left Corner Strip Female (Rectangle 1.5m x 4.5m) SPMPFILS
$14.15 /each
Hunter MP right-strip female-threaded nozzle with orange collar and white filter
Hunter MP Rotator Right Corner Strip Female (Rectangle 1.5m x 4.5m) SPMPFIRS
$14.15 /each
Hunter MP side-strip female-threaded nozzle with brown collar and white filter
Hunter MP Rotator Side Strip Female (Rectangle 1.5m x 9.0m) SPMPFIS
$14.15 /each
Hunter MP Rotator 800SR nozzle with orange collar and black filter
Hunter MP Rotator 800SR Female 90°-210° Adjustable (Radius 1.8m - 3.5m) SPMPFI0890210
$14.15 /each
Hunter MP Rotator 800SR nozzle with lime green collar and white filter
Hunter MP Rotator 800SR Female 360° Full Circle (Radius 1.8m - 3.5m) SPMPFI08360
$14.15 /each
Hunter MP Rotator 815 nozzle with red collar and white filter
Hunter MP Rotator 815 Female 90°-210° Adjustable (Radius 2.5m - 4.9m) SPMPFI081590
$14.15 /each
Hunter MP Rotator 815 nozzle with light blue collar and white filter
Hunter MP Rotator 815 Female 210°-270° Adjustable (Radius 2.5m - 4.9m) SPMPFI0815210
$14.15 /each
Hunter MP Rotator 815 nozzle with green collar and white filter
Hunter MP Rotator 815 Female 360° Full Circle (Radius 2.5m - 4.9m) SPMPFI0815360
$14.15 /each
Hunter MP Rotator 820 Female 90°-210° Adjustable (Radius 4.6m - 7.3m) SPMPFI082090
$13.95 /each
Hunter MP Rotator 820 Female 210°-270° Adjustable (Radius 4.6m - 7.3m) SPMPFI0820210
$13.95 /each
Hunter MP Rotator 820 Female 360° Full Circle (Radius 4.6m - 7.3m) SPMPFI0820360
$13.95 /each

Hunter MP-SS-530 rotary Side Strip nozzle for narrow lawn areas, watering from the centre of a long side.

Rotating streams distribute water evenly across a rectangular pattern and help maintain coverage in wind.

Coverage is 1.5 metres wide × 9.0 metres long at 280 kPa pressure. These dimensions show the total width and length of the watered rectangle.

The double-pop design helps protect the nozzle from dirt and debris during startup. The top adjustment screw lets you reduce the size of the watered area. The sprinkler sits at the centre of a long side, with the pattern extending along the strip in both directions. The appropriate layout lets these nozzles match Standard MP Rotators or the MP800 family.

The Hunter MP Rotator adjustment tool helps turn the radius adjustment screw to shorten the watering distance. Female nozzle thread suits Hunter Pro-Spray sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.

MP strip precipitation rate depends on spacing and layout.

Warranty: Three years.

Hunter MP Rotator Nozzle Specifications & Performance Charts
Hunter MP Rotator Nozzle Brochure
Hunter MP Rotator Nozzle System Design Guide
Hunter MP Rotator Nozzle Reference Card

✓ Product Type and Application
MP Rotator MP-SS-530 Side Strip nozzle for irrigation of narrow lawn and planted strips.
A rotary nozzle fits onto a compatible sprinkler body and sends out streams of water that rotate across the watering area.

✓ Watering Performance and Benefits
Wind resistance: Multiple rotating streams resist wind drift and reduce misting, helping maintain even coverage in exposed areas.
Even watering: Streams at different trajectories distribute water across the watering area.

✓ Coverage and Spray Pattern
Coverage: 1.5 metres wide × 9.0 metres long at 280 kPa pressure, before distance reduction.
Dimensions show total width × length, not radius.
Sprinkler position: Centre of one long side of the rectangle.
Water reaches left and right along the strip, and out in front of the sprinkler across the strip’s width.
Spray pattern: Fixed rectangular rotary side strip.

✓ Pressure & Flow
Recommended operating pressure: 280 kPa.
Maximum continuous nozzle pressure: 380 kPa.
Coverage and flow at different pressures, before distance reduction:
210 kPa: 1.2 × 8.4 metres; 1.25 L/min.
250 kPa: 1.4 × 8.7 metres; 1.36 L/min.
280 kPa: 1.5 × 9.0 metres; 1.44 L/min.
300 kPa: 1.6 × 9.3 metres; 1.55 L/min.
350 kPa: 1.7 × 9.6 metres; 1.67 L/min.
380 kPa: 1.8 × 9.9 metres; 1.79 L/min.

✓ Distance Reduction
Use MPTOOL or a small flathead screwdriver on the top adjustment screw. Turn clockwise to reduce watering distance and counterclockwise to increase it. The rectangular pattern stays fixed.

✓ Precipitation Rate
Precipitation rate describes how quickly water is applied across the area, measured in millimetres per hour.
MP strip nozzles can match Standard MP or MP800 with the appropriate layout. Use rectangular spacing to match the MP800 family; use the Standard MP strip layout for Standard MP zones.

✓ Debris Protection and Filtration
Double-pop design keeps the nozzle protected until the sprinkler riser has fully extended. A removable filter screen helps prevent clogging and allows cleaning.

✓ Connection and Compatibility
Female nozzle thread suits Hunter Pro-Spray sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.

✓ Pressure Regulation
Hunter Pro-Spray PRS40 regulates nozzle pressure to 280 kPa.

✓ Identification
Model: MP-SS-530.
SS identifies side-strip coverage in the 5 × 30-foot size, approximately 1.5 × 9.0 metres.
Colour: Brown.

✓ Warranty
Three years.
