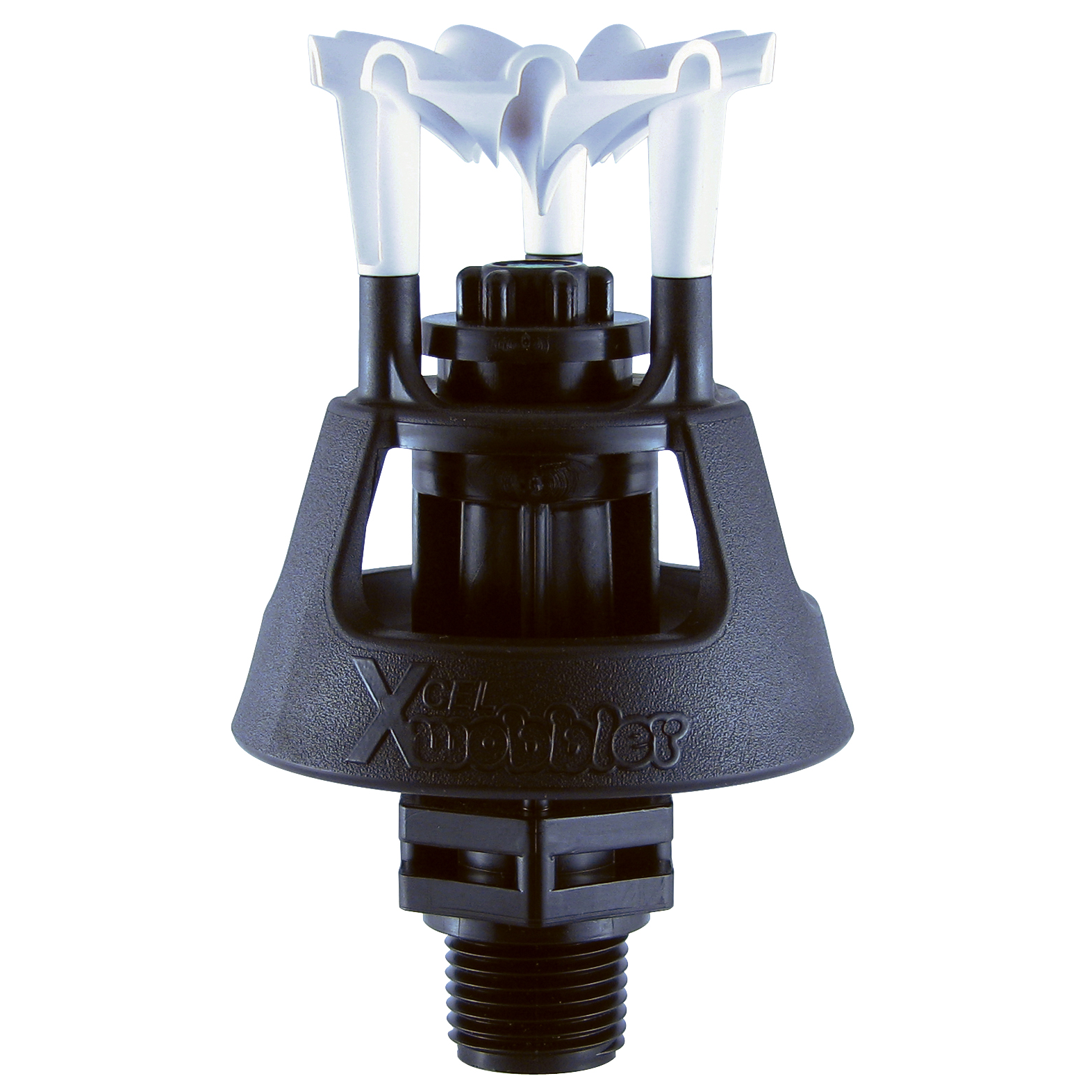

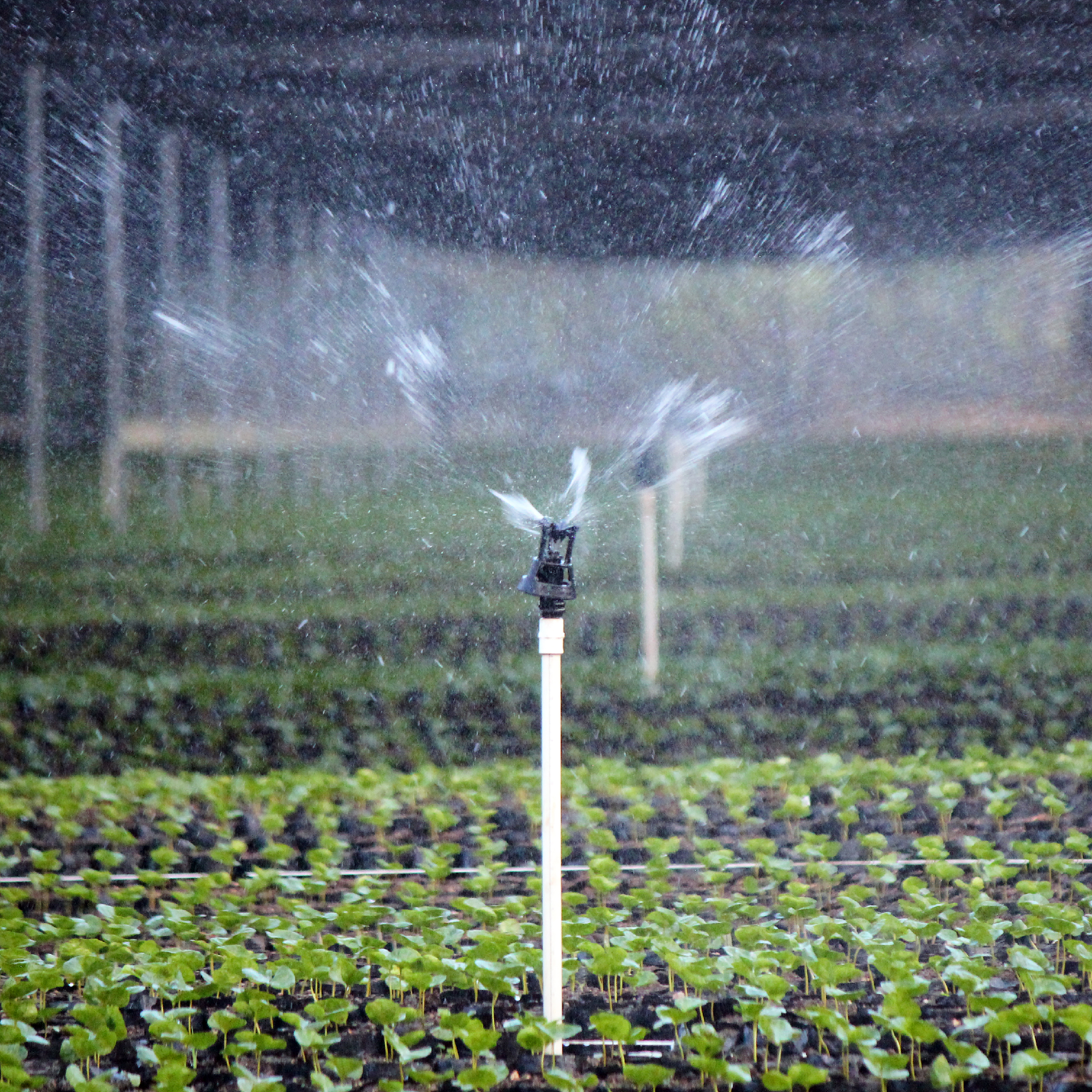

Senninger Xcel-Wobbler mid-angle sprinkler with a 20mm male inlet and 18° white deflector. Its rotating, wobbling action spreads water in a rain-like full circle for nurseries, crop beds and under-tree irrigation.
Supplied without a nozzle.
The moving deflector spreads water across the area around the head continuously. This reduces the concentration of water in one place as it waters, helping protect the soil surface and maintain water infiltration. A counterbalanced design reduces vibration for smoother operation.
The 18° white deflector produces a lower spray trajectory than the 24° black model. Use the matching mid-angle performance figures when selecting a nozzle and spacing.
Nozzle comparison at 138 kPa
Diameters below are measured at a 0.46m riser height. Select the nozzle to suit the required flow and coverage.
| Nozzle | Opening | Flow (L/h) | 18° Wetted Diameter (m) |
|---|---|---|---|
| #6 Gold | 2.38mm | 250 | 11.7 |
| #7 Lime | 2.78mm | 341 | 12.4 |
| #8 Lavender | 3.18mm | 450 | 12.5 |
| #9 Grey | 3.57mm | 577 | 12.8 |
| #10 Turquoise | 3.97mm | 713 | 13 |
| #11 Yellow | 4.37mm | 865 | 13.1 |
| #12 Red | 4.76mm | 1038 | 13.6 |
| #13 White | 5.16mm | 1222 | 13.6 |
| #14 Blue | 5.56mm | 1415 | 13.7 |
Coverage figures are wetted diameters measured at a 0.46m riser height. Actual coverage depends on nozzle size, pressure, mounting height and field conditions. Wetted diameter is not sprinkler spacing.
Mount upright on a firm, well-supported riser at least 460mm high. Keep the spray clear of nearby plants. Use the selected nozzle and trajectory data when planning overlapping coverage and spacing.
Warranty: 2 years.
