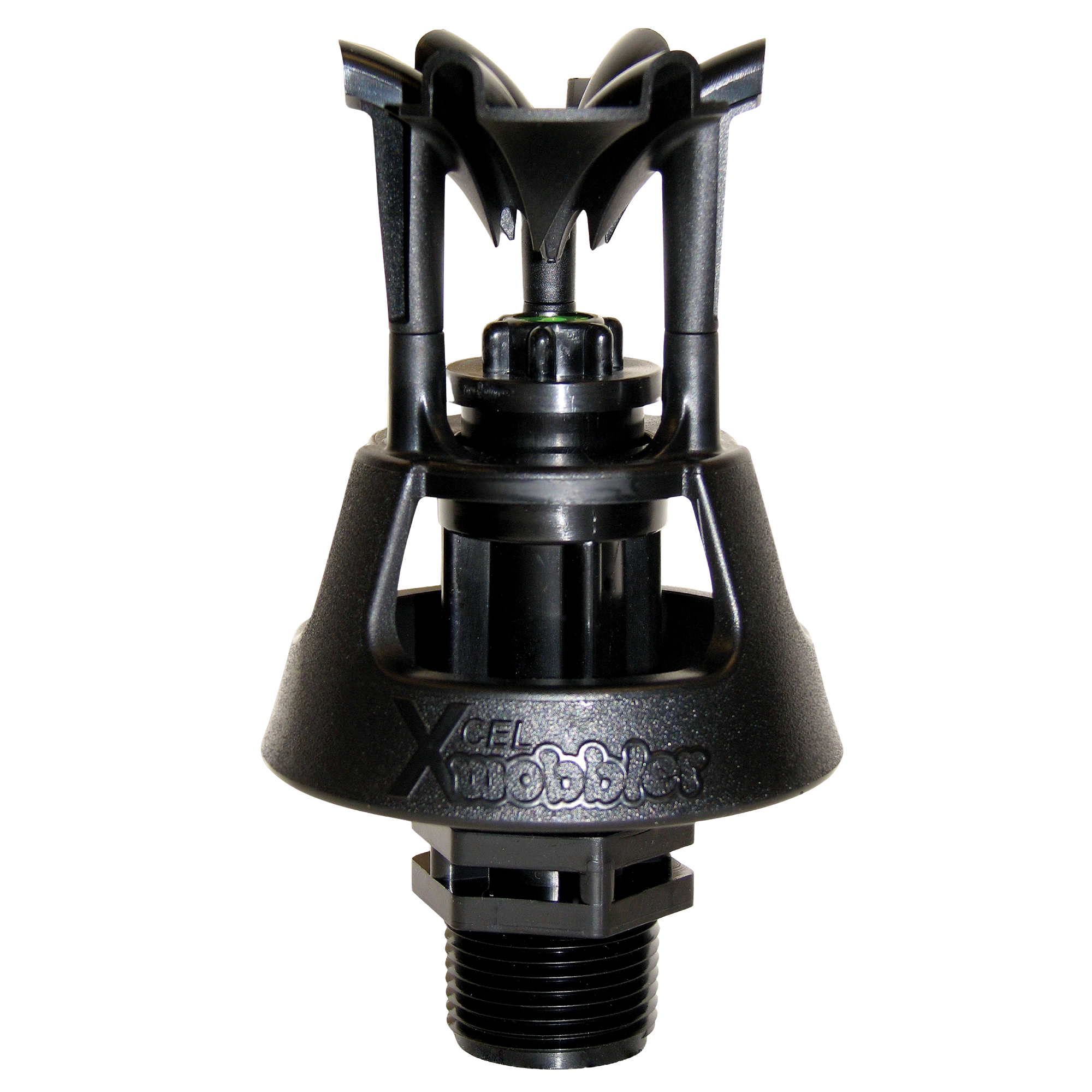

Senninger Xcel-Wobbler high-angle sprinkler with a 20mm male inlet and 24° black deflector. Its rotating, wobbling action spreads water in a rain-like full circle for nurseries, crop beds and under-tree irrigation.
Supplied without a nozzle.
The moving deflector spreads water across the area around the head continuously. This reduces the concentration of water in one place as it waters, helping protect the soil surface and maintain water infiltration. A counterbalanced design reduces vibration for smoother operation.
The 24° black deflector sends water higher than the 18° white model and provides a larger wetted diameter with the same nozzle and pressure in the performance chart. Allow clearance above the sprinkler for the spray.
Nozzle comparison at 138 kPa
Diameters below are measured at a 0.46m riser height. Select the nozzle to suit the required flow and coverage.
| Nozzle | Opening | Flow (L/h) | 24° Wetted Diameter (m) |
|---|---|---|---|
| #6 Gold | 2.38mm | 250 | 13.7 |
| #7 Lime | 2.78mm | 341 | 14.3 |
| #8 Lavender | 3.18mm | 450 | 14.3 |
| #9 Grey | 3.57mm | 577 | 15.4 |
| #10 Turquoise | 3.97mm | 713 | 15.4 |
| #11 Yellow | 4.37mm | 865 | 15.7 |
| #12 Red | 4.76mm | 1038 | 15.9 |
| #13 White | 5.16mm | 1222 | 16 |
| #14 Blue | 5.56mm | 1415 | 16.2 |
Coverage figures are wetted diameters measured at a 0.46m riser height. Actual coverage depends on nozzle size, pressure, mounting height and field conditions. Wetted diameter is not sprinkler spacing.
Mount upright on a firm, well-supported riser at least 460mm high. Keep the spray clear of nearby plants. Use the selected nozzle and trajectory data when planning overlapping coverage and spacing.
Warranty: 2 years.
