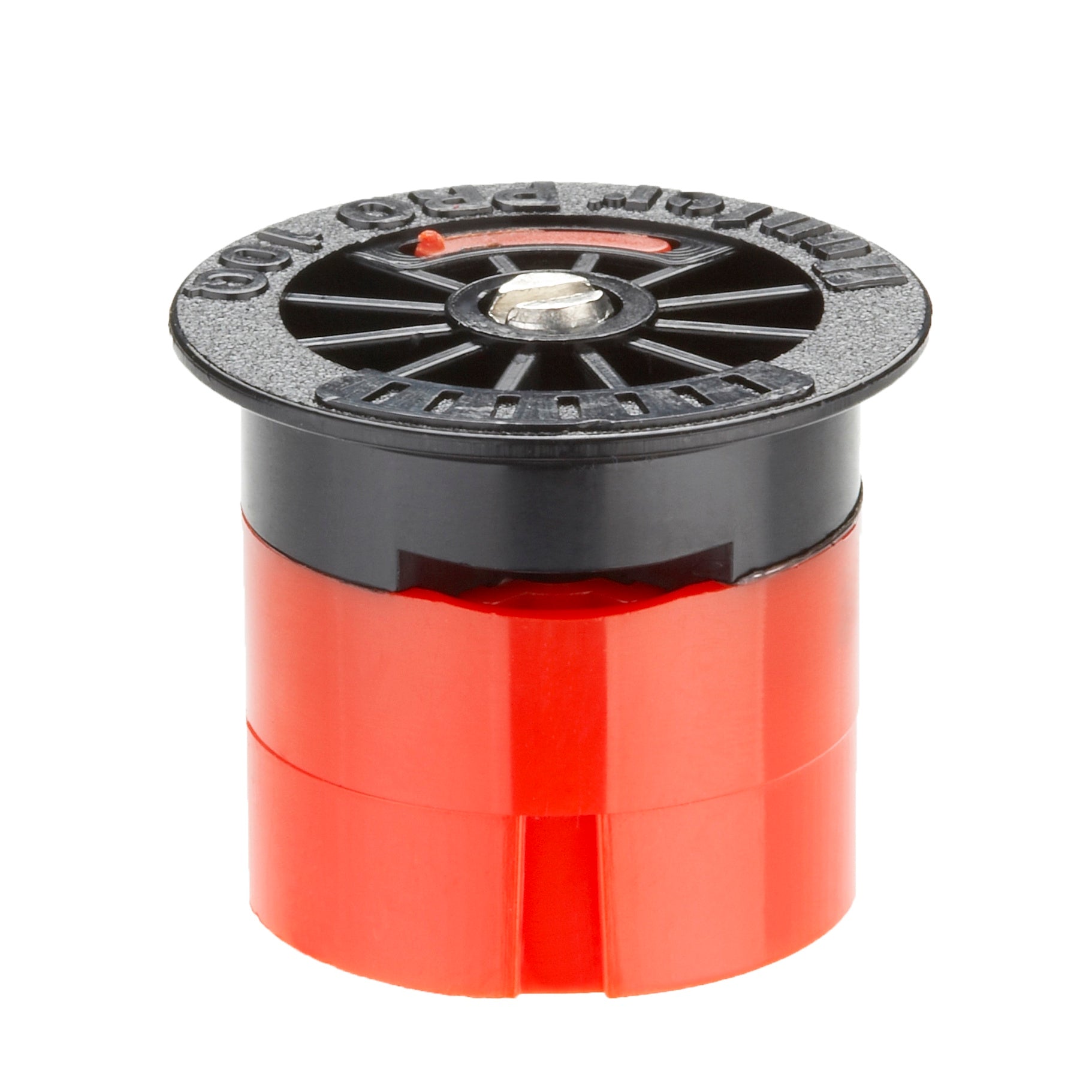

HUNTER SPRINKLER NOZZLE 10Q RED (3M RADIUS 90°)

Name: Hunter Nozzle 10" Red 90°
Brand: Hunter
SKU: SPHN10Q
Price: 3.67 AUD
Availability: InStock

Garden Irrigation Sprinklers, Pop Up & Impact Sprinklers

Hunter 10Q Red spray nozzle for lawn and garden corners needing a fixed quarter-circle pattern. Sprinkler body sold separately.

✓ Coverage: 3 metre radius at 210 kPa pressure
✓ Spray Pattern: Fixed 90° quarter circle
✓ Flow: 1.57 L/min at 210 kPa pressure
✓ Recommended Pressure: 210 kPa
✓ Compatibility: Female nozzle thread suits Hunter Pro-Spray, PS Ultra and other bodies accepting industry-standard female-threaded spray nozzles
✓ Radius Adjustment: Top screw reduces spray distance by up to 25%
✓ Identification: Red, 10Q
✓ Warranty: Two years

More Information

Product Specifications

Product Videos

HUNTER SPRINKLER NOZZLE 10Q RED (3M RADIUS 90°)

Hunter Nozzle 4" Green ADJ. Arc 25-360° SPHNAD04

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Nozzle 6" Light Blue ADJ. Arc 25-360° SPHNAD06

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Nozzle 8" Brown 90° SPHN08Q

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Nozzle 8" Brown 180° SPHN08H

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Nozzle 8" Brown 360° SPHN08F

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Nozzle 8" Brown ADJ. Arc 25-360° SPHNAD08

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Nozzle 10" Red 90° SPHN10Q

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Nozzle 10" Red 180° SPHN10H

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Nozzle 10" Red 360° SPHN10F

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Nozzle 10" Red ADJ. Arc 25-360° SPHNAD10

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Nozzle 12" Green 90° SPHN12Q

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Nozzle 12" Green 180° SPHN12H

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Nozzle 12" Green 360° SPHN12F

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Nozzle 12" Green ADJ. Arc 25-360° SPHNAD12

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Nozzle 15" Black 90° SPHN15Q

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Nozzle 15" Black 180° SPHN15H

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Nozzle 15" Black 360° SPHN15F

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Nozzle 15" Black ADJ. Arc 25-360° SPHNAD15

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Nozzle 17Q Grey (5.2m Radius 90°) SPHN17Q

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Nozzle 17H Grey (5.2m Radius 180°) SPHN17H

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Nozzle 17 ADJ Grey (5.2m Radius 1-360°) SPHNAD17

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Nozzle Centre Strip 5 x 30 (1.5m x 9.1m) SPHNCS530

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Nozzle Corner Strip Left 5 x 15 (1.5m x 4.5m) SPHNCSL515

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Nozzle Corner Strip Right 5 x 15 (1.5m x 4.5m) SPHNCSR515

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Nozzle End Strip 5 x 15 (1.5m x 4.5m) SPHNES515

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Nozzle Side Strip 5 x 30 (1.5m x 9.1m) SPHNSS530

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Nozzle Side Strip 9 x 18 (2.7m x 5.5m) SPHNSS918

$3.89 /each

$3.89 inc GST

Total: $0

The Hunter 10Q Red sprinkler nozzle waters a fixed 90° quarter circle with a 3 metre radius at 210 kPa pressure.
Radius is the distance from the sprinkler to the outer edge of the spray.

It suits lawn and garden corners where a quarter-circle pattern is needed. Flow is 1.57 L/min at 210 kPa pressure. Coverage and flow change with water pressure.

The female nozzle thread suits Hunter Pro-Spray, PS Ultra and other bodies accepting industry-standard female-threaded spray nozzles. A Hunter Pro-Spray PRS30 body regulates pressure to the recommended 210 kPa. Sprinkler body sold separately.

The nozzle is colour-coded red to indicate its 3 metre spray radius. Q identifies the quarter-circle pattern. Large water droplets help minimise misting.

2 Year Hunter Warranty

✓ Product Type & Application
Hunter Pro Fixed 10Q spray nozzle for lawn and landscape areas needing a quarter-circle watering pattern.

✓ Coverage & Spray Pattern
Radius: 3 metres at 210 kPa pressure.
Radius is the distance from the sprinkler to the outer edge of the spray.
Spray arc: 90° quarter circle, non-adjustable.
Spray trajectory: 15°.

✓ Pressure & Flow
Recommended operating pressure: 210 kPa.
Radius and flow at different pressures:
100 kPa: 2.4 metre radius; 1.08 L/min.
150 kPa: 2.7 metre radius; 1.33 L/min.
210 kPa: 3 metre radius; 1.57 L/min.
250 kPa: 3.3 metre radius; 1.71 L/min.
300 kPa: 3.4 metre radius; 1.85 L/min.

✓ Connection & Compatibility
Female nozzle thread suits Hunter Pro-Spray, PS Ultra and other bodies accepting industry-standard female-threaded spray nozzles.
Sprinkler body sold separately.

✓ Adjustment
Turn the top screw clockwise with a small flathead screwdriver to reduce spray distance by up to 25%.
Choose a smaller-radius nozzle if further reduction is needed.

✓ Identification
The nozzle is colour-coded red to indicate its 3 metre spray radius.
Model: 10Q; Q identifies the quarter-circle pattern.

✓ Warranty
2 Year Hunter Warranty
