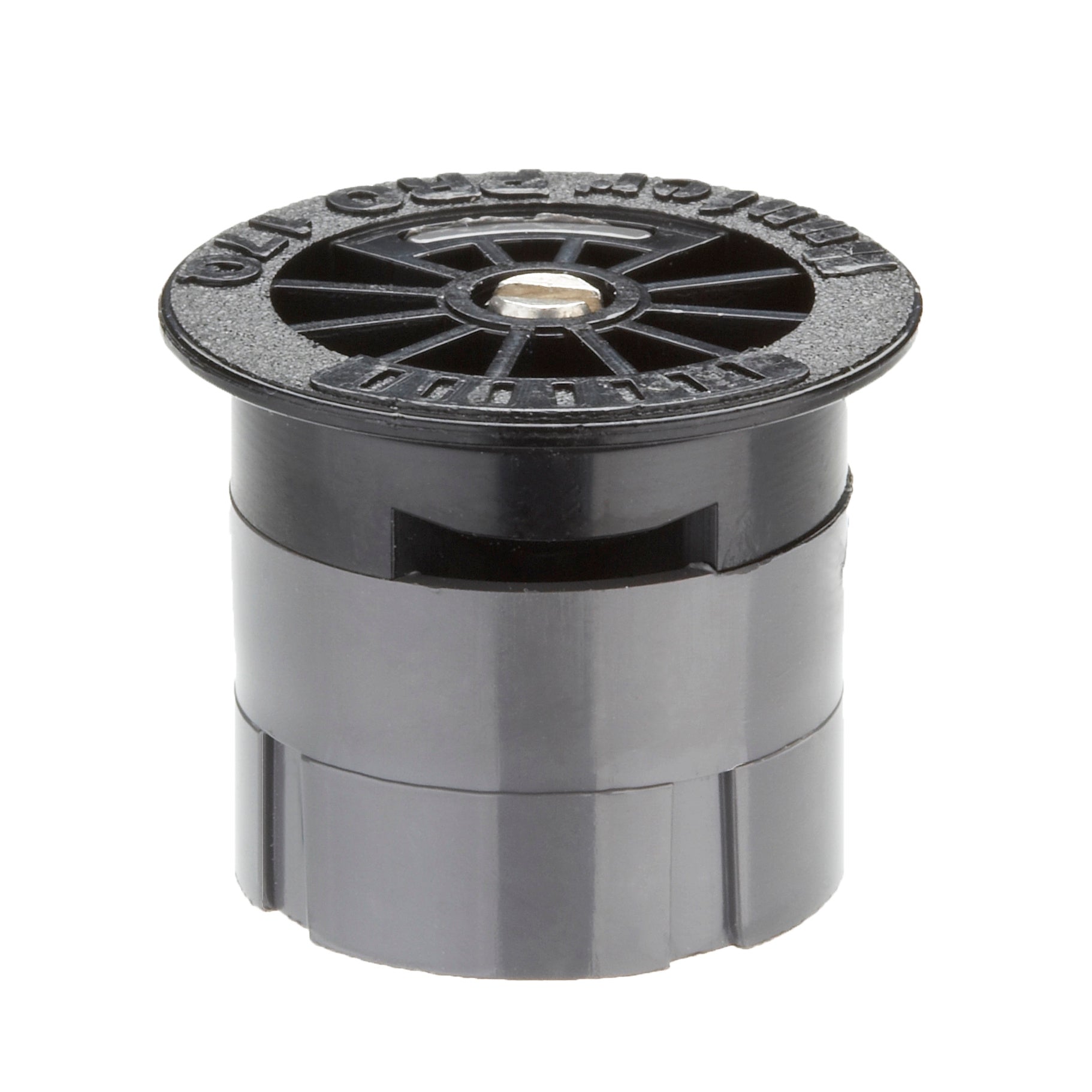

Hunter Sprinkler Nozzle 17Q Grey (5.2m Radius 90°)

HUNTER SPRINKLER NOZZLE 17Q GREY (5.2M RADIUS 90°)

Name: Hunter Sprinkler Nozzle 17Q Grey (5.2m Radius 90°)
Brand: Hunter
SKU: SPHN17Q
Price: 3.67 AUD
Availability: InStock

Garden Irrigation Sprinklers, Pop Up & Impact Sprinklers

Hunter 17Q Grey spray nozzle for lawn corners and landscape areas needing a fixed quarter-circle pattern. Sprinkler body sold separately.

✓ Coverage: 5.2 metre radius at 210 kPa pressure
✓ Spray Pattern: Fixed 90° quarter circle
✓ Flow: 4.59 L/min at 210 kPa pressure
✓ Recommended Pressure: 210 kPa
✓ Compatibility: Female nozzle thread suits Hunter Pro-Spray, PS Ultra and other bodies accepting industry-standard female-threaded spray nozzles
✓ Radius Adjustment: Top screw reduces spray distance by up to 25%
✓ Identification: Grey, 17Q
✓ Warranty: Two years

More Information

Product Specifications

Product Videos

HUNTER SPRINKLER NOZZLE 17Q GREY (5.2M RADIUS 90°)

Hunter Sprinkler Nozzle 4' Adjustable Light Green (1.2m Radius 1-360°) SPHNAD04

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle 6' Adjustable Light Blue (1.8m Radius 1-360°) SPHNAD06

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle 8Q Brown (2.4m Radius 90°) SPHN08Q

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 8H Brown (2.4m Radius 180°) SPHN08H

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 8F Brown (2.4m Radius 360°) SPHN08F

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 8' Adjustable Brown (2.4m Radius 1-360°) SPHNAD08

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle 10Q Red (3m Radius 90°) SPHN10Q

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 10H Red (3m Radius 180°) SPHN10H

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 10F Red (3m Radius 360°) SPHN10F

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 10' Adjustable Red (3m Radius 1-360°) SPHNAD10

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle 12Q Green (3.7m Radius 90°) SPHN12Q

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 12H Green (3.7m Radius 180°) SPHN12H

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 12F Green (3.7m Radius 360°) SPHN12F

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 12' Adjustable Green (3.7m Radius 1-360°) SPHNAD12

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle 15Q Black (4.6m Radius 90°) SPHN15Q

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 15H Black (4.6m Radius 180°) SPHN15H

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 15F Black (4.6m Radius 360°) SPHN15F

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 15' Adjustable Black (4.6m Radius 1-360°) SPHNAD15

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle 17Q Grey (5.2m Radius 90°) SPHN17Q

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 17H Grey (5.2m Radius 180°) SPHN17H

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 17' Adjustable Grey (5.2m Radius 1-360°) SPHNAD17

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle Centre Strip 5' x 30' (1.5m x 9.1m) SPHNCS530

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle Corner Strip Left 5' x 15' (1.5m x 4.5m) SPHNCSL515

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle Corner Strip Right 5' x 15' (1.5m x 4.5m) SPHNCSR515

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle End Strip 5' x 15' (1.5m x 4.5m) SPHNES515

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle Side Strip 5' x 30' (1.5m x 9.1m) SPHNSS530

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle Side Strip 9' x 18' (2.7m x 5.5m) SPHNSS918

$3.89 /each

$3.89 inc GST

Total: $0

The Hunter 17Q Grey sprinkler nozzle waters a fixed 90° quarter circle with a 5.2 metre radius at 210 kPa pressure.
Radius is the distance from the sprinkler to the outer edge of the spray.

It suits lawn corners and landscape areas where watering is needed within a right-angle corner. Flow is 4.59 L/min at 210 kPa pressure. Coverage and flow change with water pressure.

The female nozzle thread suits Hunter Pro-Spray, PS Ultra and other bodies accepting industry-standard female-threaded spray nozzles. A Hunter Pro-Spray PRS30 body regulates pressure to the recommended 210 kPa. Sprinkler body sold separately.

The nozzle is colour-coded grey to indicate its 5.2 metre spray radius. Q identifies the quarter-circle pattern. Large water droplets help minimise misting.

2 Year Hunter Warranty

✓ Product Type & Application
Hunter Pro Fixed 17Q spray nozzle for lawn and landscape areas needing a quarter-circle watering pattern.

✓ Coverage & Spray Pattern
Radius: 5.2 metres at 210 kPa pressure.
Radius is the distance from the sprinkler to the outer edge of the spray.
Spray arc: 90° quarter circle, non-adjustable.
Spray trajectory: 28°.

✓ Pressure & Flow
Recommended operating pressure: 210 kPa.
Radius and flow at different pressures:
100 kPa: 4.7 metre radius; 3.17 L/min.
150 kPa: 4.9 metre radius; 3.88 L/min.
210 kPa: 5.2 metre radius; 4.59 L/min.
250 kPa: 5.5 metre radius; 5.01 L/min.
300 kPa: 5.8 metre radius; 5.30 L/min.

✓ Connection & Compatibility
Female nozzle thread suits Hunter Pro-Spray, PS Ultra and other bodies accepting industry-standard female-threaded spray nozzles.
Sprinkler body sold separately.

✓ Adjustment
Turn the top screw clockwise with a small flathead screwdriver to reduce spray distance by up to 25%.
Choose a smaller-radius nozzle if further reduction is needed.

✓ Identification
The nozzle is colour-coded grey to indicate its 5.2 metre spray radius.
Model: 17Q; Q identifies the quarter-circle pattern.

✓ Warranty
2 Year Hunter Warranty
