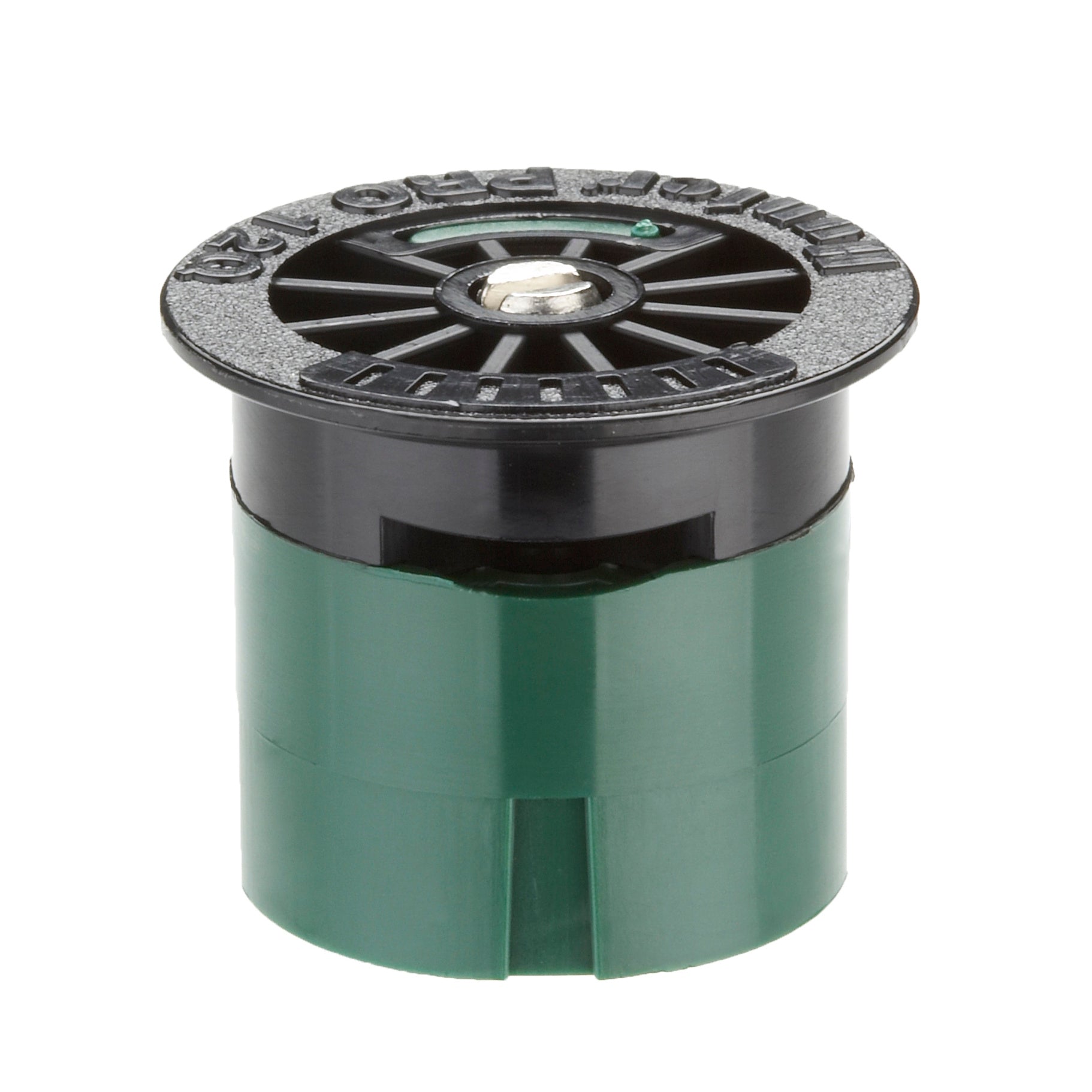

Hunter Sprinkler Nozzle 12Q Green (3.7m Radius 90°)

HUNTER 12Q GREEN FIXED SPRAY NOZZLE

Name: Hunter Sprinkler Nozzle 12Q Green (3.7m Radius 90°)
Brand: Hunter
SKU: SPHN12Q
Price: 3.67 AUD
Availability: InStock

Garden Irrigation Sprinklers, Pop Up & Impact Sprinklers

Hunter 12Q Green Fixed Spray Nozzle with quarter-circle coverage for lawn corners and garden areas. The nozzle is built for a long service life, with sturdy construction for dependable performance. Large water droplets help maintain coverage in wind and reduce misting. The top adjustment screw lets you shorten the watering distance. Sprinkler body sold separately.

✓ Coverage: 3.7 metre radius at 210 kPa pressure
✓ Spray Pattern: Fixed 90° quarter circle
✓ Flow: 2.43 L/min at 210 kPa pressure
✓ Recommended Pressure: 210 kPa
✓ Compatibility: Female nozzle thread suits Hunter Pro-Spray sprinkler bodies

Hunter Pro Fixed Nozzle Specifications & Performance Charts
Hunter Pro Adjustable Nozzle Specifications & Performance Charts

More Information

Product Specifications

Product Videos

HUNTER 12Q GREEN FIXED SPRAY NOZZLE

Hunter Sprinkler Nozzle 4' Adjustable Light Green (1.2m Radius 0°-360°) SPHNAD04

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle 6' Adjustable Light Blue (1.8m Radius 0°-360°) SPHNAD06

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle 8Q Brown (2.4m Radius 90°) SPHN08Q

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 8H Brown (2.4m Radius 180°) SPHN08H

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 8F Brown (2.4m Radius 360°) SPHN08F

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 8' Adjustable Brown (2.4m Radius 0°-360°) SPHNAD08

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle 10Q Red (3m Radius 90°) SPHN10Q

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 10H Red (3m Radius 180°) SPHN10H

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 10F Red (3m Radius 360°) SPHN10F

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 10' Adjustable Red (3m Radius 0°-360°) SPHNAD10

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle 12Q Green (3.7m Radius 90°) SPHN12Q

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 12H Green (3.7m Radius 180°) SPHN12H

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 12F Green (3.7m Radius 360°) SPHN12F

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 12' Adjustable Green (3.7m Radius 0°-360°) SPHNAD12

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle 15Q Black (4.6m Radius 90°) SPHN15Q

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 15H Black (4.6m Radius 180°) SPHN15H

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 15F Black (4.6m Radius 360°) SPHN15F

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 15' Adjustable Black (4.6m Radius 0°-360°) SPHNAD15

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle 17Q Grey (5.2m Radius 90°) SPHN17Q

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 17H Grey (5.2m Radius 180°) SPHN17H

$3.67 /each

$3.67 inc GST

Total: $0

Hunter Sprinkler Nozzle 17' Adjustable Grey (5.2m Radius 0°-360°) SPHNAD17

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle Centre Strip 5' x 30' (1.5m x 9.0m) SPHNCS530

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle Corner Strip Left 5' x 15' (1.5m x 4.5m) SPHNCSL515

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle Corner Strip Right 5' x 15' (1.5m x 4.5m) SPHNCSR515

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle End Strip 5' x 15' (1.5m x 4.5m) SPHNES515

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle Side Strip 5' x 30' (1.5m x 9.0m) SPHNSS530

$3.89 /each

$3.89 inc GST

Total: $0

Hunter Sprinkler Nozzle Side Strip 9' x 18' (2.7m x 5.5m) SPHNSS918

$3.89 /each

$3.89 inc GST

Total: $0

Hunter 12Q Green Fixed Spray Nozzle with quarter-circle coverage for lawn corners and garden areas.

At 210 kPa pressure, the nozzle waters a 3.7 metre radius. Radius is the distance from the sprinkler to the outer edge of the spray. Flow is 2.43 L/min at 210 kPa pressure.

Model: 12Q. 12 identifies the 12-foot radius class. Q identifies the quarter circle pattern. Colour: Green. Connection: Female nozzle thread.

The nozzle is built for a long service life, with sturdy construction for dependable performance. Large water droplets help maintain coverage in wind and reduce misting. The top adjustment screw lets you shorten the watering distance.

Female nozzle thread suits Hunter Pro-Spray sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.

Warranty: Two years.

Hunter Pro Fixed Nozzle Specifications & Performance Charts
Hunter Pro Adjustable Nozzle Specifications & Performance Charts

✓ Product Type and Application
Hunter 12Q Green Fixed Spray Nozzle with quarter-circle coverage for lawn corners and garden areas.

✓ Coverage and Spray Pattern
Radius: 3.7 metres at 210 kPa pressure, before radius reduction.
Radius is the distance from the sprinkler to the outer edge of the spray.
Spray arc: Fixed 90° quarter circle.
Spray trajectory: 28°.

✓ Radius Reduction
Turn the top adjustment screw clockwise with a small flathead screwdriver to reduce the radius by up to 25%. Choose a smaller-radius nozzle if further reduction is needed.

✓ Pressure & Flow
Recommended operating pressure: 210 kPa.
Radius and flow at different pressures:
100 kPa: 3.0 metre radius; 1.58 L/min.
150 kPa: 3.4 metre radius; 2.00 L/min.
210 kPa: 3.7 metre radius; 2.43 L/min.
250 kPa: 4.0 metre radius; 2.69 L/min.
300 kPa: 4.0 metre radius; 2.95 L/min.

✓ Precipitation Rate
Precipitation rate describes how quickly water is applied across the area, measured in millimetres per hour.
At 210 kPa:
Square spacing: 43 mm/hour.
Triangular spacing: 49 mm/hour.
Spacing: 50% of the diameter of throw.

✓ Connection and Compatibility
Female nozzle thread suits Hunter Pro-Spray sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.

✓ Construction and Spray
Sturdy construction supports a long service life and dependable performance. Large water droplets help maintain coverage in wind and reduce misting.

✓ Pressure Regulation
Hunter Pro-Spray PRS30 bodies regulate nozzle pressure to the recommended 210 kPa.

✓ Identification
Model: 12Q.
12 identifies the 12-foot radius class. Q identifies the quarter circle pattern.
Colour: Green.
Connection: Female nozzle thread.

✓ Warranty
Two years.
