Sprinkler Rainmist Stainless Steel 360° Conical Spray
Sprinkler Rainmist Stainless Steel 360° Conical Spray

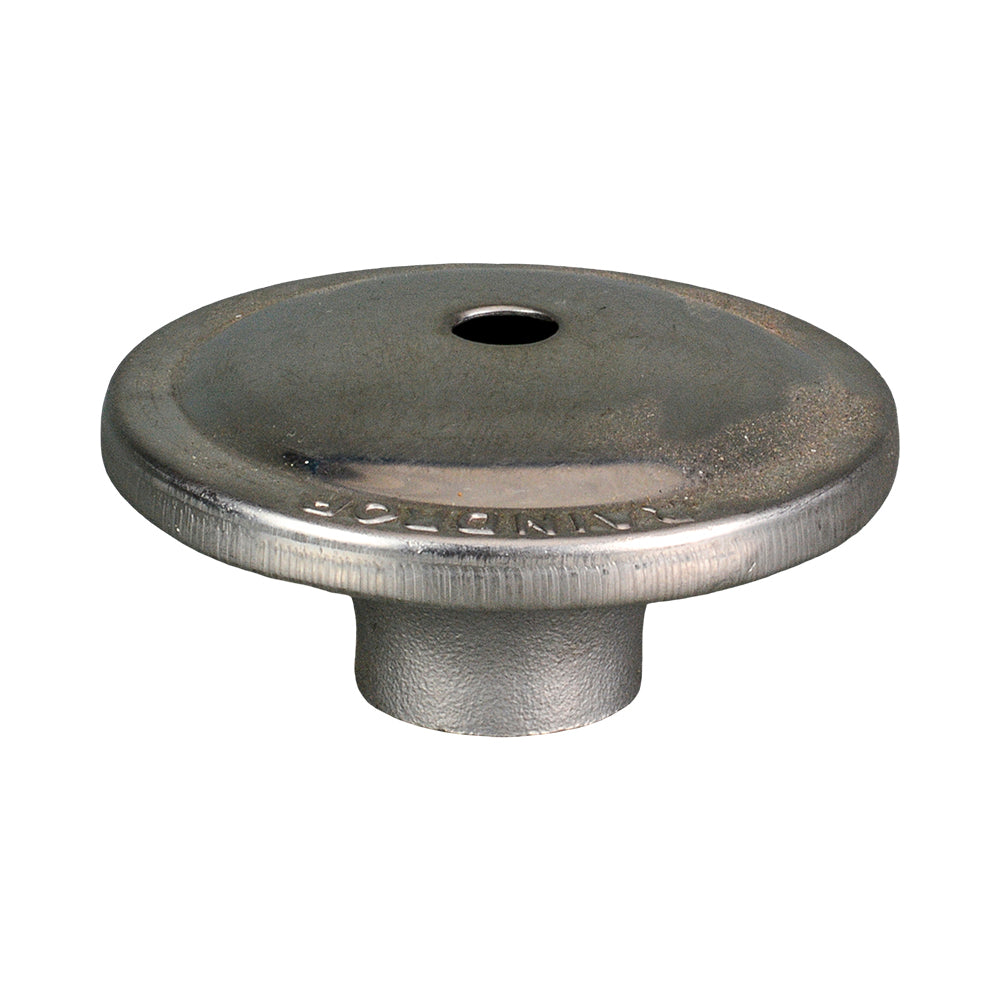

RAINMIST STAINLESS STEEL LOW PROFILE SPRINKLER

Rainmist conical spray sprinkler for home garden watering. Its stainless steel top and internal baffle spread water in a full circle with no moving parts. The flat top allows flush installation in lawn.

✓ Inlet: 15mm (1/2") female BSP thread
✓ Coverage: 2.5m radius (5m diameter) at 200 kPa
✓ Spray Pattern: Fixed 360° conical spray
✓ Maximum Operating Pressure: 200 kPa
✓ Flow: 17L/min at 200 kPa

Rainmist Stainless Steel Conical Spray Sprinkler Specifications

Rainmist conical spray sprinkler for home garden watering. Its stainless steel top and internal baffle spread water in a full circle with no moving parts. The flat top allows flush installation in lawn.

At 200 kPa, it covers a 5m diameter circle, equivalent to a 2.5m radius, and uses 17L/min. Maximum operating pressure is 200 kPa.

The internal baffle directs the water into a cone-shaped spray around the head. The top stays in a fixed position during watering.

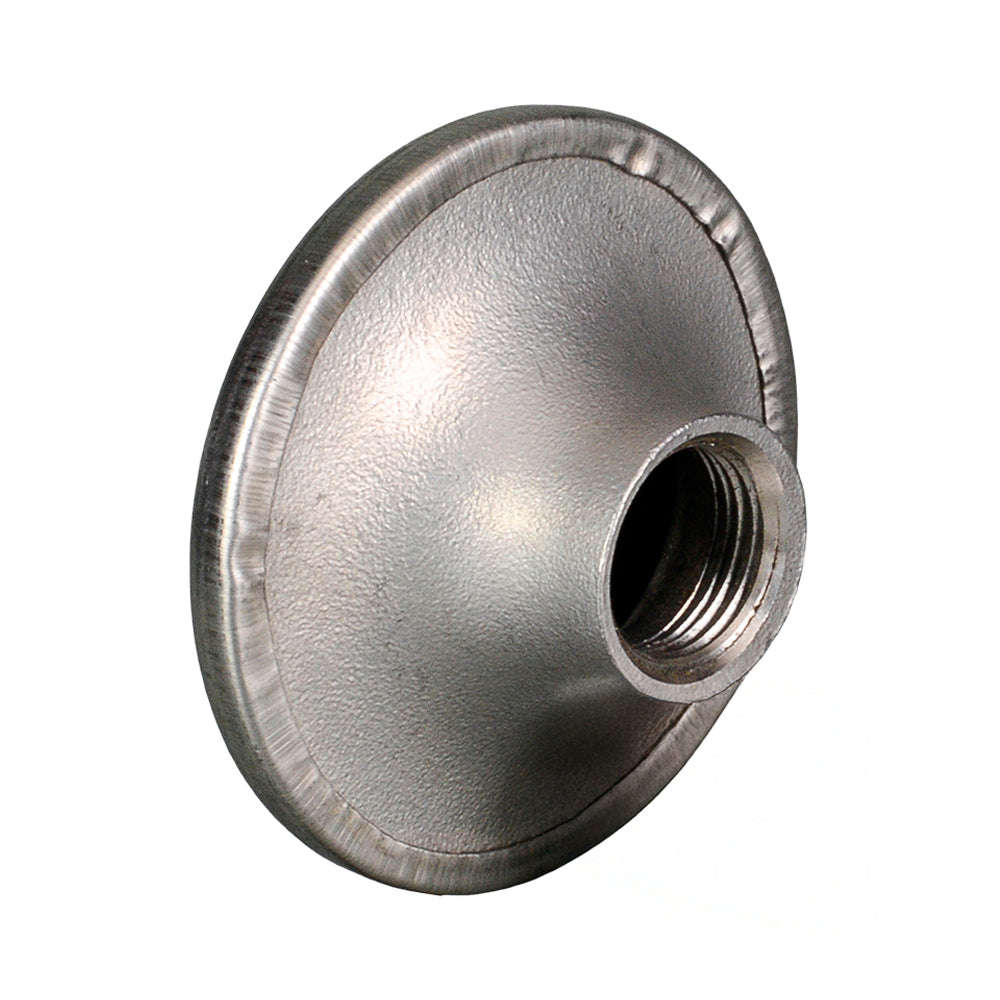

The 15mm (1/2") female BSP inlet connects to a matching male threaded fitting.

Rainmist Stainless Steel Conical Spray Sprinkler Specifications

✓ Application
Home irrigation and lawn watering.

✓ Inlet Connection
15mm (1/2") female BSP thread.

✓ Coverage and Spray Pattern
Fixed 360° conical spray from the top of the sprinkler.
Coverage: 5m diameter, equivalent to a 2.5m radius, at 200 kPa.

✓ Pressure and Flow
Maximum operating pressure: 200 kPa.
Flow: 17L/min at 200 kPa.

✓ Construction
Stainless steel top and internal baffle.
No moving parts.

✓ Installation
Flat top for flush installation in lawn.
Connect to a matching male BSP fitting.
