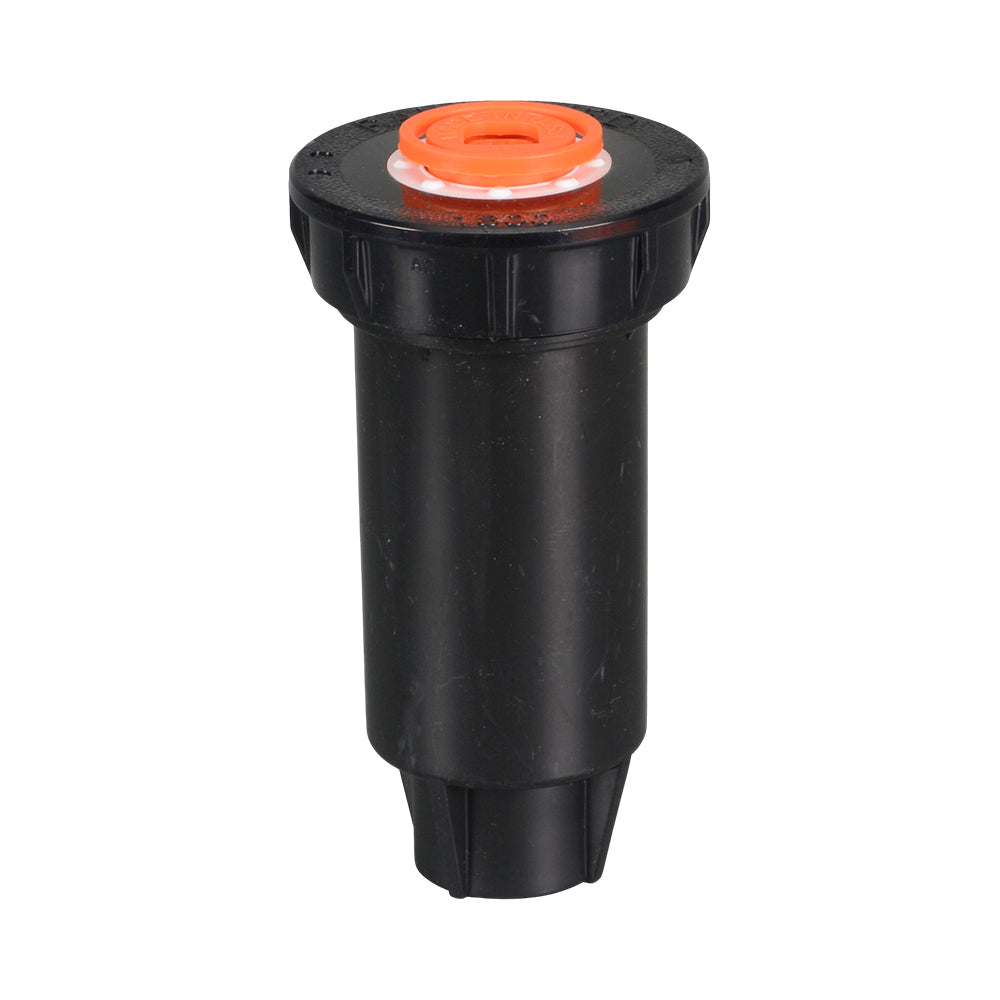

Rain Bird 1800 pop-up sprinkler bodies suit lawn and landscape irrigation using separately selected spray or rotary nozzles. Choose from 2", 3", 4", 6" and 12" pop-up heights to clear the surrounding grass or planting. The inch measurement describes how far the riser extends above the body during watering, rather than the overall body height.
Each body has a 15mm (1/2") female-threaded inlet. Accepts compatible female-threaded sprinkler nozzles. Coverage, spray pattern and flow depend on the nozzle fitted. Nozzles sold separately.
UV-resistant plastic body and corrosion-resistant stainless steel parts. A stainless steel spring retracts the riser after watering. The pressure-activated wiper seal helps limit leakage around the riser and clean debris from the stem as it retracts. Body operating pressure range: 100-480 kPa. Flow and required watering pressure depend on the nozzle fitted. Use the selected nozzle’s performance chart to match coverage and flow to the available pressure.
The ratcheting riser can be turned by hand to aim the nozzle’s watering pattern. Spray distance and arc adjustment depend on the nozzle fitted; follow its adjustment instructions.
The standard 6" and 12" bodies include both bottom and side inlets, giving you a choice of connection position. Single bodies and box quantities are listed in the range.

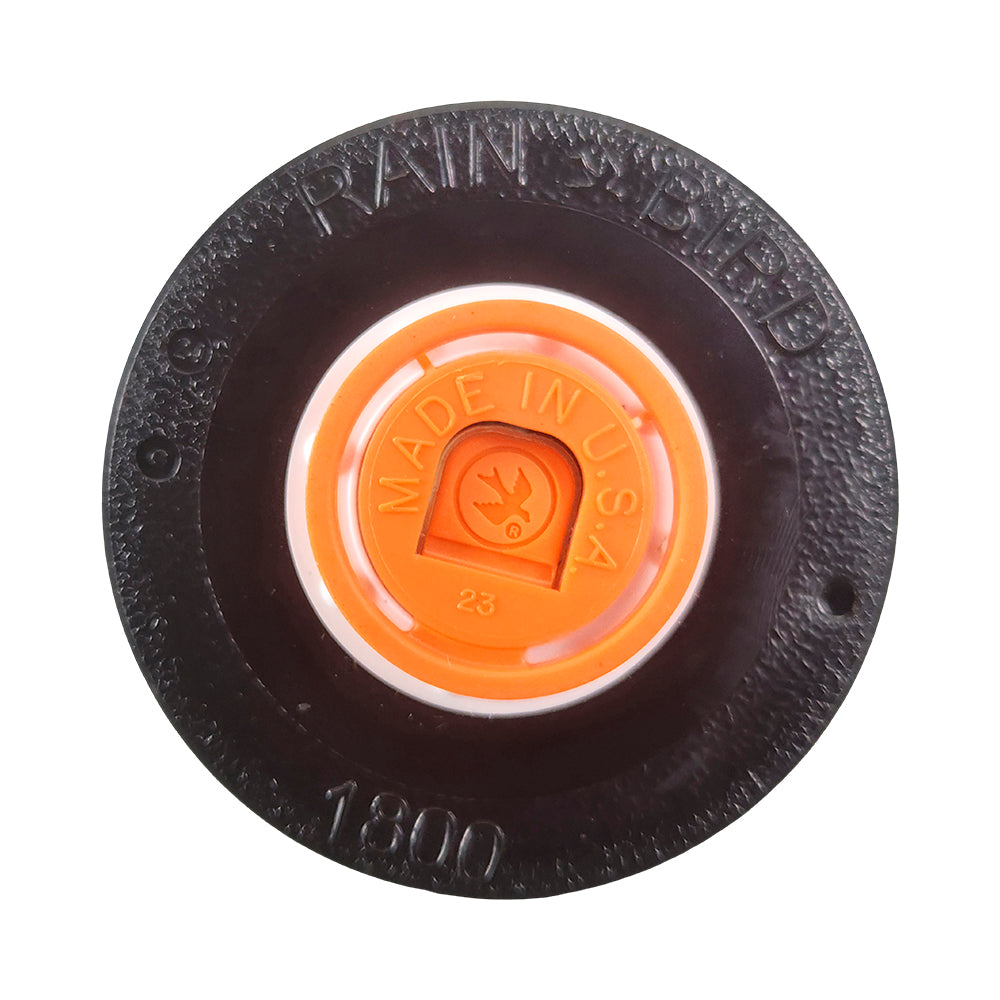

Supplied with an orange Pop-Top flush plug. After installing the body and before fitting a nozzle, run water through the system to flush dirt and debris from the pipework.
Five-year Rain Bird trade warranty.
