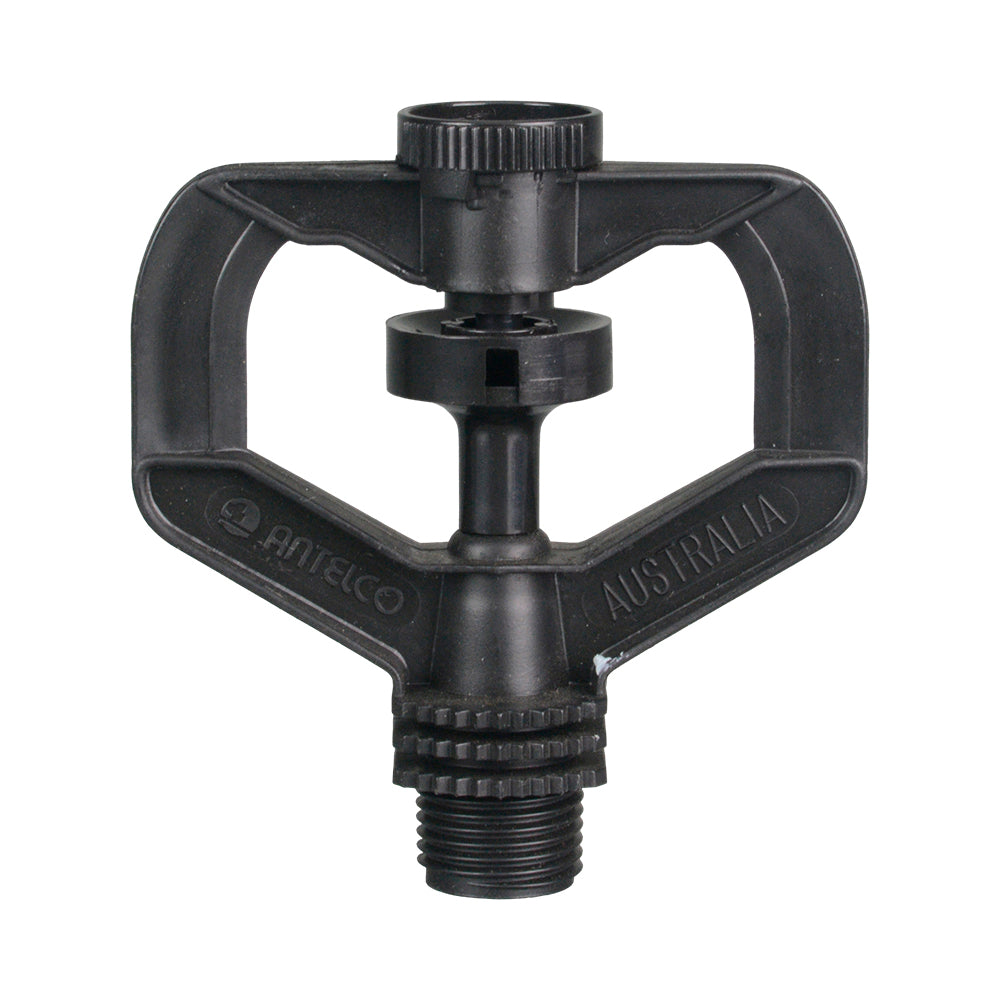

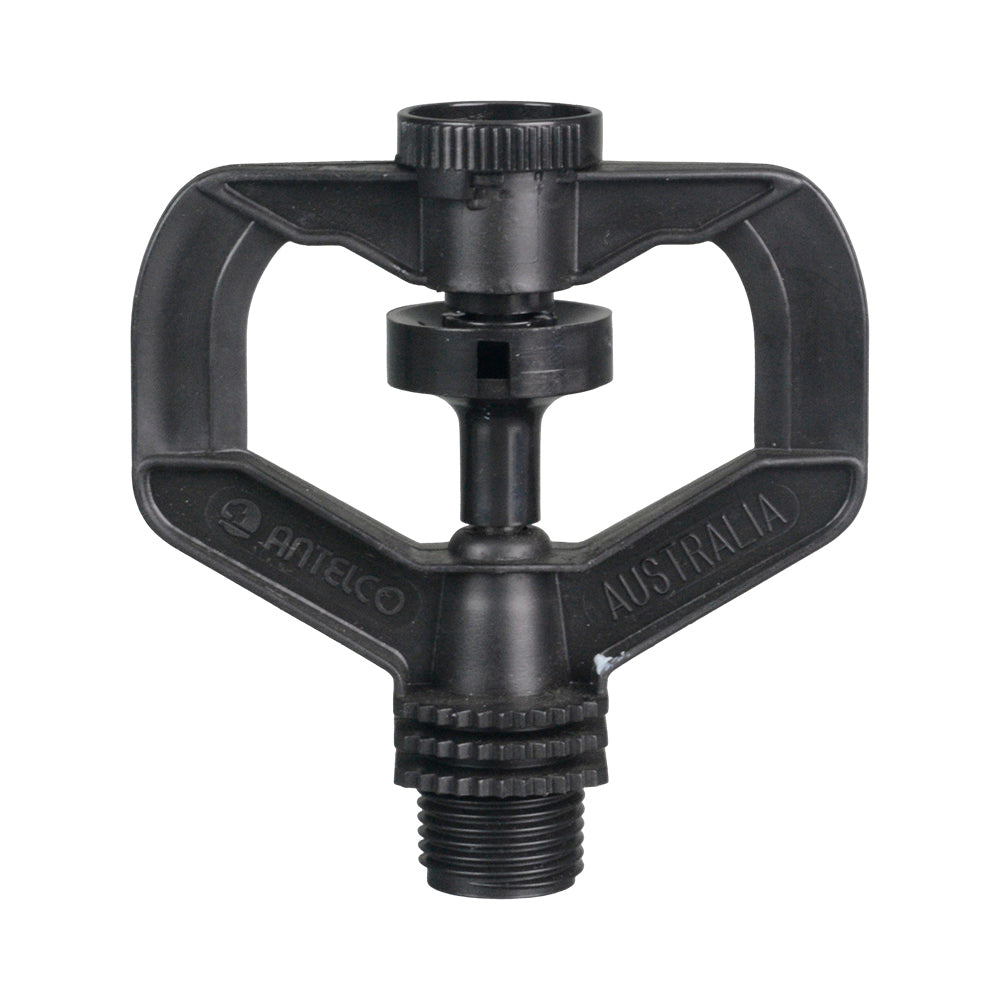

Antelco Rotor Max butterfly sprinkler with a 3.2mm black nozzle for greenhouses, vegetable beds and under-tree watering. Water turns a spinner with two outlets, sending the spray upwards at 25° and around the head in a full circle.
Each sprinkler is supplied with the colour-coded nozzle for that model. The nozzle opening controls water flow, while water pressure also affects flow and coverage.
Mount upright on a suitable riser with a matching female BSP connection. Position the head so nearby leaves and stems do not block the spray. Allow for overlapping coverage when planning sprinkler spacing.
At 200 kPa, the supplied 3.2mm black nozzle delivers 540L/h over a 13m wetted diameter, equivalent to a 6.5m radius.
Performance with the supplied nozzle
| Pressure (kPa) | Flow (L/h) | Wetted Diameter (m) |
|---|---|---|
| 100 | 375 | 11 |
| 150 | 460 | 12 |
| 200 | 540 | 13 |
| 250 | 600 | 13 |
| 300 | 660 | 14 |
Performance figures are for upright 25° sprinklers on a 200mm riser. Wetted diameter is the width of the watered circle, not the distance between sprinklers.
The UV stabilised polypropylene frame and acetal spinner and nozzle suit outdoor use. The sprinkler can be taken apart for inspection and cleaning.
15mm Antelco Rotor Max Upright Butterfly Sprinkler Specifications
