HUNTER I-90 GEAR DRIVE SPRINKLERS

Hunter I-90 Gear Drive Sprinklers for large turf irrigation. Robust construction supports a long service life. Three nozzles distribute water across the throw, while the built-in check valve reduces drainage through lower heads after watering.

The Hunter gear drive adjustment tool is required for arc adjustment and is also used for nozzle installation and radius adjustment.

✓ Inlet: 40mm (1 1/2") BSP female
✓ Coverage: 20.1–29.6 metre radius standard; 22.3–31.4 metres opposing-nozzle model
✓ Spray Pattern: Adjustable and fixed full-circle models
✓ Recommended Pressure: 550–830 kPa
✓ Flow: 111.7–317.2 L/min standard; 115.5–315.3 L/min opposing-nozzle model, across nozzle and pressure options
✓ Pop-Up Height: 80mm

Hunter I-90 Gear Drive Sprinkler Specifications

More Information
Product Specifications
Hunter I-90 sprinkler with stainless steel riser and orange nozzle
HUNTER I-90 GEAR DRIVE SPRINKLERS
Hunter I-90 sprinkler with stainless steel riser and orange nozzle

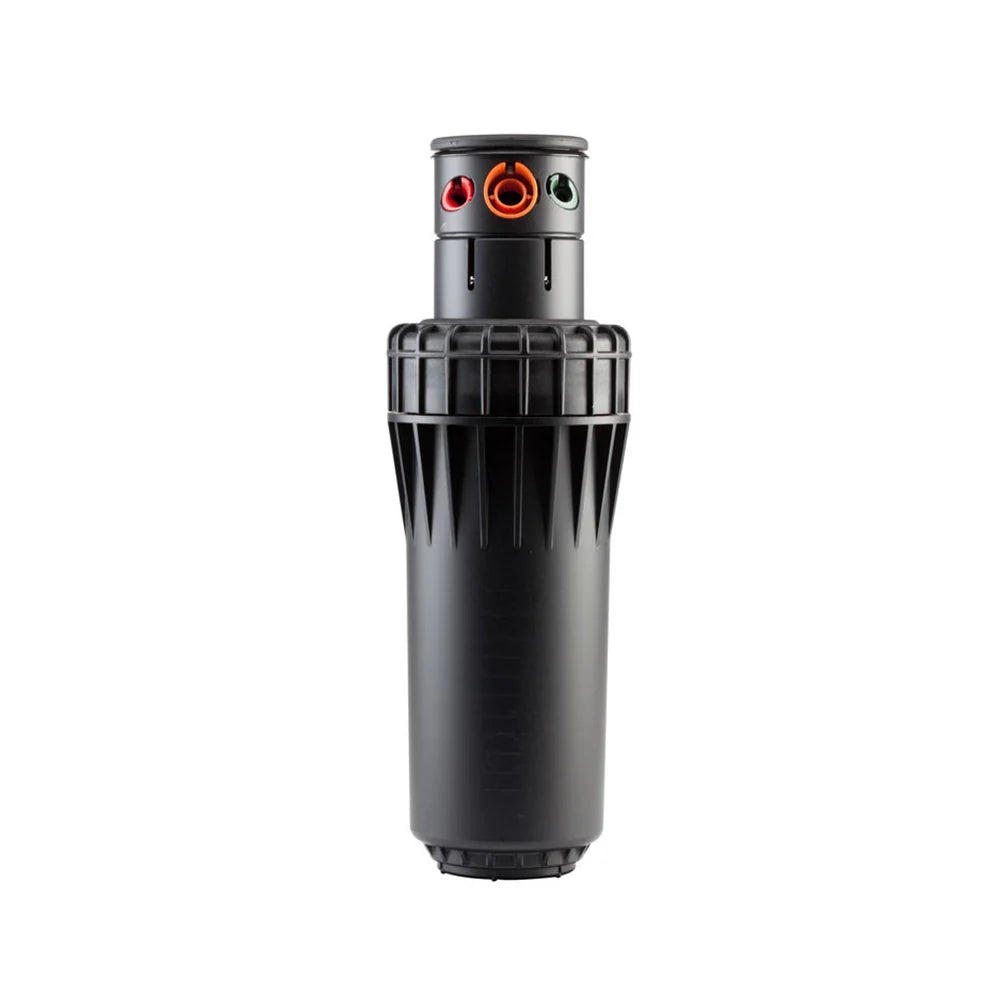

Hunter I90 Gear Drive Pop-Up 3" Full Circle with Opposing Nozzles (Radius 22.3m - 31.4m) SPHI90PL360
$345.71 /each
Hunter I90 Gear Drive Pop-Up 3" Adjustable (Radius 20.1m - 29.6m) SPHI90PLADJ
$387.61 /each

Hunter I-90 Gear Drive Sprinklers for large turf irrigation. Its robust body is built for a long service life.

The Hunter gear drive adjustment tool is required for arc adjustment and is also used for nozzle installation and radius adjustment.

The I-90 provides long-range watering for large parks, sports fields and other open turf areas. Three nozzles distribute water across the throw, with forward-facing nozzles on the adjustable model and opposing nozzles on the full-circle model.

The adjustable model covers a 20.1–29.6 metre radius across its nozzle configurations. The opposing-nozzle model covers a 22.3–31.4 metre radius. Recommended operating pressure is 550–830 kPa.

The adjustable model sets from 40° to 360°. The opposing-nozzle model waters a fixed 360° full circle. Nozzle selection and operating pressure determine watering distance and flow. Choose the nozzle for both watering distance and arc so sprinklers on the same zone apply water at similar rates.

The 80mm pop-up retracts into a 280mm body with a 40mm BSP female inlet.

The built-in check valve holds back up to 2 metres of elevation, reducing drainage through lower heads after watering.

Supplied with 8 nozzle choices.

Warranty: Five years.

Hunter I-90 Gear Drive Sprinkler Specifications

✓ Product Type and Application
Hunter I-90 Gear Drive Sprinklers.

✓ Dimensions and Connection
Inlet: 40mm (1 1/2") BSP female.
Pop-up height: 80mm.
Overall body height when retracted: 280mm.
Riser: plastic.

✓ Coverage and Spray Pattern
Hunter I-90 80mm Pop-Up Rotor - Opposing Nozzles:
Radius: 22.3–31.4 metres across nozzle and pressure options. Radius is the distance from the sprinkler to the outer edge of the watering pattern.
Spray arc: Fixed 360° full circle.
Hunter I-90 80mm Pop-Up Rotor:
Radius: 20.1–29.6 metres across nozzle and pressure options. Radius is the distance from the sprinkler to the outer edge of the watering pattern.
Spray arc: 40°–360°.

✓ Pressure & Flow
Recommended pressure: 550–830 kPa.
Operating pressure: 550–1,030 kPa.
Hunter I-90 80mm Pop-Up Rotor - Opposing Nozzles:
Flow: 115.5–315.3 L/min across the nozzle range.
Hunter I-90 80mm Pop-Up Rotor:
Flow: 111.7–317.2 L/min across the nozzle range.
See ‘Precipitation Rate’ below for how the arc setting affects the amount of water applied across the area.

✓ Nozzles and Performance
Supplied with 8 nozzle choices.

ADV adjustable model; flow is the total for the nozzle configuration.
Example comparison at 700 kPa, before radius reduction:
25 Light Blue nozzle: 20.7 metre radius; 125.7 L/min.
33 Grey nozzle: 21.3 metre radius; 152.9 L/min.
38 Red nozzle: 22.9 metre radius; 171.9 L/min.
43 Dark Brown nozzle: 22.9 metre radius; 191.9 L/min.
48 Dark Green nozzle: 24.7 metre radius; 208.6 L/min.
53 Dark Blue (factory fitted) nozzle: 26.2 metre radius; 225.2 L/min.
63 Black nozzle: 27.4 metre radius; 261.2 L/min.
73 Orange nozzle: 28.3 metre radius; 295.6 L/min.
36V fixed full-circle opposing model; flow is the total for the nozzle configuration.
Example comparison at 700 kPa, before radius reduction:
25 Light Blue nozzle: 23.2 metre radius; 129.8 L/min.
33 Grey nozzle: 24.4 metre radius; 153.7 L/min.
38 Red nozzle: 25.3 metre radius; 171.5 L/min.
43 Dark Brown nozzle: 25.9 metre radius; 192.7 L/min.
48 Dark Green nozzle: 27.4 metre radius; 207.4 L/min.
53 Dark Blue (factory fitted) nozzle: 28 metre radius; 224.1 L/min.
63 Black nozzle: 29.3 metre radius; 262.7 L/min.
73 Orange nozzle: 30.2 metre radius; 294.5 L/min.

✓ Adjustment
The top adjustment screw lets you shorten the watering distance. Choose the nozzle for the required watering distance, then use the screw to shorten the radius as needed.

✓ Sprinkler Spacing
Spacing is the distance between neighbouring sprinklers.
For head-to-head coverage, each sprinkler throws water far enough to reach the next sprinkler. This overlap helps water the area between them evenly.
Use the actual watering distance after adjustment when planning the spacing.
A square layout places sprinklers on a square grid. A triangular layout uses staggered rows.

✓ Precipitation Rate
Precipitation rate describes how quickly water is applied across the area, measured in millimetres per hour.
ADV adjustable model; flow is the total for the nozzle configuration.
For example, with the 53 Dark Blue nozzle at 700 kPa, a 180° half-circle arc and sprinklers spaced 26.2 metres apart:
Square layout: 39.3 mm/hour.
Triangular layout: 45.4 mm/hour.
36V fixed full-circle opposing model; flow is the total for the nozzle configuration.
For example, with the 53 Dark Blue nozzle at 700 kPa, a 360° full-circle arc and sprinklers spaced 28 metres apart:
Square layout: 17.1 mm/hour.
Triangular layout: 19.7 mm/hour.
On adjustable models, the same nozzle uses essentially the same flow at the same pressure whatever the arc setting. A smaller arc concentrates that water over a smaller area.
Different nozzle sizes can help balance watering between smaller and larger arcs, but they also change the watering distance. Choose nozzles that maintain head-to-head coverage; changing nozzle size alone may not suit an existing layout.
Where suitable nozzle combinations cannot provide similar watering rates, put sprinklers with different watering rates on separate zones so their run times can be set independently.

✓ Operation and Servicing
Hunter I-90 80mm Pop-Up Rotor - Opposing Nozzles:
Opposing triple nozzles provide fixed full-circle watering. The check valve holds back up to 2 metres of elevation.
Hunter I-90 80mm Pop-Up Rotor:
Forward-facing triple nozzles provide adjustable part- and full-circle watering. The check valve holds back up to 2 metres of elevation.

✓ Warranty
Five years.
