Multicore 0.5mm² irrigation cable is extra low voltage direct burial cable used to connect irrigation controller outputs to solenoid valves. It is suitable for irrigation control wiring where multiple valve stations need to be run through one outer-sheathed cable.
This range includes selected 3 core, 5 core, 7 core, 9 core and 13 core options in per metre, 20m, 50m, 100m and 500m purchase lengths depending on the cable type. Select the core count to suit the number of valve stations, allowing for a common wire and any spare cores required for future valve additions. Use suitable waterproof wire connectors for buried, valve box or exposed irrigation cable joins.
Multicore 1.0mm² irrigation cable in outer sheath is extra low voltage direct burial cable used to connect irrigation controller outputs to solenoid valves. It is suitable for irrigation control wiring where multiple valve stations need to be run through one outer-sheathed cable.
This range includes selected 2 core, 3 core, 5 core, 7 core, 9 core and 13 core options in 100m and 500m rolls. Select the core count to suit the number of valve stations, allowing for a common wire and any spare cores required for future valve additions. Use suitable waterproof wire connectors for buried, valve box or exposed irrigation cable joins.
Multicore 1.5mm² irrigation cable in outer sheath is extra low voltage direct burial cable used to connect irrigation controller outputs to solenoid valves. It is suitable for irrigation control wiring where multiple valve stations need to be run through one outer-sheathed cable.
This range includes selected 2 core, 3 core, 5 core, 7 core, 9 core and 13 core options in 100m and 500m rolls depending on the cable type. Select the core count to suit the number of valve stations, allowing for a common wire and any spare cores required for future valve additions. Use suitable waterproof wire connectors for buried, valve box or exposed irrigation cable joins.
Black nylon ties are a practical choice for everyday jobs such as keeping irrigation wires together or fastening small items outdoors. They are treated to resist damage from sunlight. Their flexible straps feed through a locking head and pull snug around the items being secured.
Stainless steel ties provide greater strength and heat resistance. The 316 stainless steel also resists corrosion in coastal and marine environments.
The stainless steel ties lock using a small ball inside the head, which grips the strap as it is tightened. Smooth, rounded edges help reduce damage to the items being secured.
Supplied in packs of 100.
Wafer butterfly valves provide manual shutoff and flow adjustment in larger flanged water pipework. A disc turns inside the valve body to open or close the passage. The wafer body fits between two supporting flanges, creating a compact installation. The 100mm and 150mm cast iron valves have stainless steel discs, EPDM seats and Table D flange compatibility.
The EPDM seat seals against the disc as it closes. These wafer valves rely on a flange on each side to secure the body in the pipeline. Their lever and notch plate provide selectable positions for manual operation.
Match the valve, flanges and pipe bore, and provide clearance for the disc to turn without contacting adjoining pipework. Cold working pressure is 1600kPa for the 100mm & 150mm models.
Wafer connection between Table D flanges; 1600kPa cold working pressure.
Wafer Butterfly Valve with Stainless Steel Disc EPDM Seal Specifications
Chrome-plated brass mini ball valves provide compact manual isolation where space around a threaded connection is limited. Female x female and male x female connections are available in 1/4", 3/8" and 1/2". Their short bodies help fit the valve into a tight installation, while the small handle gives direct control over opening and closing the water passage.
The female x female versions join two male-threaded fittings. The male x female versions connect directly to a female-threaded component at one end. Each type is pressure tested and uses a blow-proof spindle.
Operate the valve manually and leave enough clearance to turn the handle.
Female x female and male x female threaded mini ball valves are rated to 1600kPa. Size-specific drawing dimensions are listed in the specifications.
Brass Ball Valve Mini Chrome Female x Female Specifications
Brass Ball Valve Mini Chrome Male x Female Specifications
Clear braided hose is a multipurpose PVC hose for transferring water, food and beverages.
It combines food-grade clear PVC with polyester braid reinforcement and petroleum resistance.
The hose has a working-pressure rating of 1400 kPa (203.1 psi) and a temperature range of -5°C to +50°C.
Clear vinyl tubing is designed for low-pressure transfer of food and beverages and for general delivery lines.
It is made from food-grade clear PVC without reinforcement.
The tubing has a temperature range of 0°C to +50°C.

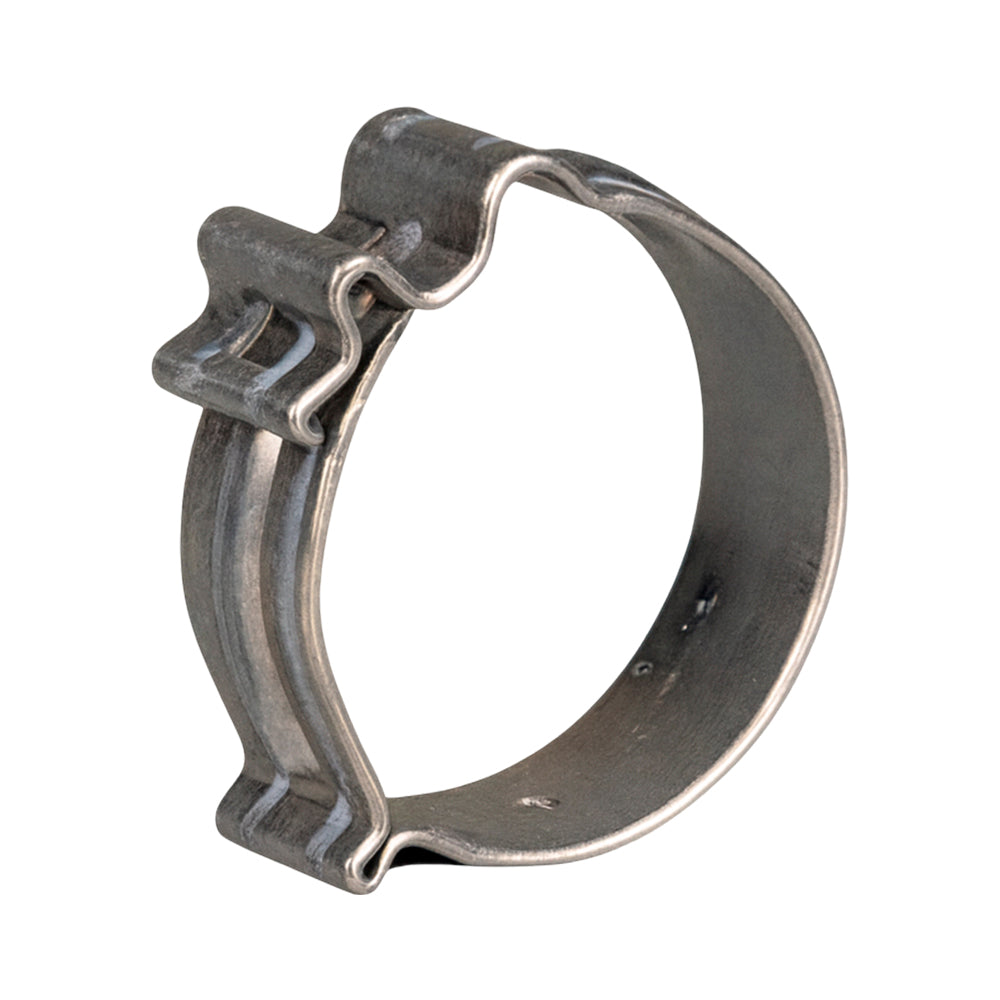

Norma Cobra clamps secure low density poly tubing over barbed fittings with a compact, screwless closure. The one-piece stainless steel band is closed with a compatible Cobra installation tool.
Choose the clamp for the outside diameter of the tube when fitted over the barb. The pipe size and clamp diameter are different measurements.
Protruding gripping points allow the installation tool to close the clamp. Clamps are sold individually or in boxes of 100. The Norma Pro installation tool is sold separately.
NORMA metric female elbows for metric poly pipe, with a compression connection and an internal female BSP thread. The elbow provides a 90-degree change in pipe direction.
The NORMA compression design allows pipe insertion without removing the nuts. Blue ends identify the metric connection, and the two-stage seal tightens around the pipe as the nut is tightened.
The BSP thread mates with a matching male BSP thread. Pipe size and thread size describe different parts of the fitting; select each to suit the connection. Follow the manufacturer’s instructions for thread sealing and tightening.
Philmac 3G & EasyLOK metric female elbows for metric poly pipe, with a compression connection and an internal female BSP thread. The elbow provides a 90-degree change in pipe direction. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in water supply and irrigation systems.
The COMEF02034 fitting is suitable for contact with drinking water. WaterMark Register
This stocked range includes 3G and EasyLOK fittings. The individual product pages identify the system supplied, with installation details in the linked guides.
The BSP thread mates with a matching male BSP thread. Pipe size and thread size describe different parts of the fitting; select each to suit the connection. Follow the manufacturer’s instructions for thread sealing and tightening.
Philmac 3G Compression Metric Technical Manual
Philmac EasyLOK Compression Metric Technical Manual
Philmac Compression Metric Installation Guide
Video 1
Video 2
Philmac 3G & EasyLOK metric elbows for metric poly pipe, with two compression connections. The elbow provides a 90-degree change in pipe direction. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in water supply and irrigation systems.
The COME02020 fitting is suitable for contact with drinking water. WaterMark Register
This stocked range includes 3G and EasyLOK fittings. The individual product pages identify the system supplied, with installation details in the linked guides.
Metric pipe size refers to the pipe’s outside diameter. Match the compression end to that diameter. Rural pipe uses a different sizing system and needs the appropriate rural fitting.
Philmac 3G Compression Metric Technical Manual
Philmac EasyLOK Compression Metric Technical Manual
Philmac Compression Metric Installation Guide
Video 1
Video 2
NORMA metric elbows for metric poly pipe, with two compression connections. The elbow provides a 90-degree change in pipe direction.
The NORMA compression design allows pipe insertion without removing the nuts. Blue ends identify the metric connection, and the two-stage seal tightens around the pipe as the nut is tightened.
Metric pipe size refers to the pipe’s outside diameter. Match the compression end to that diameter. Rural pipe uses a different sizing system and needs the appropriate rural fitting.
Philmac 3G & EasyLOK metric end caps for metric poly pipe, with a single compression connection to close the end of the pipe. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in water supply and irrigation systems.
The COMEC20 fitting is suitable for contact with drinking water. WaterMark Register
This stocked range includes 3G and EasyLOK fittings. The individual product pages identify the system supplied, with installation details in the linked guides.
Metric pipe size refers to the pipe’s outside diameter. Match the compression end to that diameter. Rural pipe uses a different sizing system and needs the appropriate rural fitting.
Philmac 3G Compression Metric Technical Manual
Philmac EasyLOK Compression Metric Technical Manual
Philmac Compression Metric Installation Guide
Video 1
Video 2
NORMA metric end caps for metric poly pipe, with a single compression connection to close the end of the pipe.
The NORMA compression design allows pipe insertion without removing the nuts. Blue ends identify the metric connection, and the two-stage seal tightens around the pipe as the nut is tightened.
Metric pipe size refers to the pipe’s outside diameter. Match the compression end to that diameter. Rural pipe uses a different sizing system and needs the appropriate rural fitting.
Philmac 3G & EasyLOK metric female end connectors for metric poly pipe, with a compression connection and an internal female BSP thread. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in water supply and irrigation systems.
The COMECF02034 fitting is suitable for contact with drinking water. WaterMark Register
This stocked range includes 3G and EasyLOK fittings. The individual product pages identify the system supplied, with installation details in the linked guides.
The BSP thread mates with a matching male BSP thread. Pipe size and thread size describe different parts of the fitting; select each to suit the connection. Follow the manufacturer’s instructions for thread sealing and tightening.
Philmac 3G Compression Metric Technical Manual
Philmac EasyLOK Compression Metric Technical Manual
Philmac Compression Metric Installation Guide
Video 1
Video 2
NORMA metric female end connectors for metric poly pipe, with a compression connection and an internal female BSP thread.
The NORMA compression design allows pipe insertion without removing the nuts. Blue ends identify the metric connection, and the two-stage seal tightens around the pipe as the nut is tightened.
The BSP thread mates with a matching male BSP thread. Pipe size and thread size describe different parts of the fitting; select each to suit the connection. Follow the manufacturer’s instructions for thread sealing and tightening.
Philmac 3G & EasyLOK metric male end connectors for metric poly pipe, with a compression connection and an external male BSP thread. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in water supply and irrigation systems.
The COMECM02034 fitting is suitable for contact with drinking water. WaterMark Register
This stocked range includes 3G and EasyLOK fittings. The individual product pages identify the system supplied, with installation details in the linked guides.
The BSP thread mates with a matching female BSP thread. Pipe size and thread size describe different parts of the fitting; select each to suit the connection. Follow the manufacturer’s instructions for thread sealing and tightening.
Philmac 3G Compression Metric Technical Manual
Philmac EasyLOK Compression Metric Technical Manual
Philmac Compression Metric Installation Guide
Video 1
Video 2
NORMA metric male end connectors for metric poly pipe, with a compression connection and an external male BSP thread.
The NORMA compression design allows pipe insertion without removing the nuts. Blue ends identify the metric connection, and the two-stage seal tightens around the pipe as the nut is tightened.
The BSP thread mates with a matching female BSP thread. Pipe size and thread size describe different parts of the fitting; select each to suit the connection. Follow the manufacturer’s instructions for thread sealing and tightening.
Philmac EasyLOK metric flanged adaptors for metric poly pipe, with a metric compression end and a flanged end. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in water supply and irrigation systems.
The COMFA50 fitting is suitable for contact with drinking water. WaterMark Register
The EasyLOK compression end grips and seals around the pipe. Its body flange provides a visible stop for the fully tightened nut. Follow the EasyLOK assembly instructions for the supplied fitting.
Metric pipe size refers to the pipe’s outside diameter. Match the compression end to that diameter. Rural pipe uses a different sizing system and needs the appropriate rural fitting.
Match the flange drilling as well as its nominal size. Check the supplied adaptor’s flange pattern and backing ring arrangement before selecting the gasket and bolts.
Philmac EasyLOK Compression Metric Technical Manual
Philmac Compression Metric Installation Guide
Video 1
Philmac 3G & EasyLOK metric joiners for metric poly pipe, with two compression connections to join pipe ends in line. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in water supply and irrigation systems.
The COMJ02020 fitting is suitable for contact with drinking water. WaterMark Register
This stocked range includes 3G and EasyLOK fittings. The individual product pages identify the system supplied, with installation details in the linked guides.
Metric pipe size refers to the pipe’s outside diameter. Match the compression end to that diameter. Rural pipe uses a different sizing system and needs the appropriate rural fitting.
Philmac 3G Compression Metric Technical Manual
Philmac EasyLOK Compression Metric Technical Manual
Philmac Compression Metric Installation Guide
Video 1
Video 2
NORMA metric joiners for metric poly pipe, with two compression connections to join pipe ends in line.
The NORMA compression design allows pipe insertion without removing the nuts. Blue ends identify the metric connection, and the two-stage seal tightens around the pipe as the nut is tightened.
Metric pipe size refers to the pipe’s outside diameter. Match the compression end to that diameter. Rural pipe uses a different sizing system and needs the appropriate rural fitting.
Philmac 3G metric slip joiners for metric poly pipe, with two compression ends and a body that allows the pipe to pass through. It can slide along the pipe before being positioned over the joint, making it useful for repairs where the pipe ends have little movement. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in water supply and irrigation systems.
The COMSJ02525 fitting is suitable for contact with drinking water. WaterMark Register
The pre-assembled 3G connection uses Slide & Tighten installation, with no pipe chamfering or lubrication required. The nut meets the body flange when fully tightened.
Metric pipe size refers to the pipe’s outside diameter. Match the compression end to that diameter. Rural pipe uses a different sizing system and needs the appropriate rural fitting.
Philmac 3G Compression Metric Technical Manual
Philmac Compression Metric Installation Guide
Video 1
Philmac 3G & EasyLOK metric female tees for metric poly pipe, with two compression connections and a female BSP threaded outlet on the branch. The main pipe runs through the compression ends, with the threaded outlet at 90 degrees to it. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in water supply and irrigation systems.
The COMTF0202012 fitting is suitable for contact with drinking water. WaterMark Register
This stocked range includes 3G and EasyLOK fittings. The individual product pages identify the system supplied, with installation details in the linked guides.
The BSP thread mates with a matching male BSP thread. Pipe size and thread size describe different parts of the fitting; select each to suit the connection. Follow the manufacturer’s instructions for thread sealing and tightening.
Philmac 3G Compression Metric Technical Manual
Philmac EasyLOK Compression Metric Technical Manual
Philmac Compression Metric Installation Guide
Video 1
Video 2
NORMA metric female tees for metric poly pipe, with two compression connections and a female BSP threaded outlet on the branch. The main pipe runs through the compression ends, with the threaded outlet at 90 degrees to it.
The NORMA compression design allows pipe insertion without removing the nuts. Blue ends identify the metric connection, and the two-stage seal tightens around the pipe as the nut is tightened.
The BSP thread mates with a matching male BSP thread. Pipe size and thread size describe different parts of the fitting; select each to suit the connection. Follow the manufacturer’s instructions for thread sealing and tightening.
Philmac 3G & EasyLOK metric tees for metric poly pipe, with three compression connections to create a branch in the pipe run. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in water supply and irrigation systems.
The COMT0202020 fitting is suitable for contact with drinking water. WaterMark Register
This stocked range includes 3G and EasyLOK fittings. The individual product pages identify the system supplied, with installation details in the linked guides.
Metric pipe size refers to the pipe’s outside diameter. Match the compression end to that diameter. Rural pipe uses a different sizing system and needs the appropriate rural fitting.
Philmac 3G Compression Metric Technical Manual
Philmac EasyLOK Compression Metric Technical Manual
Philmac Compression Metric Installation Guide
Video 1
Video 2
NORMA metric tees for metric poly pipe, with three compression connections to create a branch in the pipe run.
The NORMA compression design allows pipe insertion without removing the nuts. Blue ends identify the metric connection, and the two-stage seal tightens around the pipe as the nut is tightened.
Metric pipe size refers to the pipe’s outside diameter. Match the compression end to that diameter. Rural pipe uses a different sizing system and needs the appropriate rural fitting.
NORMA metric telescopic repair couplings for metric poly pipe, with an extending body and two compression ends. The extending body bridges a prepared repair gap, reducing the need to bend the existing pipe or open a longer trench.
The NORMA telescopic design uses dual O-rings and blue metric identification ends. Measure the prepared gap against the fitting’s working extension and insertion requirements.
Metric pipe size refers to the pipe’s outside diameter. Match the compression end to that diameter. Rural pipe uses a different sizing system and needs the appropriate rural fitting.
Video 1
Philmac Rural female elbows for rural poly pipe, with a compression connection and an internal female BSP thread. The elbow provides a 90-degree change in pipe direction. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in farm water supply and irrigation systems.
The Rural connection uses an insert inside the pipe, with a grip ring and nut securing the joint. It can be disconnected and reconnected for alterations or maintenance.
The BSP thread mates with a matching male BSP thread. Pipe size and thread size describe different parts of the fitting; select each to suit the connection. Follow the manufacturer’s instructions for thread sealing and tightening.
Philmac Compression Rural Product Range
Philmac Compression Rural Brochure and Installation Guide
Video 1
Philmac Rural elbows for rural poly pipe, with two compression connections. The elbow provides a 90-degree change in pipe direction. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in farm water supply and irrigation systems.
The Rural connection uses an insert inside the pipe, with a grip ring and nut securing the joint. It can be disconnected and reconnected for alterations or maintenance.
Philmac Compression Rural Product Range
Philmac Compression Rural Brochure and Installation Guide
Video 1
Philmac Rural end caps for rural poly pipe, with a single compression connection to close the end of the pipe. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in farm water supply and irrigation systems.
The Rural connection uses an insert inside the pipe, with a grip ring and nut securing the joint. It can be disconnected and reconnected for alterations or maintenance.
Philmac Compression Rural Product Range
Philmac Compression Rural Brochure and Installation Guide
Video 1
Philmac Rural female end connectors for rural poly pipe, with a compression connection and an internal female BSP thread. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in farm water supply and irrigation systems.
The Rural connection uses an insert inside the pipe, with a grip ring and nut securing the joint. It can be disconnected and reconnected for alterations or maintenance.
The BSP thread mates with a matching male BSP thread. Pipe size and thread size describe different parts of the fitting; select each to suit the connection. Follow the manufacturer’s instructions for thread sealing and tightening.
Philmac Compression Rural Product Range
Philmac Compression Rural Brochure and Installation Guide
Video 1
Philmac Rural male end connectors for rural poly pipe, with a compression connection and an external male BSP thread. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in farm water supply and irrigation systems.
The Rural connection uses an insert inside the pipe, with a grip ring and nut securing the joint. It can be disconnected and reconnected for alterations or maintenance.
The BSP thread mates with a matching female BSP thread. Pipe size and thread size describe different parts of the fitting; select each to suit the connection. Follow the manufacturer’s instructions for thread sealing and tightening.
Philmac Compression Rural Product Range
Philmac Compression Rural Brochure and Installation Guide
