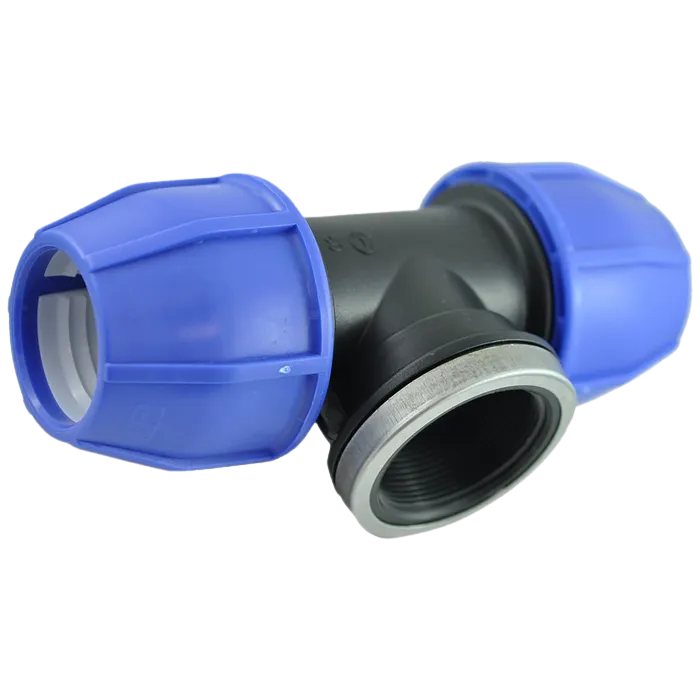

Compression Poly Metric Tee- Poly x FI BSP - 63mm x 63mm x 2" - Norma
Compression Poly Metric Tee- Poly x FI BSP - 63mm x 63mm x 2" - Norma

NORMA METRIC FEMALE TEES

NORMA metric female tees for metric poly pipe, with two compression connections and a female BSP threaded outlet on the branch. The main pipe runs through the compression ends, with the threaded outlet at 90 degrees to it.

✓ Fitting System: NORMA metric
✓ Connections: Two compression connections and an internal female BSP thread for a threaded branch
✓ Pipe: Metric PE pipe, sized by outside diameter
✓ Pressure Rating: 63mm: 1600kPa. 90mm to 110mm: 1250kPa.

Norma Metric Compression Fittings Brochure

More Information
Product Specifications
Compression Poly Metric Tee- Poly x FI BSP - 63mm x 63mm x 2" - Norma
NORMA METRIC FEMALE TEES
Compression Poly Metric Tee- Poly x FI BSP - 63mm x 63mm x 2" - Norma
Compression Poly Metric Tee- Poly x FI BSP - 63mm x 63mm x 2" - Norma CONMTF063632
$43.51 /each
Compression Poly Metric Tee- Poly x FI BSP - 90mm x 90mm x 3" - Norma
Compression Poly Metric Tee- Poly x FI BSP - 90mm x 90mm x 3" - Norma CONMTF090903
$97.40 /each
Compression Poly Metric Tee- Poly x FI BSP - 110mm x 110mm x 4" - Norma
Compression Poly Metric Tee- Poly x FI BSP - 110mm x 110mm x 4" - Norma CONMTF1101104
$153.25 /each

NORMA metric female tees for metric poly pipe, with two compression connections and a female BSP threaded outlet on the branch. The main pipe runs through the compression ends, with the threaded outlet at 90 degrees to it.

The NORMA compression design allows pipe insertion without removing the nuts. Blue ends identify the metric connection, and the two-stage seal tightens around the pipe as the nut is tightened.

The BSP thread mates with a matching male BSP thread. Pipe size and thread size describe different parts of the fitting; select each to suit the connection. Follow the manufacturer’s instructions for thread sealing and tightening.

Norma Metric Compression Fittings Brochure

✓ Product Type & Size
NORMA metric female tees. Available sizes are shown in the product selector.

✓ Connection
Poly x poly x female BSP metric compression tee.

✓ Application
Used to create a female BSP threaded branch from a PE metric pipe run.

✓ Pipe Compatibility
Suitable for PE metric pipe made in accordance with AS/NZS 4130.

✓ Pressure Rating
63mm: 1600kPa. 90mm to 110mm: 1250kPa.

✓ Approval
WaterMark approved.

✓ Installation
Cut pipe square, deburr if required, mark the insertion depth, insert the pipe fully and tighten the nut until the mark is only just visible. Use PTFE tape or suitable thread sealant on BSP threaded connections.

✓ Material
Polypropylene copolymer body, nut and holder with NBR metric O-ring and acetal clinching ring.

✓ Reinforcing Ring
304 stainless steel reinforcing ring fitted to the female BSP threaded connection.
