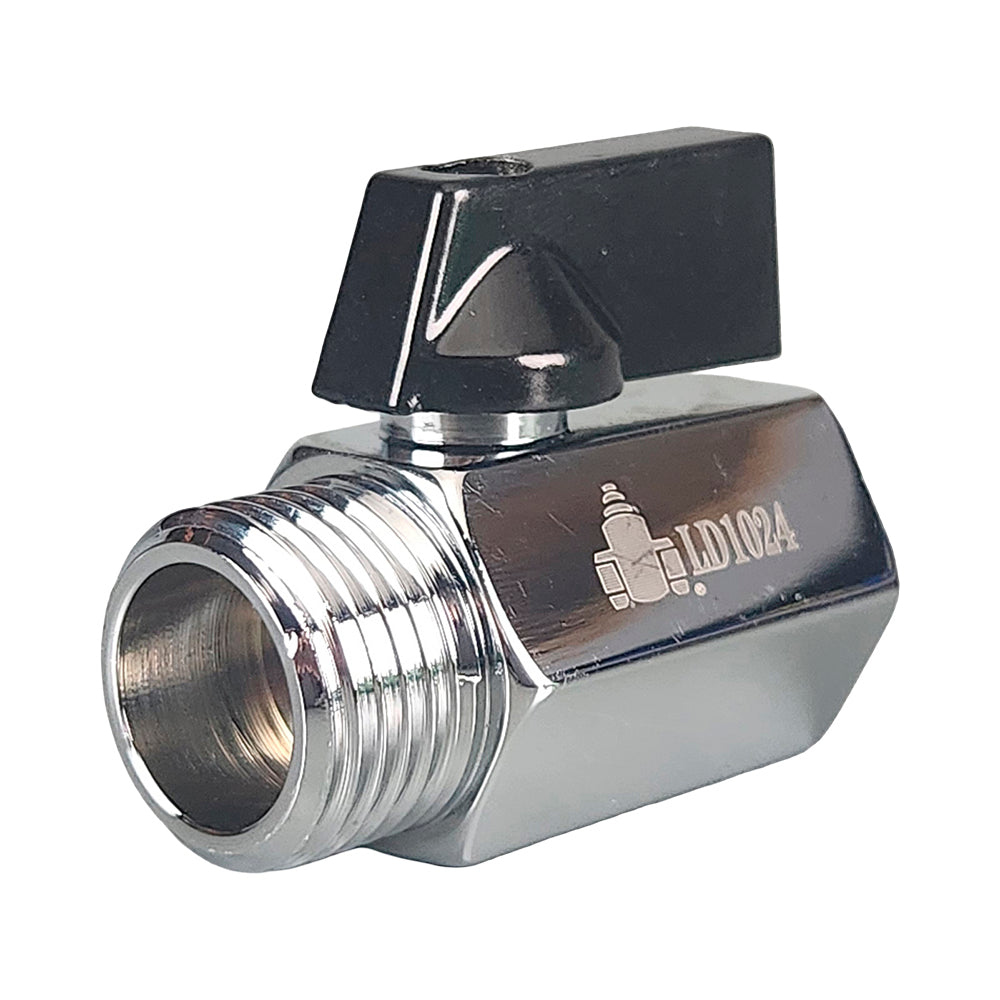

Chrome-plated mini ball valve with black lever, showing the male threaded end.
Chrome-plated mini ball valve with black lever, showing the male threaded end.

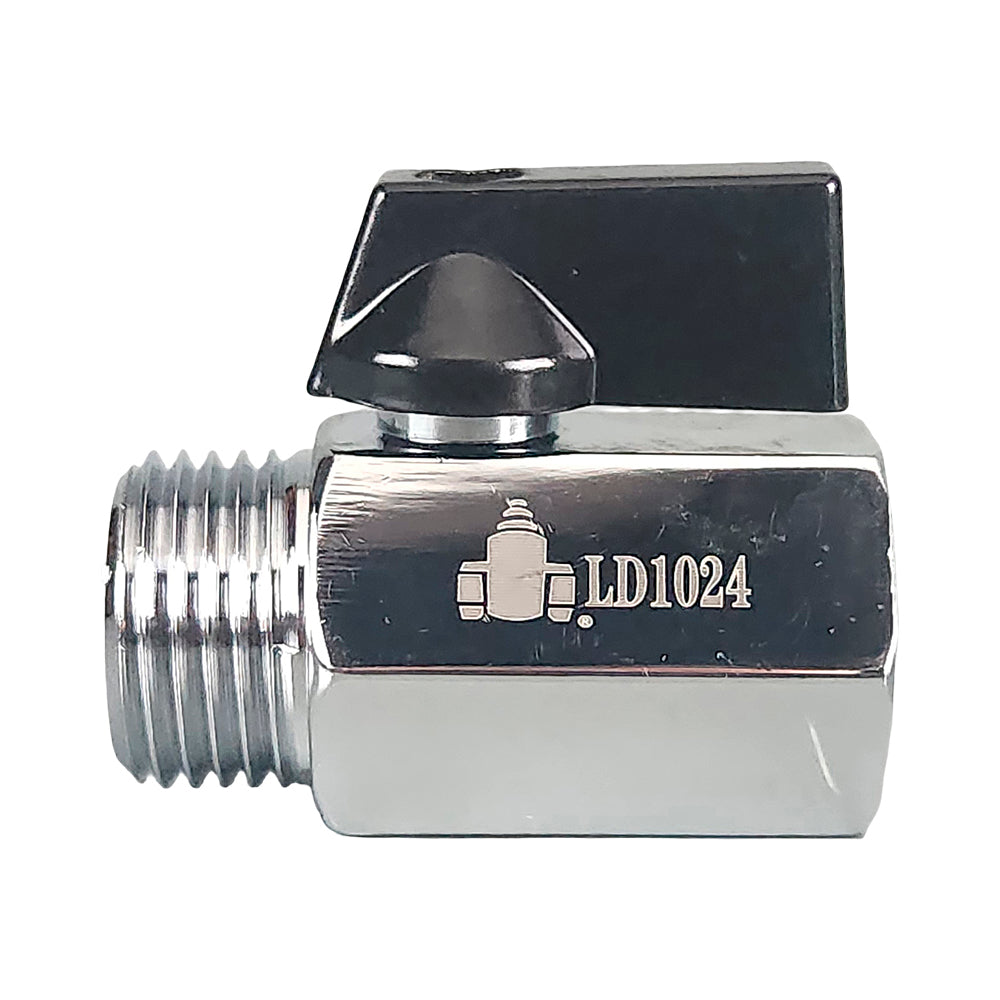

Chrome-plated mini ball valve with black lever and male threaded inlet, side view.
Chrome-plated mini ball valve with black lever and male threaded inlet, side view.

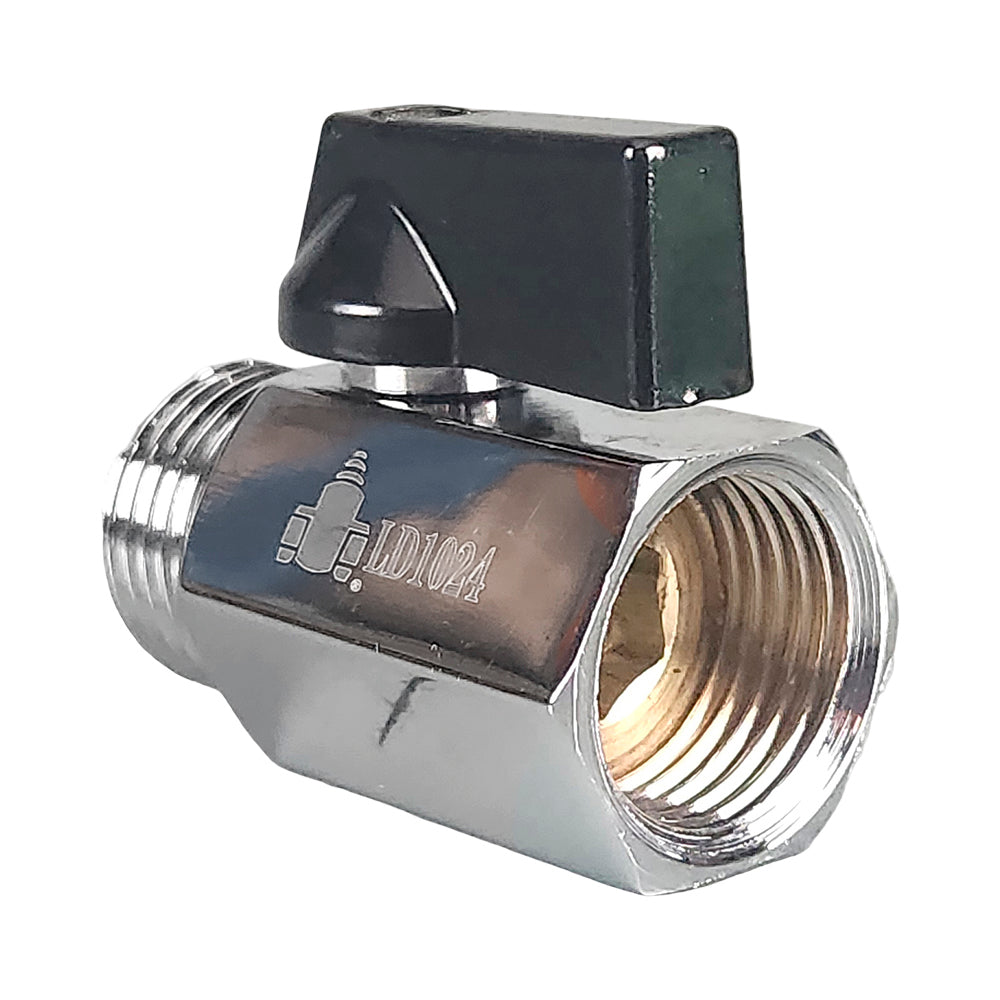

Chrome-plated mini ball valve with black lever, showing the female threaded end.
Chrome-plated mini ball valve with black lever, showing the female threaded end.
Chrome-plated mini ball valve with black lever, showing the male threaded end.
Chrome-plated mini ball valve with black lever and male threaded inlet, side view.
Chrome-plated mini ball valve with black lever, showing the female threaded end.

CHROME MINI BALL VALVES - THREADED

Chrome-plated brass mini ball valves provide compact manual isolation where space around a threaded connection is limited. Female x female and male x female connections are available in 1/4", 3/8" and 1/2". Their short bodies help fit the valve into a tight installation, while the small handle gives direct control over opening and closing the water passage.

✓ Connections: 1/4", 3/8" & 1/2"; female x female or male x female
✓ Pressure Rating: 1600kPa
✓ Compact body
✓ Manual on/off operation
✓ Blow-proof spindle; pressure tested

Brass Ball Valve Mini Chrome Female x Female Specifications
Brass Ball Valve Mini Chrome Male x Female Specifications

More Information
Product Specifications
Chrome-plated mini ball valve with black lever, showing the male threaded end.
CHROME MINI BALL VALVES - THREADED
Chrome-plated mini ball valve with black lever and female threaded connection, angled view.
Valves Brass Ball 1/2 BSP Female Mini Chrome Plated VVBBMCP1/2
$9.11 /each
Chrome-plated mini ball valve with black lever and female threaded connection, angled view.
Valves Brass Ball 3/8 BSP Female Mini Chrome Plated VVBBMCP3/8
$6.98 /each
Chrome-plated mini ball valve with black lever and female threaded connection, angled view.
Valves Brass Ball 1/4 BSP Female Mini Chrome Plated VVBBMCP1/4
$6.98 /each
Chrome-plated mini ball valve with black lever, showing the male threaded end.
Chrome Plated, Brass Ball Valve 1/2" BSP Male x BSP Female VVBBMCPM1-2
$9.11 /each
Chrome-plated mini ball valve with black lever, showing the male threaded end.
Chrome Plated, Brass Ball Valve 3/8" BSP Male x BSP Female VVBBMCPM3-8
$6.98 /each
Chrome-plated mini ball valve with black lever, showing the male threaded end.
Chrome Plated, Brass Ball Valve 1/4" BSP Male x BSP Female VVBBMCPM1-4
$6.98 /each

Chrome-plated brass mini ball valves provide compact manual isolation where space around a threaded connection is limited. Female x female and male x female connections are available in 1/4", 3/8" and 1/2". Their short bodies help fit the valve into a tight installation, while the small handle gives direct control over opening and closing the water passage.

The female x female versions join two male-threaded fittings. The male x female versions connect directly to a female-threaded component at one end. Each type is pressure tested and uses a blow-proof spindle.

Operate the valve manually and leave enough clearance to turn the handle.

Female x female and male x female threaded mini ball valves are rated to 1600kPa. Size-specific drawing dimensions are listed in the specifications.

Brass Ball Valve Mini Chrome Female x Female Specifications
Brass Ball Valve Mini Chrome Male x Female Specifications

✓ Product Type & Application
Chrome-plated brass mini ball valves provide compact manual isolation where space around a threaded connection is limited. Female x female and male x female connections are available in 1/4", 3/8" and 1/2". Their short bodies help fit the valve into a tight installation, while the small handle gives direct control over opening and closing the water passage.

✓ Size & Connections
Valves Brass Ball 1/2 BSP Female Mini Chrome Plated: 1/2" female x female threaded connections
Valves Brass Ball 3/8 BSP Female Mini Chrome Plated: 3/8" female x female threaded connections
Valves Brass Ball 1/4 BSP Female Mini Chrome Plated: 1/4" female x female threaded connections
Chrome Plated, Brass Ball Valve 1/2" BSP Male x BSP Female: 1/2" male x female threaded connections
Chrome Plated, Brass Ball Valve 3/8" BSP Male x BSP Female: 3/8" male x female threaded connections
Chrome Plated, Brass Ball Valve 1/4" BSP Male x BSP Female: 1/4" male x female threaded connections

✓ Pressure & Temperature
Pressure: 1600kPa
Temperature: 1°C to 95°C

✓ Construction & Features
Valves Brass Ball 1/2 BSP Female Mini Chrome Plated: Brass body, ball and spindle; PTFE seal; aluminium handle; NBR O-ring
Valves Brass Ball 3/8 BSP Female Mini Chrome Plated: Brass body, ball and spindle; PTFE seal; aluminium handle; NBR O-ring
Valves Brass Ball 1/4 BSP Female Mini Chrome Plated: Brass body, ball and spindle; PTFE seal; aluminium handle; NBR O-ring
Chrome Plated, Brass Ball Valve 1/2" BSP Male x BSP Female: Brass body, ball and spindle; PTFE seal; aluminium handle; EPDM O-ring
Chrome Plated, Brass Ball Valve 3/8" BSP Male x BSP Female: Brass body, ball and spindle; PTFE seal; aluminium handle; EPDM O-ring
Chrome Plated, Brass Ball Valve 1/4" BSP Male x BSP Female: Brass body, ball and spindle; PTFE seal; aluminium handle; EPDM O-ring

✓ Dimensions
Valves Brass Ball 1/2 BSP Female Mini Chrome Plated: Drawing dimensions: L 46mm; H 28mm; W 23mm
Valves Brass Ball 3/8 BSP Female Mini Chrome Plated: Drawing dimensions: L 40mm; H 26mm; W 21mm
Valves Brass Ball 1/4 BSP Female Mini Chrome Plated: Drawing dimensions: L 38mm; H 26mm; W 21mm
Chrome Plated, Brass Ball Valve 1/2" BSP Male x BSP Female: Drawing dimensions: L 45mm; H 29mm; W 23mm
Chrome Plated, Brass Ball Valve 3/8" BSP Male x BSP Female: Drawing dimensions: L 42mm; H 27mm; W 20mm
Chrome Plated, Brass Ball Valve 1/4" BSP Male x BSP Female: Drawing dimensions: L 38mm; H 27mm; W 20mm

✓ Operation & Installation
Operate the valve manually and leave enough clearance to turn the handle.
