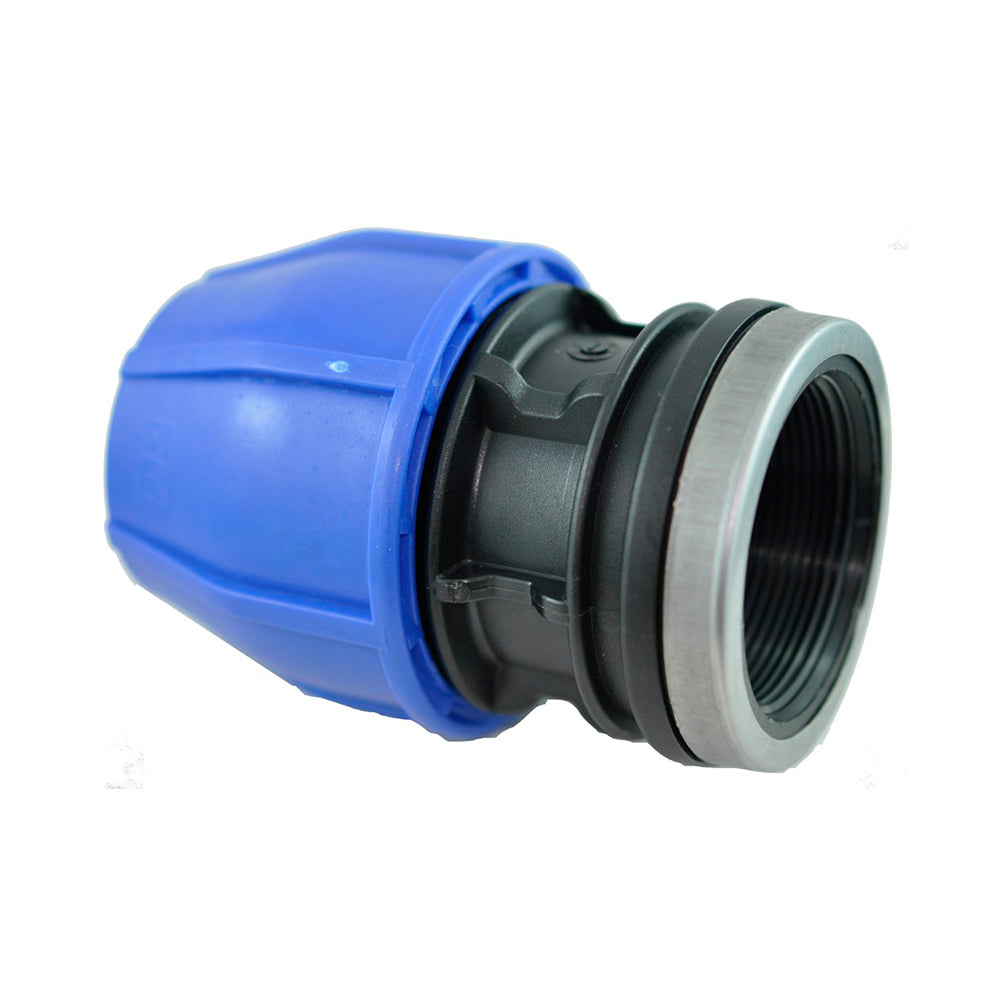

POLY COMPRESSION METRIC END CONNECTOR POLY X FEMALE BSP 110MM X 4" - NORMA

Poly compression metric end connector 110mm x 4" - NORMA connects 110mm PE metric pipe to a 4" male BSP threaded fitting.

✓ 110mm Poly x 4" Female BSP
✓ Suits PE Metric Pipe
✓ WaterMark Approved
✓ Reinforcing Ring Fitted
✓ Pressure Rating 1250kPa
✓ Check Pipe and Thread Size Before Ordering

Norma Metric Compression Fittings Brochure

More Information
Product Specifications
Compression Poly Metric End Connector- Poly x FI BSP - 110 mm x 4" - Norma
POLY COMPRESSION METRIC END CONNECTOR POLY X FEMALE BSP 110MM X 4" - NORMA
Compression Poly Metric End Connector- Poly x FI BSP - 63 mm x 2" - Norma
Compression Poly Metric End Connector- Poly x FI BSP - 63 mm x 2" - Norma CONMECF0632
$25.44 /each
Compression Poly Metric End Connector- Poly x FI BSP - 75 mm x 2" - Norma
Compression Poly Metric End Connector- Poly x FI BSP - 75 mm x 2" - Norma CONMECF0752
$46.69 /each
Compression Poly Metric End Connector- Poly x FI BSP - 90 mm x 3" - Norma
Compression Poly Metric End Connector- Poly x FI BSP - 90 mm x 3" - Norma CONMECF0903
$67.40 /each
Compression Poly Metric End Connector- Poly x FI BSP - 110 mm x 4" - Norma
Compression Poly Metric End Connector- Poly x FI BSP - 110 mm x 4" - Norma CONMECF1104
$125.71 /each

Poly compression metric end connector poly x female BSP 110mm x 4" - NORMA is used to connect 110mm PE metric pipe to a 4" male BSP threaded fitting, riser, valve or pipework. It provides a metric compression connection on the poly pipe side and a 4" female BSP threaded outlet.

This 110mm x 4" NORMA metric end connector suits PE metric pipe made in accordance with AS/NZS 4130. It uses blue metric identification ends, a female BSP threaded connection with reinforcing ring, and an easy insertion compression design. The 110mm size is rated to 1250kPa. Confirm the pipe size, thread size, pressure rating and application requirements before ordering.

Norma Metric Compression Fittings Brochure

✓ Product Type & Size
Poly compression metric end connector, poly x female BSP, 110mm x 4".

✓ Connection
110mm metric compression x 4" female BSP threaded connection.

✓ Application
Used to connect 110mm PE metric pipe to a 4" male BSP threaded fitting, riser, valve or pipework.

✓ Pipe Compatibility
Suitable for PE metric pipe made in accordance with AS/NZS 4130.

✓ Pressure Rating
1250kPa.

✓ Approval
WaterMark approved.

✓ Installation
Cut pipe square, deburr if required, mark the insertion depth, insert the pipe fully and tighten the nut until the mark is only just visible. Use PTFE tape or suitable thread sealant on the BSP threaded connection.

✓ Material
Polypropylene copolymer body, nut and holder with NBR metric O-ring and acetal clinching ring.

✓ Reinforcing Ring
304 stainless steel reinforcing ring fitted to the female BSP threaded connection.

✓ Suitable Use
Suitable for irrigation, rural water, mains water connection and general PE metric pipe systems where the fitting size, thread size, pressure rating and installation requirements suit the application.
