Compression Poly Metric Elbow- Poly x FI BSP - 90mm x 3"
Compression Poly Metric Elbow- Poly x FI BSP - 90mm x 3"

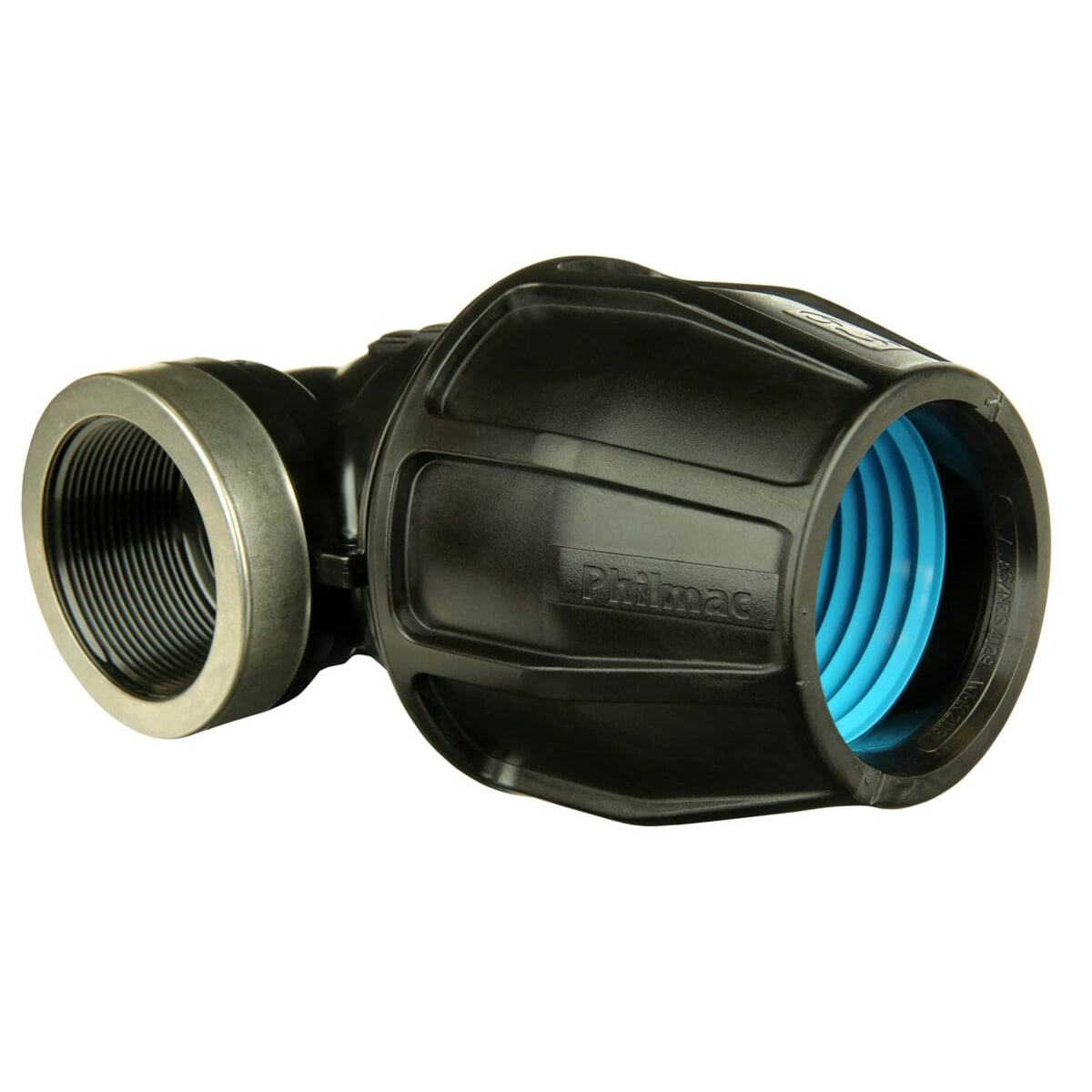

POLY EASYLOK COMPRESSION METRIC ELBOW 90° POLY X FEMALE BSP 90MM X 3"

Philmac EasyLOK metric female elbow 90mm x 3" with a compression connection and an internal female BSP thread. The elbow provides a 90-degree change in pipe direction. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in water supply and irrigation systems. A visible stop indicates when each compression nut is fully tightened.

✓ Fitting System: Philmac EasyLOK
✓ Connections: A compression connection and an internal female BSP thread for a 90-degree change in direction
✓ Pipe: Metric PE pipe, sized by outside diameter
✓ Pressure Rating: PN16 / 1600kPa.

Philmac 3G Compression Metric Technical Manual
Philmac EasyLOK Compression Metric Technical Manual
Philmac Compression Metric Installation Guide

More Information
Product Specifications
Product Videos
Compression Poly Metric Elbow- Poly x FI BSP - 90mm x 3"
POLY EASYLOK COMPRESSION METRIC ELBOW 90° POLY X FEMALE BSP 90MM X 3"
Compression Poly Metric Elbow- Poly x FI BSP - 20mm x 3/4"
Compression Poly Metric Elbow- Poly x FI BSP - 20mm x 3/4" COMEF02034
$9.35 /each
Compression Poly Metric Elbow- Poly x FI BSP - 25mm x 1"
Compression Poly Metric Elbow- Poly x FI BSP - 25mm x 1" COMEF0251
$10.41 /each
Compression Poly Metric Elbow- Poly x FI BSP - 32mm x 1 1/4"
Compression Poly Metric Elbow- Poly x FI BSP - 32mm x 1 1/4" COMEF032114
$15.53 /each
Compression Poly Metric Elbow- Poly x FI BSP - 40mm x 1 1/2"
Compression Poly Metric Elbow- Poly x FI BSP - 40mm x 1 1/2" COMEF040112
$25.01 /each
Compression Poly Metric Elbow -Poly x FI BSP- 40 mm x 1 1/4"
Compression Poly Metric Elbow -Poly x FI BSP- 40 mm x 1 1/4" COMEF040114
$25.12 /each
Compression Poly Metric Elbow- Poly x FI BSP - 50mm x 2"
Compression Poly Metric Elbow- Poly x FI BSP - 50mm x 2" COMEF0502
$35.62 /each
Compression Poly Metric Elbow- Poly x FI BSP - 63mm x 2"
Compression Poly Metric Elbow- Poly x FI BSP - 63mm x 2" COMEF0632
$41.56 /each
Compression Poly Metric Elbow- Poly x FI BSP - 75mm x 2"
Compression Poly Metric Elbow- Poly x FI BSP - 75mm x 2" COMEF0752
$74.26 /each
Compression Poly Metric Elbow- Poly x FI BSP - 90mm x 3"
Compression Poly Metric Elbow- Poly x FI BSP - 90mm x 3" COMEF0903
$140.88 /each
Compression Poly Metric Elbow- Poly x FI BSP - 110mm x 4"
Compression Poly Metric Elbow- Poly x FI BSP - 110mm x 4" COMEF1104
$221.36 /each
Compression Poly Metric Elbow Wall Plate -Poly x FI BSP- 25 mm x 3/4"
Compression Poly Metric Elbow Wall Plate -Poly x FI BSP- 25 mm x 3/4" COMEW02534
$25.70 /each

Philmac EasyLOK metric female elbow for metric poly pipe, with a compression connection and an internal female BSP thread. The elbow provides a 90-degree change in pipe direction. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in water supply and irrigation systems.

The EasyLOK compression end grips and seals around the pipe. Its body flange provides a visible stop for the fully tightened nut. Follow the EasyLOK assembly instructions for the supplied fitting.

The BSP thread mates with a matching male BSP thread. Pipe size and thread size describe different parts of the fitting; select each to suit the connection. Follow the manufacturer’s instructions for thread sealing and tightening.

Philmac 3G Compression Metric Technical Manual
Philmac EasyLOK Compression Metric Technical Manual
Philmac Compression Metric Installation Guide

✓ Product Type & Size
Compression Poly Metric Elbow- Poly x FI BSP - 90mm x 3"

✓ Connection
Poly compression x female BSP threaded connection.

✓ Application
Used to connect 90mm metric PE pipe to a 3" male BSP threaded fitting, riser, valve or pipework while changing direction.

✓ Pipe Compatibility
Suitable for metric PE pipe.

✓ Pressure Rating
PN16 / 1600kPa.

✓ Threaded Outlet
Female BSP outlet with stainless steel reinforcing ring.

✓ Installation
EasyLOK compression assembly. Cut pipe square, remove burrs if required, assemble the nut, split ring, collet and O-ring onto the pipe, insert the pipe into the fitting body, then tighten the nut to the flange. Use PTFE tape or suitable thread sealant on the BSP threaded connection.

✓ Fitting Style
Larger-size compression fitting system.
