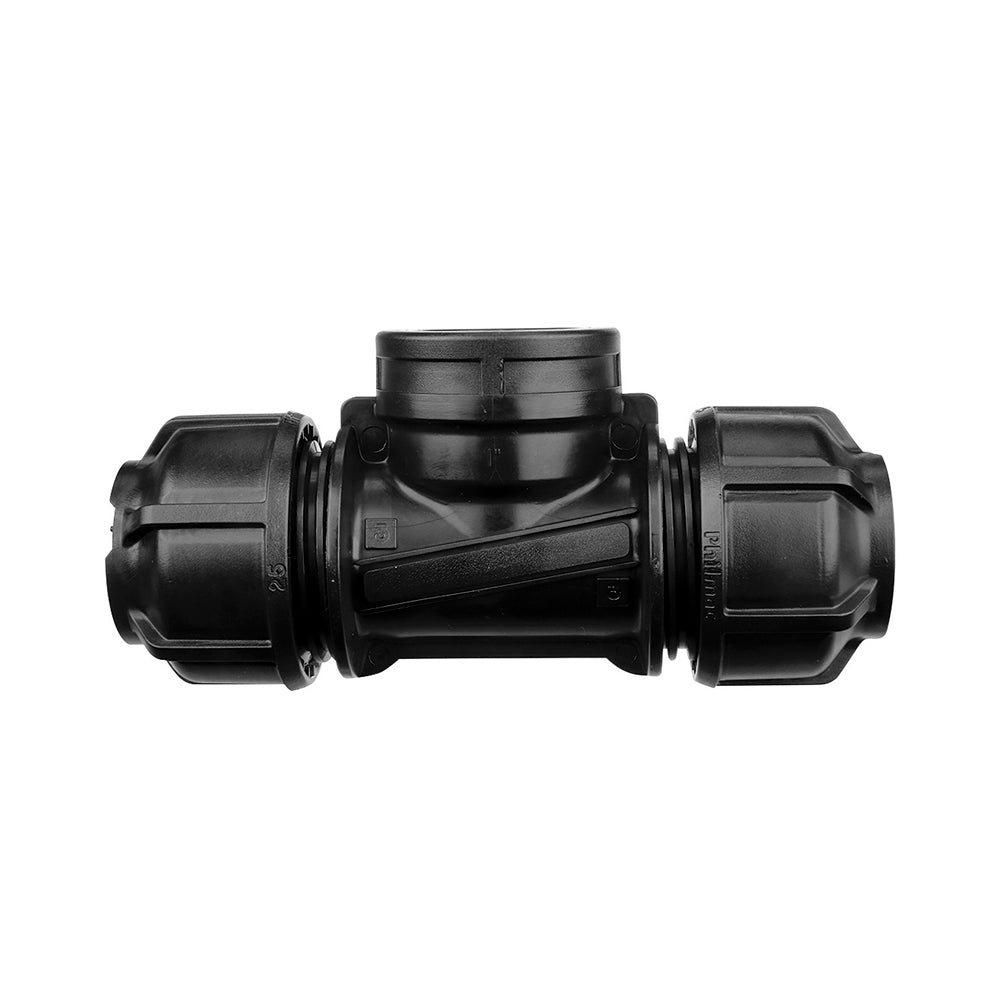

Compression Poly Metric Tee- Poly x FI BSP - 20 mm x 20 mm x 1/2"
Compression Poly Metric Tee- Poly x FI BSP - 20 mm x 20 mm x 1/2"

PHILMAC METRIC FEMALE TEES

Philmac 3G & EasyLOK metric female tees for metric poly pipe, with two compression connections and a female BSP threaded outlet on the branch. The main pipe runs through the compression ends, with the threaded outlet at 90 degrees to it. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in water supply and irrigation systems.

✓ Fitting System: Philmac 3G & EasyLOK
✓ Connections: Two compression connections and an internal female BSP thread for a threaded branch
✓ Pipe: Metric PE pipe, sized by outside diameter
✓ Pressure Rating: PN16 / 1600kPa.

Philmac 3G Compression Metric Technical Manual
Philmac EasyLOK Compression Metric Technical Manual
Philmac Compression Metric Installation Guide

More Information
Product Specifications
Product Videos
Compression Poly Metric Tee- Poly x FI BSP - 20 mm x 20 mm x 1/2"
PHILMAC METRIC FEMALE TEES
Compression Poly Metric Tee- Poly x FI BSP - 20 mm x 20 mm x 1/2"
Compression Poly Metric Tee- Poly x FI BSP - 20 mm x 20 mm x 1/2" COMTF0202012
$14.53 /each
Compression Poly Metric Tee- Poly x FI BSP - 20mm x 20mm x 3/4"
Compression Poly Metric Tee- Poly x FI BSP - 20mm x 20mm x 3/4" COMTF0202034
$14.45 /each
Compression Poly Metric Tee- Poly x FI BSP - 25mm x 25mm x 1"
Compression Poly Metric Tee- Poly x FI BSP - 25mm x 25mm x 1" COMTF025251
$14.45 /each
Compression Poly Metric Tee- Poly x FI BSP - 32mm x 32mm x 1 1/4"
Compression Poly Metric Tee- Poly x FI BSP - 32mm x 32mm x 1 1/4" COMTF03232114
$25.29 /each
Compression Poly Metric Tee- Poly x FI BSP - 40mm x 40mm x 1 1/2"
Compression Poly Metric Tee- Poly x FI BSP - 40mm x 40mm x 1 1/2" COMTF04040112
$36.01 /each
Compression Poly Metric Tee- Poly x FI BSP - 50mm x 50mm x 2"
Compression Poly Metric Tee- Poly x FI BSP - 50mm x 50mm x 2" COMTF050502
$52.16 /each
Compression Poly Metric Tee- Poly x FI BSP - 63mm x 63mm x 2"
Compression Poly Metric Tee- Poly x FI BSP - 63mm x 63mm x 2" COMTF063632
$64.17 /each
Compression Poly Metric Tee- Poly x FI BSP - 75mm x 75mm x 2"
Compression Poly Metric Tee- Poly x FI BSP - 75mm x 75mm x 2" COMTF075752
$116.76 /each
Compression Poly Metric Tee- Poly x FI BSP - 90mm x 90mm x 3"
Compression Poly Metric Tee- Poly x FI BSP - 90mm x 90mm x 3" COMTF090903
$216.63 /each
Compression Poly Metric Tee- Poly x FI BSP - 110mm x 110mm x 4"
Compression Poly Metric Tee- Poly x FI BSP - 110mm x 110mm x 4" COMTF1101104
$258.10 /each

Philmac 3G & EasyLOK metric female tees for metric poly pipe, with two compression connections and a female BSP threaded outlet on the branch. The main pipe runs through the compression ends, with the threaded outlet at 90 degrees to it. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in water supply and irrigation systems.

This stocked range includes 3G and EasyLOK fittings. The individual product pages identify the system supplied, with installation details in the linked guides.

The BSP thread mates with a matching male BSP thread. Pipe size and thread size describe different parts of the fitting; select each to suit the connection. Follow the manufacturer’s instructions for thread sealing and tightening.

Philmac 3G Compression Metric Technical Manual
Philmac EasyLOK Compression Metric Technical Manual
Philmac Compression Metric Installation Guide

✓ Product Type & Size
Philmac 3G & EasyLOK female tees. Available sizes are shown in the product selector.

✓ Connection
Poly x poly x female BSP compression tee connection.

✓ Application
Used to create a female BSP threaded branch from metric PE pipework.

✓ Pipe Compatibility
Suitable for metric PE pipe.

✓ Fitting System
3G and EasyLOK options in this stocked range. The individual product pages identify the supplied system.

✓ Pressure Rating
PN16 / 1600kPa.

✓ Threaded Outlet
Female BSP branch outlet. EasyLOK female BSP outlets include a stainless steel reinforcing ring.

✓ Installation
3G sizes use Slide & Tighten installation. EasyLOK sizes use EasyLOK compression assembly. Cut pipe square before installation and use PTFE tape or suitable thread sealant on BSP threaded connections.
