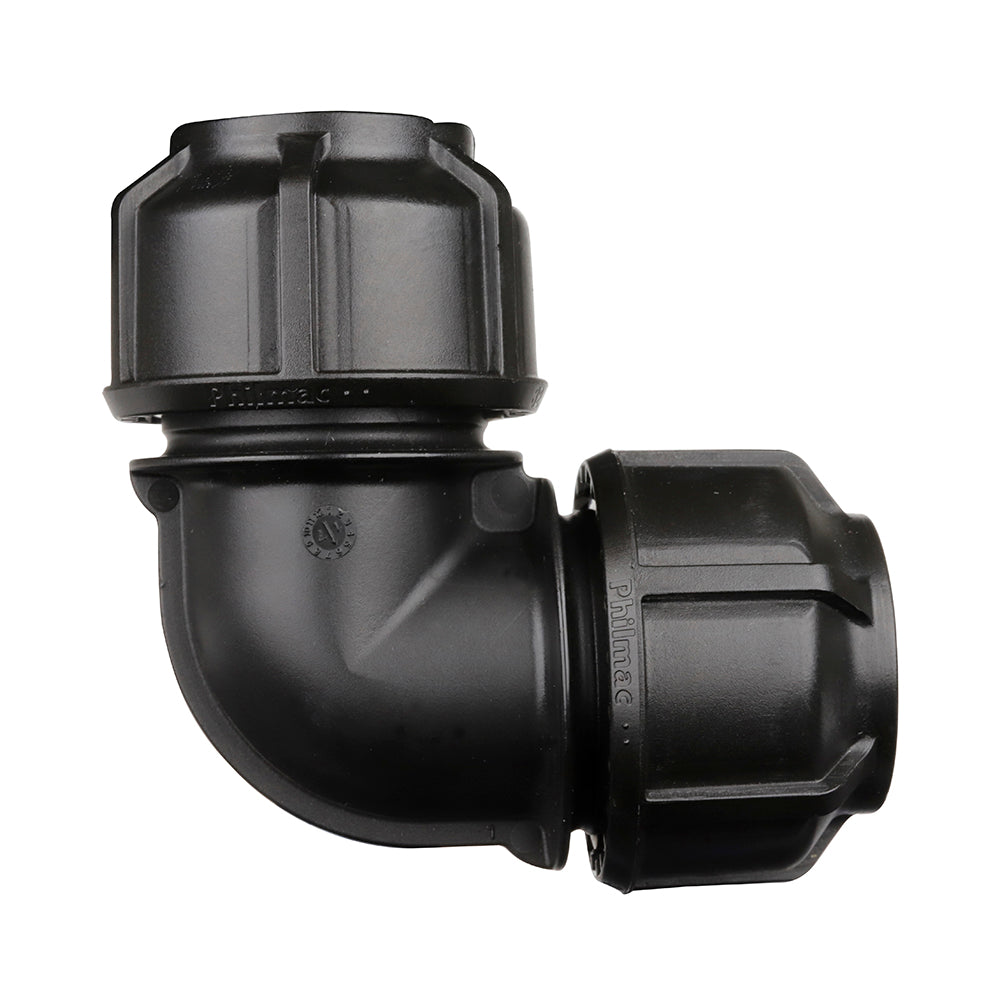

Compression Poly Metric Elbow- Poly x Poly - 25mm x 25mm

POLY 3G COMPRESSION METRIC ELBOW 90° POLY X POLY 25MM X 25MM

Name: Compression Poly Metric Elbow- Poly x Poly - 25mm x 25mm
Brand: Philmac
SKU: COME02525
Price: 13.34 AUD
Availability: InStock

Poly Pipe Compression Fittings

Poly 3G compression metric elbow 90° used to change direction between two lengths of 25mm metric PE pipe. Suitable for irrigation, rural water and general water supply systems.

✓ 25mm x 25mm Poly x Poly Elbow
✓ 90° Direction Change
✓ 3G Slide & Tighten Installation
✓ PN16 / 1600kPa Pressure Rating
✓ Pre-Assembled Fitting
✓ Check Pipe Size Before Ordering

Philmac 3G Compression Metric Technical Manual

Philmac EasyLOK Compression Metric Technical Manual

Philmac Compression Metric Installation Guide

More Information

Product Specifications

Product Videos

POLY 3G COMPRESSION METRIC ELBOW 90° POLY X POLY 25MM X 25MM

Compression Poly Metric Elbow- Poly x Poly - 20mm x 20mm COME02020

$13.18 /each

$13.18 inc GST

Total: $0

Compression Poly Metric Elbow- Poly x Poly - 25mm x 25mm COME02525

$13.34 /each

$13.34 inc GST

Total: $0

Compression Poly Metric Elbow- Poly x Poly - 32mm x 32mm COME03232

$17.97 /each

$17.97 inc GST

Total: $0

Compression Poly Metric Elbow- Poly x Poly - 40mm x 40mm COME04040

$29.90 /each

$29.90 inc GST

Total: $0

Compression Poly Metric Elbow- Poly x Poly - 50mm x 50mm COME05050

$38.97 /each

$38.97 inc GST

Total: $0

Compression Poly Metric Elbow- Poly x Poly - 63mm x 63mm COME06363

$52.79 /each

$52.79 inc GST

Total: $0

Compression Poly Metric Elbow- Poly x Poly - 75mm x 75mm COME07575

$90.93 /each

$90.93 inc GST

Total: $0

Compression Poly Metric Elbow- Poly x Poly - 90mm x 90mm COME09090

$142.59 /each

$142.59 inc GST

Total: $0

Compression Poly Metric Elbow- Poly x Poly - 110mm x 110mm COME110110

$223.85 /each

$223.85 inc GST

Total: $0

Compression Poly Metric Elbow- Poly x Poly - 45 Deg 63mm x 63mm COME45D06363

$56.75 /each

$56.75 inc GST

Total: $0

Poly 3G compression metric elbow 90° poly x poly 25mm x 25mm is used to change direction between two lengths of 25mm metric PE pipe. It provides a compression connection on both sides for 25mm poly pipework.

This 25mm x 25mm elbow uses 3G Slide & Tighten installation and is supplied pre-assembled for straightforward fitting onto metric poly pipe. Cut the pipe square before installation and confirm the pipe size, elbow angle and pressure requirements before ordering.

Philmac 3G Compression Metric Technical Manual

Philmac EasyLOK Compression Metric Technical Manual

Philmac Compression Metric Installation Guide

✓ Product Type & Size
Poly 3G compression metric elbow 90°, 25mm x 25mm.

✓ Connection
Poly x poly compression connection.

✓ Application
Used to change direction between two lengths of 25mm metric PE pipe.

✓ Pipe Compatibility
Suitable for metric PE pipe.

✓ Pressure Rating
PN16 / 1600kPa.

✓ Installation
3G Slide & Tighten installation. Cut pipe square before installation, insert the pipe until the stop is felt, then tighten the nut to the fitting body.

✓ Fitting Style
Pre-assembled compression fitting.

✓ Suitable Use
Suitable for irrigation, rural water and general water supply systems where the fitting size, pipe type, elbow angle and pressure rating suit the installation.
