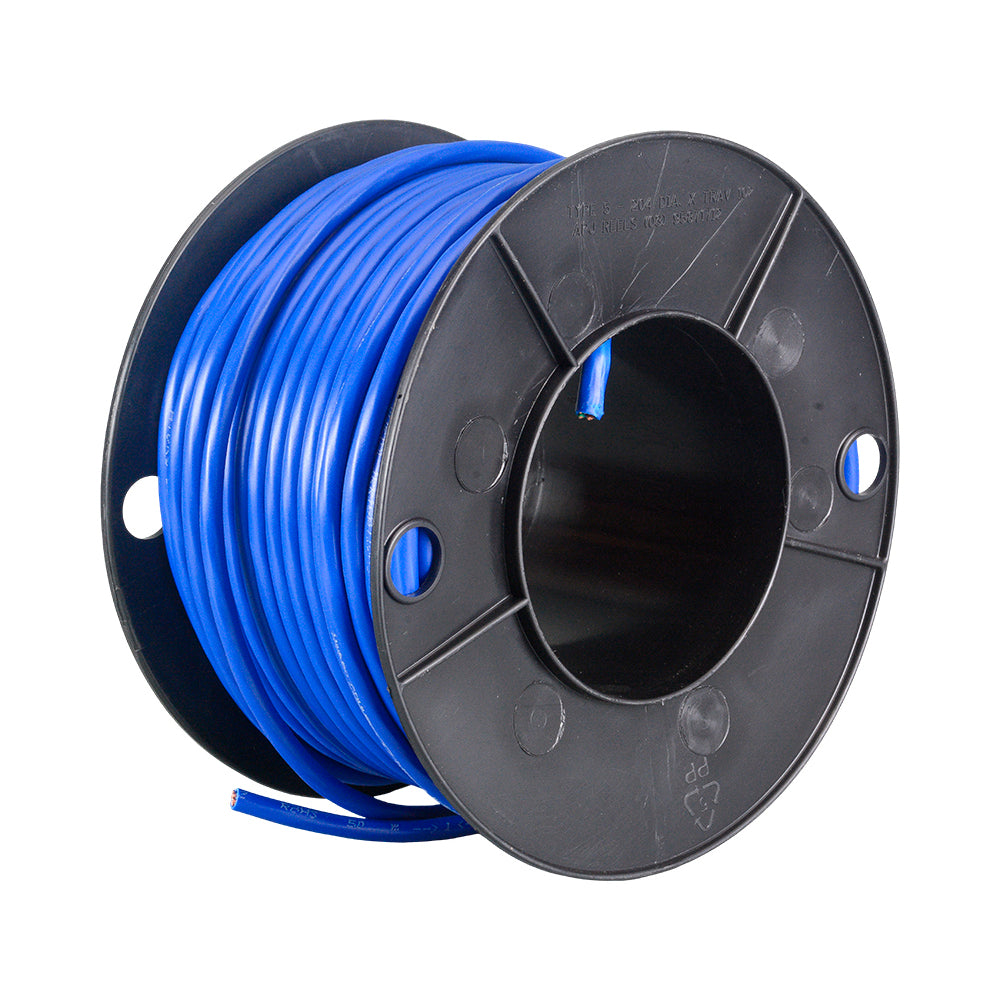

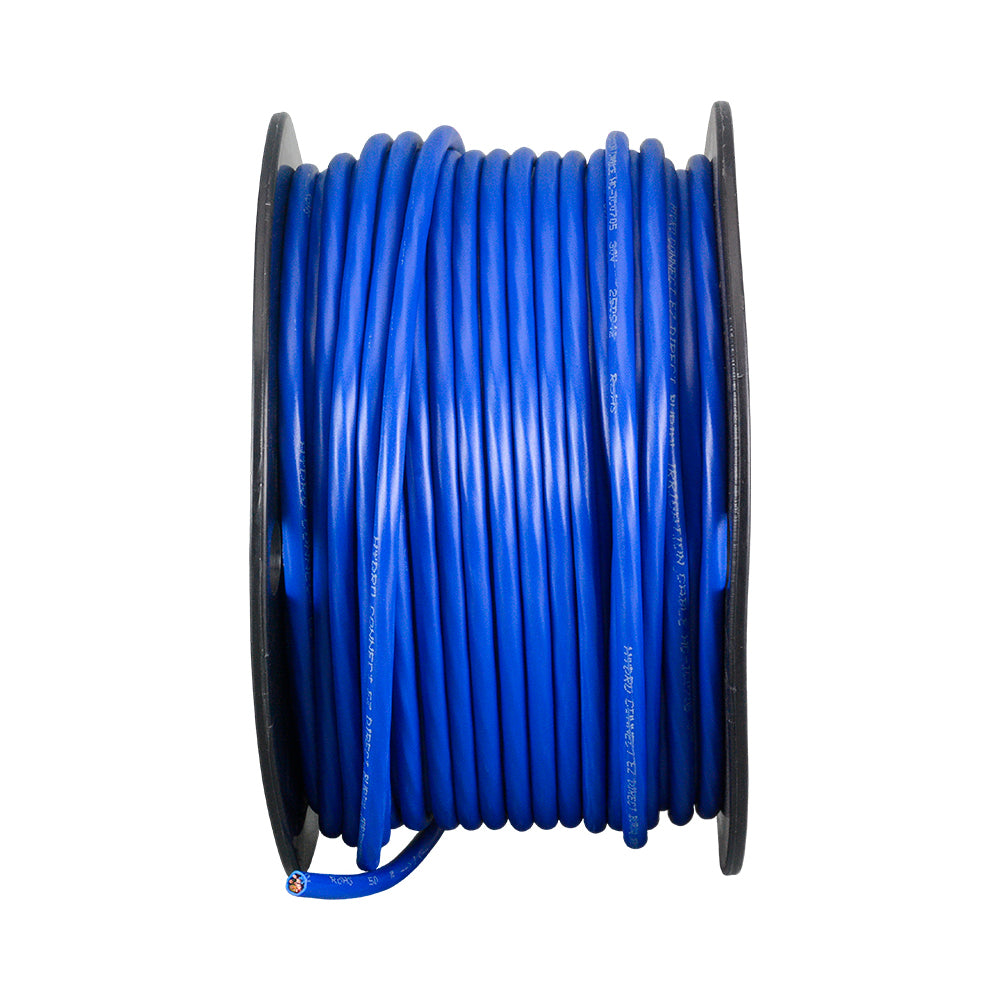

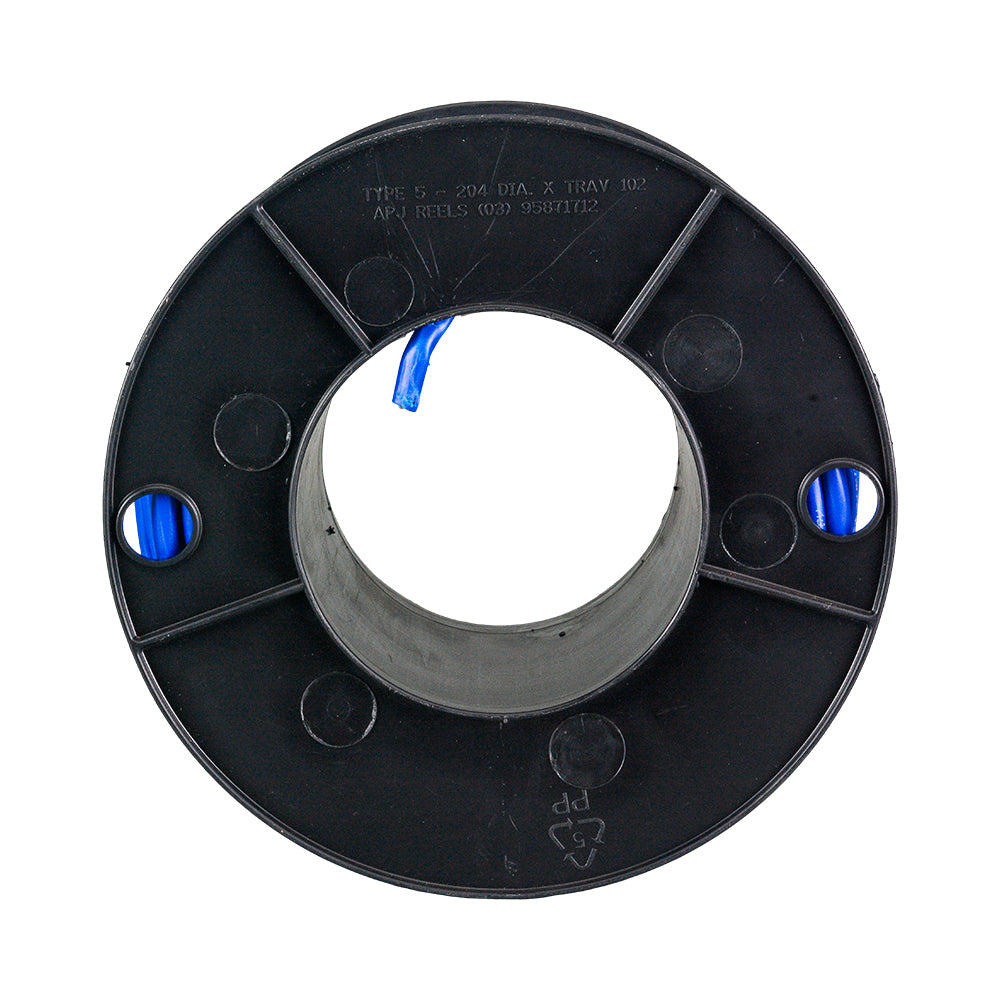

Cable Multicore (3 Core) 0.5mm in Outer Sheath 50 Metre
Cable Multicore (3 Core) 0.5mm in Outer Sheath 50 Metre
Cable Multicore (3 Core) 0.5mm in Outer Sheath 50 Metre
Cable Multicore (3 Core) 0.5mm in Outer Sheath 50 Metre
Cable Multicore (3 Core) 0.5mm in Outer Sheath 50 Metre
Cable Multicore (3 Core) 0.5mm in Outer Sheath 50 Metre
Cable Multicore (3 Core) 0.5mm in Outer Sheath 50 Metre
Cable Multicore (3 Core) 0.5mm in Outer Sheath 50 Metre

MULTICORE IRRIGATION CABLE 0.5MM² IN OUTER SHEATH

Multicore 0.5mm² irrigation cable in outer sheath for extra low voltage controller-to-solenoid valve wiring. Select by core count and cable length to suit the irrigation system layout.

✓ 0.5mm² Conductor Size
✓ 3, 5, 7, 9 & 13 Core Options
✓ Direct Burial Suitable
✓ 30V Extra Low Voltage Rated
✓ For Irrigation Controllers and Solenoid Valves
✓ Use Waterproof Cable Joins

Multicore Irrigation Cable Specifications

More Information
Product Specifications
Cable Multicore (3 Core) 0.5mm in Outer Sheath 50 Metre
MULTICORE IRRIGATION CABLE 0.5MM² IN OUTER SHEATH
Cable Multicore (3 Core) 0.5mm in Outer Sheath (Per Metre)
Cable Multicore (3 Core) 0.5mm in Outer Sheath (Per Metre) WLVC03050-051M
$1.55 /each
Cable Multicore (3 Core) 0.5mm in Outer Sheath 50 Metre
Cable Multicore (3 Core) 0.5mm in Outer Sheath 50 Metre WLVC03050-05
$49.63 /each
Cable Multicore (3 Core) 0.5mm in Outer Sheath 100 Metre
Cable Multicore (3 Core) 0.5mm in Outer Sheath 100 Metre WLVC03100-05
$99.25 /each
Cable Multicore (3 Core) 0.5mm in Outer Sheath 500 Metre
Cable Multicore (3 Core) 0.5mm in Outer Sheath 500 Metre WLVC03500-05
$496.42 /each
Cable Multicore (5 Core) 0.5mm in Outer Sheath (Per Metre)
Cable Multicore (5 Core) 0.5mm in Outer Sheath (Per Metre) WLVC05050-051M
$2.05 /each
Cable Multicore (5 Core) 0.5mm in Outer Sheath 20 Metre
Cable Multicore (5 Core) 0.5mm in Outer Sheath 20 Metre WLVC05020-05
$49.87 /each
Cable Multicore (5 Core) 0.5mm in Outer Sheath 50 Metre
Cable Multicore (5 Core) 0.5mm in Outer Sheath 50 Metre WLVC05050-05
$80.82 /each
Cable Multicore (5 Core) 0.5mm in Outer Sheath 100 Metre
Cable Multicore (5 Core) 0.5mm in Outer Sheath 100 Metre WLVC05100-05
$156.16 /each
Cable Multicore (5 Core) 0.5mm in Outer Sheath 500 Metre
Cable Multicore (5 Core) 0.5mm in Outer Sheath 500 Metre WLVC05500-05
$780.58 /each
Cable Multicore (7 Core) 0.5mm in Outer Sheath (Per Metre)
Cable Multicore (7 Core) 0.5mm in Outer Sheath (Per Metre) WLVC07050-051M
$2.60 /each
Cable Multicore (7 Core) 0.5mm in Outer Sheath 20 Metre
Cable Multicore (7 Core) 0.5mm in Outer Sheath 20 Metre WLVC07020-05
$59.50 /each
Cable Multicore (7 Core) 0.5mm in Outer Sheath 50 Metre
Cable Multicore (7 Core) 0.5mm in Outer Sheath 50 Metre WLVC07050-05
$102.81 /each
Cable Multicore (7 Core) 0.5mm in Outer Sheath 100 Metre
Cable Multicore (7 Core) 0.5mm in Outer Sheath 100 Metre WLVC07100-05
$205.56 /each
Cable Multicore (7 Core) 0.5mm in Outer Sheath 500 Metre
Cable Multicore (7 Core) 0.5mm in Outer Sheath 500 Metre WLVC07500-05
$1,033.89 /each
Cable Multicore (9 Core) 0.5mm in Outer Sheath (Per Metre)
Cable Multicore (9 Core) 0.5mm in Outer Sheath (Per Metre) WLVC09050-051M
$3.50 /each
Cable Multicore (9 Core) 0.5mm in Outer Sheath 20 Metre
Cable Multicore (9 Core) 0.5mm in Outer Sheath 20 Metre WLVC09020-05
$76.50 /each
Cable Multicore (9 Core) 0.5mm in Outer Sheath 50 Metre
Cable Multicore (9 Core) 0.5mm in Outer Sheath 50 Metre WLVC09050-05
$135.09 /each
Cable Multicore (9 Core) 0.5mm in Outer Sheath 100 Metre
Cable Multicore (9 Core) 0.5mm in Outer Sheath 100 Metre WLVC09100-05
$270.27 /each
Cable Multicore (9 Core) 0.5mm in Outer Sheath 500 Metre
Cable Multicore (9 Core) 0.5mm in Outer Sheath 500 Metre WLVC09500-05
$1,357.36 /each
Cable Multicore (13 Core) 0.5mm in Outer Sheath (Per Metre)
Cable Multicore (13 Core) 0.5mm in Outer Sheath (Per Metre) WLVC13050-051M
$4.95 /each
Cable Multicore (13 Core) 0.5mm in Outer Sheath 50 Metre
Cable Multicore (13 Core) 0.5mm in Outer Sheath 50 Metre WLVC13050-05
$187.51 /each
Cable Multicore (13 Core) 0.5mm in Outer Sheath 100 Metre
Cable Multicore (13 Core) 0.5mm in Outer Sheath 100 Metre WLVC13100-05
$375.08 /each
Cable Multicore (13 Core) 0.5mm in Outer Sheath 500 Metre
Cable Multicore (13 Core) 0.5mm in Outer Sheath 500 Metre WLVC13500-05
$1,881.43 /each

Multicore 0.5mm² irrigation cable is extra low voltage direct burial cable used to connect irrigation controller outputs to solenoid valves. It is suitable for irrigation control wiring where multiple valve stations need to be run through one outer-sheathed cable.

This range includes selected 3 core, 5 core, 7 core, 9 core and 13 core options in per metre, 20m, 50m, 100m and 500m purchase lengths depending on the cable type. Select the core count to suit the number of valve stations, allowing for a common wire and any spare cores required for future valve additions. Use suitable waterproof wire connectors for buried, valve box or exposed irrigation cable joins.

Multicore Irrigation Cable Specifications

✓ Product Type & Size
Multicore 0.5mm² irrigation cable in outer sheath, available in selected 3 core, 5 core, 7 core, 9 core and 13 core options.

✓ Application
Extra low voltage irrigation valve cable for connecting nominal 24V irrigation controller outputs to solenoid valves.

✓ Voltage Rating
30V rated cable.

✓ Installation
Suitable for direct burial irrigation applications.

✓ Conductor
Class 2 plain copper conductor to AS1125. 0.5mm² conductors use 7/0.30 strand construction.

✓ Core Insulation
PP UV stabilised colour-coded core insulation.

✓ Outer Sheath
PVC 5V90 UV stabilised blue sheath to AS/NZS 3808:2000 with nylon rip cord.

✓ Core Colours
Colour-coded conductors for easier valve station identification. Core colours vary by core count.

✓ Joining Note
Use suitable waterproof wire connectors for buried, valve box or exposed irrigation cable joins. Poor cable joints can cause corrosion, voltage loss and premature system failure.

✓ Safety Note
Extra low voltage irrigation cable only. Not suitable for mains power connection.
