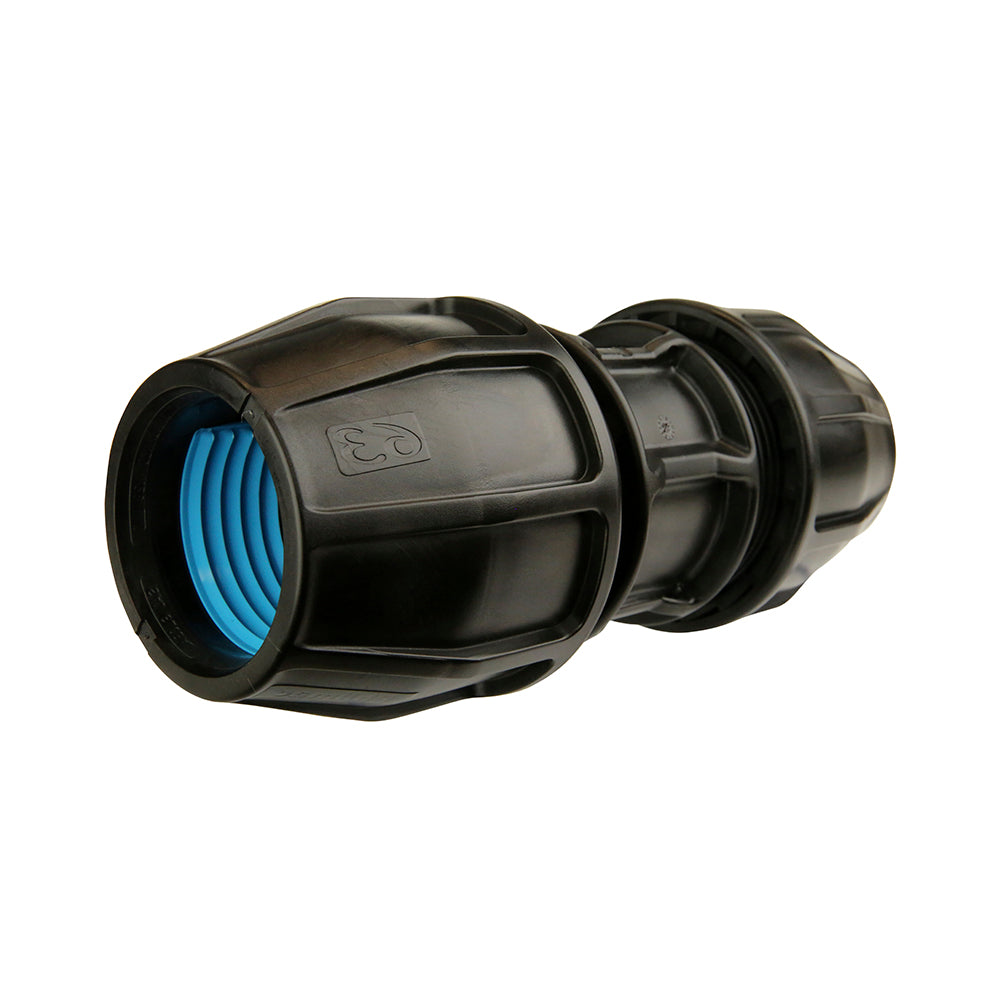

Compression Poly Metric Joiner- Poly x Poly - 75mm

POLY EASYLOK COMPRESSION METRIC JOINER POLY X POLY 75MM

Name: Compression Poly Metric Joiner- Poly x Poly - 75mm
Brand: Philmac
SKU: COMJ07575
Price: 88.18 AUD
Availability: InStock

Poly Pipe Compression Fittings

Poly EasyLOK compression metric joiner used to connect two lengths of 75mm metric PE pipe. Suitable for larger irrigation, rural water and general water supply systems where the fitting size and pressure rating suit the installation.

✓ 75mm Poly x Poly Joiner
✓ Joins Metric PE Pipe
✓ EasyLOK Compression System
✓ PN16 / 1600kPa Pressure Rating
✓ Suitable for Larger Poly Pipework
✓ Check Pipe Size Before Ordering

Philmac 3G Compression Metric Technical Manual

Philmac EasyLOK Compression Metric Technical Manual

Philmac Compression Metric Installation Guide

More Information

Product Specifications

Product Videos

POLY EASYLOK COMPRESSION METRIC JOINER POLY X POLY 75MM

Compression Poly Metric Joiner- Poly x Poly - 20mm COMJ02020

$9.59 /each

$9.59 inc GST

Total: $0

Compression Poly Metric Joiner- Poly x Poly - 25mm COMJ02525

$9.69 /each

$9.69 inc GST

Total: $0

Compression Poly Metric Joiner- Poly x Poly - 32mm COMJ03232

$13.67 /each

$13.67 inc GST

Total: $0

Compression Poly Metric Joiner- Poly x Poly - 40mm COMJ04040

$21.53 /each

$21.53 inc GST

Total: $0

Compression Poly Metric Joiner- Poly x Poly - 50mm COMJ05050

$30.75 /each

$30.75 inc GST

Total: $0

Compression Poly Metric Joiner- Poly x Poly - 63mm COMJ06363

$41.48 /each

$41.48 inc GST

Total: $0

Compression Poly Metric Joiner- Poly x Poly - 75mm COMJ07575

$88.18 /each

$88.18 inc GST

Total: $0

Compression Poly Metric Joiner- Poly x Poly - 90mm COMJ09090

$134.79 /each

$134.79 inc GST

Total: $0

Compression Poly Metric Joiner- Poly x Poly - 110mm COMJ110110

$223.07 /each

$223.07 inc GST

Total: $0

Poly EasyLOK compression metric joiner poly x poly 75mm is used to connect two lengths of 75mm metric PE pipe in irrigation, rural water and general water supply systems. It provides a straight compression connection for larger metric poly pipework.

This 75mm joiner uses the EasyLOK compression system for larger PE pipe installations. Cut the pipe square before installation, assemble the compression components as required, and tighten the nut to the fitting body. Confirm the pipe size, pressure rating and application requirements before ordering.

Philmac 3G Compression Metric Technical Manual

Philmac EasyLOK Compression Metric Technical Manual

Philmac Compression Metric Installation Guide

✓ Product Type & Size
Poly EasyLOK compression metric joiner, 75mm.

✓ Connection
Poly x poly compression connection.

✓ Application
Used to connect two lengths of 75mm metric PE pipe.

✓ Pipe Compatibility
Suitable for metric PE pipe.

✓ Pressure Rating
PN16 / 1600kPa.

✓ Installation
EasyLOK compression assembly. Cut pipe square, remove burrs if required, assemble the nut, split ring, collet and O-ring onto the pipe, insert the pipe into the fitting body, then tighten the nut to the flange.

✓ Fitting Style
Larger-size compression fitting system.

✓ Suitable Use
Suitable for irrigation, rural water and general water supply systems where the fitting size, pipe type and pressure rating suit the installation.

POLY EASYLOK COMPRESSION METRIC JOINER POLY X POLY 75MM
