POLY COMPRESSION METRIC END CONNECTOR POLY X MALE BSP 110MM X 4" - NORMA

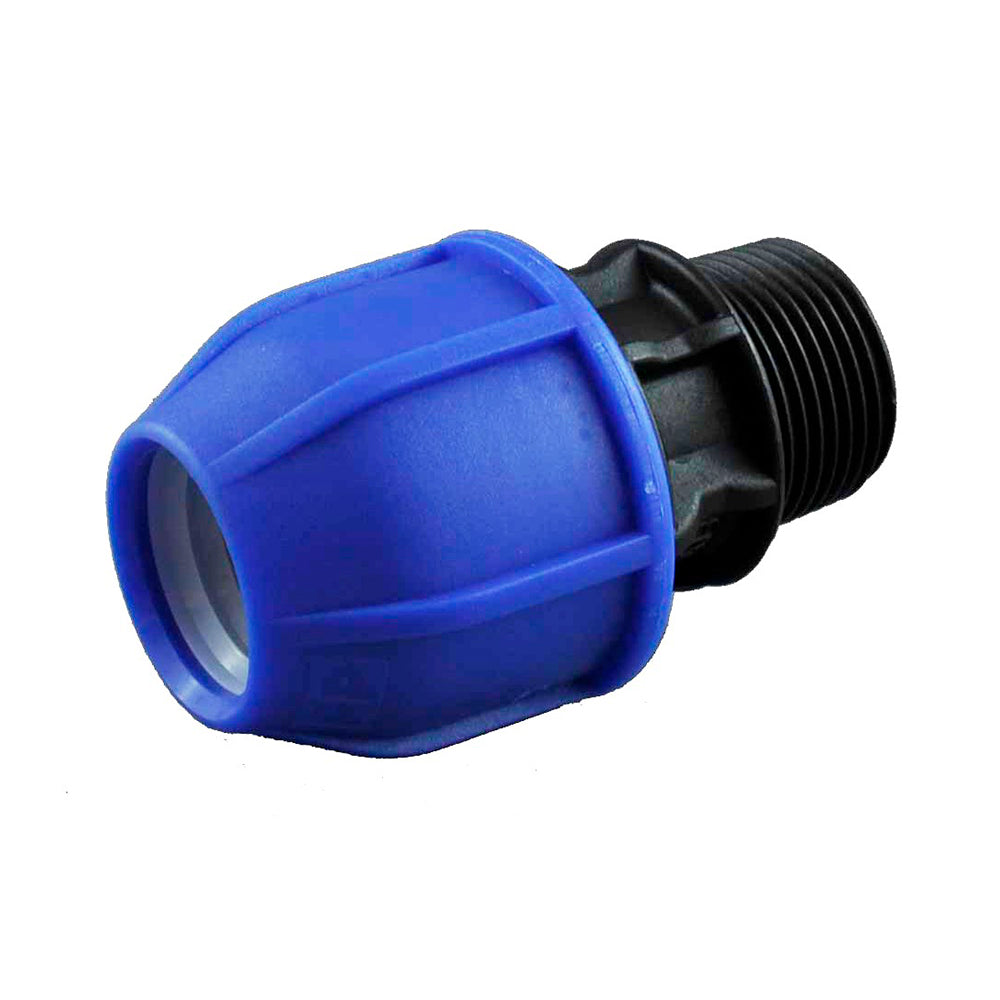

NORMA metric male end connector 110mm x 4" with a compression connection and an external male BSP thread.

✓ Fitting System: NORMA metric
✓ Connections: A compression connection and an external male BSP thread
✓ Pipe: Metric PE pipe, sized by outside diameter
✓ Pressure Rating: 1250kPa.

Norma Metric Compression Fittings Brochure

More Information
Product Specifications
Compression Poly Metric End Connector- Poly x MI BSP - 110 mm x 4" - Norma
POLY COMPRESSION METRIC END CONNECTOR POLY X MALE BSP 110MM X 4" - NORMA
Compression Poly Metric End Connector- Poly x MI BSP - 63 mm x 2" - Norma
Compression Poly Metric End Connector- Poly x MI BSP - 63 mm x 2" - Norma CONMECM0632
$19.75 /each
Compression Poly Metric End Connector- Poly x MI BSP - 75 mm x 2" - Norma
Compression Poly Metric End Connector- Poly x MI BSP - 75 mm x 2" - Norma CONMECM0752
$46.91 /each
Compression Poly Metric End Connector- Poly x MI BSP - 90 mm x 3" - Norma
Compression Poly Metric End Connector- Poly x MI BSP - 90 mm x 3" - Norma CONMECM0903
$67.40 /each
Compression Poly Metric End Connector- Poly x MI BSP - 110 mm x 4" - Norma
Compression Poly Metric End Connector- Poly x MI BSP - 110 mm x 4" - Norma CONMECM1104
$112.03 /each

NORMA metric male end connector for metric poly pipe, with a compression connection and an external male BSP thread.

The NORMA compression design allows pipe insertion without removing the nuts. Blue ends identify the metric connection, and the two-stage seal tightens around the pipe as the nut is tightened.

The BSP thread mates with a matching female BSP thread. Pipe size and thread size describe different parts of the fitting; select each to suit the connection. Follow the manufacturer’s instructions for thread sealing and tightening.

Norma Metric Compression Fittings Brochure

✓ Product Type & Size
Compression Poly Metric End Connector- Poly x MI BSP - 110mm x 4" - Norma

✓ Connection
110mm metric compression x 4" male BSP threaded connection.

✓ Application
Used to connect 110mm PE metric pipe to a 4" female BSP threaded fitting, valve, outlet or piece of equipment.

✓ Pipe Compatibility
Suitable for PE metric pipe made in accordance with AS/NZS 4130.

✓ Pressure Rating
1250kPa.

✓ Approval
WaterMark approved.

✓ Installation
Cut pipe square, deburr if required, mark the insertion depth, insert the pipe fully and tighten the nut until the mark is only just visible. Use PTFE tape or suitable thread sealant on the BSP threaded connection.

✓ Material
Polypropylene copolymer body, nut and holder with NBR metric O-ring and acetal clinching ring.
