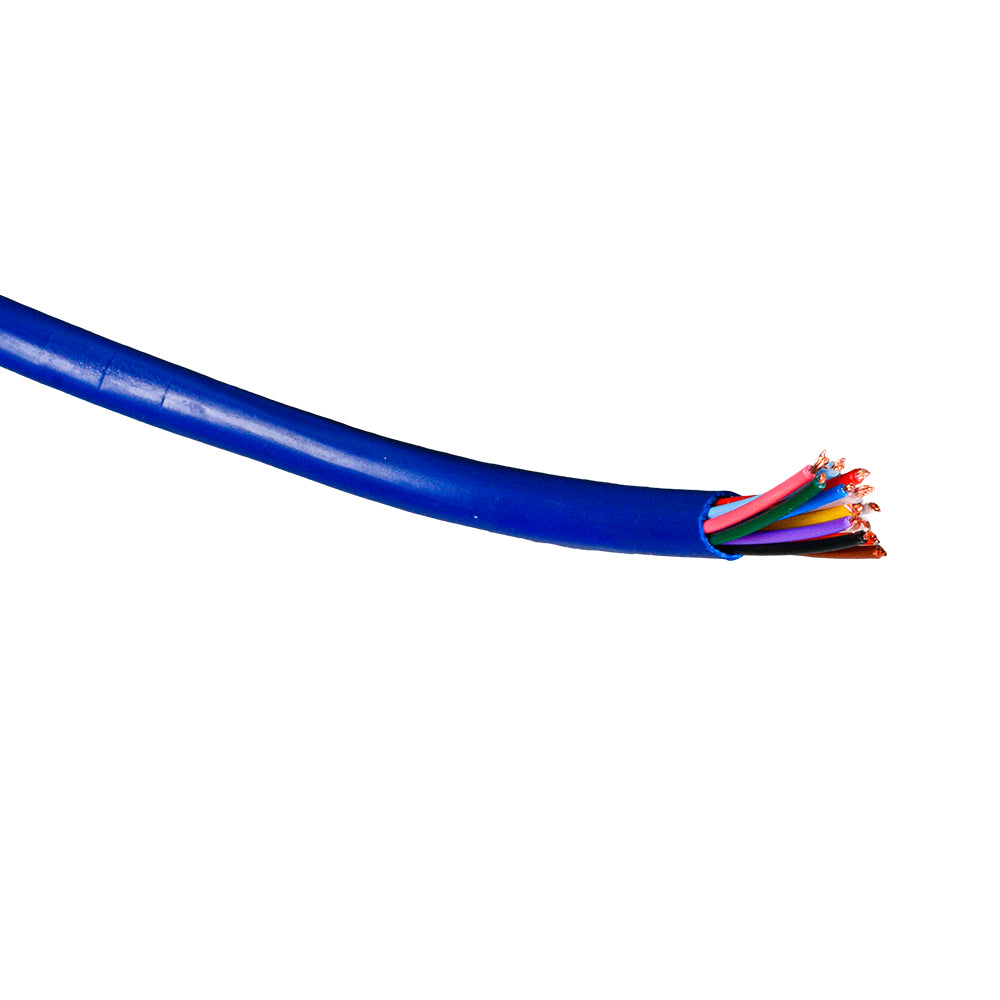

CABLE MULTICORE 13 CORE 1.5MM² IN OUTER SHEATH 100 METRE

Multicore 13 core 1.5mm² irrigation cable in outer sheath, supplied in a 100m roll for extra low voltage controller-to-solenoid valve wiring. Suitable for direct burial irrigation applications.

✓ 13 Core Irrigation Cable
✓ 1.5mm² Conductor Size
✓ 100m Roll Length
✓ Direct Burial Suitable
✓ 30V Extra Low Voltage Rated
✓ For Irrigation Controllers and Solenoid Valves

Multicore Irrigation Cable Specifications

More Information
Product Specifications
Cable Multicore (13 Core) 1.5 mm in Outer Sheath, 100 Metre
CABLE MULTICORE 13 CORE 1.5MM² IN OUTER SHEATH 100 METRE
Cable Multicore (2 Core) 1.5 mm in Outer Sheath, 100 Metre
Cable Multicore (2 Core) 1.5 mm in Outer Sheath, 100 Metre WLVC02100-15
$183.36 /each
Cable Multicore (2 Core) 1.5 mm in Outer Sheath, 500 Metre
Cable Multicore (2 Core) 1.5 mm in Outer Sheath, 500 Metre WLVC02500-15
$916.73 /each
Cable Multicore (3 Core) 1.5 mm in Outer Sheath, 100 Metre
Cable Multicore (3 Core) 1.5 mm in Outer Sheath, 100 Metre WLVC03100-15
$228.26 /each
Cable Multicore (3 Core) 1.5 mm in Outer Sheath, 500 Metre
Cable Multicore (3 Core) 1.5 mm in Outer Sheath, 500 Metre WLVC03500-15
$1,253.29 /each
Cable Multicore (5 Core) 1.5 mm in Outer Sheath, 100 Metre
Cable Multicore (5 Core) 1.5 mm in Outer Sheath, 100 Metre WLVC05100-15
$431.65 /each
Cable Multicore (5 Core) 1.5 mm in Outer Sheath, 500 Metre
Cable Multicore (5 Core) 1.5 mm in Outer Sheath, 500 Metre WLVC05500-15
$1,933.27 /each
Cable Multicore (7 Core) 1.5 mm in Outer Sheath, 100 Metre
Cable Multicore (7 Core) 1.5 mm in Outer Sheath, 100 Metre WLVC07100-15
$579.53 /each
Cable Multicore (7 Core) 1.5 mm in Outer Sheath, 500 Metre
Cable Multicore (7 Core) 1.5 mm in Outer Sheath, 500 Metre WLVC07500-15
$2,904.13 /each
Cable Multicore (9 Core) 1.5 mm in Outer Sheath, 100 Metre
Cable Multicore (9 Core) 1.5 mm in Outer Sheath, 100 Metre WLVC09100-15
$733.80 /each
Cable Multicore (9 Core) 1.5 mm in Outer Sheath, 500 Metre
Cable Multicore (9 Core) 1.5 mm in Outer Sheath, 500 Metre WLVC09500-15
$3,675.60 /each
Cable Multicore (13 Core) 1.5 mm in Outer Sheath, 100 Metre
Cable Multicore (13 Core) 1.5 mm in Outer Sheath, 100 Metre WLVC13100-15
$1,000.98 /each
Cable Multicore (13 Core) 1.5 mm in Outer Sheath, 500 Metre
Cable Multicore (13 Core) 1.5 mm in Outer Sheath, 500 Metre WLVC13500-15
$5,011.28 /each

Multicore 13 core 1.5mm² irrigation cable in outer sheath is extra low voltage direct burial cable used to connect irrigation controller outputs to solenoid valves. This 13 core cable is supplied in a 100 metre roll for larger multi-valve irrigation wiring runs.

The thirteen colour-coded cores can be used for controller-to-valve wiring, commonly with one core used as the common wire and remaining cores used for individual valve stations depending on the irrigation system design. Use suitable waterproof wire connectors for buried, valve box or exposed irrigation cable joins.

Multicore Irrigation Cable Specifications

✓ Product Type & Size
Multicore irrigation cable, 13 core x 1.5mm², supplied in a 100m roll.

✓ Application
Extra low voltage irrigation valve cable for connecting nominal 24V irrigation controller outputs to solenoid valves.

✓ Voltage Rating
30V rated cable.

✓ Cable Format
Circular 13 core cable in outer sheath.

✓ Installation
Suitable for direct burial irrigation applications.

✓ Conductor
Class 2 plain copper conductor to AS1125. 1.5mm² conductor size with 7/0.50 strand construction.

✓ Electrical Data
Maximum D.C. resistance at 20°C is 13.6mΩ/m.

✓ Core Insulation
PP UV stabilised colour-coded core insulation, nominal 0.50mm insulation thickness.

✓ Outer Sheath
PVC 5V90 UV stabilised blue sheath to AS/NZS 3808:2000 with nylon rip cord. Nominal sheath thickness is 0.8mm.

✓ Nominal Outside Diameter
12.1mm nominal outside diameter.

✓ Core Colours
Black, white, yellow, red, dark green, dark blue, brown, orange, violet, light blue, pink, grey and clear.

✓ Joining Note
Use suitable waterproof wire connectors for buried, valve box or exposed irrigation cable joins. Poor cable joints can cause corrosion, voltage loss and premature system failure.

✓ Safety Note
Extra low voltage irrigation cable only. Not suitable for mains power connection.
