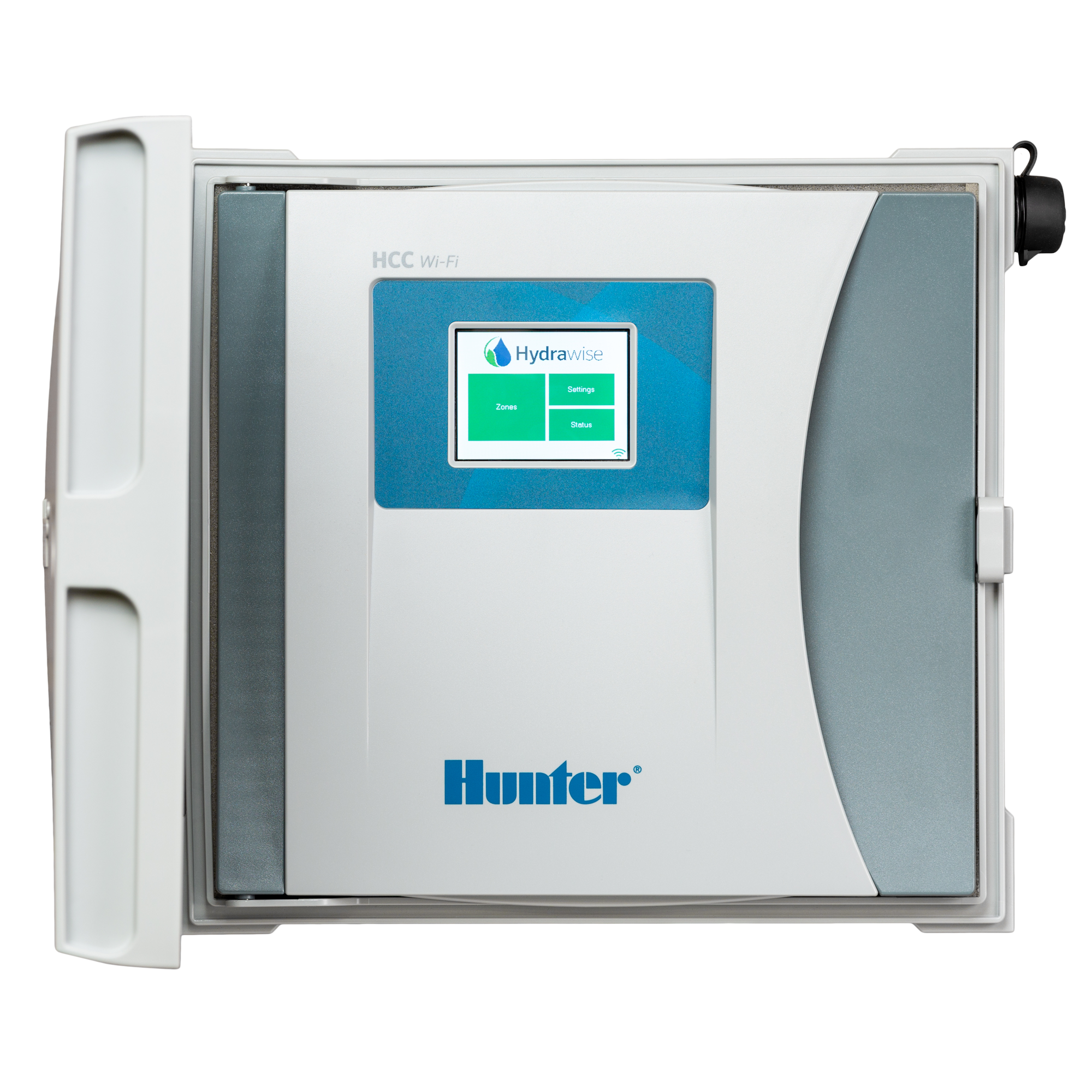

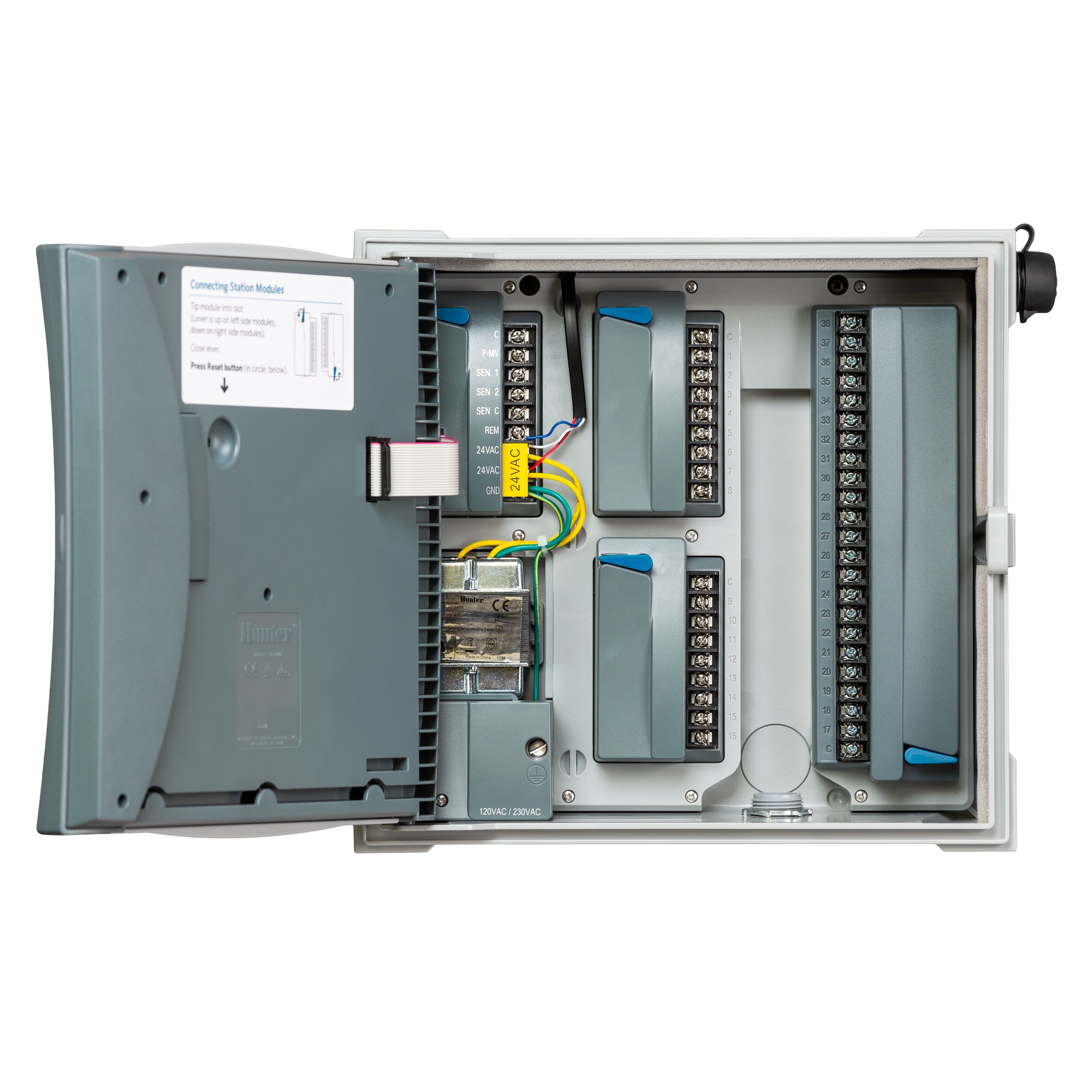

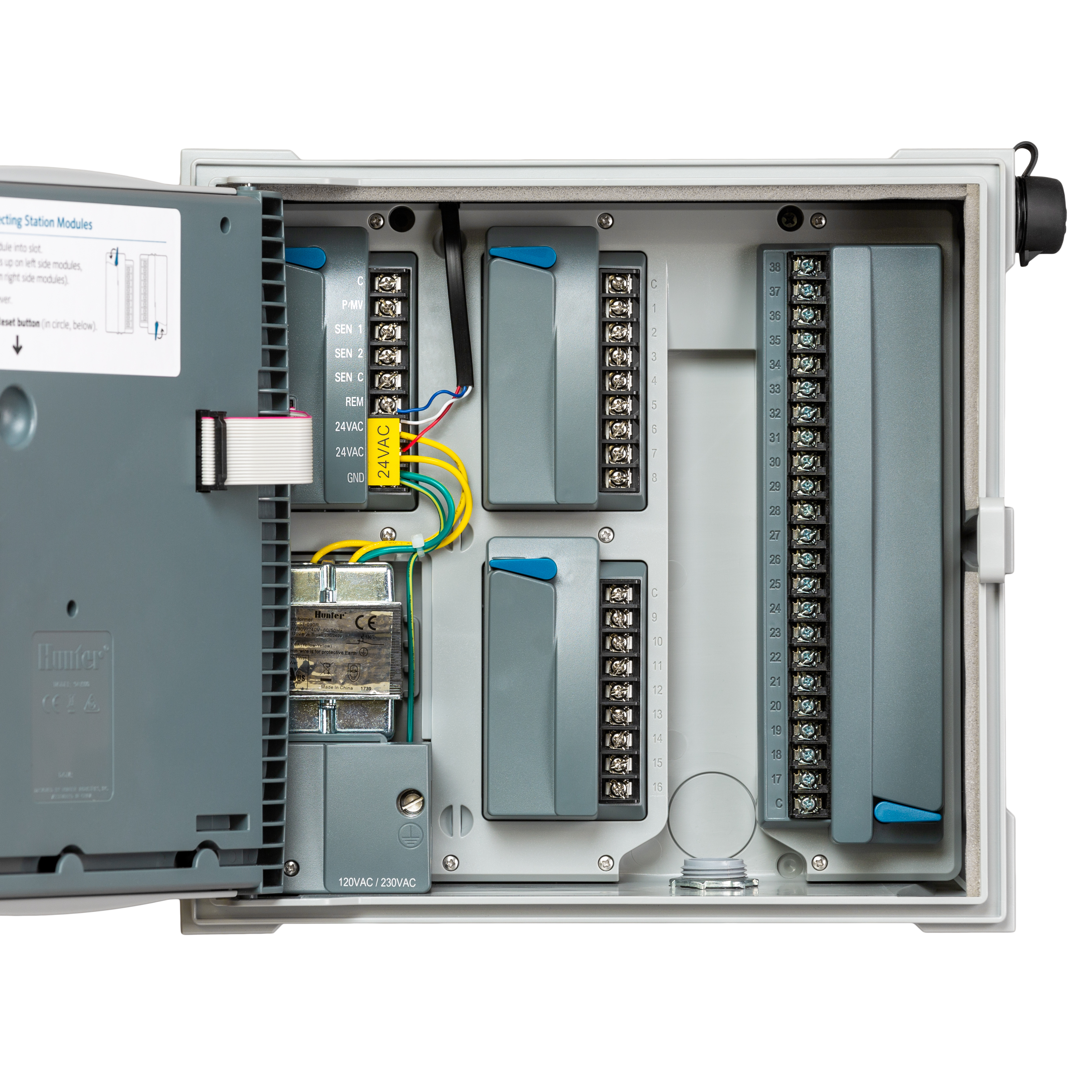

Hunter Controller HCC Wi-Fi 8 Station Plastic Cabinet No Cable (Max 38 Stations Conventional, 54 Stations Decoder)
Hunter Controller HCC Wi-Fi 8 Station Plastic Cabinet No Cable (Max 38 Stations Conventional, 54 Stations Decoder)
Hunter Controller HCC Wi-Fi 8 Station Plastic Cabinet No Cable (Max 38 Stations Conventional, 54 Stations Decoder)
Hunter Controller HCC Wi-Fi 8 Station Plastic Cabinet No Cable (Max 38 Stations Conventional, 54 Stations Decoder)
Hunter Controller HCC Wi-Fi 8 Station Plastic Cabinet No Cable (Max 38 Stations Conventional, 54 Stations Decoder)
Hunter Controller HCC Wi-Fi 8 Station Plastic Cabinet No Cable (Max 38 Stations Conventional, 54 Stations Decoder)

HUNTER HCC WI-FI CONTROLLERS 8–54 STATIONS

The Hunter HCC Controller range is built for larger residential, commercial and municipal irrigation systems that need high station capacity with Hydrawise® smart control. Additional conventional wired stations can be added using compatible ICM expansion modules, or the controller can be upgraded with an EZ-DM module for Hunter EZ Decoder System two-wire operation. It is a practical choice for larger installations that need remote access, flow monitoring, controller alerts and room for future system growth.

✓ 8 Station Wi-Fi Base Controller Models
✓ Conventional Wiring: Expands up to 38 or 54 Stations
✓ Decoder Wiring: Supports up to 54 Stations with EZ-DM Module
✓ Built-In Hydrawise® Smart Irrigation Control
✓ Flow Monitoring and Controller Alerts
✓ 2 Year Hunter Warranty

Hunter HCC Controller Brochure
Hunter Hydrawise Wi-Fi Network Requirements & Troubleshooting
Hunter HCC Controller Specifications
Hunter HCC Controller Door Card
Hunter EZ Decoder System Brochure
Hunter HCC Controller EZ-DM Decoder Module Installation Guide

More Information
Product Specifications
Product Videos
Hunter Controller HCC Wi-Fi 8 Station Plastic Cabinet No Cable (Max 38 Stations Conventional, 54 Stations Decoder)
HUNTER HCC WI-FI CONTROLLERS 8–54 STATIONS
Hunter Controller HCC Wi-Fi 8 Station Plastic Cabinet No Cable (Max 38 Stations Conventional, 54 Stations Decoder)
Hunter Controller HCC Wi-Fi 8 Station Plastic Cabinet No Cable (Max 38 Stations Conventional, 54 Stations Decoder) CNHHCC8PL
$1,039.62 /each
Hunter Controller HCC Wi-Fi 8 Station Plastic Cabinet Corded (Max 38 Stations Conventional, 54 Stations Decoder)
Hunter Controller HCC Wi-Fi 8 Station Plastic Cabinet Corded (Max 38 Stations Conventional, 54 Stations Decoder) CNHHCC08
$1,329.09 /each
Hunter Controller HCC Wi-Fi 8 Station Metal Cabinet (Max 54 Stations Conventional, 54 Stations Decoder)
Hunter Controller HCC Wi-Fi 8 Station Metal Cabinet (Max 54 Stations Conventional, 54 Stations Decoder) CNHHCC8M
$1,775.58 /each
Hunter ICC2 / HCC 4 Station Expansion Module (ICM-400)
Hunter ICC2 / HCC 4 Station Expansion Module (ICM-400) CNHICC4EM
$168.05 /each
Hunter ICC2 / HCC 8 Station Expansion Module (ICM-800)
Hunter ICC2 / HCC 8 Station Expansion Module (ICM-800) CNHICC8EM
$338.24 /each
Hunter ICC2 / HCC 22 Station Expansion Module (ICM-2200, One Per Controller)
Hunter ICC2 / HCC 22 Station Expansion Module (ICM-2200, One Per Controller) CNHICC22EM
$753.20 /each
Hunter EZ-DM Decoder Module for ICC2 / HCC (compatible with EZ-1 and EZ-LR)
Hunter EZ-DM Decoder Module for ICC2 / HCC (compatible with EZ-1 and EZ-LR) CNHEZDM
$560.27 /each
Hunter EZ-1 Decoder Single Station (compatible with EZ-DM and PC-DM)
Hunter EZ-1 Decoder Single Station (compatible with EZ-DM and PC-DM) CNHEZ01
$159.25 /each
Hunter EZ-LR Long Range Decoder Single Station (compatible with EZ-DM and PC-DM)
Hunter EZ-LR Long Range Decoder Single Station (compatible with EZ-DM and PC-DM) CNHEZLR
$9,999 /each
Hunter HCC-FPUP Hydrawise Wi-Fi Retrofit Upgrade Kit for ICC / ICC2 Controllers (PANEL / MODULE KIT)
Hunter HCC-FPUP Hydrawise Wi-Fi Retrofit Upgrade Kit for ICC / ICC2 Controllers (PANEL / MODULE KIT) CNHHCCRFP
$764.21 /each

The Hunter HCC Controller is a high-capacity Wi-Fi irrigation controller designed for larger residential, commercial and municipal irrigation systems. Combining the modular expandability of the ICC2 platform with Hydrawise® smart irrigation management, the HCC provides powerful control for larger sites that need remote access, alerts and weather-based scheduling.

Supplied as an 8 station base controller, the HCC range can be expanded for larger systems using compatible Hunter ICM station expansion modules. Plastic cabinet models expand up to 38 conventional wired stations, while metal cabinet and pedestal configurations can expand up to 54 conventional wired stations.

For two-wire decoder installations, the HCC can support up to 54 stations when fitted with the Hunter EZ-DM Decoder Output Module and used with compatible EZ-1 or EZ-LR decoders. The HCC also supports Hunter Wireless Valve Link operation when fitted with compatible Wireless Valve Link components.

Built-in Wi-Fi connects the HCC to Hydrawise® software for remote controller access, weather-based irrigation scheduling, flow monitoring and controller alerts. The controller also includes an 8cm full-colour touchscreen, built-in milliamp wire fault detection, 2 sensor inputs, pump/master valve output and the ability to run two stations plus a pump/master valve at the same time.

2 Year Hunter Warranty

Hunter HCC Controller Brochure
Hunter Hydrawise Wi-Fi Network Requirements & Troubleshooting
Hunter HCC Controller Specifications
Hunter HCC Controller Door Card
Hunter EZ Decoder System Brochure
Hunter HCC Controller EZ-DM Decoder Module Installation Guide

✓ Controller Type & Station Outputs
Hunter HCC Wi-Fi modular irrigation controller range for larger residential, commercial and municipal irrigation systems. Supplied as 8 station base controller models with a separate P/MV output for a master valve or pump start relay.

✓ Cabinet Options
Available in plastic wall-mount and metal wall-mount cabinet options.

✓ Conventional Wiring Capacity & Modules
Plastic cabinet models expand from 8 to 38 conventional wired stations. Metal cabinet and pedestal configurations expand from 8 to 54 conventional wired stations. Compatible with Hunter ICM-400, ICM-800 and ICM-2200 station expansion modules. The ICM-2200 22 Station Expansion Module is limited to one per controller.

✓ Decoder Wiring Capacity & Requirements
Supports up to 54 stations with the compatible Hunter EZ-DM Decoder Output Module. Decoder stations require compatible Hunter EZ-1 or EZ-LR decoders. Decoders are sold separately.

✓ Wireless Valve Link Option
Supports Wireless Valve Link output up to 54 stations when fitted with compatible Wireless Valve Link components.

✓ Smart Control & Programming
Built-in Wi-Fi enables Hydrawise® cloud-based irrigation management, remote controller access, controller alerts, weather-based scheduling and water-use reporting when configured with compatible sensors. Supports Hydrawise® software-based scheduling and controller-based touchscreen programming.

✓ Simultaneous Operation
Can operate 2 stations plus pump/master valve simultaneously.

✓ Flow and Sensor Compatibility
Compatible with HC Flow Meter for flow monitoring, high-flow alerts, low-flow alerts and total system water usage reporting. Includes 2 sensor inputs for compatible sensors.

✓ Remote Compatibility
Prewired SmartPort® harness provides compatibility with Hunter ROAM and ROAM XL remotes.

✓ Diagnostic Features
Built-in milliamp sensor assists with wire fault detection and controller alerts.

✓ Display and Wi-Fi Requirement
8cm full-colour touchscreen display provides simple controller operation at the panel. Requires a suitable 2.4 GHz Wi-Fi network. Supported security protocols include WPA/WPA2 Personal.

✓ Electrical Output
24VAC transformer output, 1.4A. Station output 24VAC, 0.56A per station. P/MV output 24VAC, 0.56A.

✓ Enclosure, Certifications and Dimensions
Plastic wall-mount cabinet rated IP55 / NEMA 3R. Metal wall-mount cabinet rated IP44 / NEMA 3R. RCM approved. Plastic cabinet: approximately 305mm high x 350mm wide x 127mm deep. Metal cabinet: approximately 406mm high x 330mm wide x 127mm deep.

✓ Warranty
2 Year Hunter Warranty.
