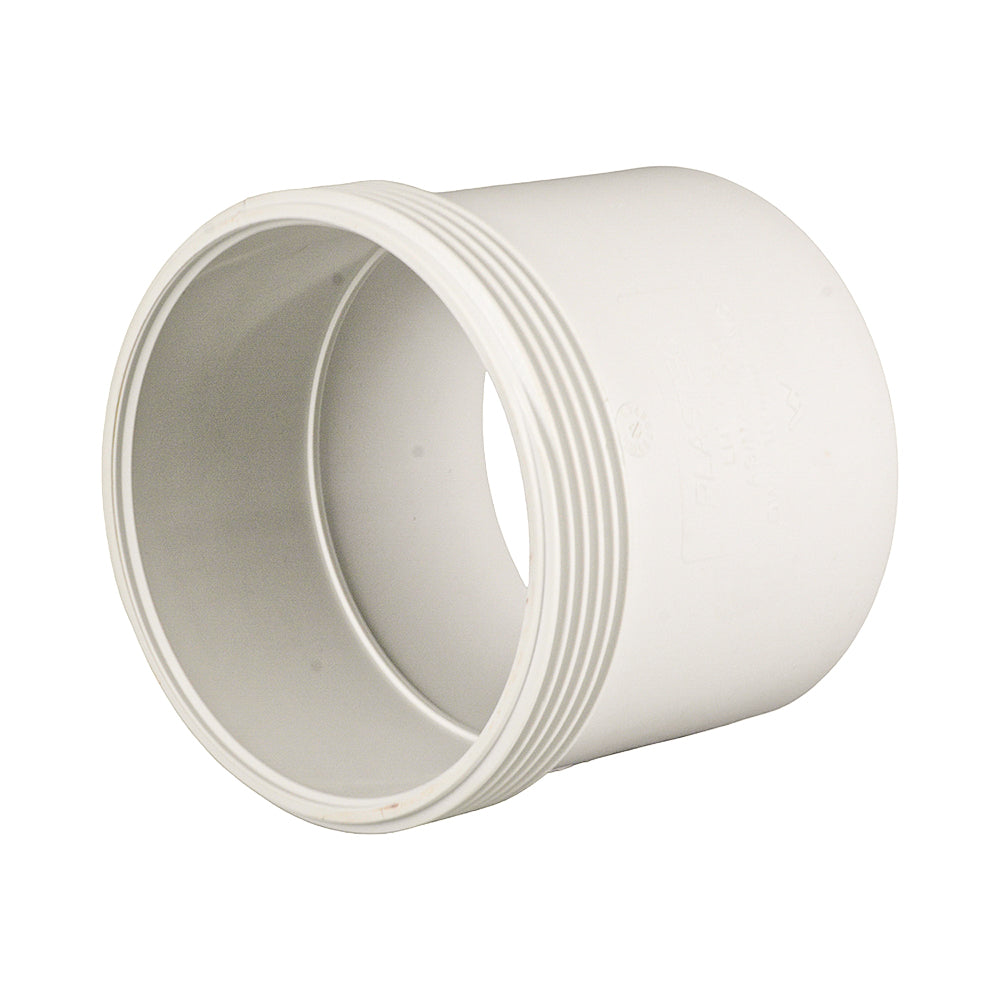

White threaded DWV and stormwater coupling showing the externally threaded end.
White threaded DWV and stormwater coupling showing the externally threaded end.

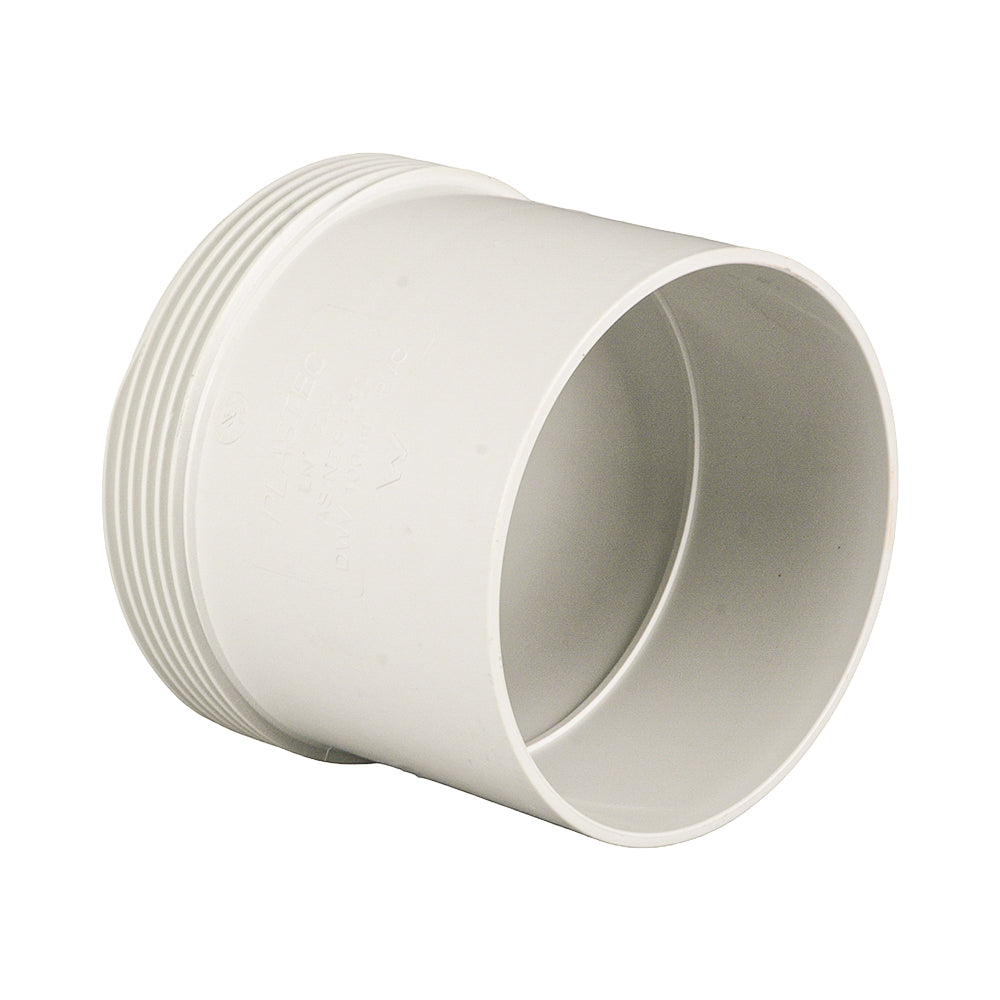

White threaded DWV and stormwater coupling showing the opposite socket opening.
White threaded DWV and stormwater coupling showing the opposite socket opening.

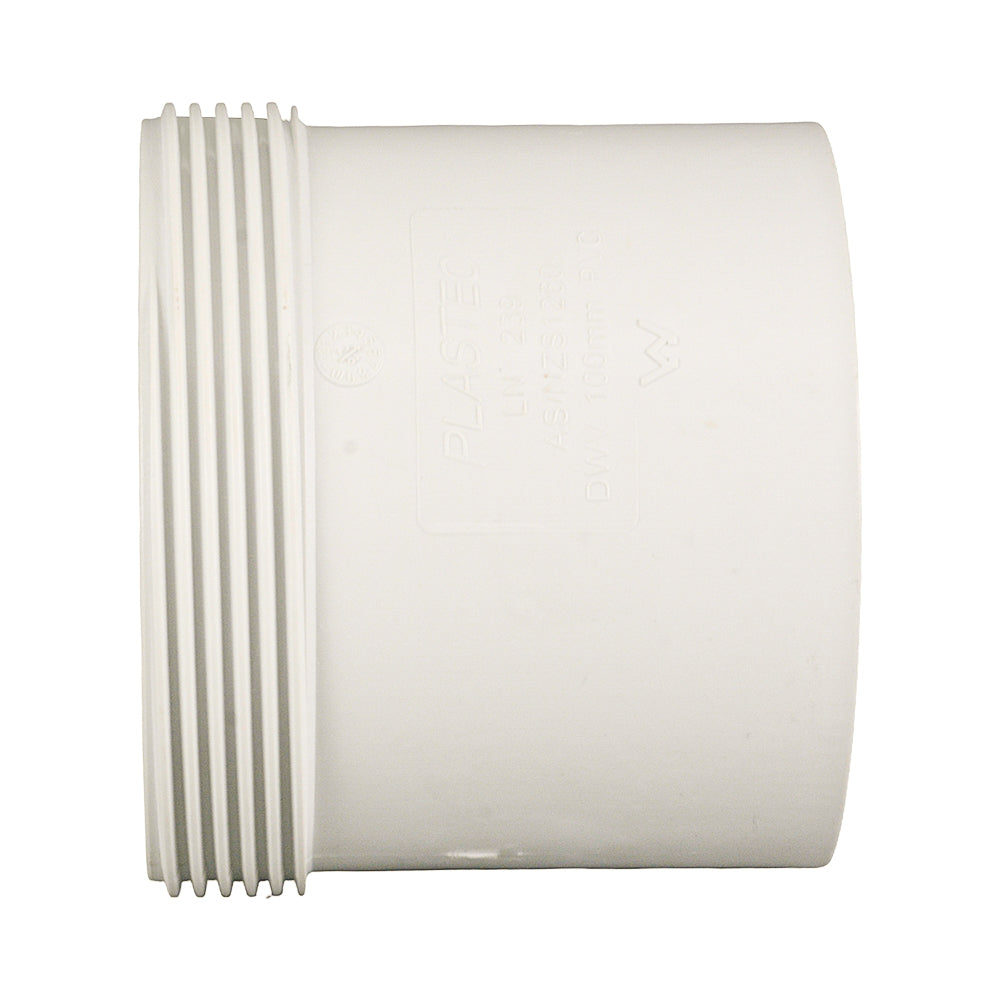

White threaded DWV and stormwater coupling, side view.
White threaded DWV and stormwater coupling, side view.

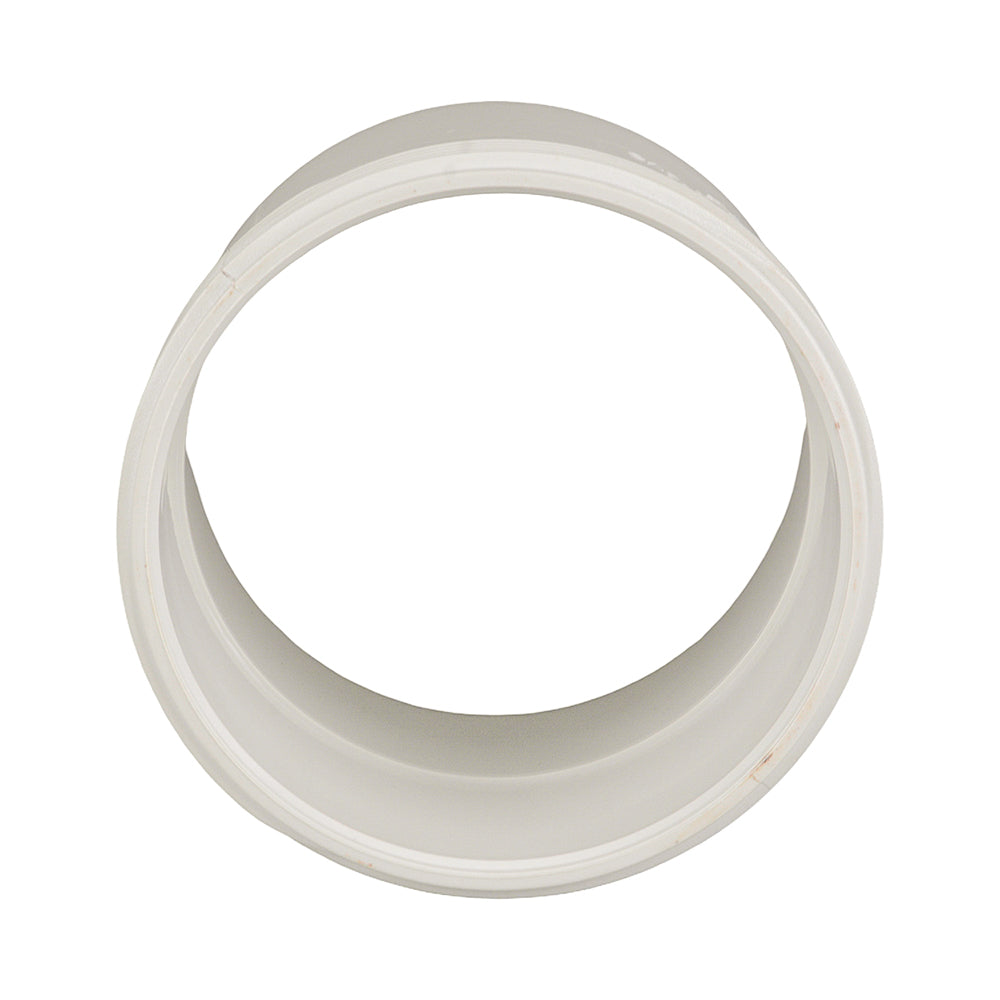

White threaded DWV and stormwater coupling viewed through its bore.
White threaded DWV and stormwater coupling viewed through its bore.

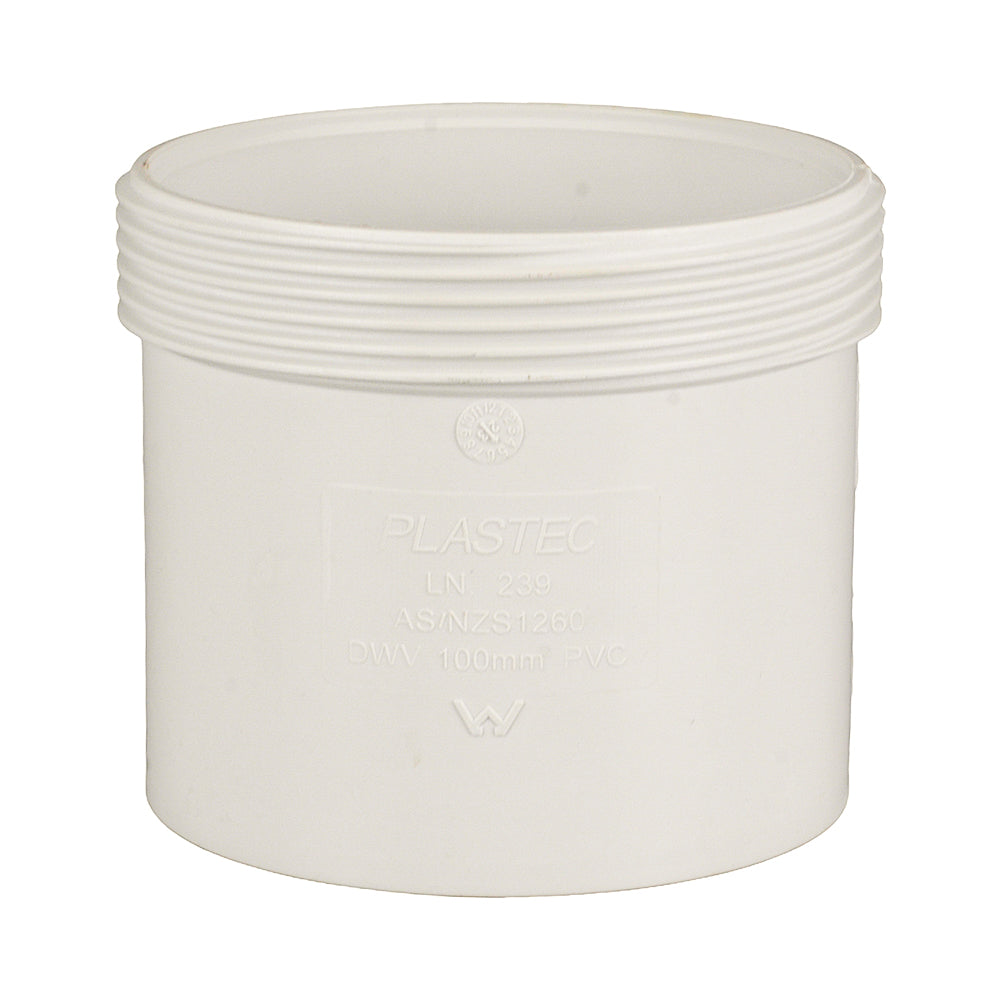

White threaded DWV and stormwater coupling, upright view.
White threaded DWV and stormwater coupling, upright view.
White threaded DWV and stormwater coupling showing the externally threaded end.
White threaded DWV and stormwater coupling showing the opposite socket opening.
White threaded DWV and stormwater coupling, side view.
White threaded DWV and stormwater coupling viewed through its bore.
White threaded DWV and stormwater coupling, upright view.

DWV (STORMWATER) COUPLING THREADED 225MM

DWV (Stormwater) Coupling Threaded 225mm joins matching PVC drainage pipe like a plain coupling and also accepts a matching threaded access cap for removable access.

✓ Suits Nominal 225mm PVC Pipe
✓ Suits Approximately 250mm OD Pipe
✓ Female Socket x Female Socket
✓ Internal Centre Stop
✓ External Male Thread Accepts Access Cap
✓ Solvent Weld / SWJ Connections

DWV Pipe Dimensions
Stormwater Pipe Dimensions
Stormwater PVC Jointing & Installation Guide
DWV PVC Jointing & Installation Guide

More Information
Product Specifications
White threaded DWV and stormwater coupling showing the externally threaded end.
DWV (STORMWATER) COUPLING THREADED 225MM
White DWV plain coupling viewed through its bore.
DWV Coupling Plain 40mm D02C040
$0.89 /each
White DWV plain coupling viewed through its bore.
DWV Coupling Plain 50mm D02C050
$1.07 /each
White DWV plain coupling viewed through its bore.
DWV Coupling Plain 65mm D02C065
$3.28 /each
White DWV plain coupling viewed through its bore.
DWV Coupling Plain 80mm D02C080
$4.37 /each
White DWV plain coupling showing the socket opening and central stop.
DWV Coupling Plain 100mm D02C100
$3.27 /each
White threaded DWV and stormwater coupling showing the externally threaded end.
DWV Coupling Threaded 100mm D02CT100
$3.72 /each
White DWV slip repair coupling showing the open bore.
DWV Repair Coupling Slip 100mm D02CS100
$4.90 /each
White DWV plain coupling showing the socket opening and central stop.
DWV Coupling Plain 150mm D02C150
$14.91 /each
White threaded DWV and stormwater coupling showing the externally threaded end.
DWV Coupling Threaded 150mm D02CT150
$11.50 /each
White DWV slip repair coupling showing the open bore.
DWV Repair Coupling Slip 150mm D02CS150
$30.56 /each
White threaded DWV and stormwater coupling showing the externally threaded end.
DWV (Stormwater) Coupling Threaded 225mm D02CT225
$62.14 /each
White threaded DWV and stormwater coupling showing the externally threaded end.
DWV (Stormwater) Coupling Threaded 300mm D02CT300
$100.28 /each

DWV (Stormwater) Coupling Threaded 225mm can be used like a standard plain coupling to join two sections of nominal 225mm PVC drainage pipe and also has an external male thread that accepts a matching threaded access cap.

The two 225mm female sockets fit over matching PVC pipe with an approximately 250mm outside diameter. An internal centre stop positions the pipe ends within the coupling in the same way as a plain coupling.

The external male thread accepts a matching 225mm threaded access cap, allowing the fitting to provide removable access for inspection, cleaning or temporary blanking when configured for that purpose.

The socket connections are joined using PVC priming fluid and suitable non-pressure PVC solvent cement. This is known as a solvent weld joint, or SWJ.

Suitable for compatible non-pressure stormwater and drainage applications.

DWV Pipe Dimensions
Stormwater Pipe Dimensions
Stormwater PVC Jointing & Installation Guide
DWV PVC Jointing & Installation Guide

✓ Product Type & Size
PVC DWV (Stormwater) Coupling Threaded 225mm (225mm Female Socket x 225mm Female Socket).

✓ Function
Joins two sections of nominal 225mm PVC drainage pipe like a plain coupling and can also accept a matching threaded access cap when removable access is required.

✓ Pipe Compatibility & Sizing
The female sockets fit over nominal 225mm PVC pipe with an approximately 250mm outside diameter.

✓ Centre Stop
An internal centre stop positions the pipe ends within the coupling during a standard pipe-to-pipe installation.

✓ Threaded Access
External male thread accepts a matching 225mm threaded access cap for inspection, cleaning or temporary blanking applications.

✓ Joining Method
The sockets are joined using PVC priming fluid and suitable non-pressure PVC solvent cement. This is known as a solvent weld joint, or SWJ.

✓ Material & Applications
PVC-U construction for compatible non-pressure stormwater and drainage applications.
