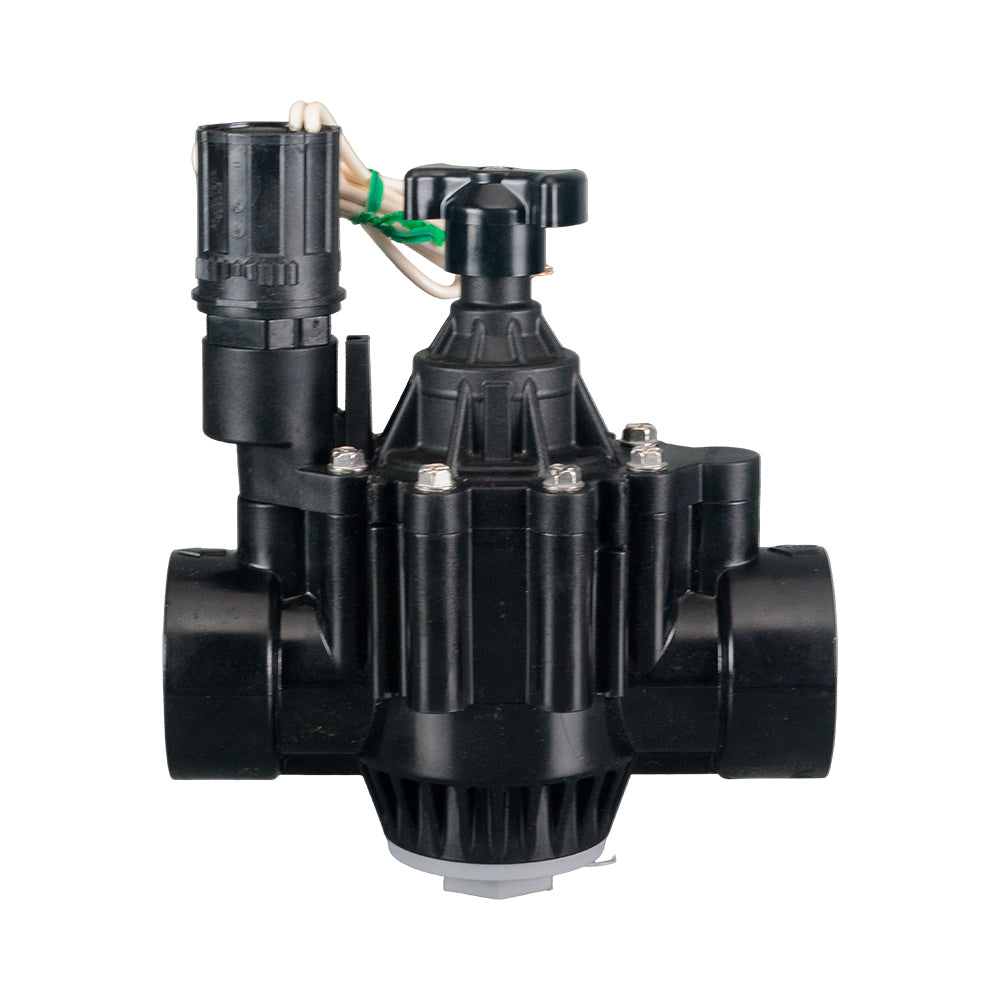

Rain Bird PGA black solenoid valve with bundled leads, side view.
Rain Bird PGA black solenoid valve with bundled leads, side view.

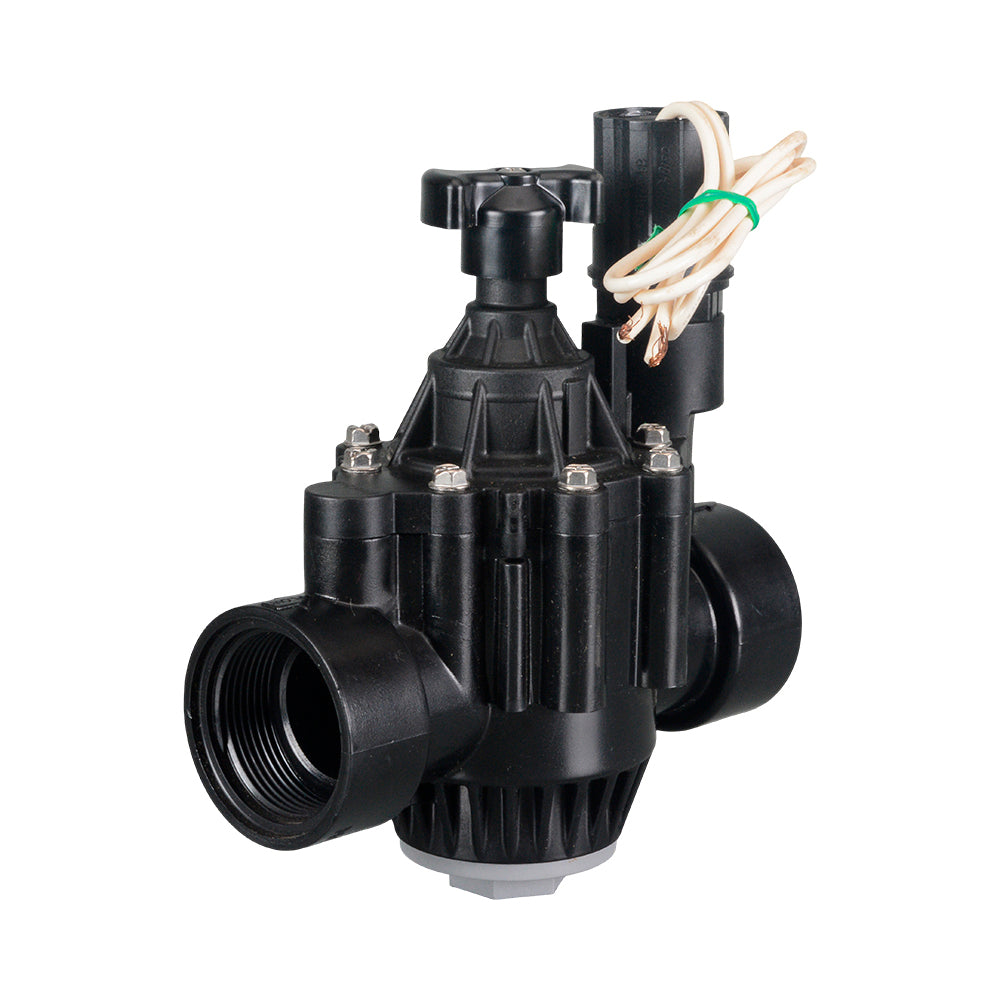

Rain Bird PGA black solenoid valve with bundled leads, front angled view.
Rain Bird PGA black solenoid valve with bundled leads, front angled view.

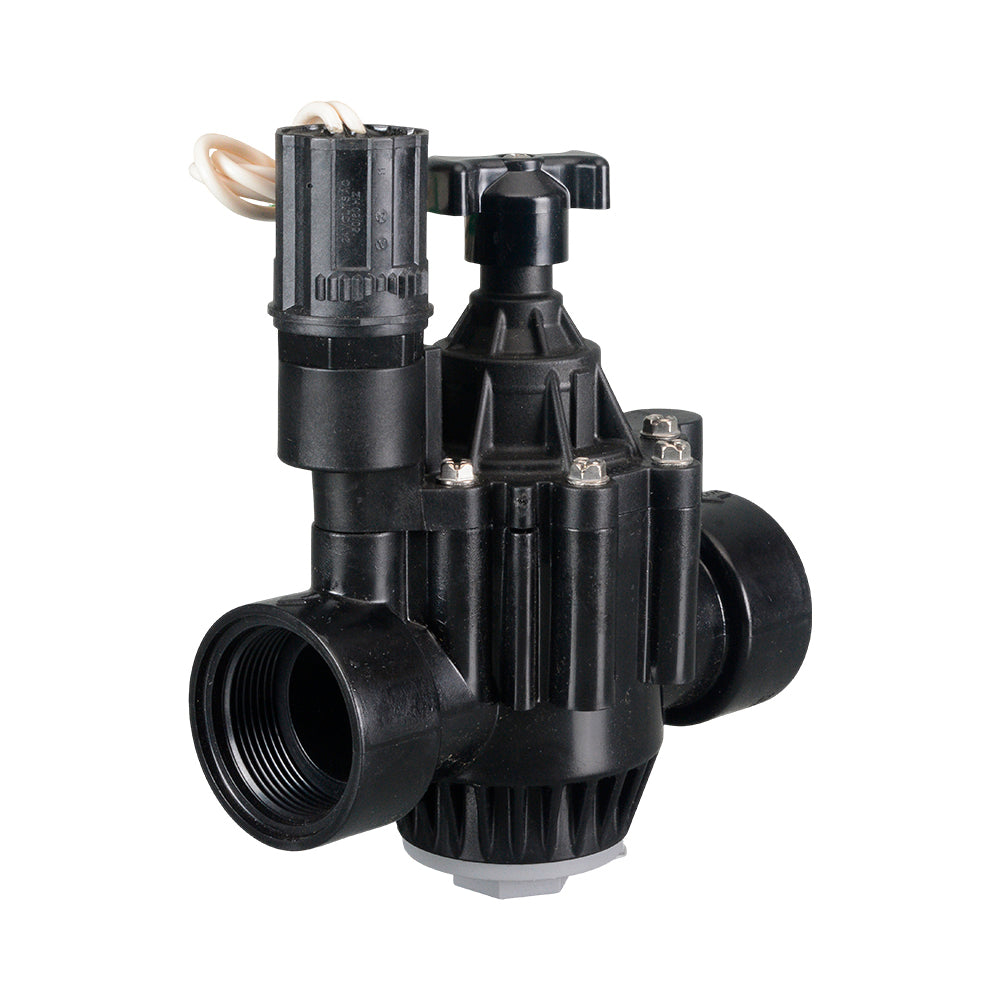

Rain Bird PGA black solenoid valve with bundled leads, rear angled view.
Rain Bird PGA black solenoid valve with bundled leads, rear angled view.

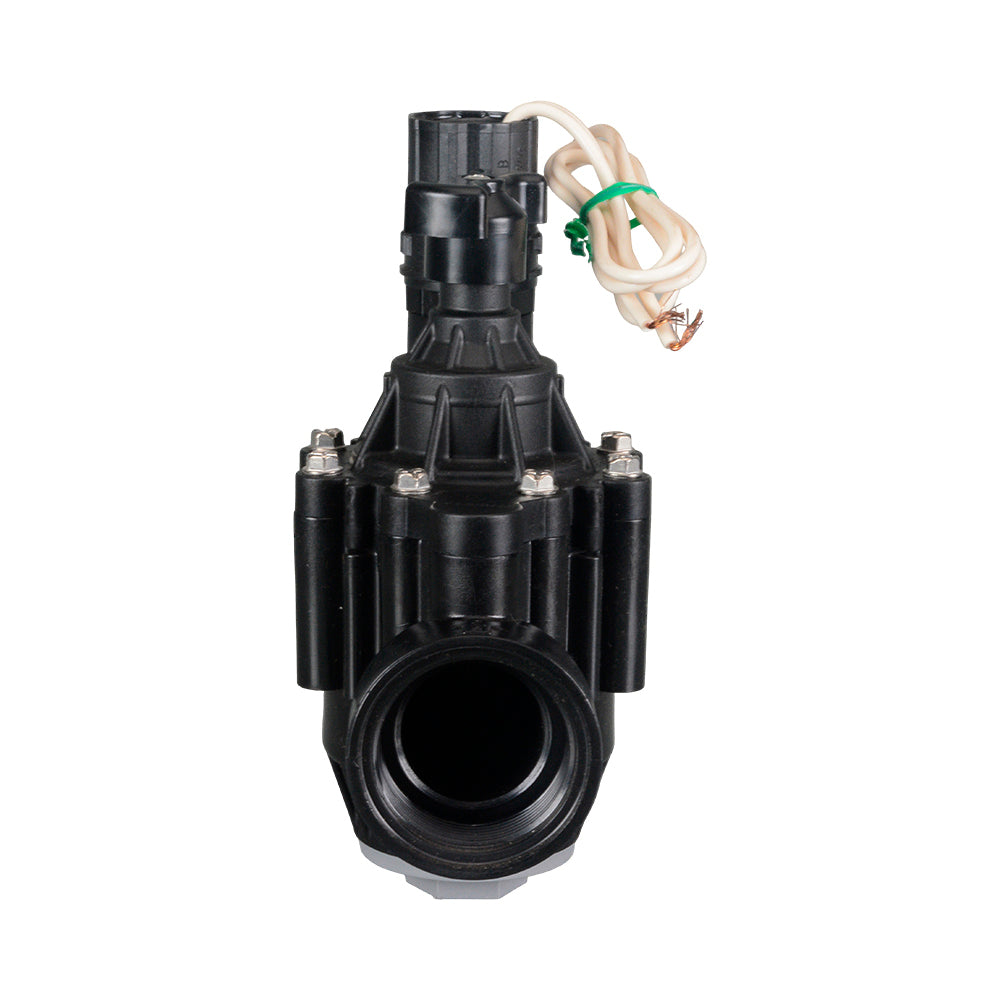

Rain Bird PGA black solenoid valve with bundled leads, end view.
Rain Bird PGA black solenoid valve with bundled leads, end view.

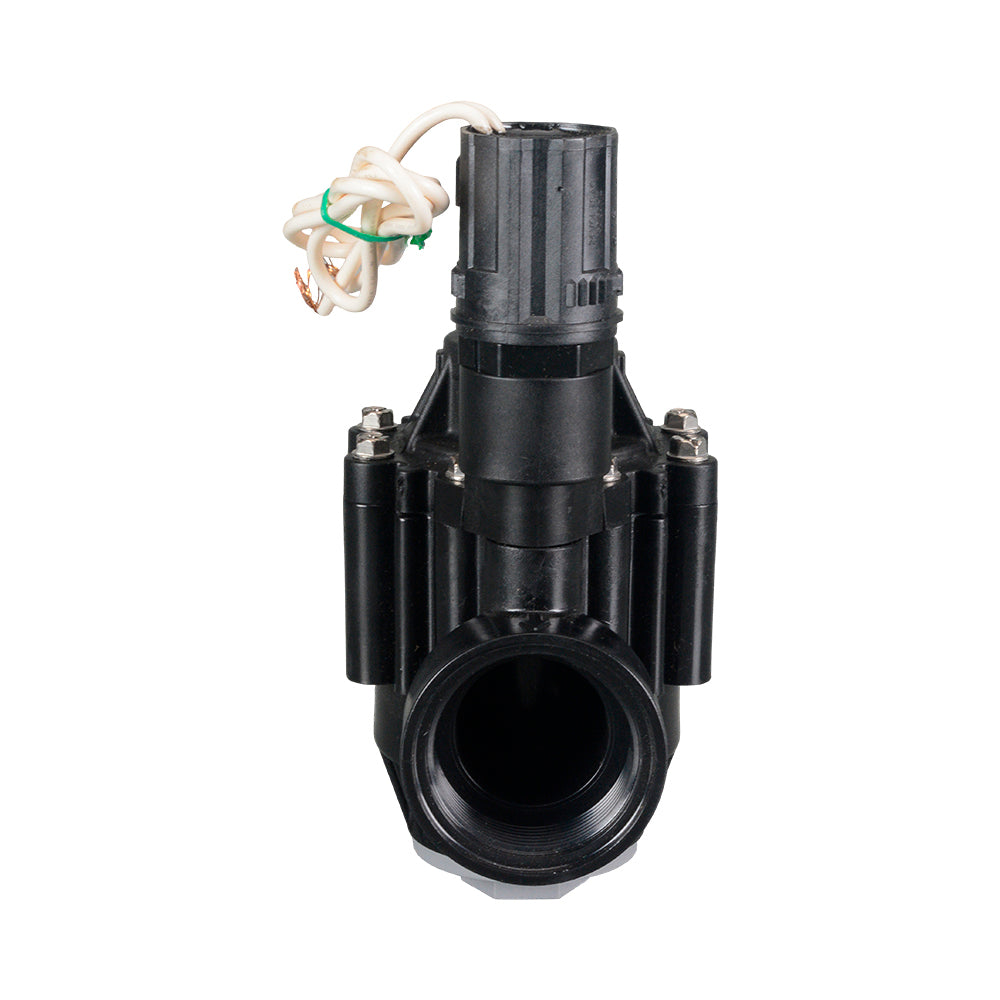

Rain Bird PGA black solenoid valve with bundled leads, opposite end view.
Rain Bird PGA black solenoid valve with bundled leads, opposite end view.
Rain Bird PGA black solenoid valve with bundled leads, side view.
Rain Bird PGA black solenoid valve with bundled leads, front angled view.
Rain Bird PGA black solenoid valve with bundled leads, rear angled view.
Rain Bird PGA black solenoid valve with bundled leads, end view.
Rain Bird PGA black solenoid valve with bundled leads, opposite end view.

SOLENOID VALVES - RAIN BIRD

The Rain Bird PGA combines a PVC body with a glass-filled nylon bonnet and slow closing to help reduce water hammer. Its flow-control handle adjusts water flow without rising as it turns. Globe or angle configuration provides flexibility when connecting the valve to the pipework.

✓ Connections: 40mm BSP
✓ Power: 24V AC
✓ Flow Control: Adjustable water flow
✓ Closing: Slow action helps reduce water hammer

Rain Bird DV & DVF Specifications
Rain Bird DV & DVF User Manual
Rain Bird PGA Specifications
Rain Bird PGA User Manual

More Information
Product Specifications
Rain Bird PGA black solenoid valve with bundled leads, side view.
SOLENOID VALVES - RAIN BIRD
Rain Bird DV black solenoid valve with bundled leads, side view.
Valve Rain Bird DV, without Flow Control 1" (25mm) BSP VVRDV25
$29.42 /each
Rain Bird DVF black solenoid valve with bundled leads, side view.
Valve Rain Bird DVF 1" (25mm) BSP VVRDV25FC
$29.70 /each
Valve Rain Bird DVF, with 9V Latching Coil 1" (25mm) BSP VVRDVFDC25
$45.95 /each
Rain Bird PGA black solenoid valve with bundled leads, side view.
Valve Rain Bird PGA Globe 1 1/2" (40mm) BSP VVRGL040
$105.33 /each
Rain Bird PGA black solenoid valve with bundled leads, side view.
Valve Rain Bird PGA Globe 2" (50mm) BSP VVRGL050
$120.99 /each

The Rain Bird 150PGA 40mm solenoid valve operates with a compatible 24V AC irrigation controller. Its non-rising flow-control handle adjusts water flow without increasing the height of the valve as it turns.

The valve combines a PVC body with a glass-filled nylon bonnet. Slow closing helps reduce water hammer, and filtered pilot flow helps keep debris out of the solenoid passages.

To open the valve manually, turn the solenoid handle anticlockwise 1/4 to 3/4 turn, until water flows. Turn it clockwise until hand-tight to return the valve to controller operation. This internal bleed releases pressure above the diaphragm into the outlet pipe, without discharging water into the valve box.

The body supports globe or angle installation. Use the matching pressure-loss chart to size the valve for the zone’s flow.

Rain Bird DV & DVF Specifications
Rain Bird DV & DVF User Manual
Rain Bird PGA Specifications
Rain Bird PGA User Manual

✓ Product Type & Application
Rain Bird 150PGA irrigation solenoid valve.

✓ Size & Connections
40mm BSP. Globe/angle configuration.

✓ Electrical Operation
24V AC, 50/60 Hz.

✓ Pressure & Temperature
Operating pressure: 104-1035 kPa.
Maximum continuous pressure by water temperature:
23°C: 1035 kPa
27°C: 910 kPa
32°C: 770 kPa
38°C: 640 kPa
43°C: 520 kPa
Maximum water temperature: 43°C.

✓ Flow & Sizing
Use the 150PGA globe or angle pressure-loss chart in the specifications to match the valve to the zone’s flow.

✓ Flow Control & Manual Operation
Non-rising flow-control handle adjusts water flow and allows manual shutoff.
Manual solenoid operation: Turn the handle anticlockwise 1/4 to 3/4 turn until water flows; turn clockwise until hand-tight to restore controller operation.
Internal bleed: Releases pressure above the diaphragm into the outlet pipe, keeping bleed water out of the valve box.

✓ Construction & Servicing
PVC body and glass-filled nylon bonnet. Stainless steel screws. Filtered pilot flow. Captured solenoid plunger and spring. Slow-closing design. Internal parts can be serviced from above without removing the valve from the pipework.

✓ Dimensions
Length: 172mm
Width: 89mm
Height: 203mm
