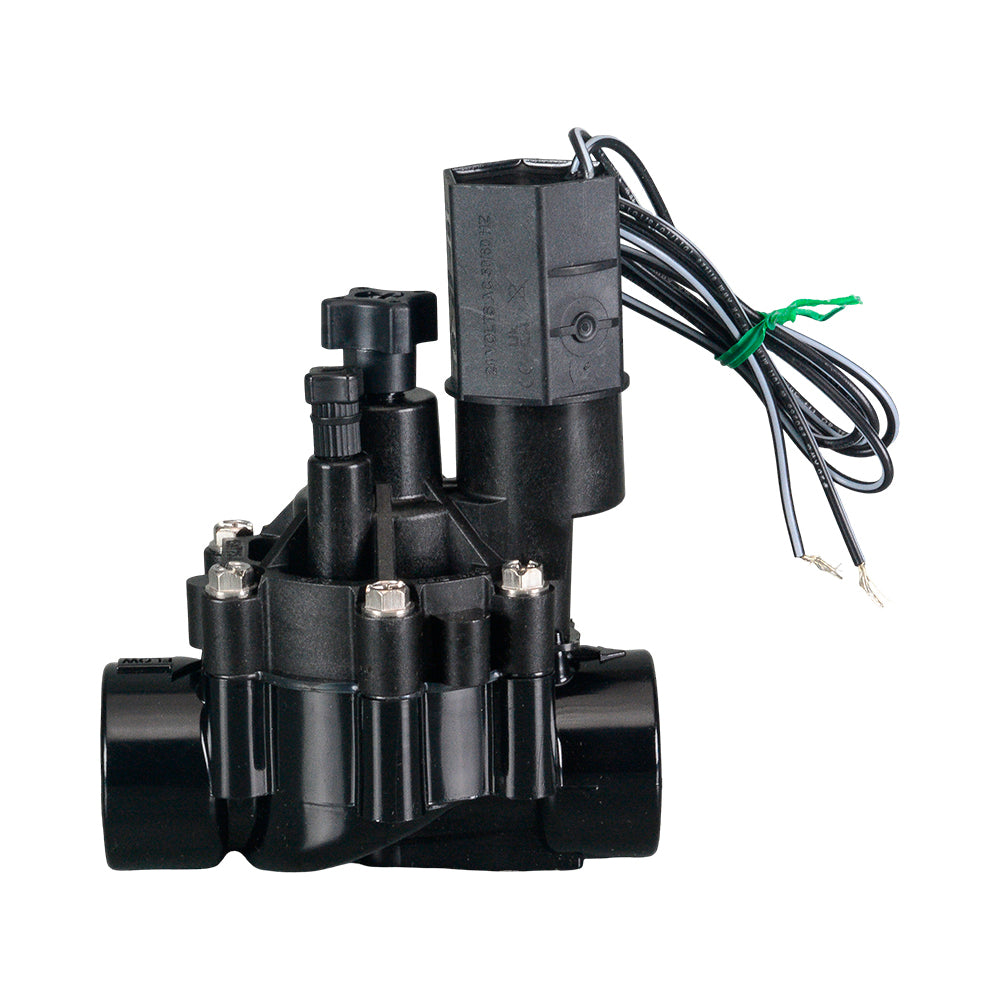

Rain Bird DVF black solenoid valve with bundled leads, side view.
Rain Bird DVF black solenoid valve with bundled leads, side view.

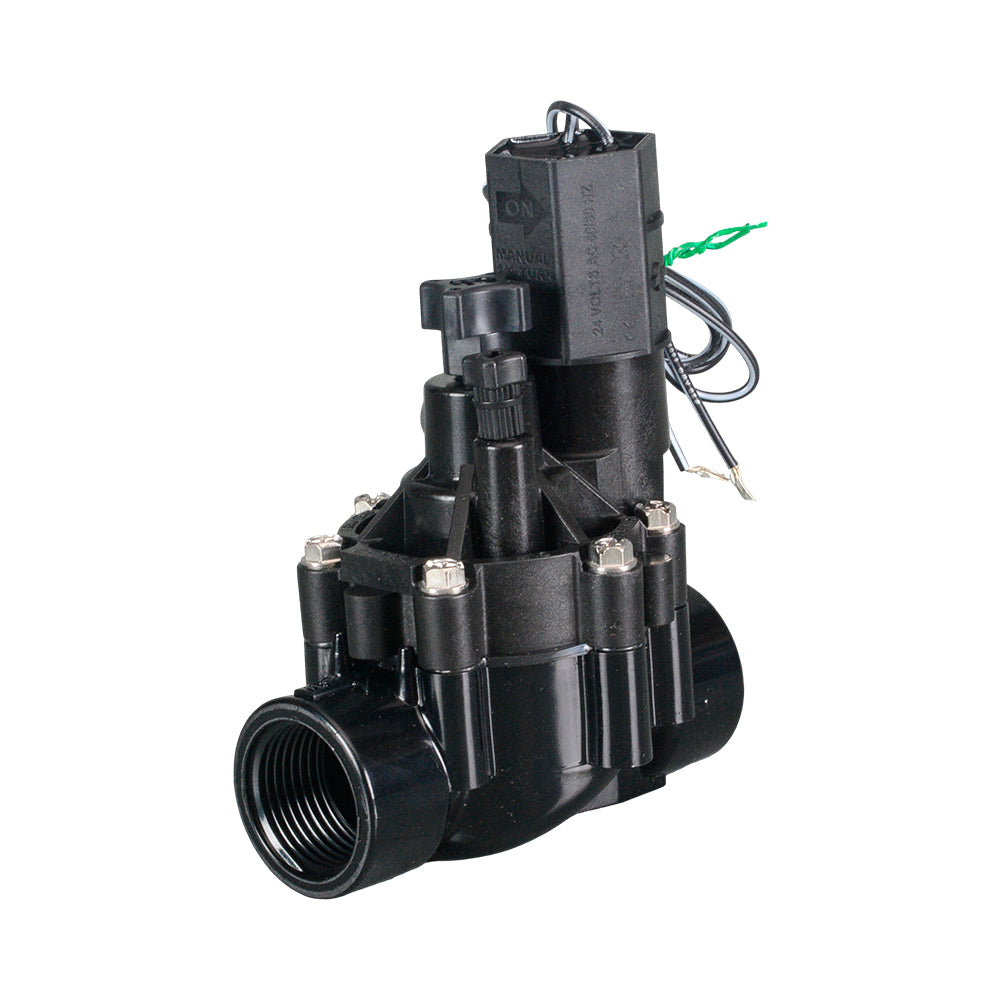

Rain Bird DVF black solenoid valve with bundled leads, front angled view.
Rain Bird DVF black solenoid valve with bundled leads, front angled view.

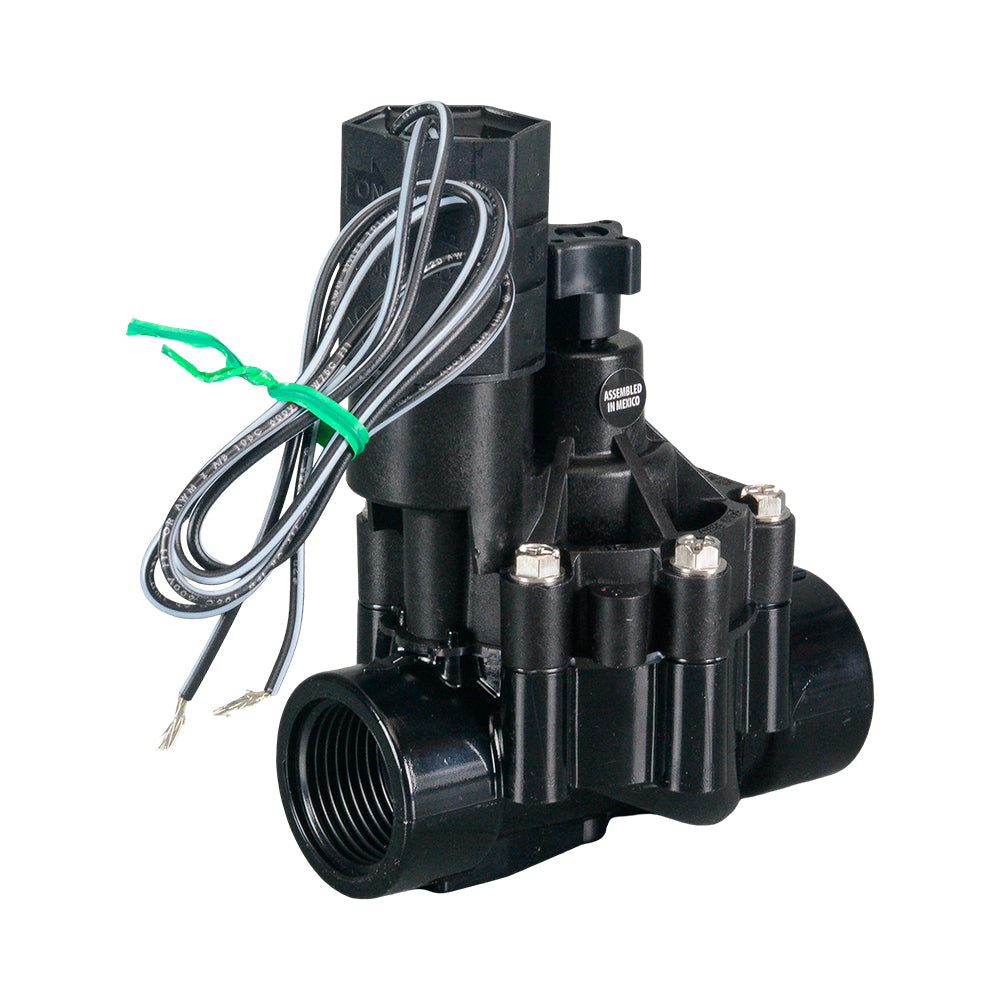

Rain Bird DVF black solenoid valve with bundled leads, rear angled view.
Rain Bird DVF black solenoid valve with bundled leads, rear angled view.

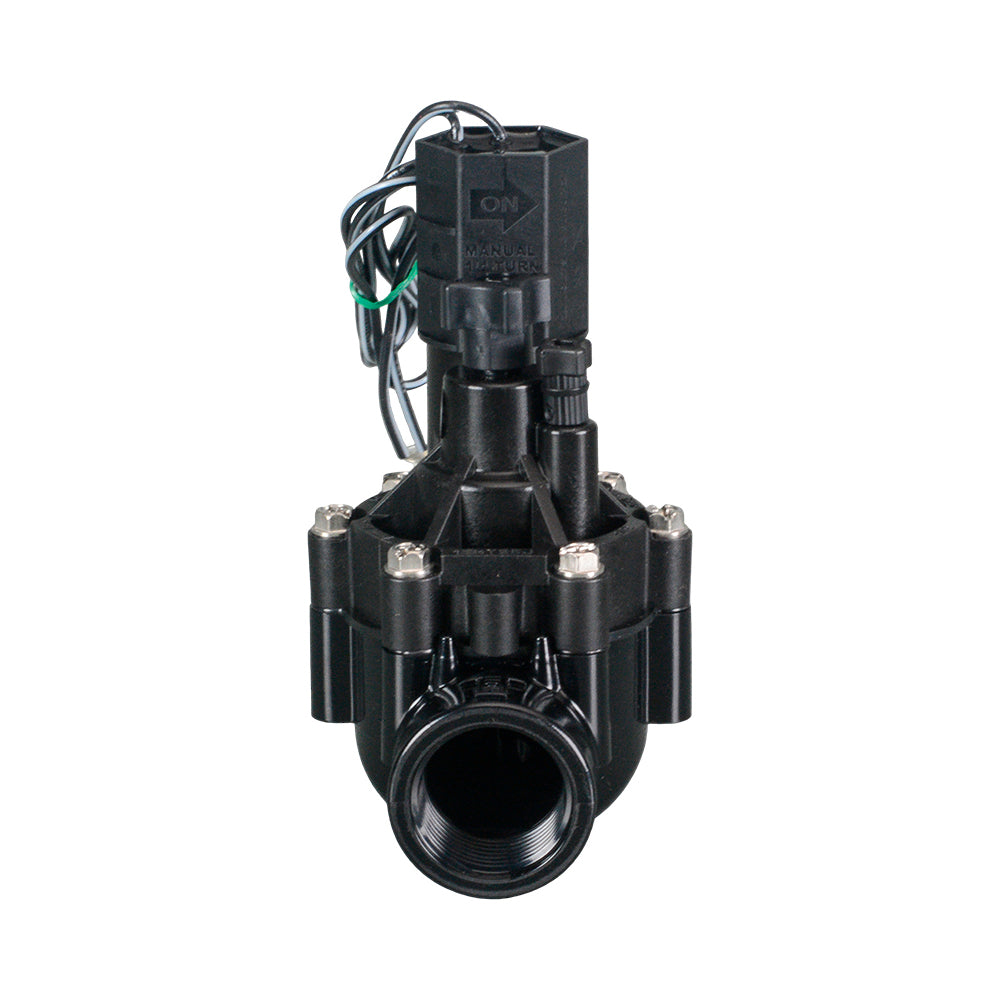

Rain Bird DVF black solenoid valve with bundled leads, end view.
Rain Bird DVF black solenoid valve with bundled leads, end view.

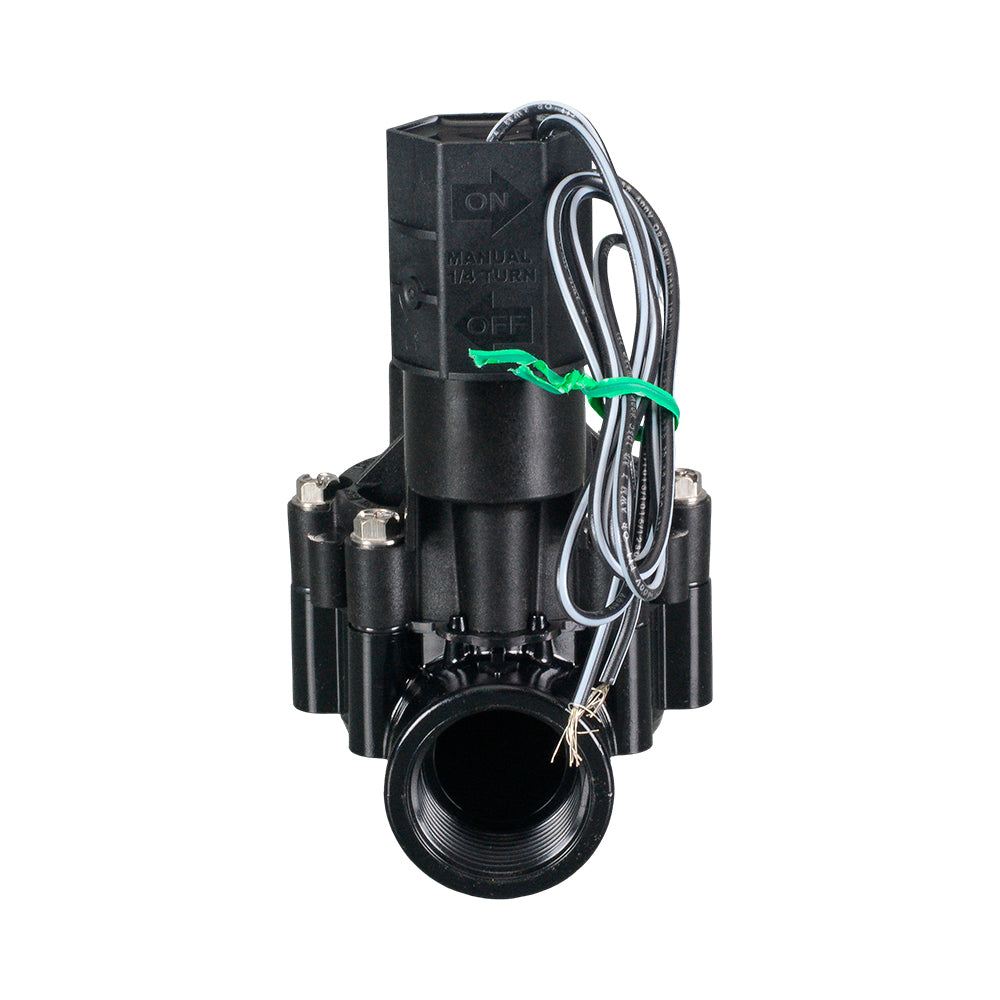

Rain Bird DVF black solenoid valve with bundled leads, opposite end view.
Rain Bird DVF black solenoid valve with bundled leads, opposite end view.
Rain Bird DVF black solenoid valve with bundled leads, side view.
Rain Bird DVF black solenoid valve with bundled leads, front angled view.
Rain Bird DVF black solenoid valve with bundled leads, rear angled view.
Rain Bird DVF black solenoid valve with bundled leads, end view.
Rain Bird DVF black solenoid valve with bundled leads, opposite end view.

SOLENOID VALVES - RAIN BIRD

The Rain Bird DVF controls water flow to an irrigation zone using a compatible 24V AC controller. Its flow-control handle allows adjustment at the valve. A double-filtered pilot circuit helps keep debris out of the control passages.

✓ Connections: 25mm BSP
✓ Power: 24V AC
✓ Flow Control: Adjustable water flow
✓ Pilot Filtration: Two filters help keep control passages clear
✓ Flow Range: 0.83-151 L/min
✓ Operating Pressure: 100-1040 kPa

Rain Bird DV & DVF Specifications
Rain Bird DV & DVF User Manual
Rain Bird PGA Specifications
Rain Bird PGA User Manual

More Information
Product Specifications
Rain Bird DVF black solenoid valve with bundled leads, side view.
SOLENOID VALVES - RAIN BIRD
Rain Bird DV black solenoid valve with bundled leads, side view.
Valve Rain Bird DV, without Flow Control 1" (25mm) BSP VVRDV25
$29.42 /each
Rain Bird DVF black solenoid valve with bundled leads, side view.
Valve Rain Bird DVF 1" (25mm) BSP VVRDV25FC
$29.70 /each
Valve Rain Bird DVF, with 9V Latching Coil 1" (25mm) BSP VVRDVFDC25
$45.95 /each
Rain Bird PGA black solenoid valve with bundled leads, side view.
Valve Rain Bird PGA Globe 1 1/2" (40mm) BSP VVRGL040
$105.33 /each
Rain Bird PGA black solenoid valve with bundled leads, side view.
Valve Rain Bird PGA Globe 2" (50mm) BSP VVRGL050
$120.99 /each

The Rain Bird DVF 25mm solenoid valve controls water flow to irrigation zones using a compatible 24V AC controller. Its flow-control handle adjusts water flow at the valve.

The double-filtered pilot circuit helps keep debris out of the valve’s control passages. A captured solenoid plunger and captive diaphragm spring help prevent lost parts during servicing.

To open the valve manually, turn the solenoid handle anticlockwise 1/4 to 1/2 turn. Turn the handle clockwise to close the manual control and restore controller operation.

Internal manual bleed releases pressure above the diaphragm into the outlet pipe, allowing the valve to open without an electrical signal. Water stays within the pipework. Close the manual control after testing to return the valve to controller operation. The external bleed screw releases water outside the valve for flushing during installation and start-up. Keep it closed during normal controller operation.

For drip irrigation or flows below 12.5 L/min, install the upstream filter specified in the linked instructions.

Rain Bird DV & DVF Specifications
Rain Bird DV & DVF User Manual
Rain Bird PGA Specifications
Rain Bird PGA User Manual

✓ Product Type & Application
Rain Bird DVF 25mm Solenoid Valve with Flow Control.

✓ Size & Connections
25mm BSP inlet and outlet.

✓ Electrical Operation
24V AC, 50/60 Hz. At 60 Hz: 0.30 A inrush; 0.19 A holding current.

✓ Pressure & Flow
Operating pressure: 100-1040 kPa.
Flow range: 0.05-9.08 m3/h (approximately 0.83-151 L/min).
Maximum water temperature: 43°C.

✓ Flow Control & Manual Operation
Flow control: Easy-to-turn handle adjusts water flow at the valve.
Internal manual bleed: Releases pressure above the diaphragm into the outlet pipe. Close the manual control after testing.
External bleed screw: Allows flushing during installation and start-up; discharges outside the valve. Keep closed during normal controller operation.

✓ Pilot Filtration & Installation
Double-filtered pilot circuit with 200-micron solenoid and pilot-water filters. For drip irrigation or flows below 12.5 L/min, use the upstream filter specified in the installation instructions.

✓ Construction & Servicing
Buna-N diaphragm with captive spring. Captured solenoid plunger. Internal components accessible from above.
