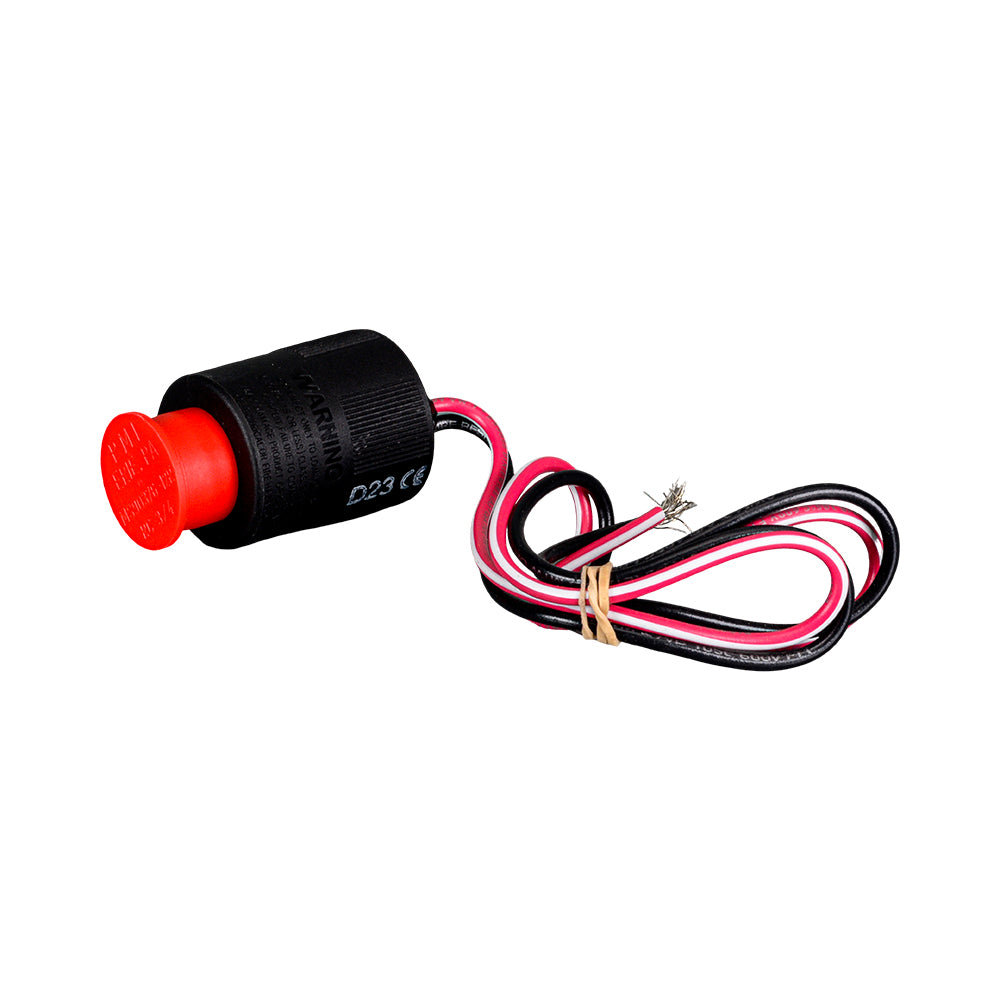

Bermad replacement solenoid coil with red protective cap and bundled red and black leads.
Bermad replacement solenoid coil with red protective cap and bundled red and black leads.

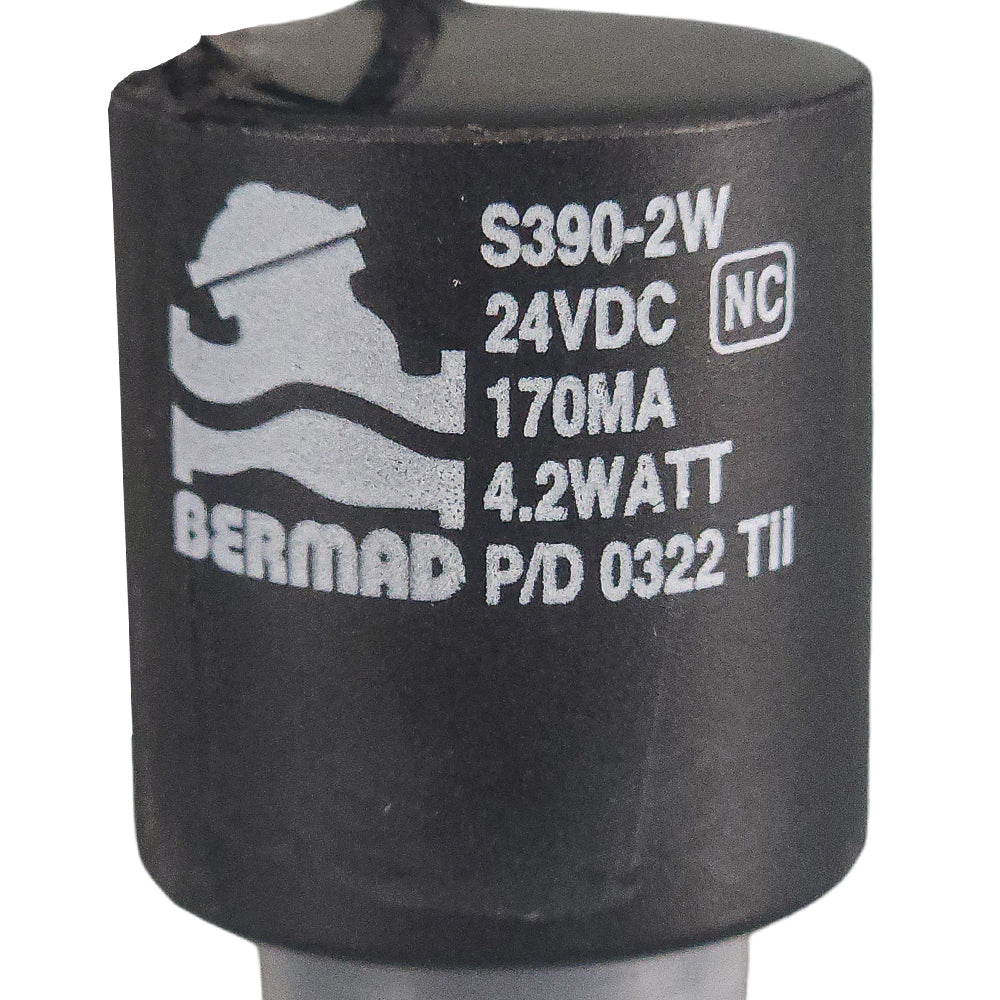

Close-up of Bermad solenoid label marked S390-2W, 24 VDC and normally closed.
Close-up of Bermad solenoid label marked S390-2W, 24 VDC and normally closed.

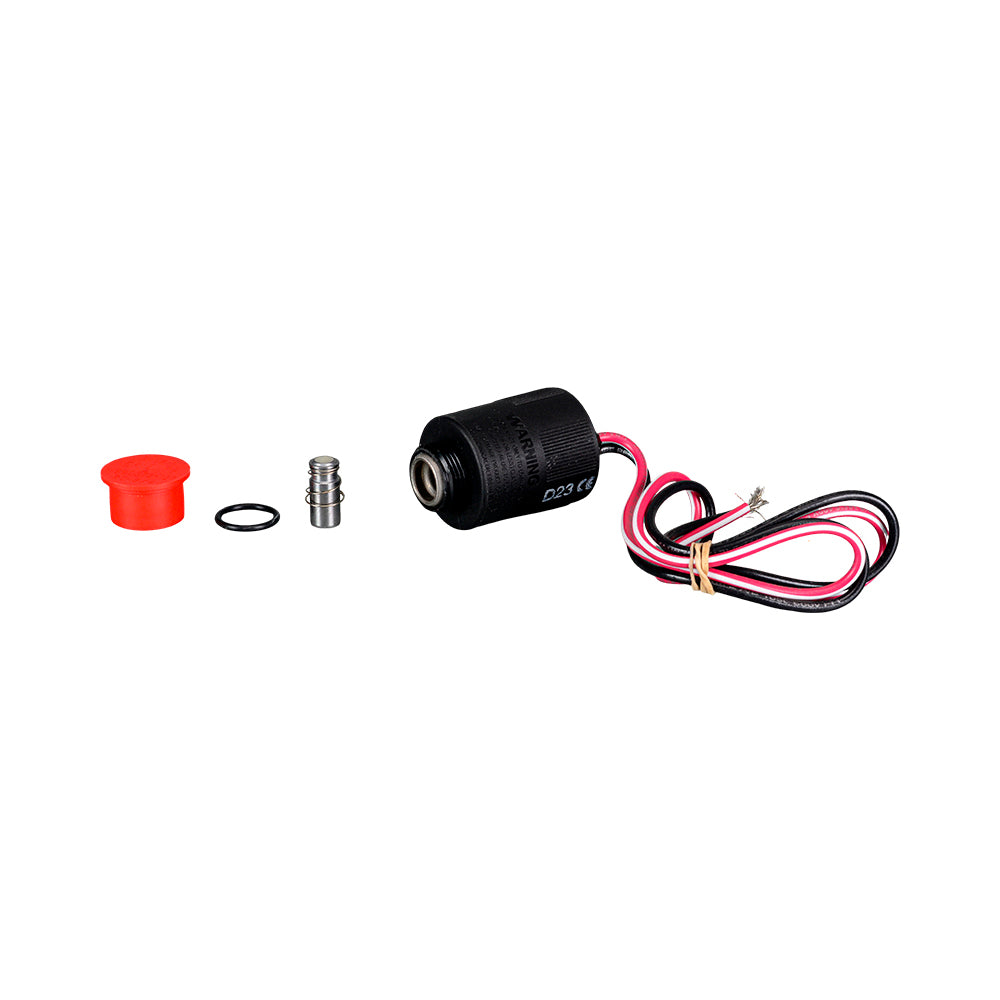

Bermad solenoid coil with red and black leads, cap, O-ring and spring shown separately.
Bermad solenoid coil with red and black leads, cap, O-ring and spring shown separately.
Bermad replacement solenoid coil with red protective cap and bundled red and black leads.
Close-up of Bermad solenoid label marked S390-2W, 24 VDC and normally closed.
Bermad solenoid coil with red and black leads, cap, O-ring and spring shown separately.

IRRIGATION SOLENOID REPLACEMENT COILS

Replace a failed solenoid on a compatible Bermad valve while retaining the existing valve body. This S-390 two-way model uses continuous 24V DC power to operate a normally closed valve.

✓ Power: 24V DC
✓ Model: S-390
✓ Configuration: Two-way, normally closed (NC)
✓ Operation: Non-latching

More Information
Product Specifications
Bermad replacement solenoid coil with red protective cap and bundled red and black leads.
IRRIGATION SOLENOID REPLACEMENT COILS
Hunter black replacement solenoid coil with looped red wires and threaded base.
Hunter Replacement Solenoid Coil 24V AC (NC) VVACHAC24
$29.12 /each
Hunter wired solenoid with red and black leads
Hunter Replacement Solenoid Coil DC Latching VVACHDC24
$41.90 /each
Richdel Irritrol black replacement solenoid coil with two red wires, angled view.
Richdel (Irritrol) Replacement Solenoid Coil 24V AC (NC) VVACRAC24
$20.87 /each
Toro Irritrol DC latching solenoid coil with bundled red and black wires, angled view.
Toro Richdel (Irritrol) Replacement Solenoid Coil DC Latching VVACIDC14
$34.67 /each
Bermad replacement solenoid coil with red protective cap and bundled black leads.
Bermad Replacement Solenoid Coil 24V AC (NC) VVACB24
$40.66 /each
Bermad replacement solenoid coil with red protective cap and bundled red and black leads.
Bermad Replacement Solenoid Coil 24V DC (NC) VVACBDC24
$40.66 /each
Bermad replacement solenoid coil with red leads and threaded base, side view.
Bermad Replacement Solenoid Coil 3-Way NO 24V AC VVACB3WAC24
$65.60 /each

This Bermad S-390 replacement suits compatible valves fitted with a two-way, normally closed 24V DC solenoid.

The solenoid remains powered while the valve is open. When the controller switches off the power, the valve closes.

Use a control system with a continuous 24V DC output suitable for the solenoid. This model does not use the opening and closing pulses supplied by DC-latching battery controllers.

Match the replacement to the part number on the existing solenoid. Replacing the solenoid allows a serviceable valve body to remain connected to the pipework.

✓ Manufacturer Part Number
S.390.2.24VDC.NC.2W

✓ Brand
Bermad

✓ Electrical Supply
24V DC.

✓ Operating Type
Normally closed, non-latching.

✓ Supply
Replacement solenoid; complete valve not included.

✓ Control Arrangement
Two-way S-390 solenoid actuator.

✓ Controller Compatibility
Requires a continuous 24V DC control output suitable for this solenoid. Non-latching.
