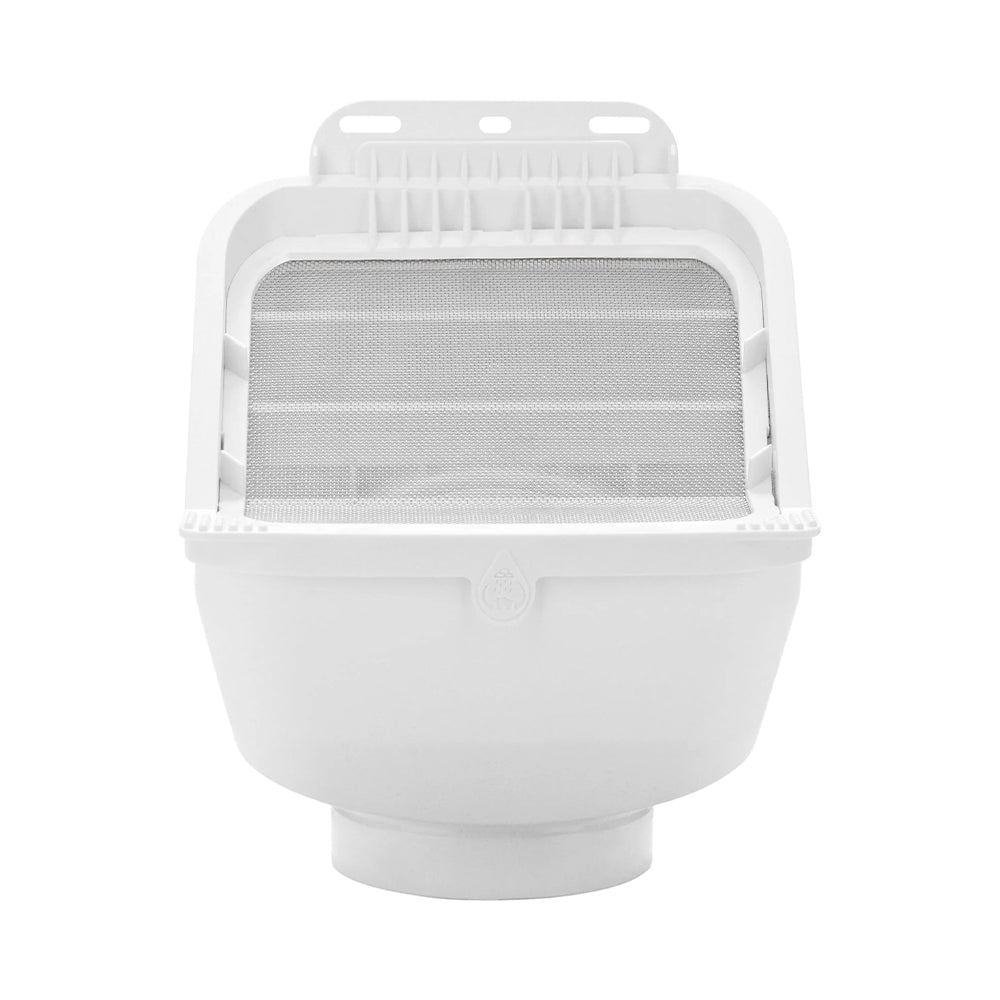

White Leaf Eater Advanced rain head with angled mesh screen and round outlet.
White Leaf Eater Advanced rain head with angled mesh screen and round outlet.
White Leaf Eater Advanced rain head with angled mesh screen and round outlet.

LEAF EATER ADVANCED 100MM

Leaf Eater Advanced 100mm is a compact rain head with a swivelling outlet for filtering leaves, debris and mosquitoes from roof water.

✓ Compact Rain Head Design
✓ Outlet Fits Inside Nominal 100mm PVC DWV Pipe
✓ Swivels for Vertical or Horizontal Pipework
✓ Clean Shield™ Screen with 0.955mm Stainless Steel Mesh
✓ Quick-Release Screen for Cleaning

Stormwater Pipe Dimensions
Leaf Eater Advanced Specifications
Leaf Eater Advanced Installation & Specifications
Stormwater PVC Jointing & Installation Guide

More Information
Product Specifications
White Leaf Eater Advanced rain head with angled mesh screen and round outlet.
LEAF EATER ADVANCED 100MM
White Leaf Beater rain head with wide sloping mesh screen.
Leaf Beater Original 90mm SWLBO90
$45.56 /each
White Leaf Eater Advanced rain head with angled mesh screen and round outlet.
Leaf Eater Advanced 90mm SWLEA090
$62.43 /each
White Leaf Eater Advanced rain head with angled mesh screen and round outlet.
Leaf Eater Advanced 100mm SWLEA100
$62.43 /each
White Leaf Eater Ultra rain head with enclosed body and round pipe connections.
Leaf Eater Ultra 90mm SWLEUL090
$72.56 /each
White Leaf Eater Ultra rain head with enclosed body and round pipe connections.
Leaf Eater Ultra 100mm SWLEUL100
$72.56 /each
White slimline rain head leaf catcher with enclosed body and round pipe ends, angled view.
Rain Harvesting Slimline Rain Head Leaf Eater 90mm RHSRHLE090
$63.28 /each

Leaf Eater Advanced 100mm is a compact rain head that filters leaves, debris and mosquitoes from roof water before it enters nominal 100mm rainwater collection pipework.

Its angled Clean Shield™ screen allows leaves and larger debris to shed away while rainwater passes through the 0.955mm stainless steel mosquito-proof mesh into the outlet below.

The 100mm outlet is an in-pipe connection that fits inside nominal 100mm PVC DWV pipe. A swivelling base allows the outlet to be positioned for vertical or horizontal pipework, making the compact Advanced design useful where installation space around the downpipe is limited.

The Clean Shield™ screen is designed to be mostly self-cleaning and can be lifted out using the quick-release tabs for brushing or hosing when required.

Stormwater Pipe Dimensions
Leaf Eater Advanced Specifications
Leaf Eater Advanced Installation & Specifications
Stormwater PVC Jointing & Installation Guide

✓ Product Type & Size
Leaf Eater Advanced 100mm Rain Head – RHAD02.

✓ Function & Design
Compact rain head that filters leaves, larger debris and mosquitoes using a Clean Shield™ leaf-shedding screen with 0.955mm stainless steel mosquito-proof mesh.

✓ Outlet & Installation
The 100mm in-pipe outlet fits inside nominal 100mm PVC DWV pipe and swivels to suit vertical or horizontal pipework.

✓ Maintenance
The Clean Shield™ screen is mostly self-cleaning and can be removed using the quick-release tabs for brushing or hosing when required.

✓ Dimensions
Approximately 242mm high x 194mm wide x 168mm deep.
