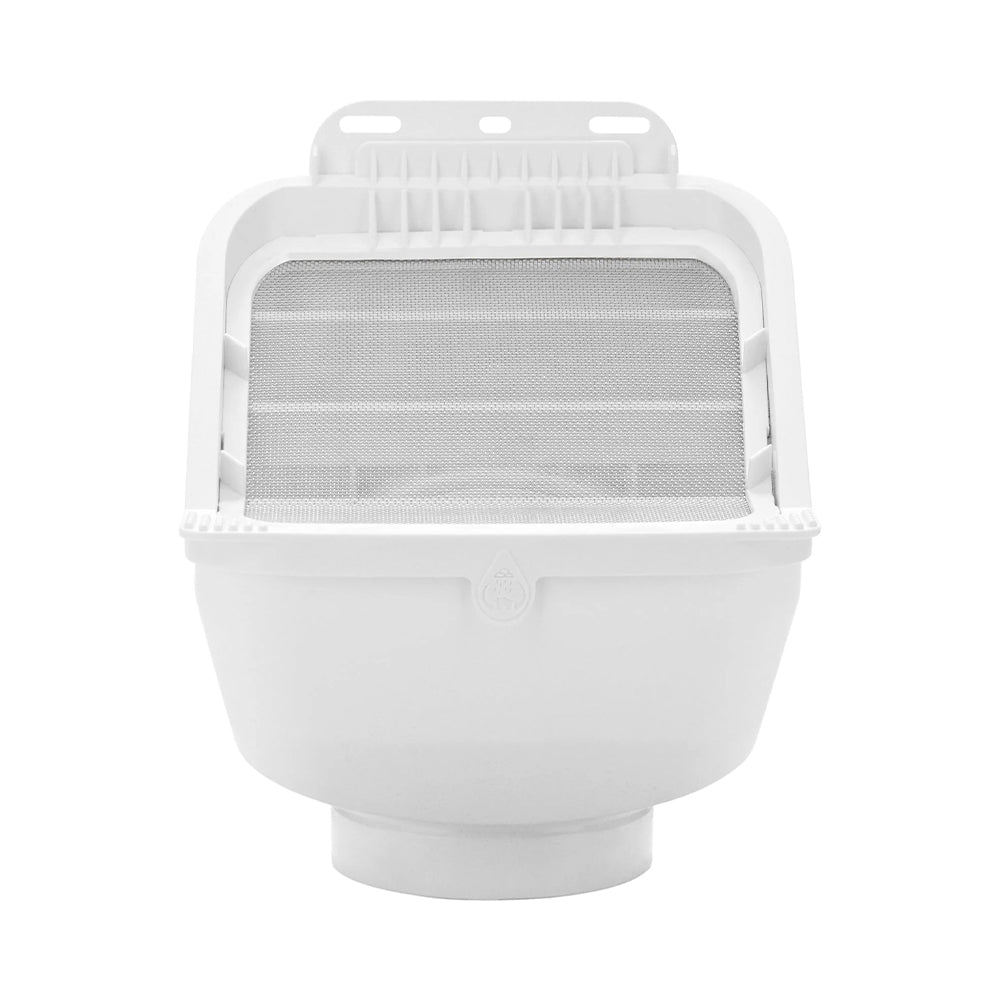

Leaf Eater Advanced 90mm is a compact rain head that filters leaves, debris and mosquitoes from roof water before it enters 90mm rainwater collection pipework.
Its angled Clean Shield™ screen allows leaves and larger debris to shed away while rainwater passes through the 0.955mm stainless steel mosquito-proof mesh into the outlet below.
The 90mm outlet is an in-pipe connection that fits inside matching 90mm PVC stormwater pipe. A swivelling base allows the outlet to be positioned for vertical or horizontal pipework, making the compact Advanced design useful where installation space around the downpipe is limited.
The Clean Shield™ screen is designed to be mostly self-cleaning and can be lifted out using the quick-release tabs for brushing or hosing when required.
