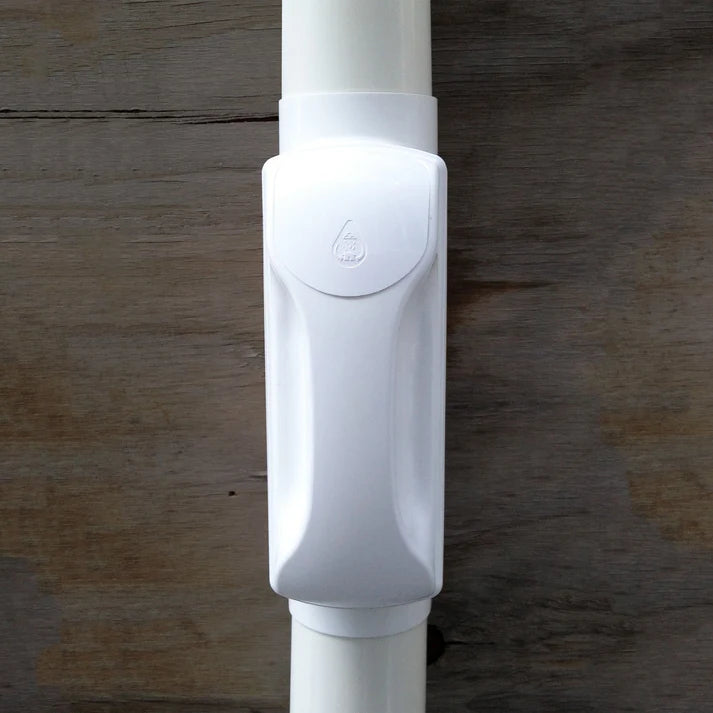

Rain Harvesting Slimline Rain Head Leaf Eater 90mm is an enclosed rain head designed to filter leaves, debris and mosquitoes from roof water where installation space around the downpipe is limited.
The Slimline captures leaves and debris inside a removable filter body. Rainwater passes through a 0.955mm stainless steel mosquito-proof screen before continuing into the downstream pipework.
The enclosed anti-splash design helps keep incoming rainwater within the rain head. A red overflow indicator becomes visible when accumulated leaves and debris are restricting the filter, providing a clear indication that cleaning is required.
The 90mm model has a female connection at both the top and bottom, with matching 90mm pipe fitting inside each connection. The removable filter body pulls away from the fixed rear body so accumulated leaves can be emptied and the screen brushed or hosed clean.
