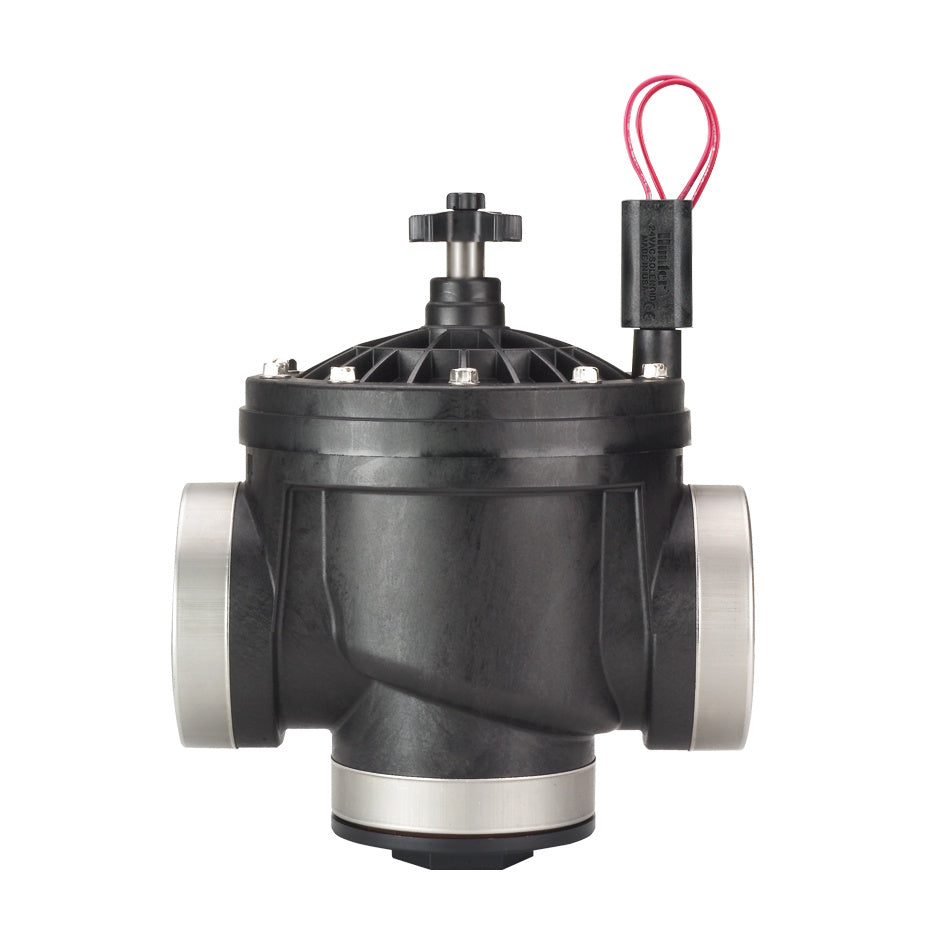

Hunter Solenoid Valve 80mm ICV Bolt Top with Flow Control
Hunter Solenoid Valve 80mm ICV Bolt Top with Flow Control

HUNTER IRRIGATION SOLENOID VALVES

The Hunter ICV combines a glass-filled nylon body with a reinforced diaphragm and a pressure rating up to 1500 kPa. Its flow-control handle adjusts water flow at the valve. Captive cover screws help prevent lost parts during servicing.

✓ Connections: 80mm BSP
✓ Power: 24V AC
✓ Flow Control: Adjustable water flow
✓ Flow Range: 0.4-1135 L/min
✓ Operating Pressure: 150-1500 kPa

Hunter PGV 25mm Specifications
Hunter PGV 40mm & 50mm Specifications
Hunter ICV 80mm Specifications
Hunter Valves Comparison Chart

More Information
Product Specifications
Product Videos
Hunter Solenoid Valve 80mm ICV Bolt Top with Flow Control
HUNTER IRRIGATION SOLENOID VALVES
Hunter Solenoid Valve 25mm PGV Square Bolt Top with Flow Control
Hunter Solenoid Valve 25mm PGV Square Bolt Top with Flow Control VVPGV025
$36.59 /each
Hunter Solenoid Valve 25mm PGV Jar Top with Flow Control
Hunter Solenoid Valve 25mm PGV Jar Top with Flow Control VVGL025
$36.35 /each
Hunter Solenoid Valve 25mm PGV Jar Top
Hunter Solenoid Valve 25mm PGV Jar Top VVGL025N
$34.33 /each
Hunter Solenoid Valve 40mm PGV Bolt Top with Flow Control
Hunter Solenoid Valve 40mm PGV Bolt Top with Flow Control VVGL040
$95.08 /each
Hunter Solenoid Valve 50mm PGV Bolt Top with Flow Control
Hunter Solenoid Valve 50mm PGV Bolt Top with Flow Control VVGL050
$115.29 /each
Hunter Solenoid Valve DC 25mm PGV Jar Top with Flow Control
Hunter Solenoid Valve DC 25mm PGV Jar Top with Flow Control VVGLD025
$72.23 /each
Hunter Solenoid Valve 80mm ICV Bolt Top with Flow Control
Hunter Solenoid Valve 80mm ICV Bolt Top with Flow Control VVGL080
$761.60 /each
Hunter Solenoid Valve 80mm ICV Bolt Top with Flow Control and Filter Sentry
Hunter Solenoid Valve 80mm ICV Bolt Top with Flow Control and Filter Sentry VVGL080FS
$855.50 /each

The Hunter ICV 80mm solenoid valve has a glass-filled nylon body and a fabric-reinforced EPDM diaphragm and seat. It operates at pressures up to 1500 kPa and includes flow control for adjustment at the valve.

The glass-filled nylon body and fabric-reinforced EPDM diaphragm and seat suit demanding irrigation installations.

To open the valve manually, turn the solenoid anticlockwise 1/4 to 1/2 turn. Turn it clockwise until hand-tight to return the valve to controller operation. This releases pressure above the diaphragm through an internal passage to the outlet, without discharging water into the valve box. The external bleed screw releases water and pressure from the chamber above the diaphragm to the outside of the valve. This allows the valve to open during servicing and troubleshooting. Keep the screw closed during normal controller operation.

Hunter PGV 25mm Specifications
Hunter PGV 40mm & 50mm Specifications
Hunter ICV 80mm Specifications
Hunter Valves Comparison Chart

✓ Product Type & Application
Hunter ICV 80mm Solenoid Valve with Flow Control.

✓ Size & Connections
80mm BSP inlet and outlet. Globe/angle configuration.

✓ Electrical Operation
24V AC. At 50 Hz: 370 mA inrush; 210 mA holding current.

✓ Pressure & Flow
Operating pressure: 150-1500 kPa.
Flow range: 0.4-1135 L/min.

✓ Flow Control & Manual Operation
Flow control: Adjusts water flow at the valve.
Manual solenoid operation: Turn anticlockwise 1/4 to 1/2 turn to open; turn clockwise until hand-tight to restore controller operation.
Internal bleed: Releases pressure above the diaphragm into the outlet pipe.
External bleed screw: Releases water and pressure outside the valve for servicing and troubleshooting. Keep closed during normal controller operation.

✓ Construction & Servicing
Glass-filled nylon body. Fabric-reinforced EPDM diaphragm and seat. Captive bonnet screws and solenoid plunger.

✓ Dimensions
Height: 270mm.
Length: 220mm.
Width: 190mm.
