Irritrol solenoid valves control water flow to irrigation zones. This range includes 25mm 2400 and 204/205 Series valves, along with 40mm and 50mm 200B Series valves. Select the model using its flow and pressure ratings, connections and servicing features.

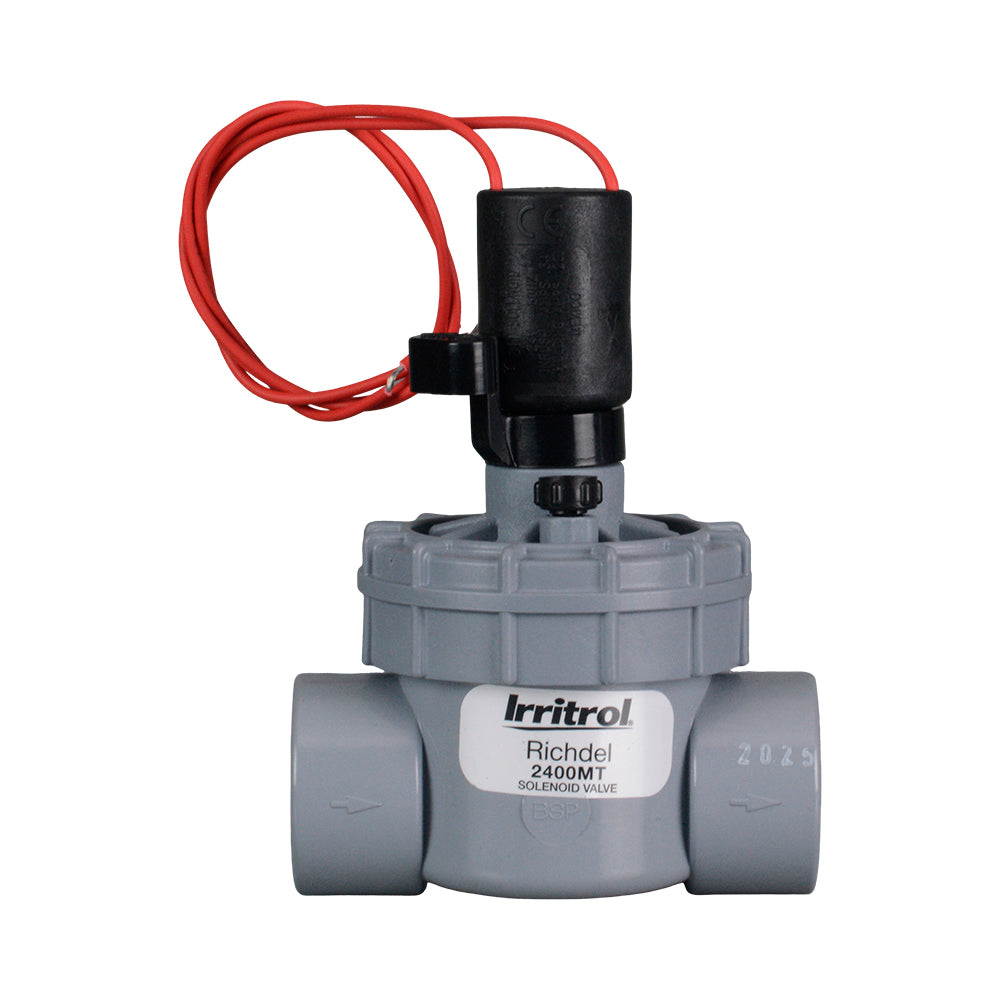

The 25mm 2400 Series jar top unscrews by hand to access the parts inside. On bolt-top models, remove the bolts securing the top to open the valve for servicing. The 204MT and 205MT use a bolt top and a debris-tolerant design for lightly contaminated water. Flow-control models let you adjust water flow at the valve.
The 40mm 216B-M and 50mm 217B-M have slow-closing action to help reduce water hammer. Both have PVC construction, a ribbed bonnet and stainless steel hardware.
The 2400 and 200B Series have internal manual bleed, which releases pressure above the diaphragm into the outlet pipe for local testing. The 204MT & 205MT, 2400 and 200B Series also have external bleed, which releases water outside the valve for servicing and troubleshooting. Close the manual controls after use; keep the external bleed closed during normal controller operation.
Irritrol (Richdel) 2400 Series Specifications
Irritrol (Richdel) 204MT & 205MT Specifications
Irritrol (Richdel) 200B Series 40mm & 50mm Specifications
